Toyota Dyna 150/Toyoace G15
1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan
Discontinued model
Data version 1999-05

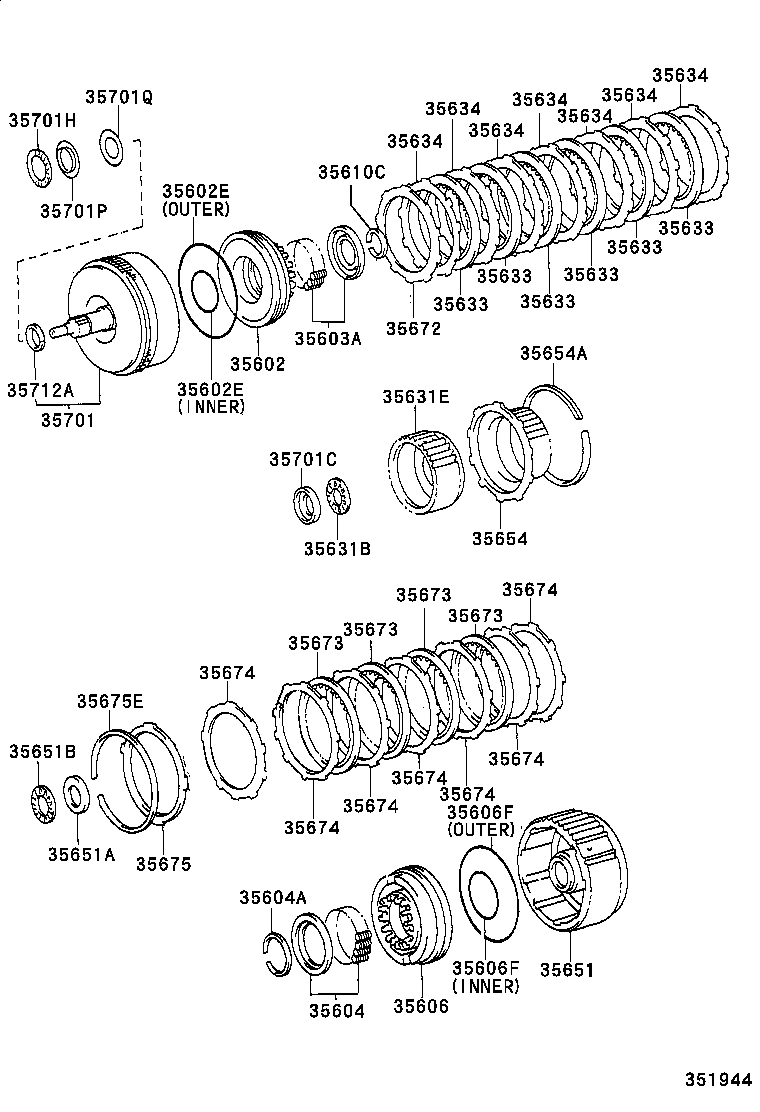

Brake Band & Multiple Disc Clutch (ATM)
43 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35601B | Ring, O (FOR FRONT CLUTCH DRUM) |
| 35602 | Piston Sub-assy, Front Clutch |
| 35602E | Ring, O (FOR FRONT CLUTCH PISTON) |
| 35603A | Spring Sub-assy, Forward Clutch Return |
| 35604 | Spring Sub-assy, Direct Clutch Return |
| 35604A | Ring, Shaft Snap (FOR DIRECT CLUTCH PISTON) |
| 35605 | Drum Sub-assy, Rear Clutch W/2ND Sun Gear |
| 35606 | Piston Sub-assy, Rear Clutch |
| 35606B | Ring (FOR REAR CLUTCH PISTON INNER) |
| 35606F | Ring, O (FOR REAR CLUTCH PISTON) |
| 35610C | Ring, Shaft Snap (FOR FRONT CLUTCH PISTON RETURN SPRING) |
| 35610D | Ring, Hole Snap (FOR FRONT MULTIPLE DISC CLUTCH) |
| 35613 | Ring, Clutch Piston Oil Seal, Outer |
| 35631 | Hub, Clutch(FOR MULTIPLE DISC CLUTCH) |
| 35631B | Bearing, Thrust(FOR FRONT CLUTCH HUB) |
| 35631C | Race, Thrust Bearing(FOR FRONT CLUTCH HUB FRONT) |
| 35631D | Race, Thrust Bearing(FOR FRONT CLUTCH HUB REAR) |
| 35631E | Hub, Front Clutch |
| 35633 | Disc, Clutch (FOR FRONT CLUTCH) |
| 35634 | Plate, Front Clutch |
| 35650A | Ring, Shaft Snap (FOR REAR CLUTCH PISTON RETURN SPRING) |
| 35650G | Ring, Shaft Snap (FOR REAR CLUTCH PISTON RETURN SPRING) |
| 35651 | Drum, Rear Clutch |
| 35651A | Race, Thrust Bearing (FOR REAR CLUTCH DRUM) |
| 35651B | Bearing, Thrust Needle Roller (FOR REAR CLUTCH DRUM) |
| 35652 | Piston, Rear Clutch, NO.2 |
| 35652A | Ring (FOR REAR CLUTCH OUTER) |
| 35652B | Ring (FOR REAR CLUTCH PISTON INNER) |
| 35653 | Ring, Rear Clutch Oil Seal, Outer |
| 35654 | Hub, Rear Clutch |
| 35654A | Ring, Hole Snap (FOR REAR CLUTCH HUB) |
| 35672 | Plate, Clutch Cushion |
| 35673 | Disc, Rear Clutch |
| 35674 | Plate, Rear Clutch |
| 35675 | Flange, Rear Clutch |
| 35675E | Ring, Hole Snap (FOR REAR CLUTCH FLANGE) |
| 35701 | Shaft Sub-assy, Input |
| 35701B | Bearing, Thrust Needle Roller (FOR INPUT SHAFT REAR) |
| 35701C | Race, Thrust Bearing (FOR INPUT SHAFT REAR) |
| 35701H | Bearing, Thrust Needle Roller (FOR INPUT SHAFT) |
| 35701P | Race, Thrust Bearing (FOR INPUT SHAFT) |
| 35701Q | Race, Thrust Bearing (FOR INPUT SHAFT FRONT) |
| 35712A | Ring, Input Shaft Oil Seal |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
