Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

213 part groups · 10 illustrations

Illustrations

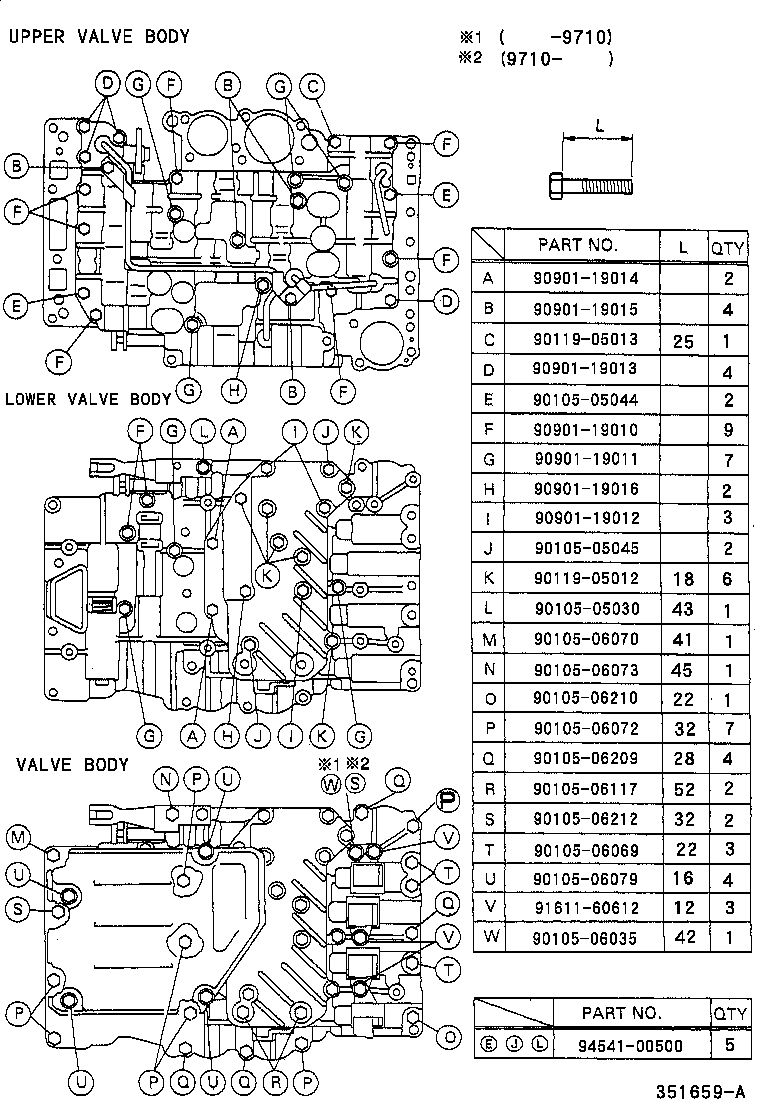

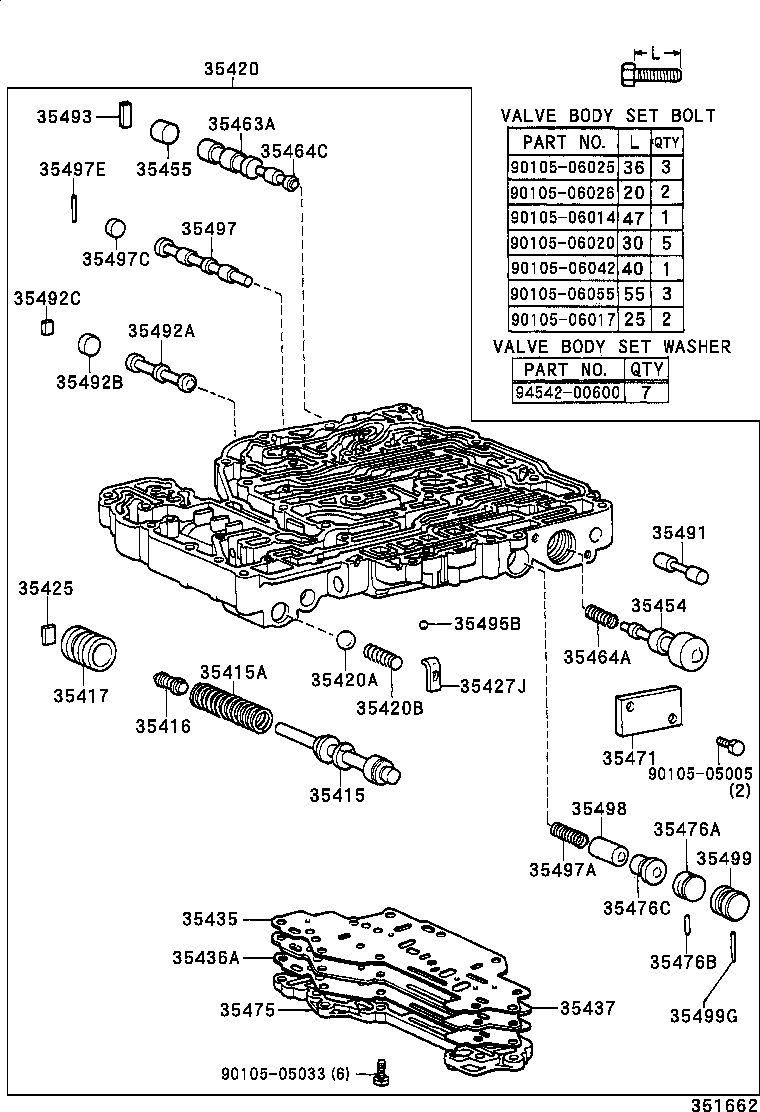

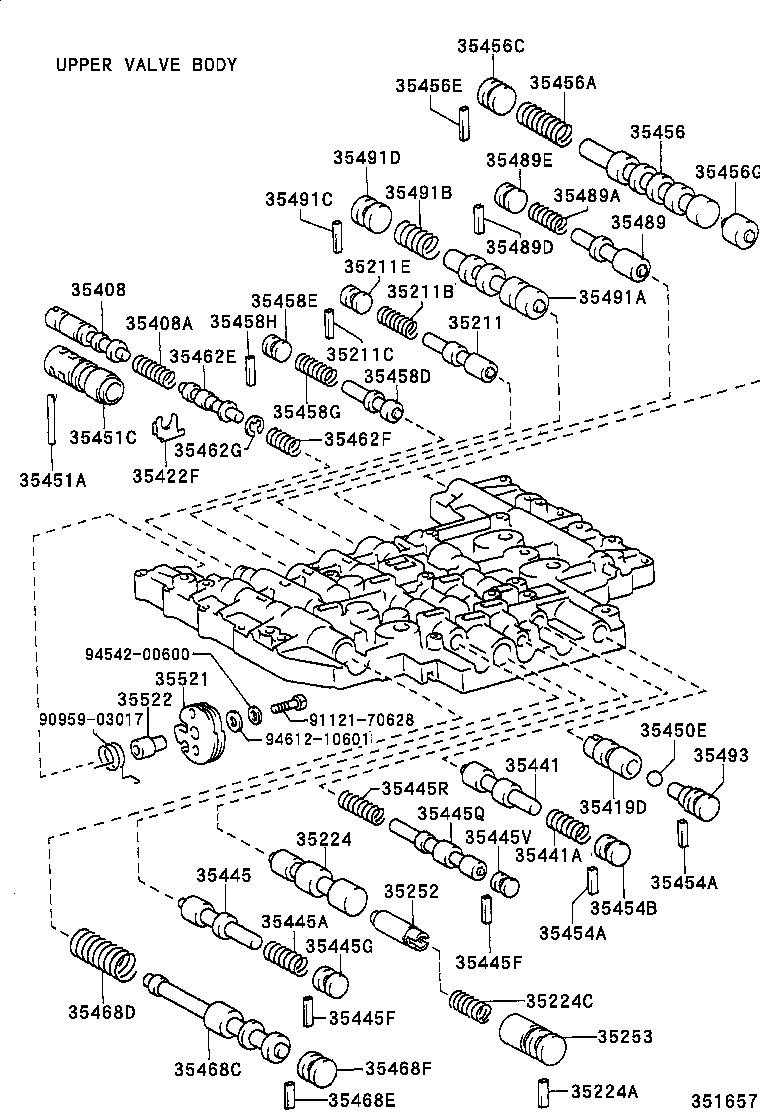

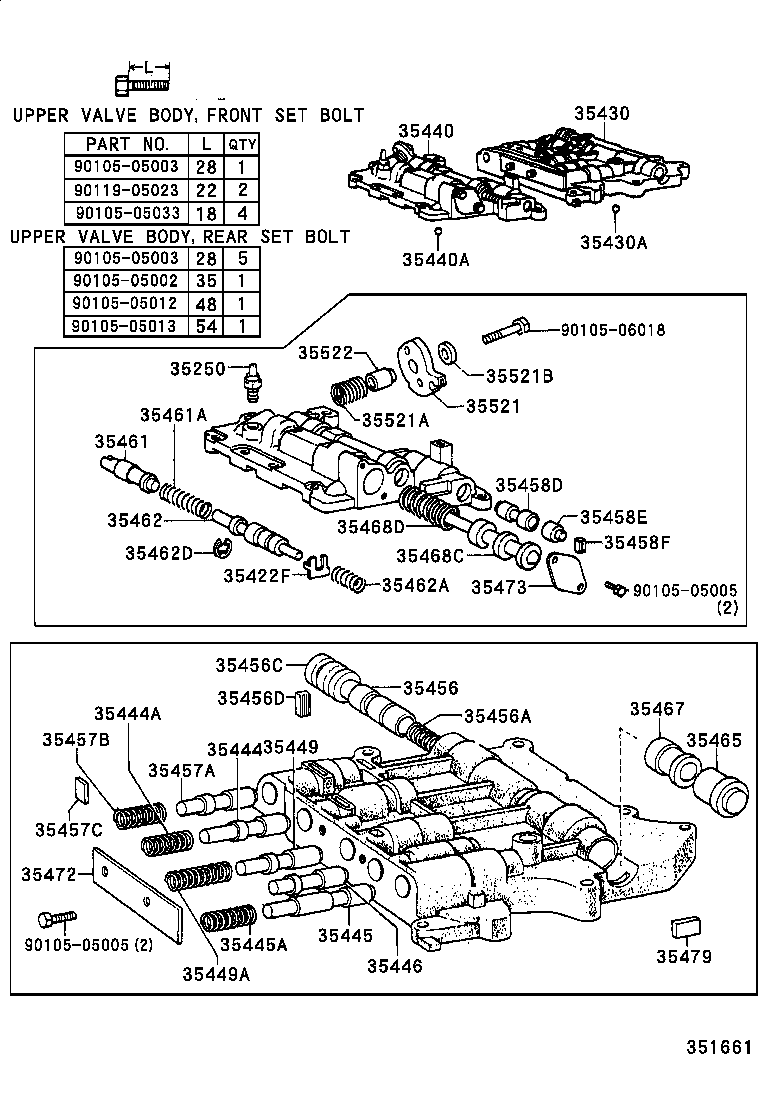

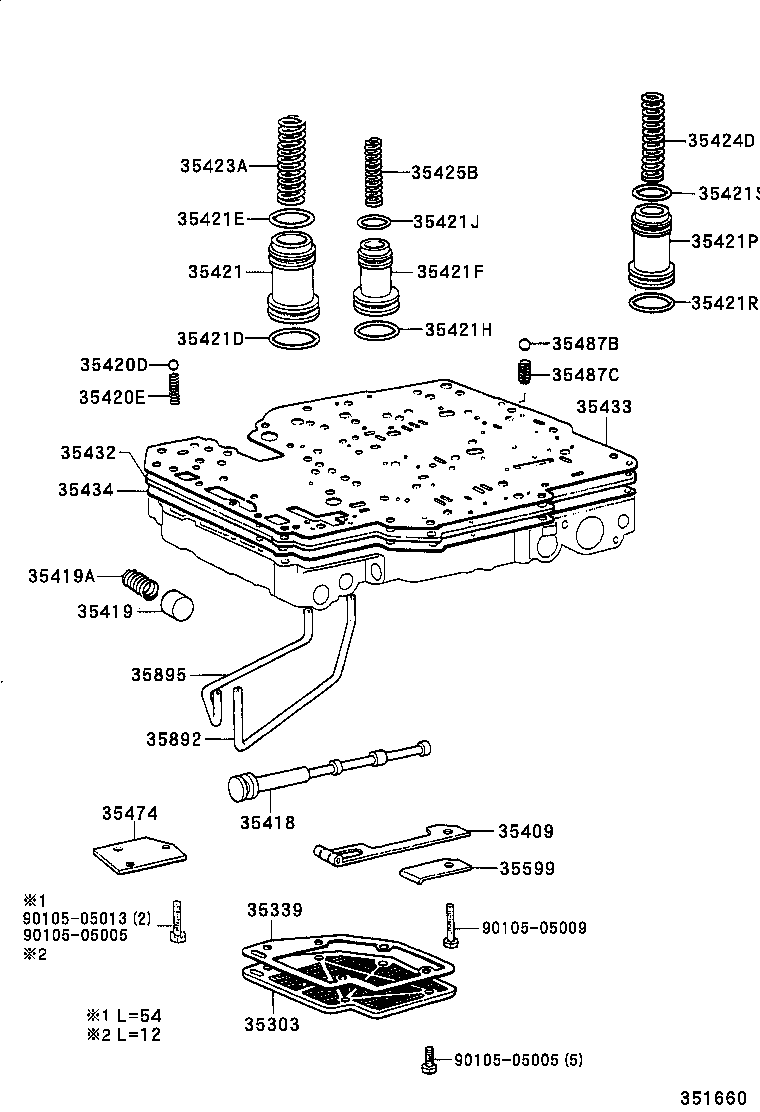

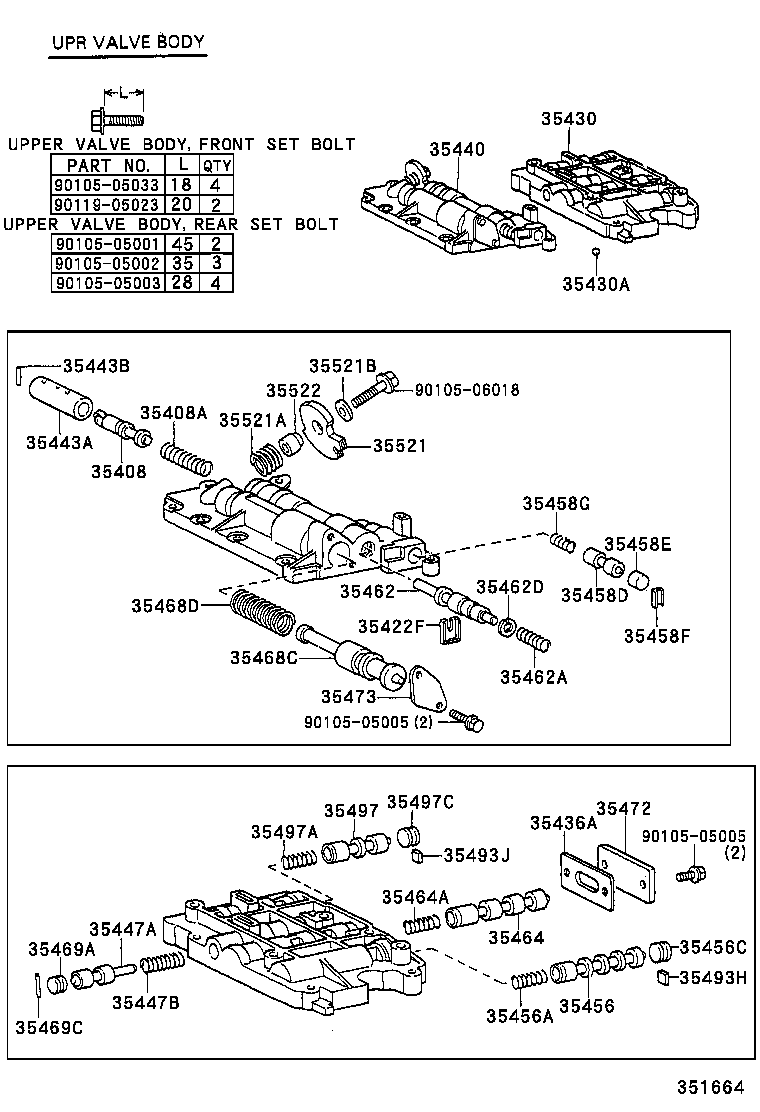

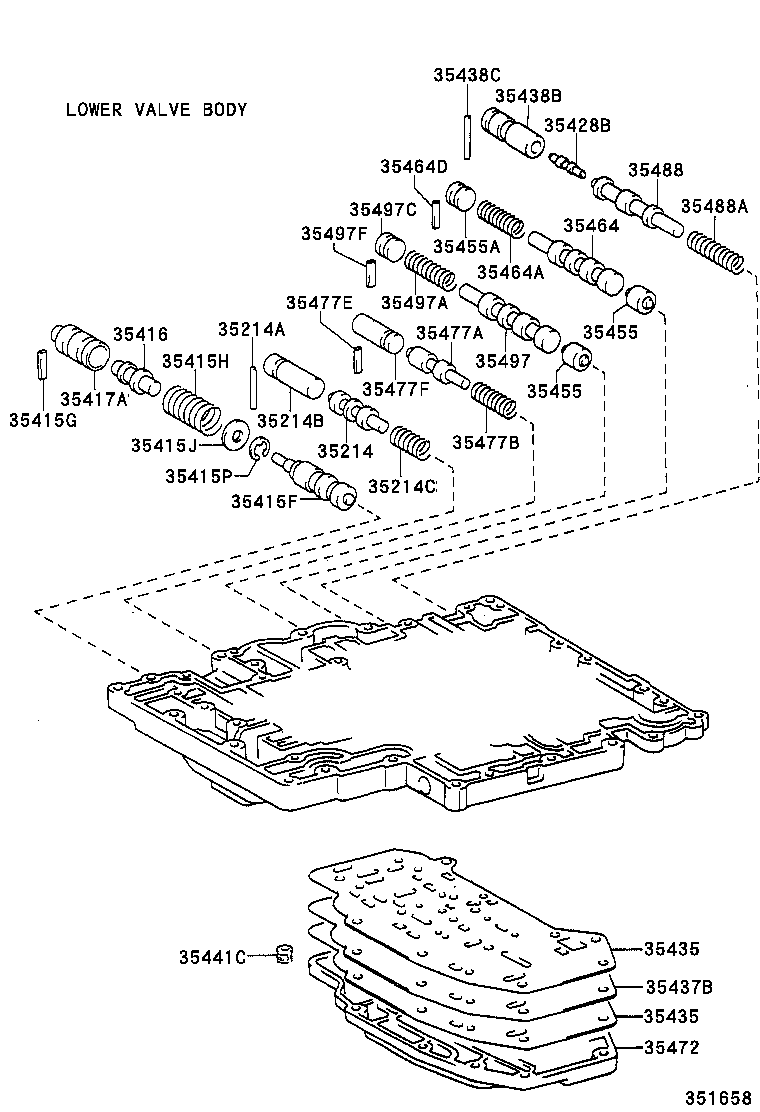

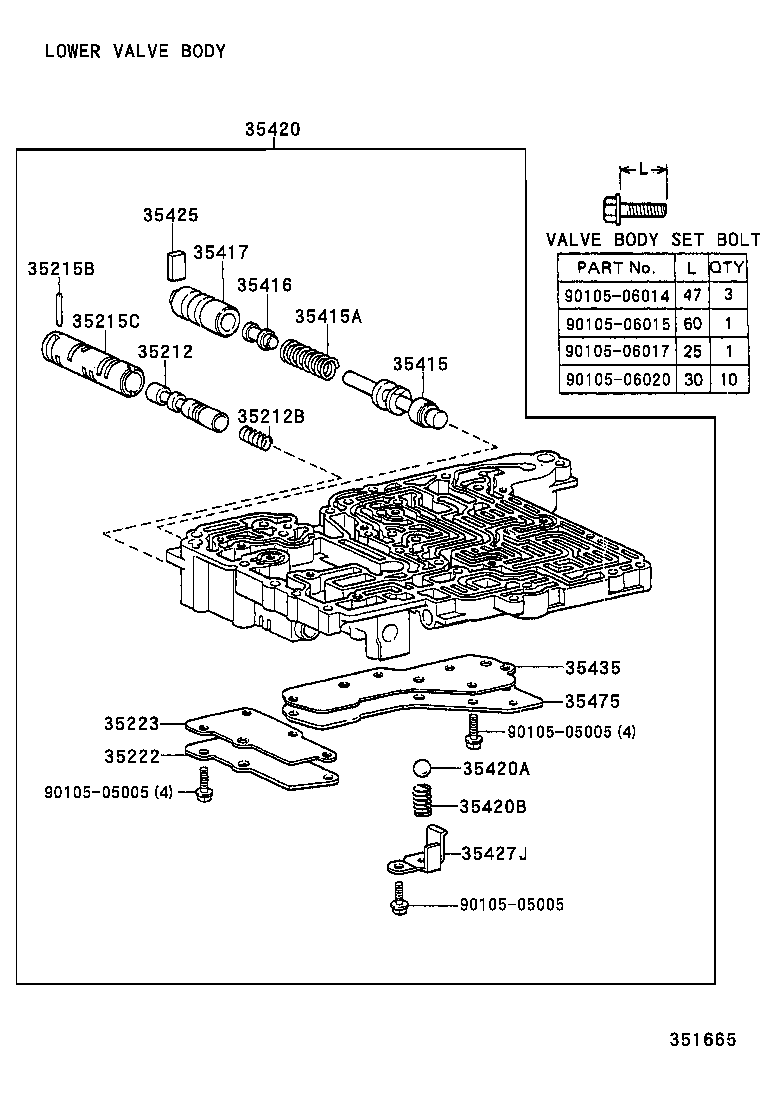

Figure 351274D 351274D 1995-05 → — Figure 351657 351657 1995-05 → — Figure 351658 351658 1995-05 → — Figure 351659A 351659A 1995-05 → — Figure 351660 351660 1995-05 → — Figure 351661 351661 1995-05 → — Figure 351662 351662 1995-05 → — Figure 351663 351663 1996-10 → — Figure 351664 351664 1996-10 → — Figure 351665 351665 1996-10 → —

Part groups

PNCDescription
32912A Cage, Check Valve(FOR VALVE BODY)
34421 Piston, Overdrive Brake Accumulator
34421A Ring, O (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
34421B Spring (FOR OVERDRIVE BRAKE ACCUMULATOR PISTON)
35112A Cover, Front Clutch Accumulator
35113 Gasket, Front Clutch Accumlator, NO.2
35114 Gasket, Front Clutch Accumlator, NO.1
35115 Plate, Front Clutch Accumulator
35151 Cover, Transmission Case, Lower
35153A Gasket, Transmission Case Lower Cover
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35211 Valve, Lock UP Signal
35211B Spring, Compression (FOR LOCK UP SIGNAL VALVE)
35211C Key, Straight (FOR LOCK UP SIGNAL VALVE)
35211E Plug (FOR LOCK UP SIGNAL VALVE)
35212 Valve, Lock UP Relay
35212B Spring, Compression (FOR LOCK UP RELAY VALVE)
35214 Valve, Lock UP Control
35214A Key, Straight (FOR LOCK UP CONTROL VALVE)
35214B Plug (FOR LOCK UP CONTROL VALVE)
35214C Spring, Compression (FOR LOCK UP CONTROL VALVE)
35215B Pin, Straight (FOR LOCK UP RELAY VALVE SLEEVE)
35215C Sleeve, Lock UP Relay Valve, NO.1
35222 Plate, Lock UP Relay Valve Body
35223 Gasket, Lock UP Relay Valve Body
35224 Valve, Reverse Control
35224A Key, Straight (FOR REVERSE CONTROL VALVE)
35224C Spring, Compression (FOR REVERSE CONTROL VALVE)
35250 Body Assy, Check Ball
35252 Plunger, Reverse Control Valve
35253 Sleeve, Reverse Control Valve Plunger
35303 Strainer Sub-assy, Oil
35330 Strainer Assy, Valve Body Oil
35339 Gasket, Oil Strainer
35396 Strainer, Throttle Oil
35408 Plug Sub-assy, Primary Down Shift
35408A Spring, Compression (FOR PRIMARY DOWN SHIFT PLUG)
35409 Spring Sub-assy, Manual Detent
35410 Body Assy, Transmission Valve
35415 Valve, Pressure Regulator
35415A Spring, Compression (FOR PRESSURE REGULATOR VALVE)
35415F Valve, Primary Regulator
35415G Key, Straight (FOR PRIMARY REGULATOR VALVE)
35415H Spring, Compression (FOR PRIMARY REGULATOR VALVE)
35415J Washer (FOR PRIMARY REGULATOR VALVE)
35415P Ring, E (FOR PRIMARY REGULATOR VALVE)
35416 Plunger, Primary Regulator Valve, NO.1
35417 Sleeve, Pressure Regulator Valve
35417A Sleeve, Primary Regulator Valve
35418 Valve, Manual
35419 Valve, Check, NO.1
35419A Spring, Compression (FOR CHECK VALVE)
35419D Valve, Check, NO.2
35420 Body Assy, Lower Valve
35420A Ball (FOR PRESSURE RELIEF)
35420B Spring (FOR PRESSURE RELIEF)
35420D Ball (FOR LOWER VALVE BODY)
35420E Spring (FOR LOWER VALVE BODY)
35420F Ball, Check, NO.1
35420G Spring, Barrel Shaped
35421 Piston, Accumulator, NO.1
35421D Ring (FOR ACCUMULATOR PISTON NO.1)
35421E Ring (FOR ACCUMULATOR PISTON NO.1)
35421F Piston, Accumulator, NO.2
35421G Spring, Compression (FOR ACCUMULATOR PISTON NO.2)
35421H Ring (FOR ACCUMULATOR PISTON NO.2)
35421J Ring (FOR ACCUMULATOR PISTON NO.2)
35421P Piston, Accumulator, NO.3
35421R Ring (FOR ACCUMULATOR PISTON NO.3)
35421S Ring (FOR ACCUMULATOR PISTON NO.3)
35422F Stopper, Valve Vibrating
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425 Seat, Pressure Regulator Valve Sleeve
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35427J Seat, Check Valve Spring (FOR PRESSURE RELIEF)
35428B Plug, 2-3 Shift Timing Valve
35429 Tube, Line Pressure
35429A Tube, Line Pressure
35430 Body Assy, Rear Upper Valve
35430A Ball (FOR REAR UPPER VALVE BODY)
35432 Plate, Valve Body, NO.1
35433 Gasket, Valve Body, NO.1
35434 Gasket, Valve Body, NO.2
35435 Gasket, Valve Body Plate, NO.3
35436A Gasket, Valve Body Plate, NO.4
35437 Plate, 3-4 Shift Valve Separator
35437B Plate, Valve Body Cover
35438B Sleeve, 2-3 Shift Timing Valve Plug
35438C Pin, Straight (FOR 2-3 SHIFT TIMING VALVE PLUG SLEEVE)
35440 Body Assy, Front Upper Valve
35440A Ball (FOR FRONT UPPER VALVE BODY)
35441 Valve, Low Coast Shift Control
35441A Spring, Compression (FOR LOW COAST SHIFT CONTROL VALVE)
35441C Strainer, Solenoid Oil
35443A Sleeve, Down Shift Plug
35443B Pin (FOR DOWN SHIFT PLUG SLEEVE)
35444 Valve, Intermediate Modulator
35444A Spring, Compression (FOR INTERMEDIATE MODULATOR VALVE)
35445 Valve, Low Modulator
35445A Spring, Compression (FOR LOW MODULATOR VALVE)
35445F Key, Straight (FOR LOW MODULATOR VALVE)
35445G Plug (FOR LOW MODULATOR VALVE)
35445Q Valve, Low Coast Modulator
35445R Spring, Compression (FOR LOW COAST MODULATOR VALVE)
35445V Plug (FOR LOW COAST MODULATOR VALVE)
35446 Valve, Governor Modulator
35447A Valve, Reverse Clutch Sequence
35447B Spring, Compression (FOR REVERSE CLUTCH SEQUENCE VALVE)
35448 Tube, 2-3 Shift Valve Apply
35449 Valve, Sequence
35449A Spring, Compression (FOR SEQUENCE VALVE)
35450E Ball (FOR UPPER VALVE BODY)
35451A Pin, Straight (FOR THROTTLE VALVE SLEEVE)
35451C Sleeve, Throttle Valve, NO.1
35454 Valve, Low Coast Shift
35454A Key, Straight (FOR LOW COAST SHIFT VALVE)
35454B Plug (FOR LOW COAST SHIFT VALVE)
35455 Plug, 1-2 Shift Valve Low
35455A Plug (FOR 1-2 SHIFT VALVE LOW PLUG)
35456 Valve, 2-3 Shift
35456A Spring, Compression (FOR 2-3 SHIFT VALVE)
35456C Plug (FOR 2-3 SHIFT VALVE)
35456D Seat (FOR 2-3 SHIFT VALVE)
35456E Pin, Straight (FOR 2-3 SHIFT VALVE)
35456G Plug (FOR 2-3 SHIFT VALVE)
35457A Valve, Detent Regulator
35457B Spring, Compression (FOR DETENT REGULATOR VALVE)
35457C Seat (FOR DETENT REGULATOR VALVE)
35458D Valve, Cut Back
35458E Plug (FOR CUT BACK VALVE)
35458F Seat (FOR CUT BACK VALVE)
35458G Spring, Compression (FOR CUT BACK VALVE)
35458H Key, Straight (FOR CUT BACK VALVE)
35461 Plug, Down Shift
35461A Spring, Compression (FOR DOWN SHIFT PLUG)
35462 Valve, Throttle
35462A Spring, Compression (FOR THROTTLE VALVE)
35462D Ring, E (FOR THROTTLE VALVE)
35462E Valve, Primary Throttle
35462F Spring, Compression (FOR PRIMARY THROTTLE VALVE)
35462G Ring, E (FOR PRIMARY THROTTLE VALVE)
35463A Valve, 1-2 Shift, Lower
35464 Valve, 1-2 Shift
35464A Spring, Compression (FOR 1-2 SHIFT VALVE)
35464C Valve, 1-2 Shift, Upper
35464D Key, Straight (FOR 1-2 SHIFT VALVE)
35465 Plug, Intermediate Shift Valve
35467 Valve, Intermediate Shift
35468C Valve, Secondary Regulator
35468D Spring, Compression (FOR SECONDARY REGULATOR VALVE)
35468E Key, Straight (FOR SECONDARY REGULATOR VALVE)
35468F Plug (FOR SECONDARY REGULATOR VALVE)
35469A Plug, 3-2 Kick Down Orifice Control Valve
35469C Roller, Shift Valve Plug
35471 Cover, Valve Body, NO.1
35472 Cover, Valve Body, NO.2
35473 Cover, Transmission Valve Body
35474 Cover, Valve Body, NO.4
35475 Cover, Valve Body, NO.5
35476A Plug, Straight (FOR 3RD COAST SHIFT)
35476B Pin, Locating (FOR 3RD COAST SHIFT)
35476C Valve, 3RD Coast
35477A Valve, Overdrive Clutch Exhaust
35477B Spring, Compression (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477E Key, Straight (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35477F Plug (FOR OVERDRIVE CLUTCH EXHAUST VALVE)
35479 Seat, Intermediate Shift Valve
35487B Ball, Check, NO.4
35487C Spring, Compression (FOR CHECK BALL)
35488 Valve, 2-3 Shift Timing
35488A Spring, Compression (FOR 2-3 SHIFT TIMING VALVE)
35489 Valve, 3-2 Kick Down Orifice Control
35489A Spring (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489D Key, Straight (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35489E Plug (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE)
35491 Plug, Reverse Brake
35491A Valve, Accumulator Control, NO.1
35491B Spring, Compression (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491C Key, Straight (FOR ACCUMULATOR CONTROL VALVE NO.1)
35491D Plug (FOR ACCUMULATOR CONTROL VALVE NO.1)
35492A Valve, Manual Down Timing
35492B Plug (FOR MANUAL DOWN TIMING VALVE)
35492C Seat, Valve (FOR MANUAL DOWN TIMING VALVE)
35493 Seat, Shift Valve Spring
35493H Seat, Shift Valve Plug (FOR LOCK UP RELAY VALVE)
35493J Seat, Shift Valve Plug (FOR MANUAL DOWN TIMING VALVE)
35495B Ball, Check, NO.1
35497 Valve, 3-4 Shift
35497A Spring, Compression (FOR 3-4 SHIFT VALVE)
35497C Plug (FOR 3-4 SHIFT VALVE)
35497E Roller, Needle (FOR 3-4 SHIFT VALVE)
35497F Key, Straight (FOR 3-4 SHIFT VALVE)
35498 Valve, 3-4 Coast Shift
35499 Plug, 3-4 Shift Valve
35499G Pin, Straight (FOR 3-4 SHIFT VALVE)
35521 Cam, Throttle Valve
35521A Spring (FOR THROTTLE VALVE CAM RETURN)
35521B Washer (FOR THROTTLE VALVE CAM SET)
35522 Pin, Throttle Valve Cam
35599 Cover, Manual Detent Spring
35844A Tube, Accumulator Back Pressure, NO.1
35847 Tube, Transmission Lube Apply
35891 Tube, Overdrive Direct Clutch
35892 Tube, Overdrive Brake
35893 Gasket, Center Support Apply
35895 Tube, Front Clutch Apply
35897A Tube, 1ST & Reverse Brake, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
