Toyota Dyna 150/Toyoace G15
1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan
Discontinued model
Data version 1999-05

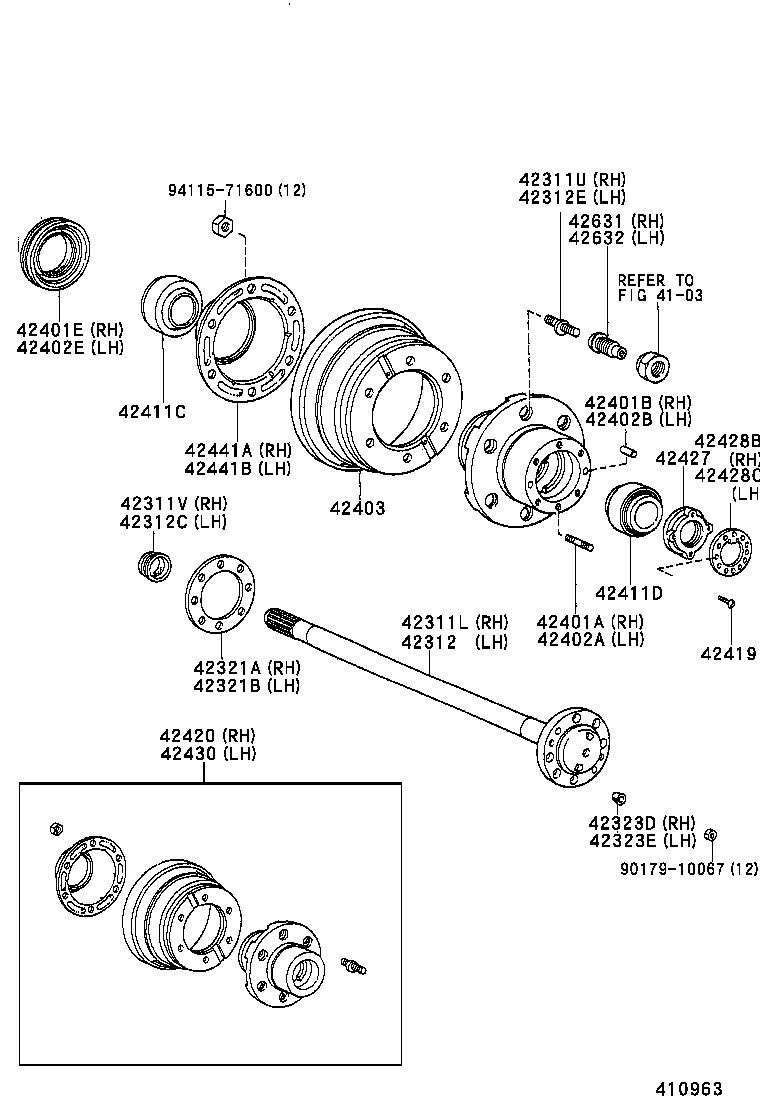

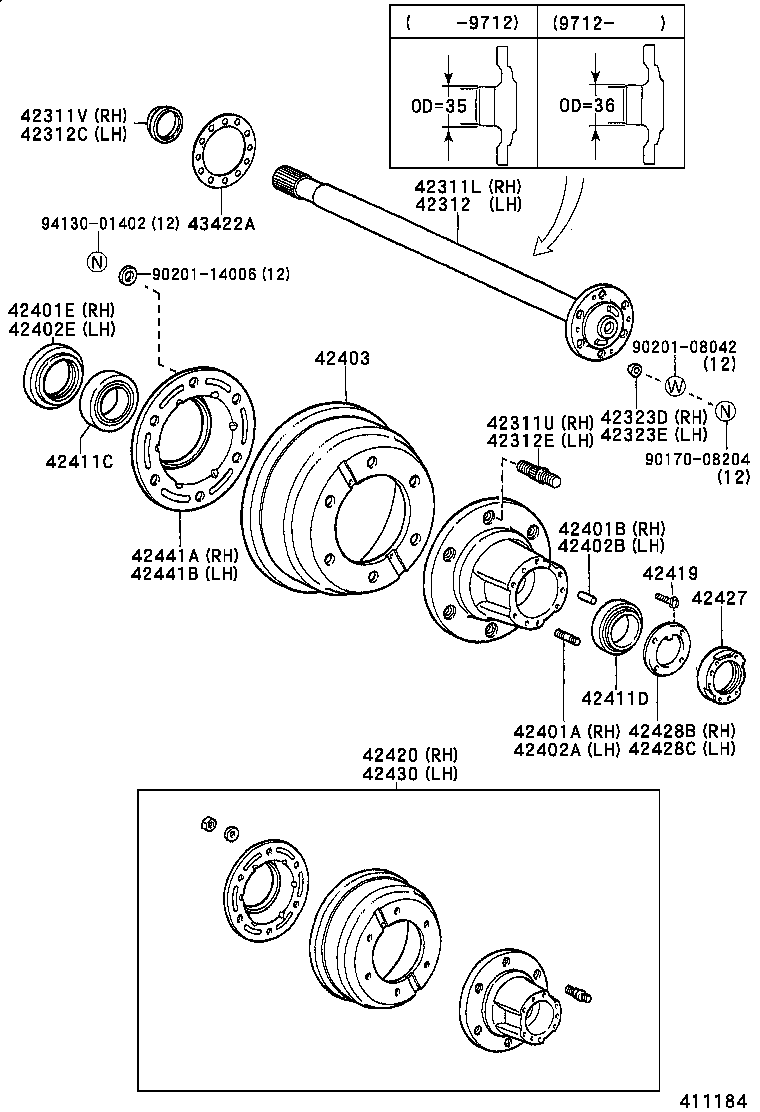

Rear Axle Shaft & Hub
44 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 42311A | Seal, Oil(FOR REAR AXLE SHAFT) |
| 42311C | Bearing(FOR REAR AXLE SHAFT) |
| 42311E | Seal, Oil(FOR REAR AXLE SHAFT OUTER) |
| 42311L | Shaft, Rear Axle, RH |
| 42311T | Ring, Snap(FOR REAR AXLE SHAFT RH) |
| 42311U | Bolt, Hub(FOR REAR AXLE RH) |
| 42311V | Seal, Oil(FOR REAR AXLE SHAFT RH) |
| 42312 | Shaft, Rear Axle, LH |
| 42312C | Seal, Oil(FOR REAR AXLE SHAFT LH) |
| 42312D | Ring, Snap(FOR REAR AXLE SHAFT LH) |
| 42312E | Bolt, Hub(FOR REAR AXLE LH) |
| 42321A | Gasket, Rear Axle Shaft, RH |
| 42321B | Gasket, Rear Axle Shaft, LH |
| 42323D | Washer, Cone (FOR REAR AXLE SHAFT RH) |
| 42323E | Washer, Cone (FOR REAR AXLE SHAFT LH) |
| 42325 | Lock, Rear Axle Shaft |
| 42401A | Bolt, Stud (FOR REAR AXLE HUB RH) |
| 42401B | Pin, Straight (FOR REAR AXLE HUB RH) |
| 42401E | Seal, Oil (FOR REAR AXLE HUB RH) |
| 42402A | Bolt, Stud (FOR REAR AXLE HUB LH) |
| 42402B | Pin, Straight (FOR REAR AXLE HUB LH) |
| 42402E | Seal, Oil (FOR REAR AXLE HUB LH) |
| 42403 | Drum Sub-assy, Rear Brake |
| 42403A | Piece, Balance (FOR REAR BRAKE DRUM) |
| 42411C | Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING) |
| 42411D | Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING) |
| 42419 | Screw, Rear Axle Bearing Lock Nut |
| 42420 | Hub (OR SHAFT) & Brake Drum Rear Axle, RH |
| 42421D | Case, Rear Axle Bearing, RH |
| 42422 | Case, Rear Axle Bearing, LH |
| 42423 | Retainer, Rear Axle Bearing, Inner |
| 42424A | Ring, O (FOR BEARING RETAINER SET) |
| 42427 | Nut, Rear Axle Bearing Lock |
| 42428B | Plate, Rear Axle Lock Nut, RH |
| 42428C | Plate, Rear Axle Lock Nut, LH |
| 42430 | Hub (OR SHAFT) & Brake Drum Rear Axle, LH |
| 42441 | Deflector, Brake Drum Oil |
| 42441A | Deflector, Brake Drum Oil RH |
| 42441B | Deflector, Brake Drum Oil LH |
| 42443 | Gasket, Brake Drum Oil Deflector |
| 42444R | Gasket, Brake Drum (FOR REAR AXLE) |
| 42631 | Bolt, Double Wheel Stop, RH |
| 42632 | Bolt, Double Wheel Stop, LH |
| 43422A | Gasket, Rear Axle Outer Shaft Flange |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
