Toyota Dyna 150/Toyoace G15
1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan
Discontinued model
Data version 1999-05

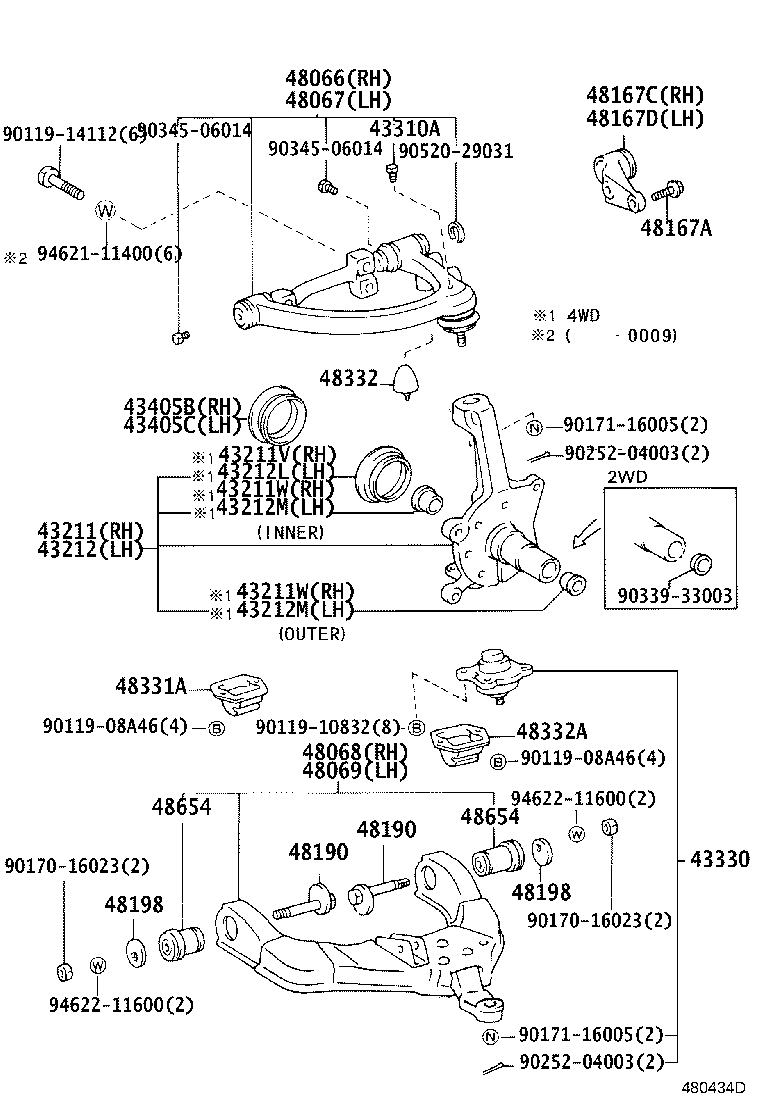

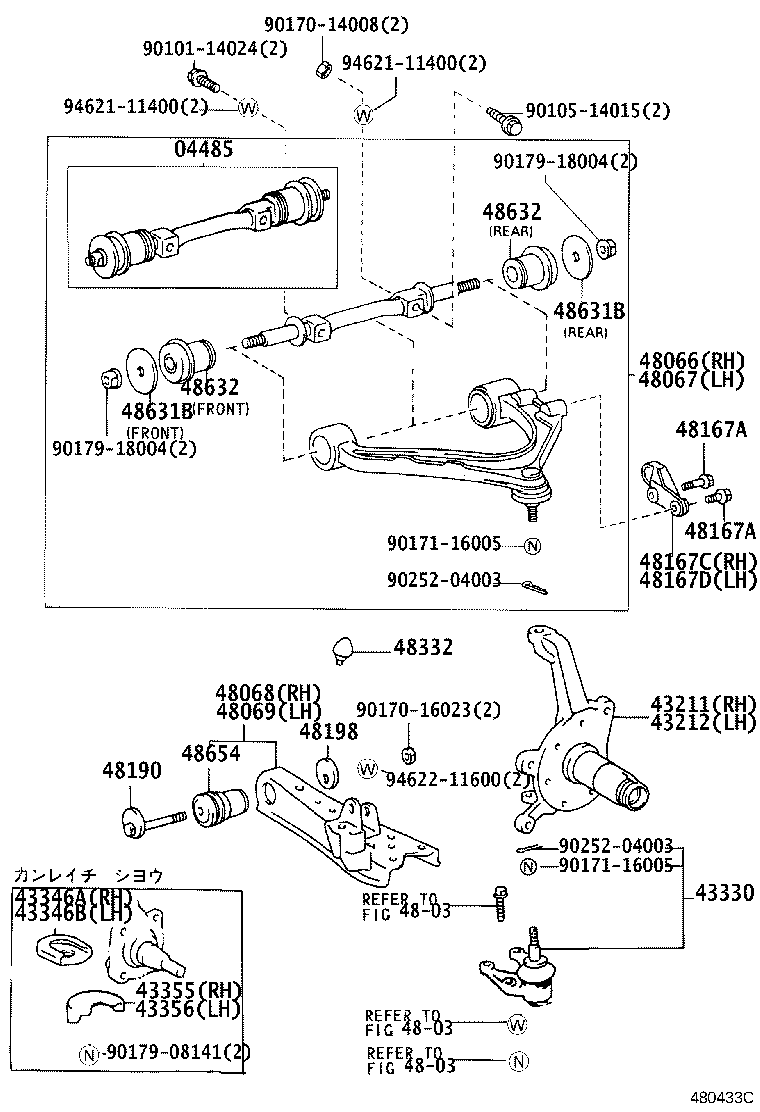

Front Axle Arm & Steering Knuckle
41 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04431 | Pin Kit, Steering Knuckle King |
| 04485 | Shaft Kit, Upper Suspension Arm |
| 43111 | I Beam, Front Axle |
| 43112 | Pin, King Pin Lock |
| 43132A | Bolt, Round Hexagon (FOR STEERING KNUCKLE STOPPER BOLT) |
| 43211 | Knuckle, Steering, RH |
| 43211D | Plug (FOR STEERING KNUCKLE) |
| 43211F | Plug, Bleeder (FOR STEERING KNUCKLE) |
| 43211V | Seal, Oil (FOR STEERING KNUCKLE RH) |
| 43211W | Bush (FOR STEERING KNUCKLE RH) |
| 43212 | Knuckle, Steering, LH |
| 43212L | Seal, Oil (FOR STEERING KNUCKLE LH) |
| 43212M | Bush (FOR STEERING KNUCKLE LH) |
| 43231A | Bush, Bimetal Formed (FOR STEERING KNUCKLE KING PIN BUSH) |
| 43231B | Seal, Dust OR Ring, O (FOR STEERING KNUCKLE KING PIN) |
| 43231C | Bearing (FOR STEERING KNUCKLE KING PIN) |
| 43231D | Shim (FOR KING PIN) |
| 43231E | Plug (FOR STEERING KNUCKLE) |
| 43310A | Plug (FOR BALL JOINT) |
| 43330 | Joint Assy, Lower Ball, Front |
| 43346A | Protector, Front Lower Ball Joint Dust Cover, RH |
| 43346B | Protector, Front Lower Ball Joint Dust Cover, LH |
| 43355 | Deflector, Lower Arm Ice, RH |
| 43356 | Deflector, Lower Arm Ice, LH |
| 43405B | Seal, Dust(FOR FRONT AXLE OUTER SHAFT RH) |
| 43405C | Seal, Dust(FOR FRONT AXLE OUTER SHAFT LH) |
| 48066 | Arm Sub-assy, Front Suspension, Upper RH |
| 48067 | Arm Sub-assy, Front Suspension, Upper LH |
| 48068 | Arm Sub-assy, Front Suspension, Lower NO.1 RH |
| 48069 | Arm Sub-assy, Front Suspension, Lower NO.1 LH |
| 48167A | Bolt(FOR TORQUE ARM SETTING) |
| 48167C | Arm, Front Suspension Torque, RH |
| 48167D | Arm, Front Suspension Torque, LH |
| 48190 | Cam Assy, Camber Adjust |
| 48198 | Cam, Camber Adjust, NO.2 |
| 48331A | Bumper, Front Spring, NO.1 |
| 48332 | Bumper, Front Spring, NO.2 |
| 48332A | Bumper, Front Spring, NO.3 |
| 48631B | Retainer, Cushion(FOR FRONT SUSPENSION UPPER ARM) |
| 48632 | Bush, Upper Arm |
| 48654 | Bush, Lower Arm |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
