Toyota Dyna 150/Toyoace G15
1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan
Discontinued model
Data version 1999-05

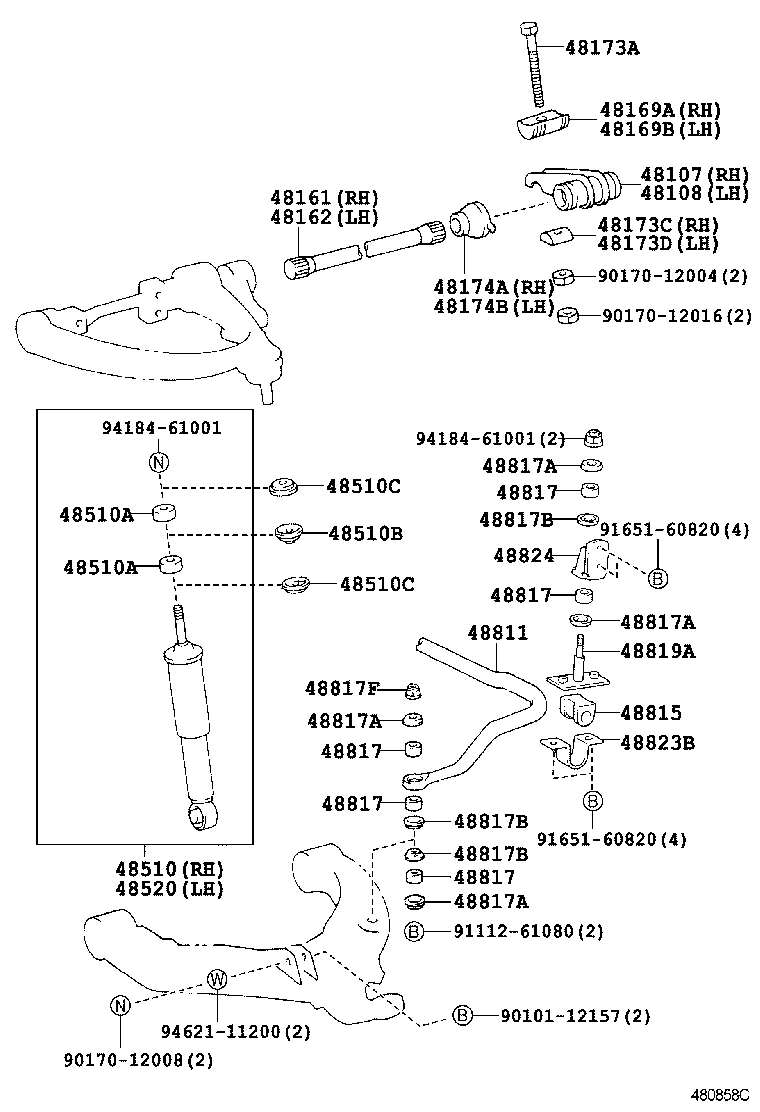

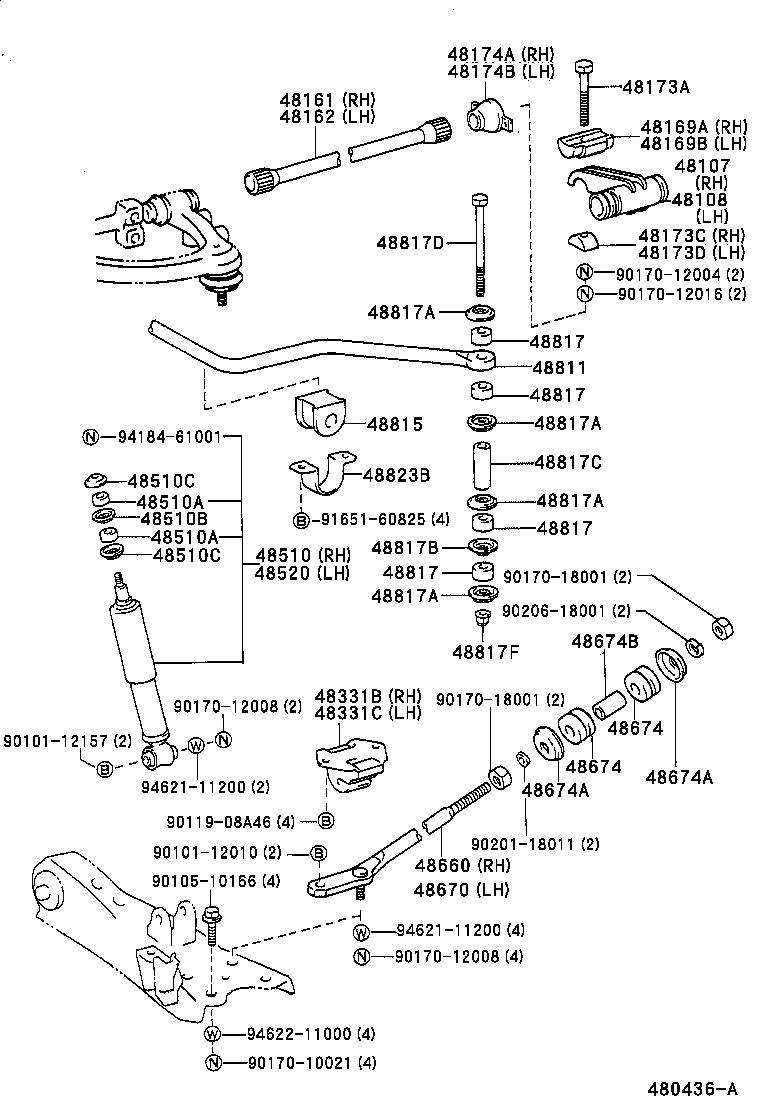

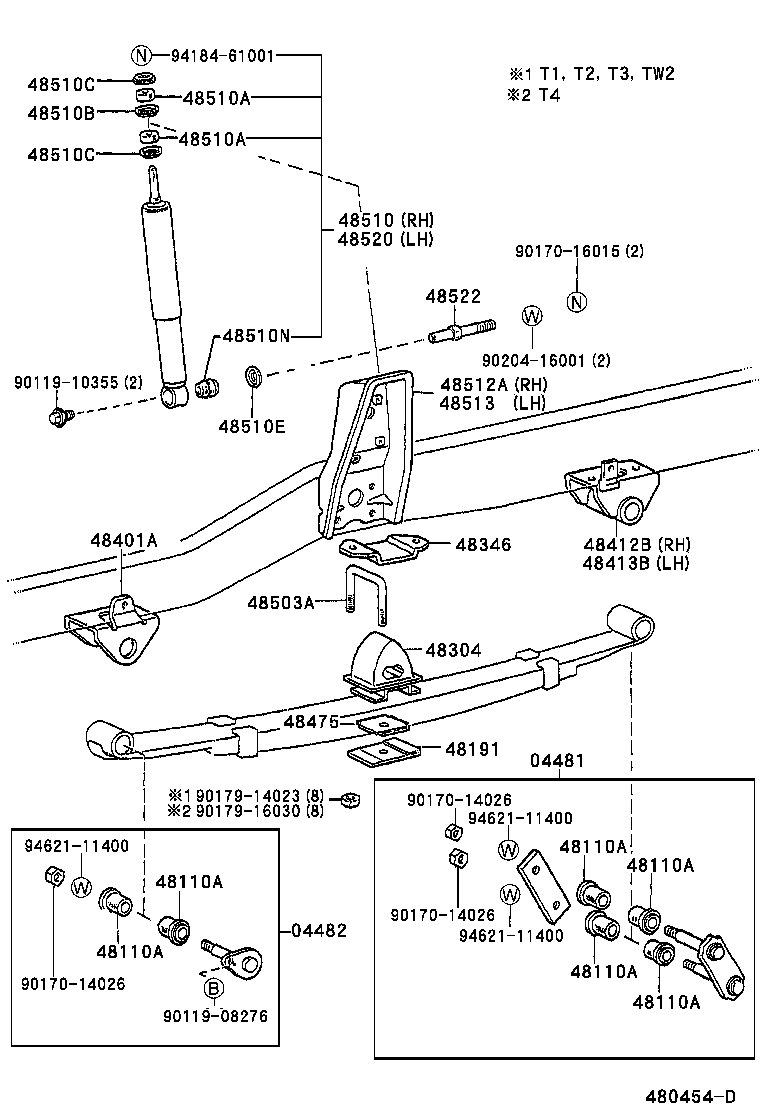

Front Spring & Shock Absorber
64 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|
| 04481 | Shackle Kit, Front Spring |
| 04482 | Pin Kit, Front Spring |
| 48107 | Arm Sub-assy, Anchor, RH |
| 48108 | Arm Sub-assy, Anchor, LH |
| 48110 | Spring Assy, Front, RH |
| 48110A | Bush(FOR FRONT SPRING SHACKLE) |
| 48111 | Leaf, Front Spring, NO.1 |
| 48112 | Leaf, Front Spring, NO.2 |
| 48113 | Leaf, Front Spring, NO.3 |
| 48114 | Leaf, Front Spring, NO.4 |
| 48115 | Leaf, Front Spring, NO.5 |
| 48120 | Spring Assy, Front, LH |
| 48147 | Bolt, Front Spring, Center |
| 48161 | Spring, Torsion Bar, RH |
| 48162 | Spring, Torsion Bar, LH |
| 48169A | Swivel, Anchor Arm, RH |
| 48169B | Swivel, Anchor Arm, LH |
| 48173A | Bolt, Hexagon(FOR ANCHOR ARM ADJUSTING) |
| 48173C | Seat, Anchor Arm Adjuster, RH |
| 48173D | Seat, Anchor Arm Adjuster, LH |
| 48174A | Cover, Torsion Bar Dust, RH |
| 48174B | Cover, Torsion Bar Dust, LH |
| 48191 | Wedge, Caster(FOR FRONT LEAF SPRING) |
| 48251B | Spacer(FOR FRONT SPRING) |
| 48253C | Spacer, Front Leaf Spring, NO.2 |
| 48304 | Bumper Sub-assy, Front Spring, NO.1 |
| 48331B | Bumper, Front Spring, RH |
| 48331C | Bumper, Front Spring, LH |
| 48346 | Stopper, Bumper, Front |
| 48401A | Bracket Sub-assy, Spring, NO.1 |
| 48412B | Bracket, Spring, NO.2 RH |
| 48413B | Bracket, Spring, NO.2 LH |
| 48475 | Plate, Distance(FOR FRONT) |
| 48503A | Bolt, U(FOR FRONT SHOCK ABSORBER BRACKET) |
| 48510 | Absorber Assy, Shock, Front RH |
| 48510A | Cushion, Front Shock Absorber |
| 48510B | Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER) |
| 48510C | Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER) |
| 48510E | Washer, Front Shock Absorber Cushion, NO.2 |
| 48510N | Bush(FOR FRONT SHOCK ABSORBER RH) |
| 48512A | Bracket, Front Shock Absorber, Upper RH |
| 48513 | Bracket, Front Shock Absorber, Upper LH |
| 48520 | Absorber Assy, Shock, Front LH |
| 48522 | Pin, Front Shock Absorber Lower Pivot |
| 48660 | Bar Assy, Strut, RH |
| 48670 | Bar Assy, Strut, LH |
| 48674 | Cushion, Strut Bar |
| 48674A | Retainer, Cushion(FOR STRUT BAR CUSHION) |
| 48674B | Collar(FOR STRUT BAR CUSHION) |
| 48811 | Bar, Stabilizer, Front |
| 48811A | Bush(FOR FRONT STABILIZER BAR) |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48817 | Cushion, Front Stabilizer |
| 48817A | Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR) |
| 48817B | Retainer, Cushion, NO.2(FOR FRONT STABILIZER BAR) |
| 48817C | Collar(FOR STABILIZER BAR) |
| 48817D | Bolt(FOR FRONT STABILIZER) |
| 48817E | Spacer(FOR STABILIZER BAR) |
| 48817F | Nut(FOR FRONT STABILIZER BAR) |
| 48819A | Bolt, Front Stabilizer |
| 48823 | Cover, Stabilizer Link(FOR FRONT) |
| 48823B | Cover, Front Stabilizer Bracket |
| 48824 | Bracket, Stabilizer, Front |
| 48825 | Bracket, Stabilizer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
