Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Spring & Shock Absorber

55 part groups · 33 illustrations

Illustrations

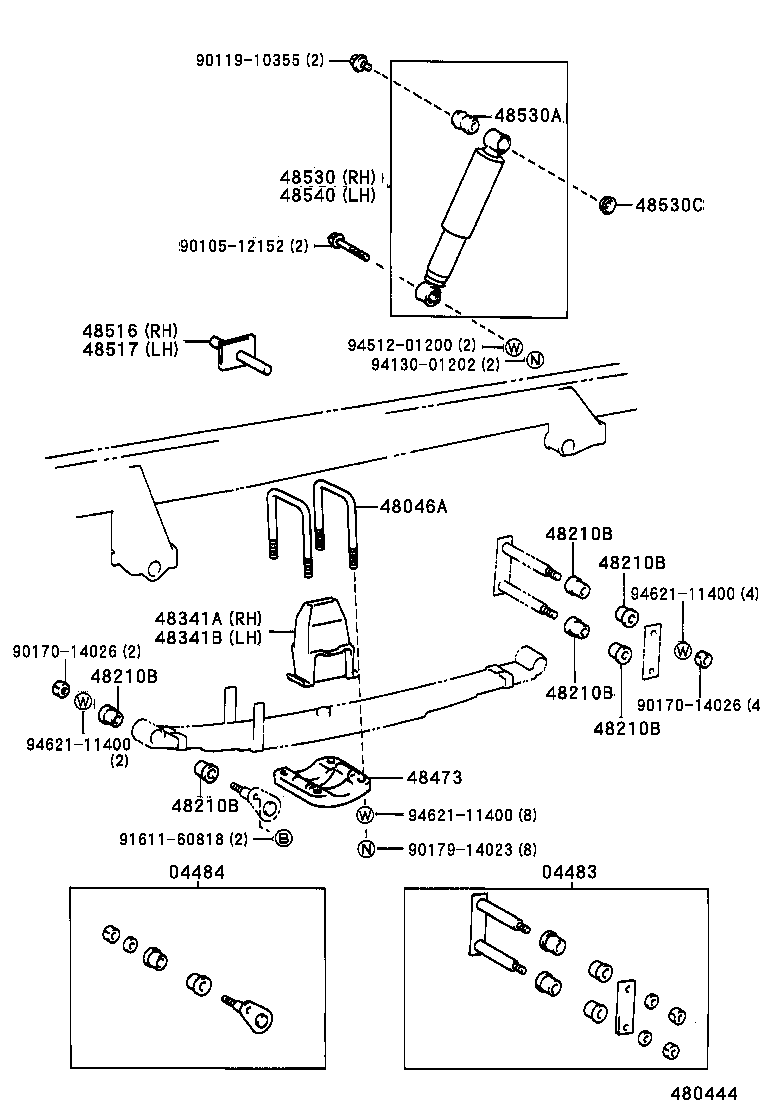

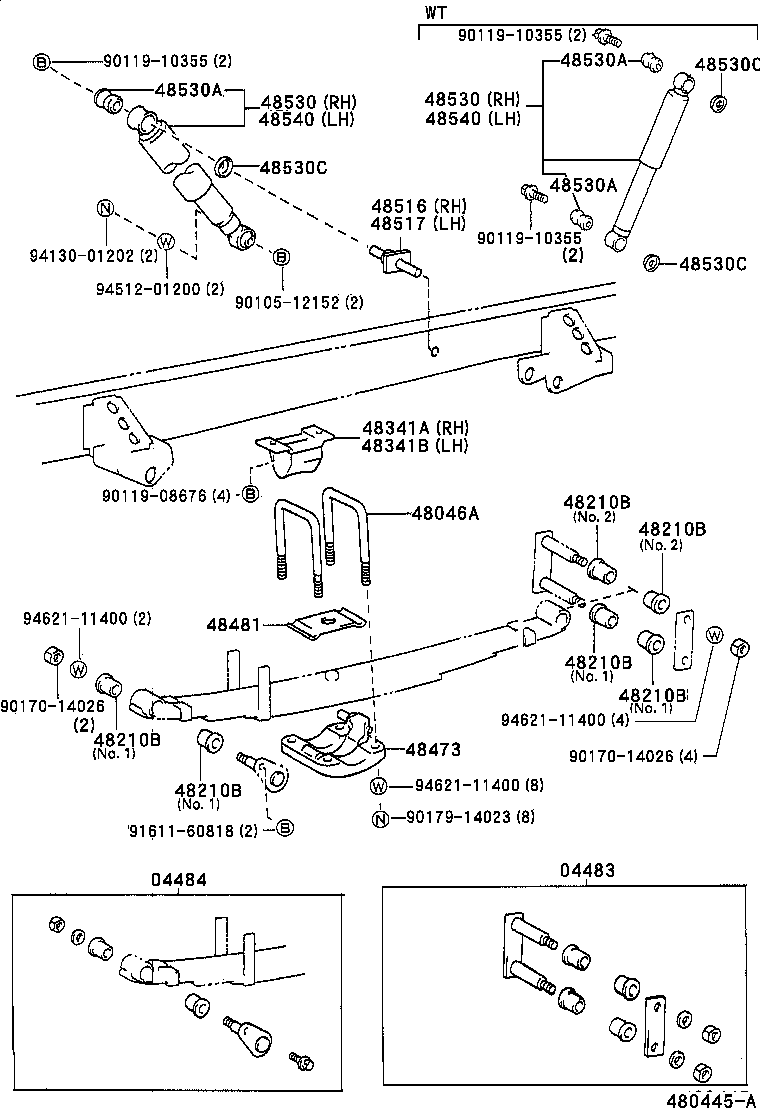

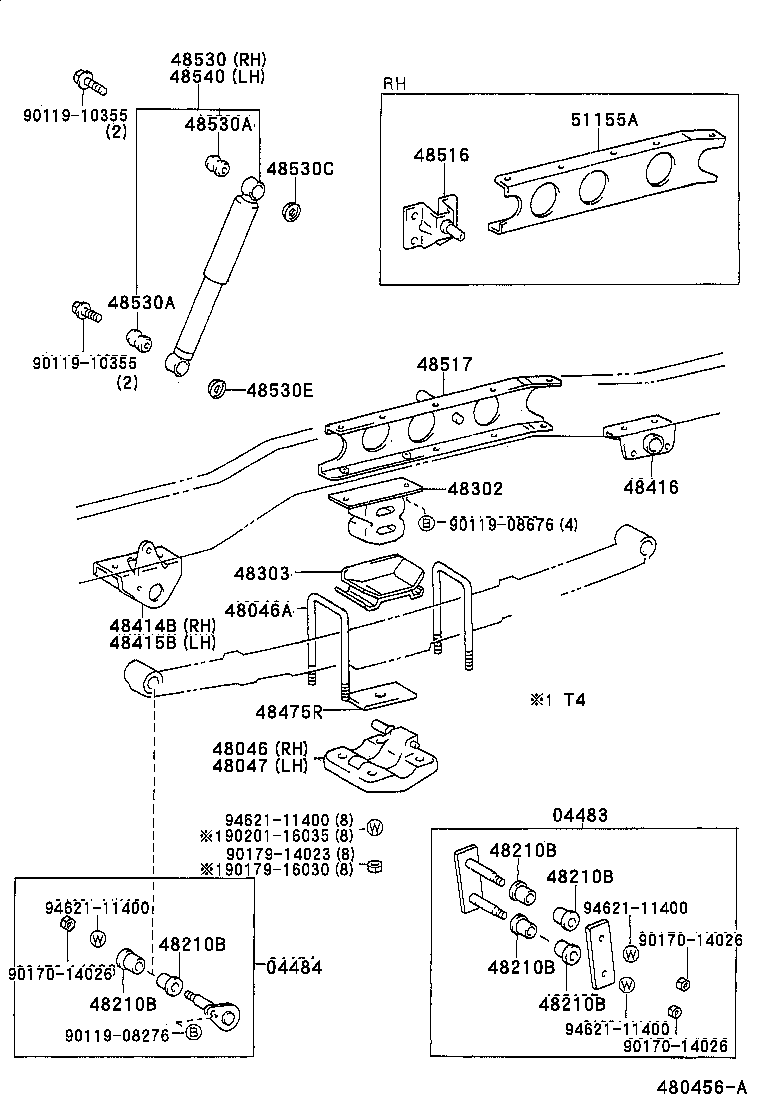

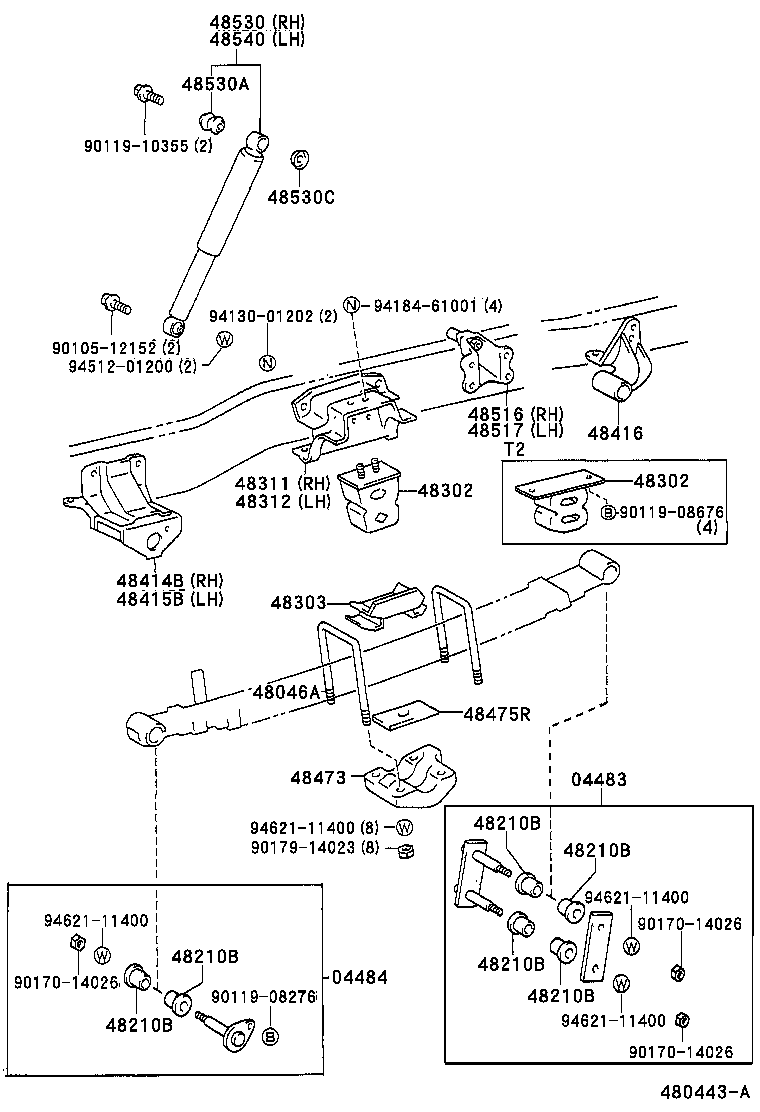

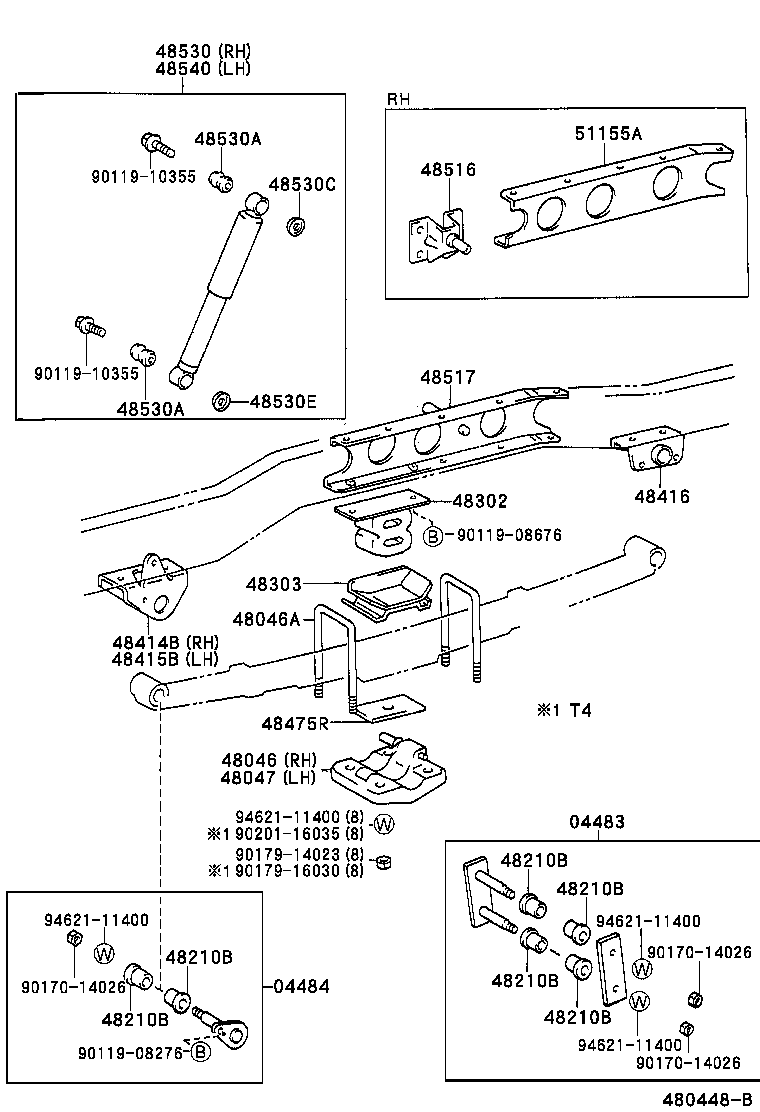

Figure 480447 480447 1995-05 → 1996-07 Figure 480448B 480448B 1995-05 → 1996-07 Figure 480443A 480443A 1996-07 → 1996-10 Figure 480443A 480443A 1996-10 → — Figure 480456A 480456A 1996-07 → — Figure 480444 480444 1996-10 → — Figure 480445A 480445A 1996-10 → — Figure 480738A 480738A 1998-05 → — Figure 480739A 480739A 1998-05 → — Figure 481242 481242 1995-05 → — Figure 481243 481243 1996-10 → — Figure 481244 481244 1996-10 → — Figure 481245 481245 1996-10 → — Figure 480909 480909 1995-05 → — Figure 481246 481246 1995-05 → — Figure 480910 480910 1995-05 → — Figure 481247 481247 1996-10 → — Figure 481248 481248 1996-10 → — Figure 481249 481249 1996-10 → — Figure 481250 481250 1996-10 → — Figure 481251 481251 1996-10 → — Figure 481252 481252 1996-10 → — Figure 480911A 480911A 1999-05 → — Figure 481253A 481253A 2000-08 → — Figure 481254A 481254A 2000-08 → — Figure 481365 481365 2000-08 → — Figure 480993A 480993A 1995-05 → — Figure 481255 481255 1996-10 → — Figure 481256 481256 1996-10 → — Figure 481257 481257 1995-05 → — Figure 480912 480912 1996-10 → — Figure 481258 481258 1996-10 → — Figure 480457 480457 1996-10 → —

Part groups

PNCDescription
04483 Shackle Kit, Rear Spring
04484 Pin Kit, Rear Spring
48046 Seat Sub-assy, Spring U Bolt, RH
48046A Bolt, U(FOR REAR SPRING)
48047 Seat Sub-assy, Spring U Bolt, LH
48210 Spring Assy, Rear RH
48210B Bush(FOR REAR SPRING PIN)
48210C Bush(FOR REAR SPRING LEAF)
48211 Leaf, Rear Spring, NO.1
48212 Leaf, Rear Spring, NO.2
48213 Leaf, Rear Spring, NO.3
48214 Leaf, Rear Spring, NO.4
48215 Leaf, Rear Spring, NO.5
48216 Leaf, Rear Spring, NO.6
48217 Leaf, Rear Spring, NO.7
48220 Spring Assy, Rear LH
48246 Case, Rear Spring Clip Bolt
48247 Bolt, Rear Spring, Center
48251 Spacer, Rear Spring Leaf
48252 Silencer, Rear Spring
48252A Spacer, Rear Spring, NO.2
48253 Spacer, Rear Spring, NO.1
48253D Spacer, Rear Spring, NO.3
48254 Spacer, Rear Spring Leaf
48255 Spacer, Rear Spring Leaf
48256 Bolt, Hexagon(FOR REAR SPRING CLIP SET)
48302 Spring Sub-assy, Hollow
48303 Seat Sub-assy, Hollow Spring
48311 Bracket, Hollow Spring
48312 Bracket, Hollow Spring, NO.2
48341A Bumper, Rear Spring, NO.1 RH
48341B Bumper, Rear Spring, NO.1 LH
48414B Bracket, Spring, NO.3 RH
48415B Bracket, Spring, NO.3 LH
48416 Bracket, Spring, NO.4
48473 Seat, Rear Spring U Bolt
48475R Plate, Distance(FOR REAR)
48481 Seat, Rear Spring, Upper
48516 Bracket, Rear Shock Absorber, Upper RH
48517 Bracket, Rear Shock Absorber, Upper LH
48530 Absorber Assy, Shock, Rear RH
48530A Bush(FOR REAR SHOCK ABSORBER)
48530C Washer, Rear Shock Absorber Cushion, NO.2
48530E Washer, Rear Shock Absorber Cushion, NO.4
48540 Absorber Assy, Shock, Rear LH
48802 Link Sub-assy, Stabilizer
48802D Bush, Stabilizer Link
48802E Spacer(FOR REAR STABILIZER BAR)
48805 Bar Sub-assy, Rear Stabilizer
48815R Bush, Stabilizer(FOR REAR)
48817R Cushion, Stabilizer(FOR REAR)
48817S Retainer, Cushion, NO.1(FOR STABILIZER REAR BAR)
48817U Bolt(FOR REAR STABILIZER)
48823R Cover, Stabilizer Link(FOR REAR)
51155A Stiffener, Frame Side Rail, Rear RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
