Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

10 part groups · 10 illustrations

Illustrations

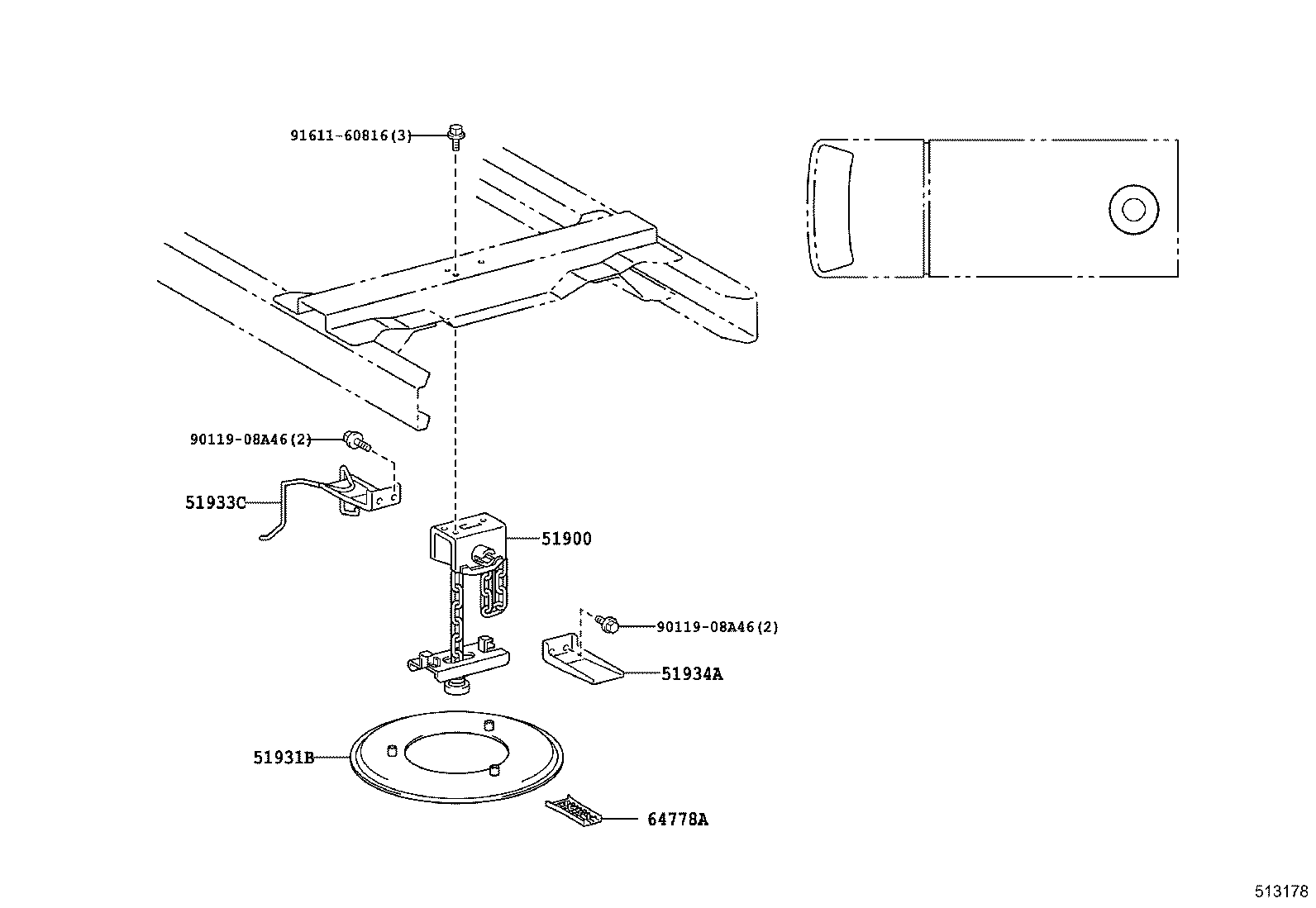

Figure 513175 513175 1995-05 → — Figure 513179 513179 1996-10 → — Figure 513180 513180 1996-10 → — Figure 510260I 510260I 1996-10 → — Figure 510259C 510259C 1995-05 → — Figure 513176 513176 1995-05 → — Figure 513178 513178 1995-05 → — Figure 513174 513174 1995-05 → — Figure 512802B 512802B 1996-10 → — Figure 513181 513181 1999-05 → —

Part groups

PNCDescription
51900 Carrier Assy, Spare Wheel
51908 Bracket Sub-assy, Spare Wheel Carrier
51931B Plate, Spare Wheel Carrier Base
51933C Stopper, Spare Wheel
51934A Stopper, Spare Wheel, NO.2
51937A Guide, Spare Wheel Support
51944 Bracket, Spare Wheel Carrier, NO.2
51947A Plate, Spare Wheel Carrier Hinge
51954 Carrier Assy, Spare Wheel
64778A Protector, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
