Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

9 part groups · 3 illustrations

Illustrations

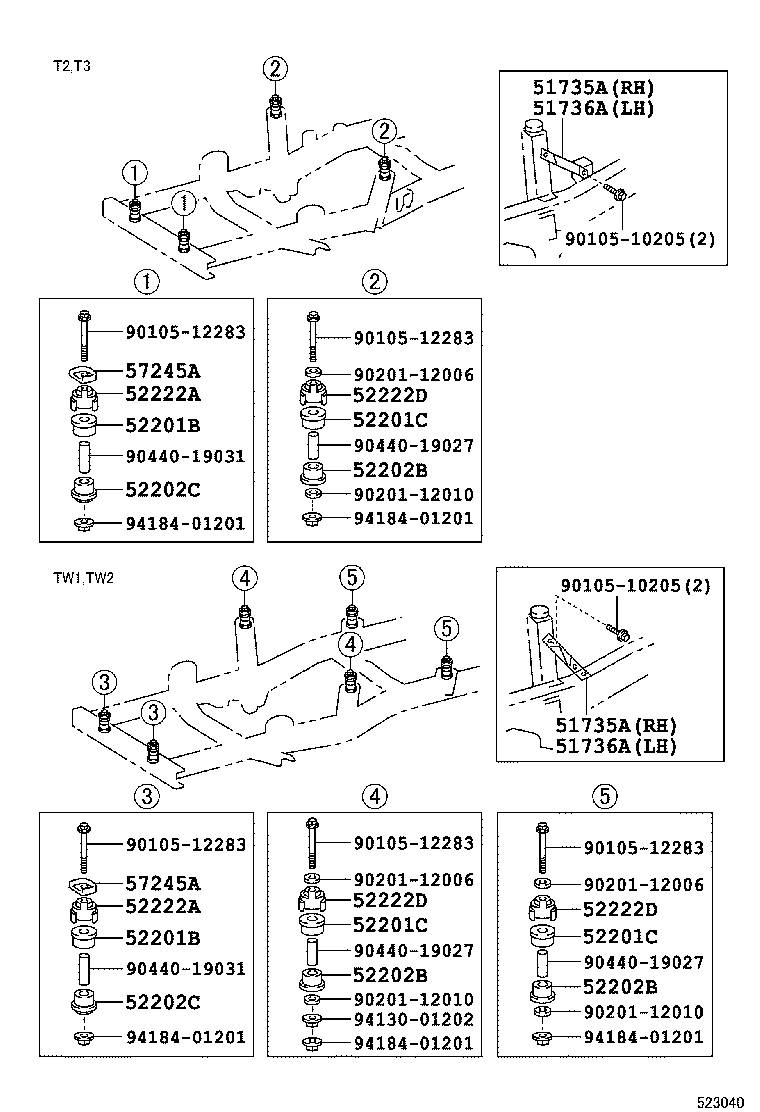

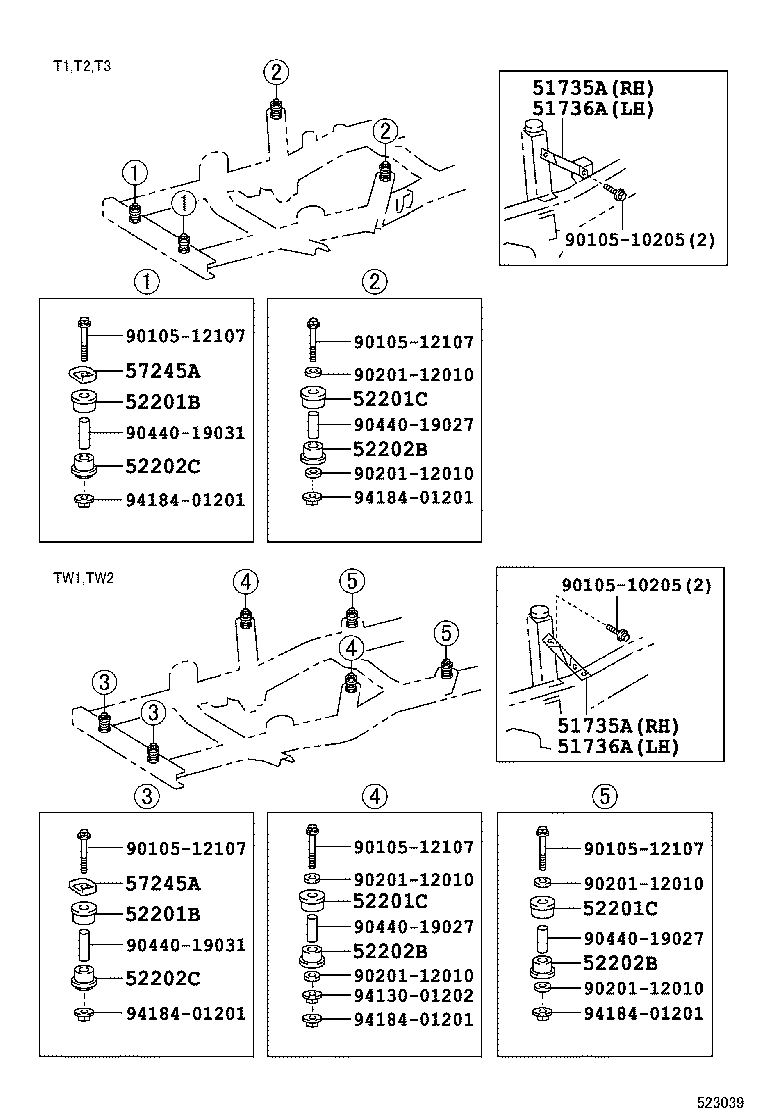

Figure 520287 520287 1995-05 → — Figure 523039 523039 1996-10 → — Figure 523040 523040 1996-10 → —

Part groups

PNCDescription
51735A Reinforcement, Cab Rear Mounting, RH
51736A Reinforcement, Cab Rear Mounting, LH
52201B Cushion Sub-assy, Cab Front Mounting
52201C Cushiion Sub-assy, Cab Mounting, NO.1 Upper
52202B Cushiion Sub-assy, Cab Mounting, NO.1 Lower
52202C Cushion Sub-assy, Cab Front Mounting, Lower
52222A Spacer, Cab Rear Mounting, Upper
52222D Spacer, Cab Rear Mounting, Upper
57245A Plate, Anchor Side Strength
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
