Toyota Dyna 150/Toyoace G15
1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan
Discontinued model
Data version 1999-05

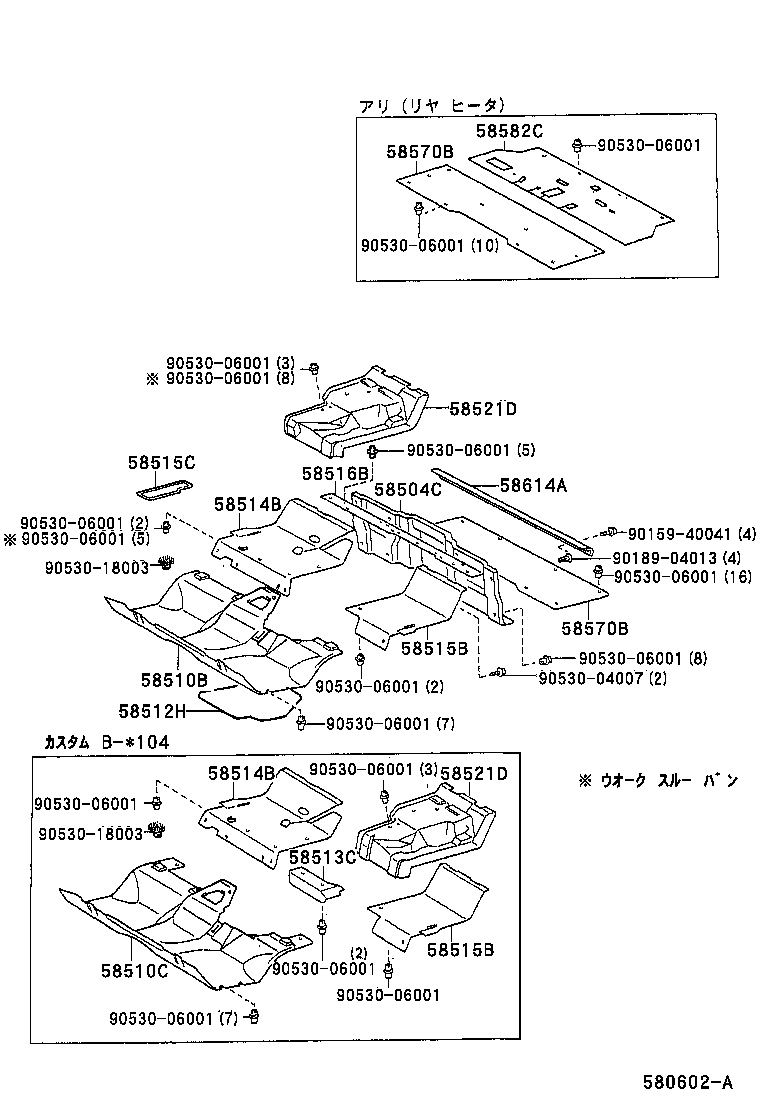

Floor Mat & Silencer Pad
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58504C | Mat Sub-assy, Header |
| 58510B | Mat, Front Floor, Front |
| 58510C | Carpet Assy, Front Floor, Front |
| 58512H | Mat, Floor, Front LH |
| 58513C | Mat, Floor, Front Center |
| 58514B | Mat, Floor, Rear RH |
| 58515B | Mat, Floor, Rear LH |
| 58515C | Mat, Front Floor, Rear NO.1 |
| 58516B | Mat, Front Floor, Rear NO.2 |
| 58521D | Mat, Engine Service Hole Cover |
| 58570B | Mat Assy, Rear Floor |
| 58582C | Mat, Rear Floor, Rear |
| 58614A | Plate, Mat Set, NO.4 |
| 67913 | Plate, Front Door Scuff, RH |
| 67914 | Plate, Front Door Scuff, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
