Toyota Dyna 150/Toyoace G15
1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan
Discontinued model
Data version 1999-05
Roof Panel & Back Panel
48 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53701 | Apron Sub-assy, Front Fender, RH |
| 53702 | Apron Sub-assy, Front Fender, LH |
| 53724D | Bracket, Clamp |
| 58183B | Reinforcement, Rear Mounting, RH |
| 58184B | Reinforcement, Rear Mounting, LH |
| 58236C | Bracket, Clutch Tube |

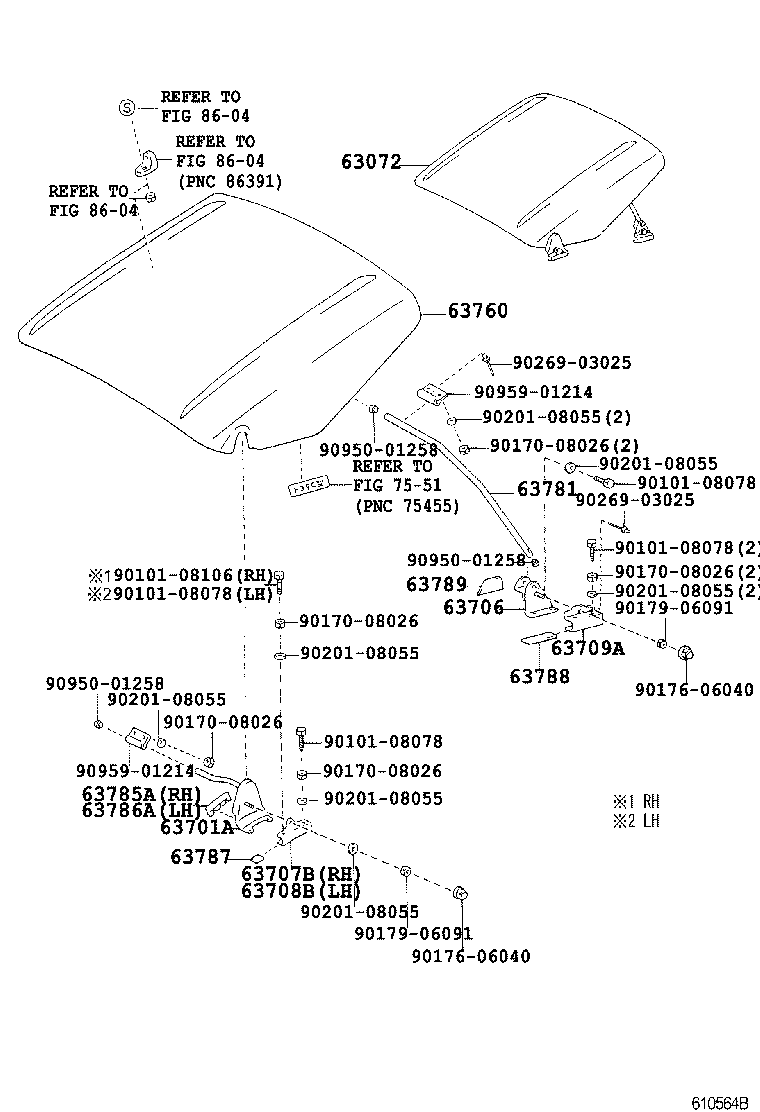

| 63072 | Deflector Set, Roof Air |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |

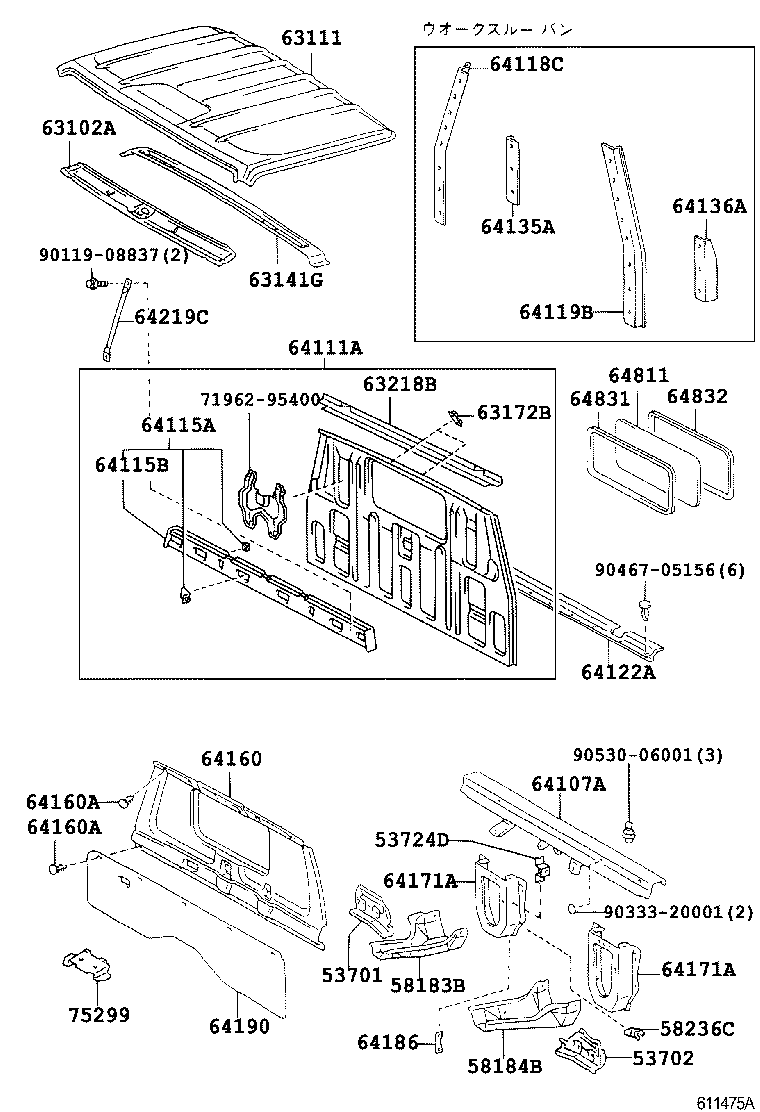

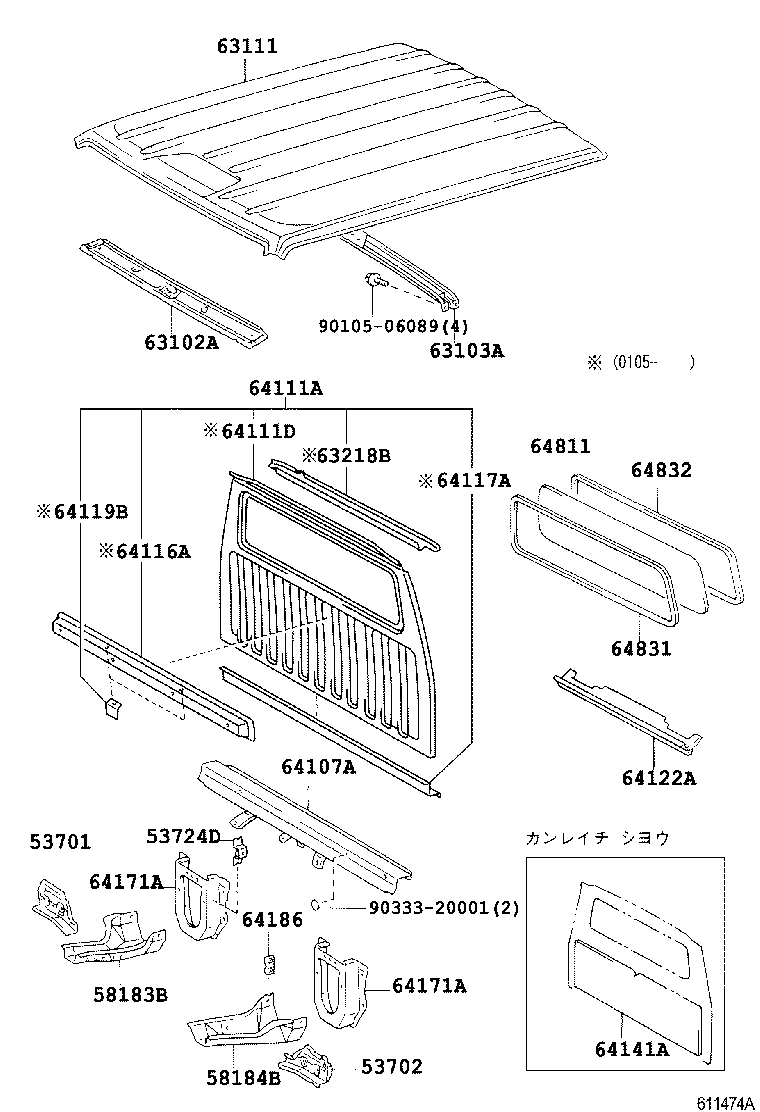

| 63111 | Panel, Roof |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63172B | Base, Room Lamp, NO.1 |
| 63218B | Channel, Roof Drip, Rear |
| 63701A | Bracket Sub-assy, Roof Air Deflector, Front |
| 63706 | Bracket Sub-assy, Roof Air Deflector, Rear |
| 63707B | Holder Sub-assy, Roof Air Deflector, Front RH |
| 63708B | Holder Sub-assy, Roof Air Deflector, Front LH |
| 63709A | Holder Sub-assy, Roof Deflector, Rear |
| 63760 | Panel Assy, Roof Air Deflector |
| 63781 | Stay, Roof Air Deflector |
| 63785A | Pad, Roof Air Deflector, Front RH |
| 63786A | Pad, Roof Air Deflector, Front LH |
| 63787 | Pad, Roof Air Deflector, NO.1 |
| 63788 | Pad, Roof Air Deflector, NO.2 |
| 63789 | Pad, Roof Air Deflector, NO.3 |
| 64107A | Frame Sub-assy, Back |
| 64111A | Panel, Back |
| 64111D | Panel, Upper Back |
| 64115A | Reinforcement, Back, Upper |
| 64115B | Reinforcement, Back Panel |
| 64116A | Reinforcement, Back, Lower |
| 64117A | Reinforcement, Cab Back, Lower |
| 64118C | Reinforcement, Cab Back Side, RH |
| 64119B | Reinforcement, Cab Back Side, LH |
| 64122A | Baffle, Dust Rear Body |
| 64135A | Reinforcement, Back Corner, Outer RH |
| 64136A | Reinforcement, Back Corner, Outer LH |
| 64141A | Silencer, Back Panel, NO.1 |
| 64160 | Silencer Assy, Back Panel, Upper |
| 64160A | Clip(FOR BACK PANEL UPPER SILENCER) |
| 64171A | Bracket Sub-assy, Rear Mounting |
| 64186 | Retainer, Rear Mounting Bracket |
| 64190 | Silencer Assy, Back Panel |
| 64219C | Stay, Back Panel |
| 64811 | Glass, Back Window |
| 64831 | Weatherstrip, Back Window Glass |
| 64832 | Key, Back Window Weatherstrip |
| 75299 | Base, Jack Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
