Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

59 part groups · 17 illustrations

Illustrations

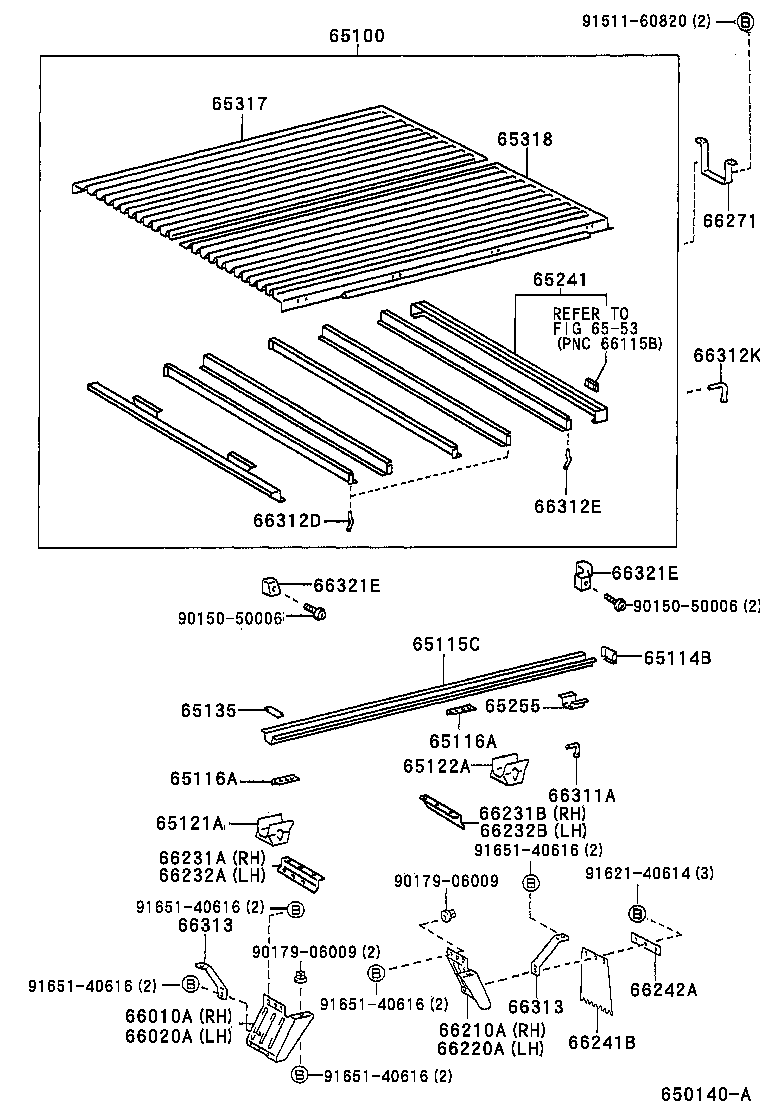

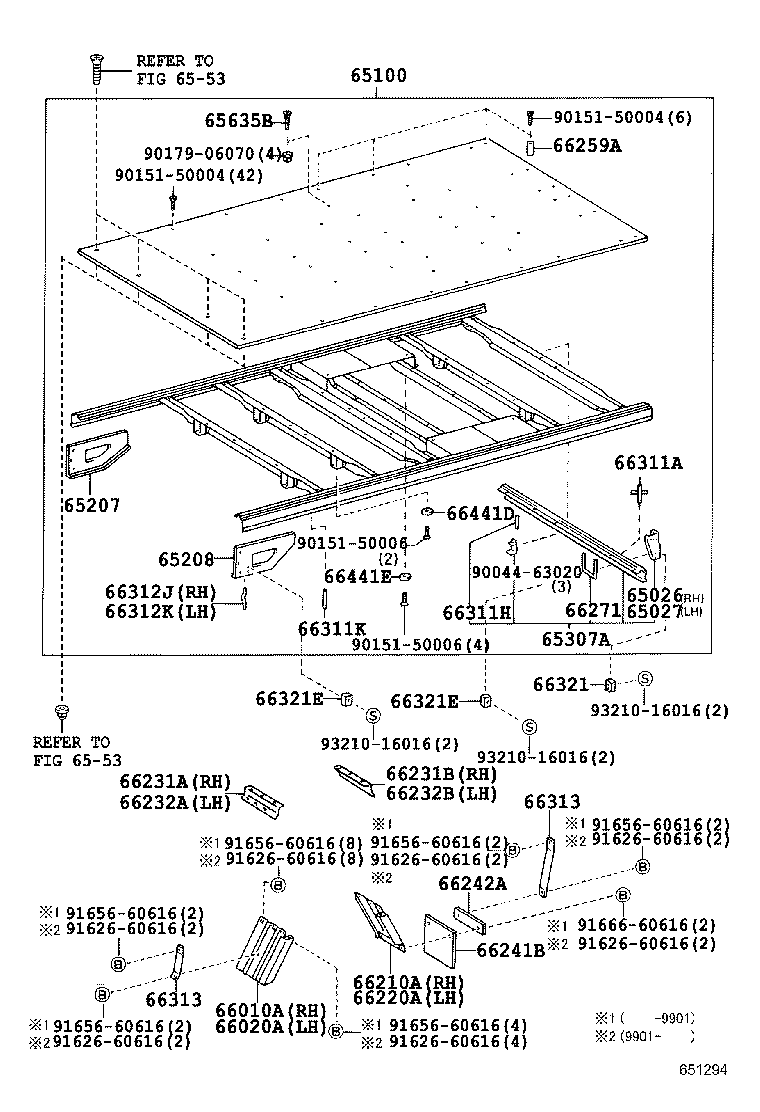

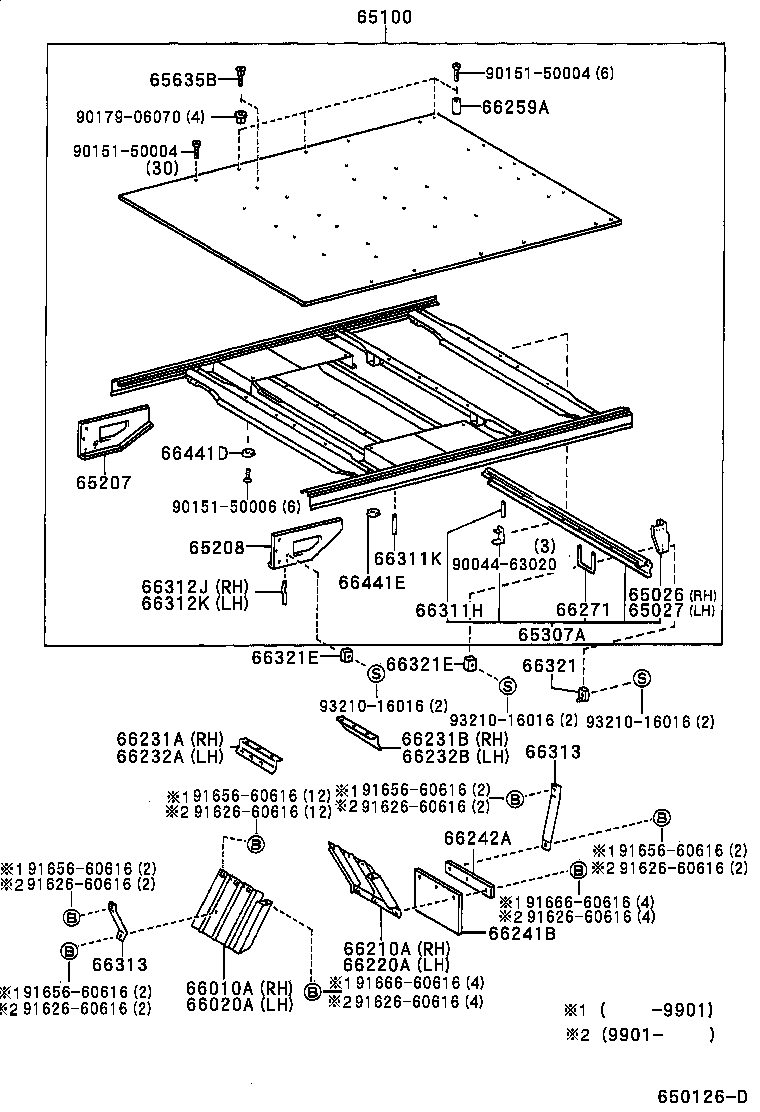

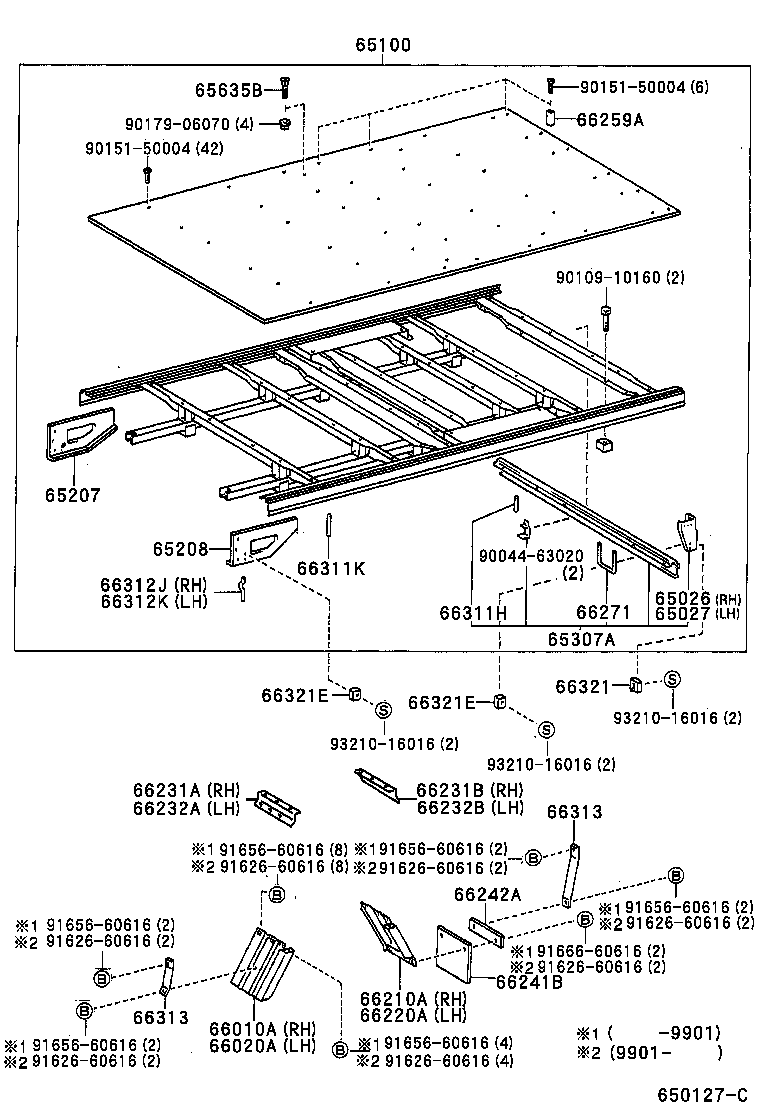

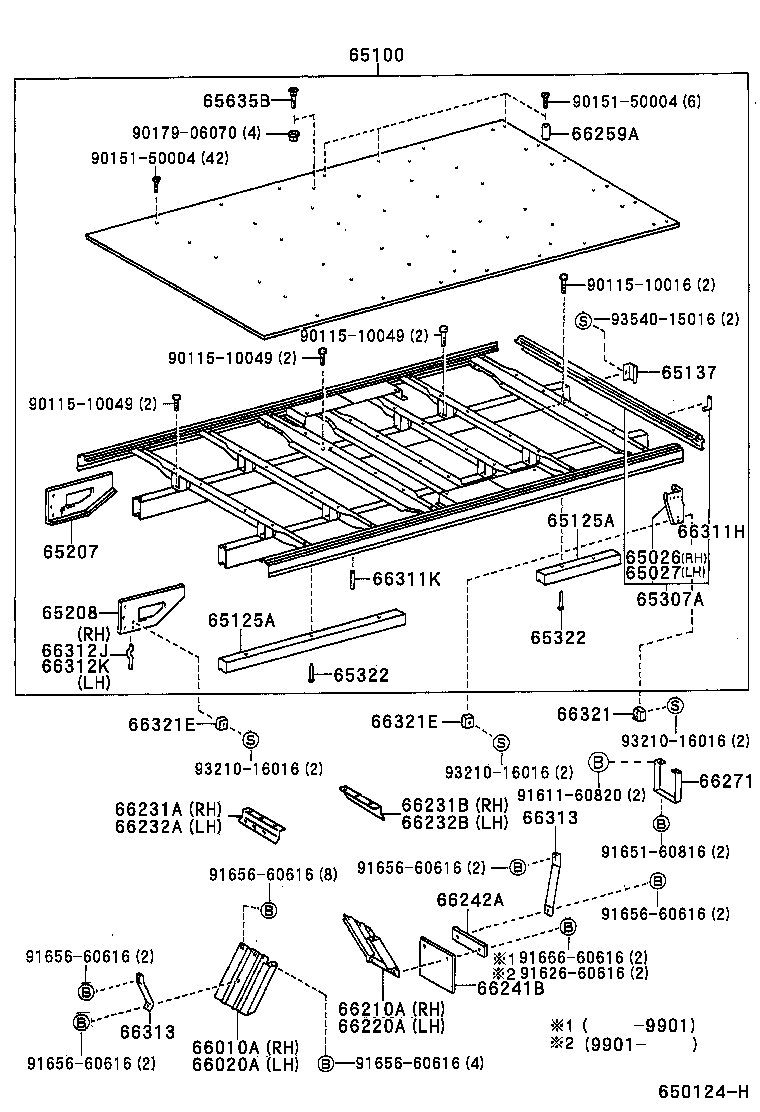

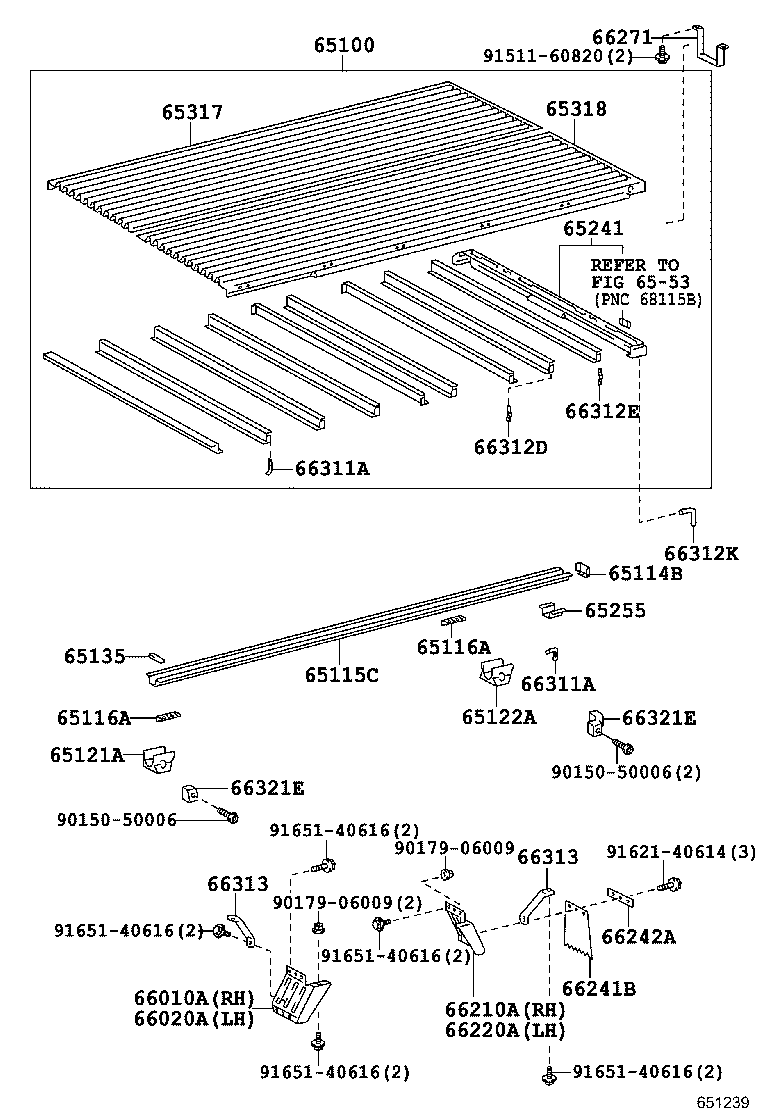

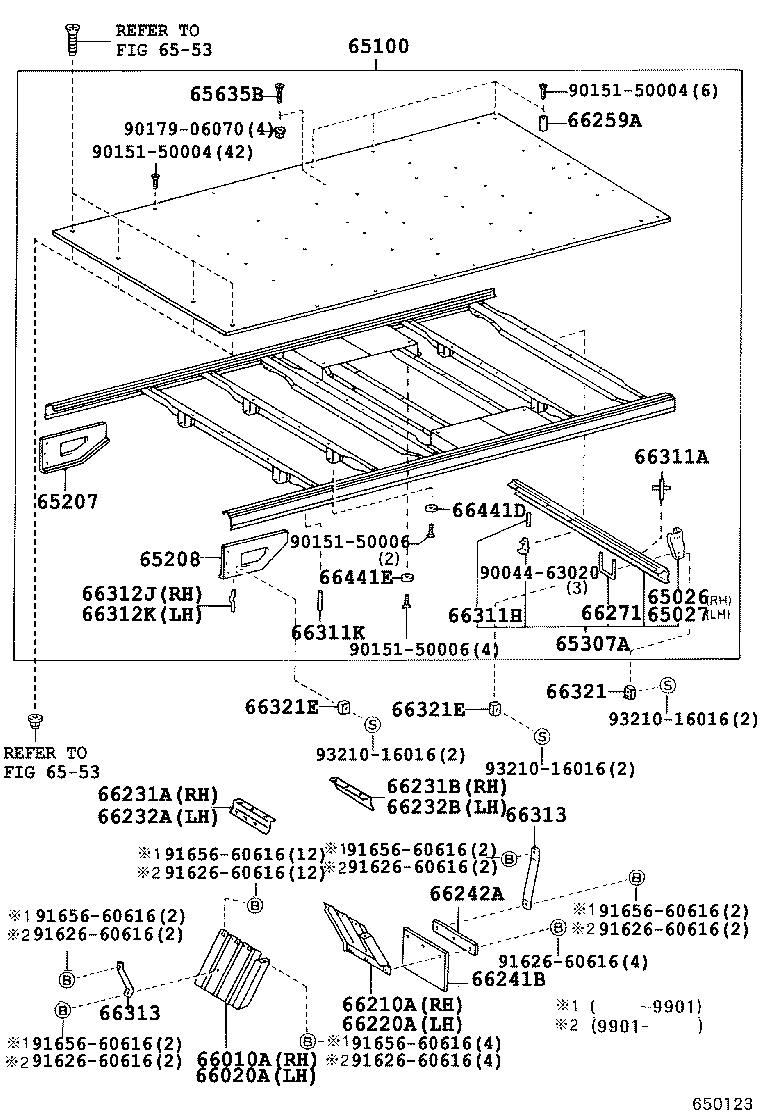

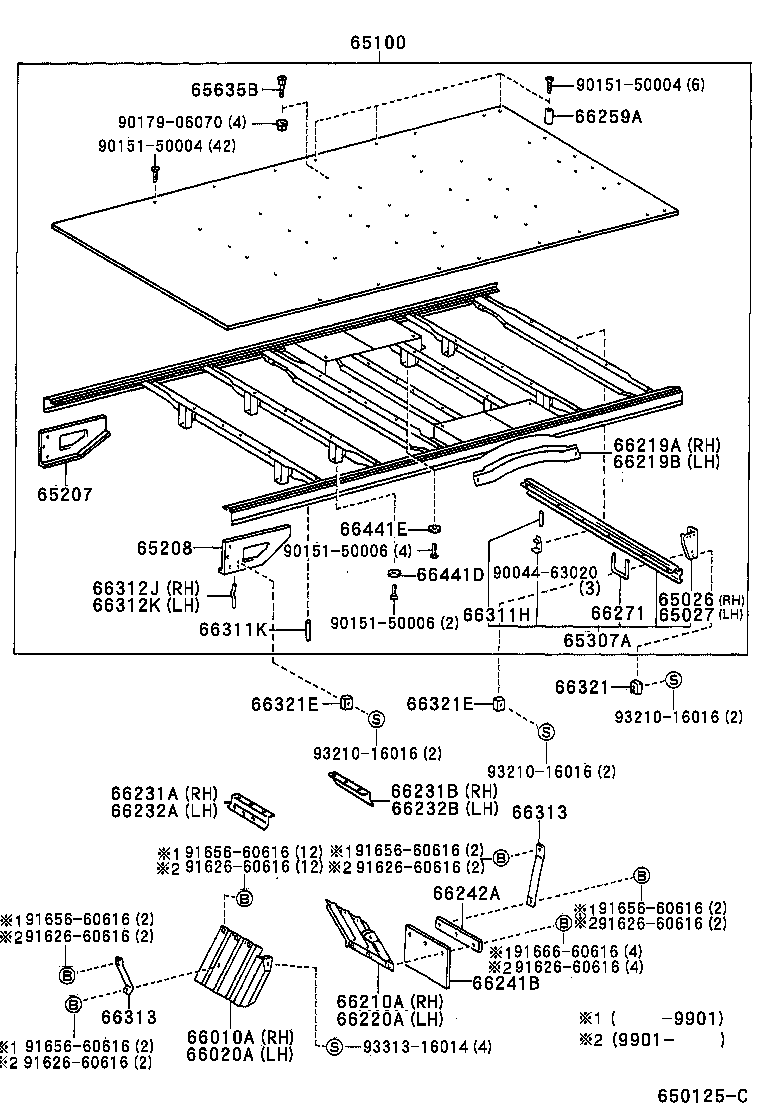

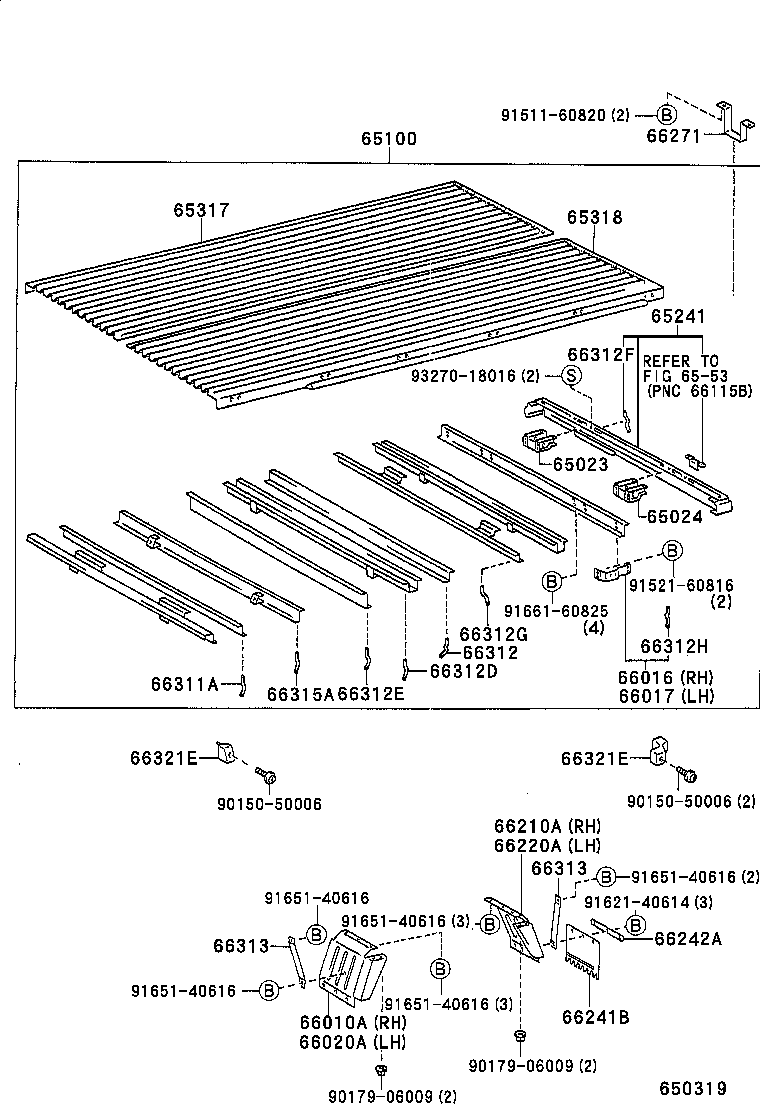

Figure 650134 650134 1995-05 → — Figure 650319 650319 1995-05 → — Figure 650319 650319 1996-10 → — Figure 651237 651237 1995-05 → — Figure 650123F 650123F 1995-05 → — Figure 650123F 650123F 1996-10 → — Figure 650124H 650124H 1995-05 → — Figure 651294 651294 1995-05 → — Figure 650125C 650125C 1995-05 → — Figure 650126D 650126D 1995-05 → — Figure 650135 650135 1996-10 → — Figure 650140A 650140A 1996-10 → — Figure 651238 651238 1996-10 → — Figure 651239 651239 1996-10 → — Figure 650127C 650127C 1996-10 → — Figure 650136 650136 1995-05 → — Figure 650137 650137 1995-05 → —

Part groups

PNCDescription
64311B Protector, Fuel Inlet
65023 Bracket Sub-assy, Rear Cross Sill Mounting, RH
65024 Bracket Sub-assy, Rear Cross Sill Mounting, LH
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65114B Cover, Main Sill, Rear
65115C Sill, Main
65116A Plate, Main Sill
65121A Bracket, Main Sill Mounting, NO.1
65122A Bracket, Main Sill Mounting, NO.2
65125A Shim, Main Sill, Lower NO.1
65135 Patch, Main Sill
65137 Cover, Main Sill End
65207 Bracket Sub-assy, Guard Frame, RH
65208 Bracket Sub-assy, Guard Frame, LH
65241 Sill, Rear Cross
65255 Gusset, Main Sill
65307A Frame Sub-assy, Floor, Rear
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65322 Nail
65371 Insulator, Rear Floor
65372 Stay, Rear Floor Insulator
65635B Bolt, Counter Sunk Head Square Neck
66010A Fender Assy, Rear NO.2 RH
66016 Gusset Sub-assy, Gate Hinge, RH
66017 Gusset Sub-assy, Gate Hinge, LH
66020A Fender Assy, Rear NO.2 LH
66210A Fender Assy, Rear NO.1 RH
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66220A Fender Assy, Rear NO.1 LH
66231A Retainer, Rear Fender, Front RH
66231B Retainer, Rear Fender, Rear RH
66232A Retainer, Rear Fender, Front LH
66232B Retainer, Rear Fender, Rear LH
66241B Baffle, Rubber
66242A Plate, Baffle Rubber
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66311H Hook, Rope
66311K Hook, Rope
66312 Hook, Rope, NO.2
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312G Hook, Rope, NO.2
66312H Hook, Rope
66312J Hook, Rope, NO.2
66312K Hook, Rope, NO.2
66313 Support, Rear Fender
66315A Hook, Rope
66321 Bumper, Gate Rubber
66321E Bumper, Gate Rubber
66441D Shim, Mounting, NO.1
66441E Shim, Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
