Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Mounting

7 part groups · 11 illustrations

Illustrations

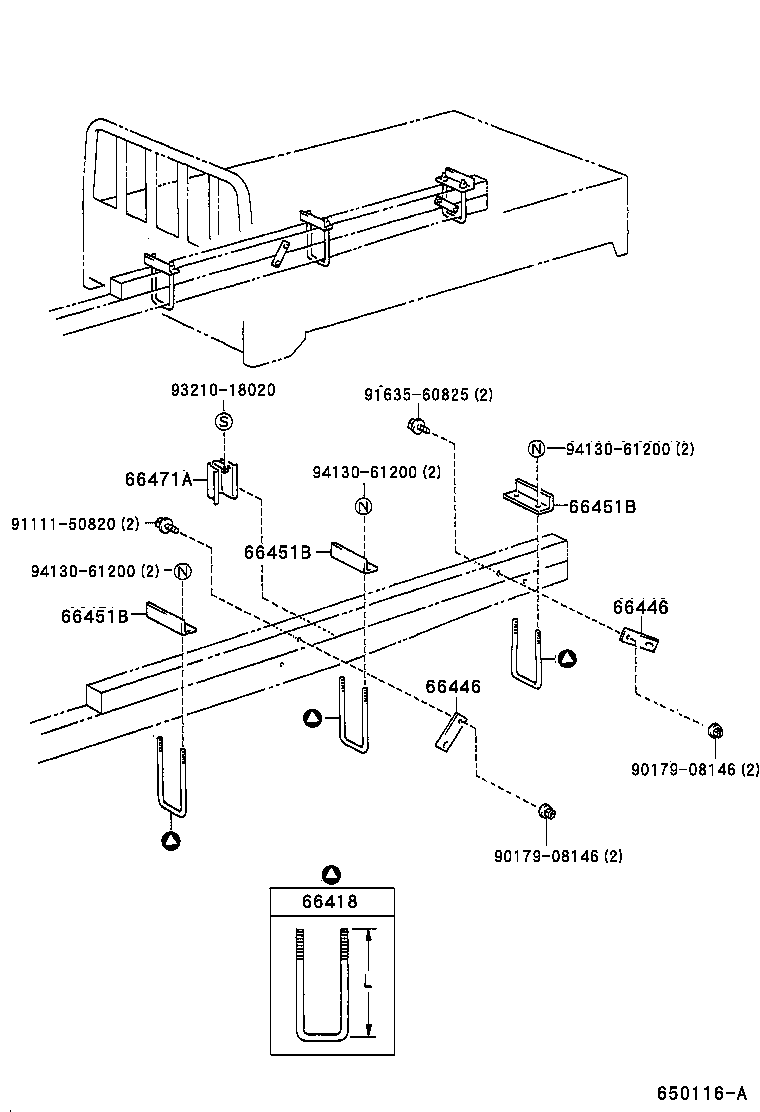

Figure MBZ431A MBZ431A 1995-05 → — Figure MBZ432A MBZ432A 1995-05 → — Figure MBZ425A MBZ425A 1995-05 → — Figure MBZ426A MBZ426A 1995-05 → — Figure MBZ427A MBZ427A 1995-05 → — Figure MBZ428A MBZ428A 1995-05 → — Figure 650432 650432 1995-05 → — Figure 650432 650432 1996-10 → — Figure 650432 650432 1996-10 → — Figure 650116A 650116A 1995-05 → — Figure MBZ841 MBZ841 1995-05 → —

Part groups

PNCDescription
65154B Spacer, Cross Sill
66418 Bolt, Mounting
66439 Shim, Support
66441 Shim, Mounting, NO.1
66446 Brace, Frame Floor
66451B Plate, U Bolt
66471A Reinforcement, Frame U Bolt
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
