Toyota Dyna 150/Toyoace G15
1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan
Discontinued model
Data version 1999-05

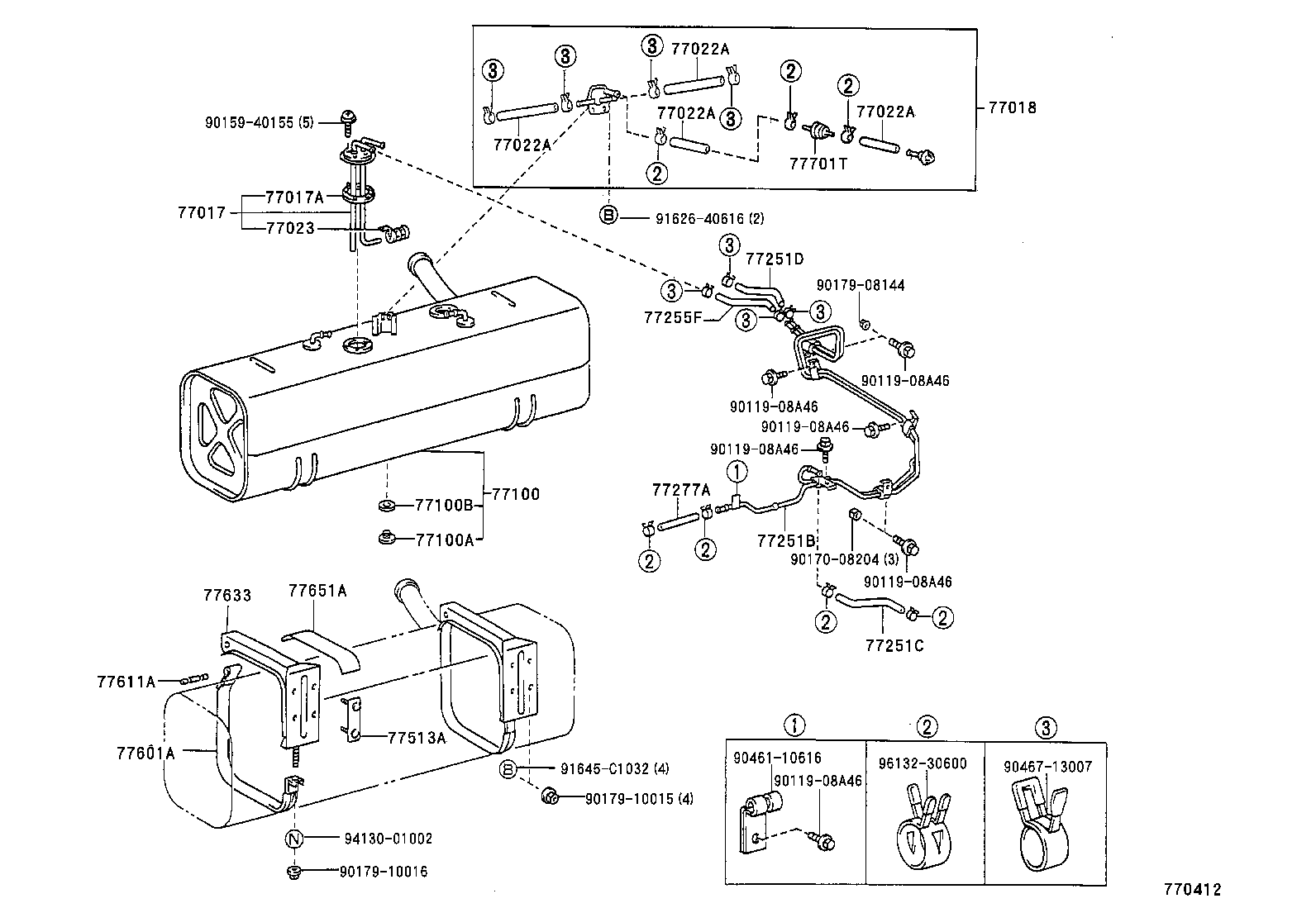

Fuel Tank & Tube
45 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 23400D | Filter Assy, Lpg |
| 23960C | Valve Assy, Solenoid Lpg |
| 23972A | Bracket, Filter & Solenoid Valve |
| 64169 | Protector, Fuel Inlet |
| 77001B | Valve (FOR LPG TANK) |
| 77001F | Plug, Lpg Tank |
| 77017 | Tube Sub-assy, Fuel And Evaporation Vent |
| 77017A | Gasket, Fuel Tank Vent |
| 77018 | Valve Sub-assy, Fuel Vapour Separate |
| 77018A | Orifice, Fuel Vapour |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77251B | Tube, Fuel Main |
| 77251C | Hose, Fuel, NO.1(FOR FUEL MAIN TUBE) |
| 77251D | Hose, Fuel, NO.2(FOR FUEL MAIN TUBE) |
| 77252A | Tube, Fuel Main, NO.2 |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77261F | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE) |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77295C | Grommet, Fuel Tube |
| 77326 | Connector, Auxiliary Fuel Tank Cap |
| 77390C | Valve, Fuel Tank Inlet |
| 77513A | Retainer, Tank Bracket |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77603A | Band Sub-assy, Fuel Tank, NO.2 |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77611D | Cover, Fuel Tank, RH |
| 77633 | Stay, Fuel Tank |
| 77638 | Sleeve, Tank Valve Joint |
| 77638A | Ring, O (FOR TANK VALVE JOINT SLEEVE) |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77705 | Bracket Sub-assy, Charcoal Canister |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77742 | Way, 3(FOR CANISTER) |
| 77750 | Canister Assy, Charcoal |
| 77750D | Hose, Fuel, NO.4 (FOR CHARCOAL CANISTER) |
| 77751 | Bracket, Charcoal Canister Base |
| 77759 | Hose, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
