Toyota Dyna 150/Toyoace G15
1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan
Discontinued model
Data version 1999-05

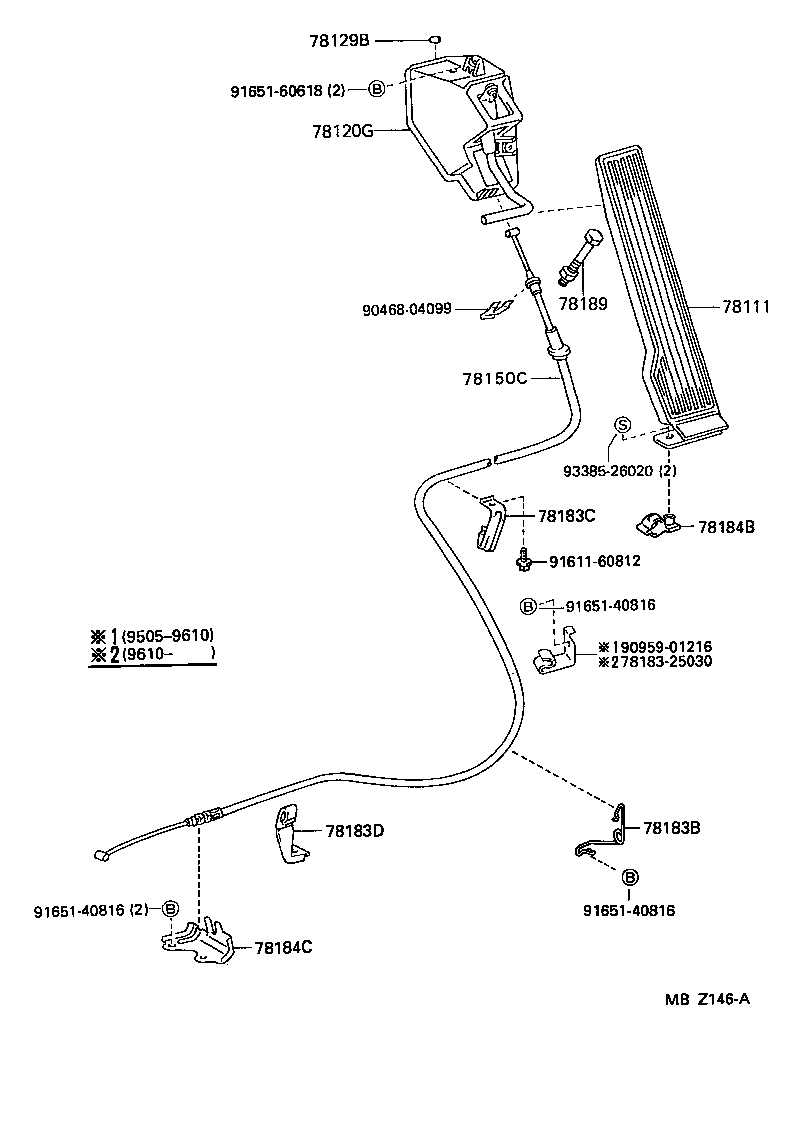

Accelerator Link
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 78024 | Bracket Sub-assy, Accelerator Control Cable |
| 78100 | Link Assy, Accelerator |
| 78104 | Rod Sub-assy, Accelerator Connecting, NO.2 |
| 78111 | Pedal, Accelerator |
| 78120G | Rod Assy, Accelerator Pedal |
| 78129B | Seal, Accelerator Pedal Arm |
| 78150C | Wire Assy, Accelerator Flexible |
| 78183B | Clamp, Accelerator Control Cable |
| 78183C | Clamp, Accelerator Control Cable |
| 78183D | Clamp, Accelerator Control Cable |
| 78184B | Bracket, Accelerator Control Cable |
| 78184C | Bracket, Accelerator Control Cable |
| 78189 | Bolt, Accelerator Pedal Stopper |
| 78410 | Cable Assy, Throttle Control |
| 78410D | Nut, Throttle |
| 78411A | Knob, Throttle Control Cable |
| 78472 | Support, Throttle Control Cable |
| 78472A | Support, Throttle Control Cable |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
