Toyota Dyna 150/Toyoace G15

1995-05 → 2001-07 · chassis LY1##,2##,YY1##,2## · catalogue 731160 · Japan

Discontinued model Data version 1999-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

26 part groups · 11 illustrations

Illustrations

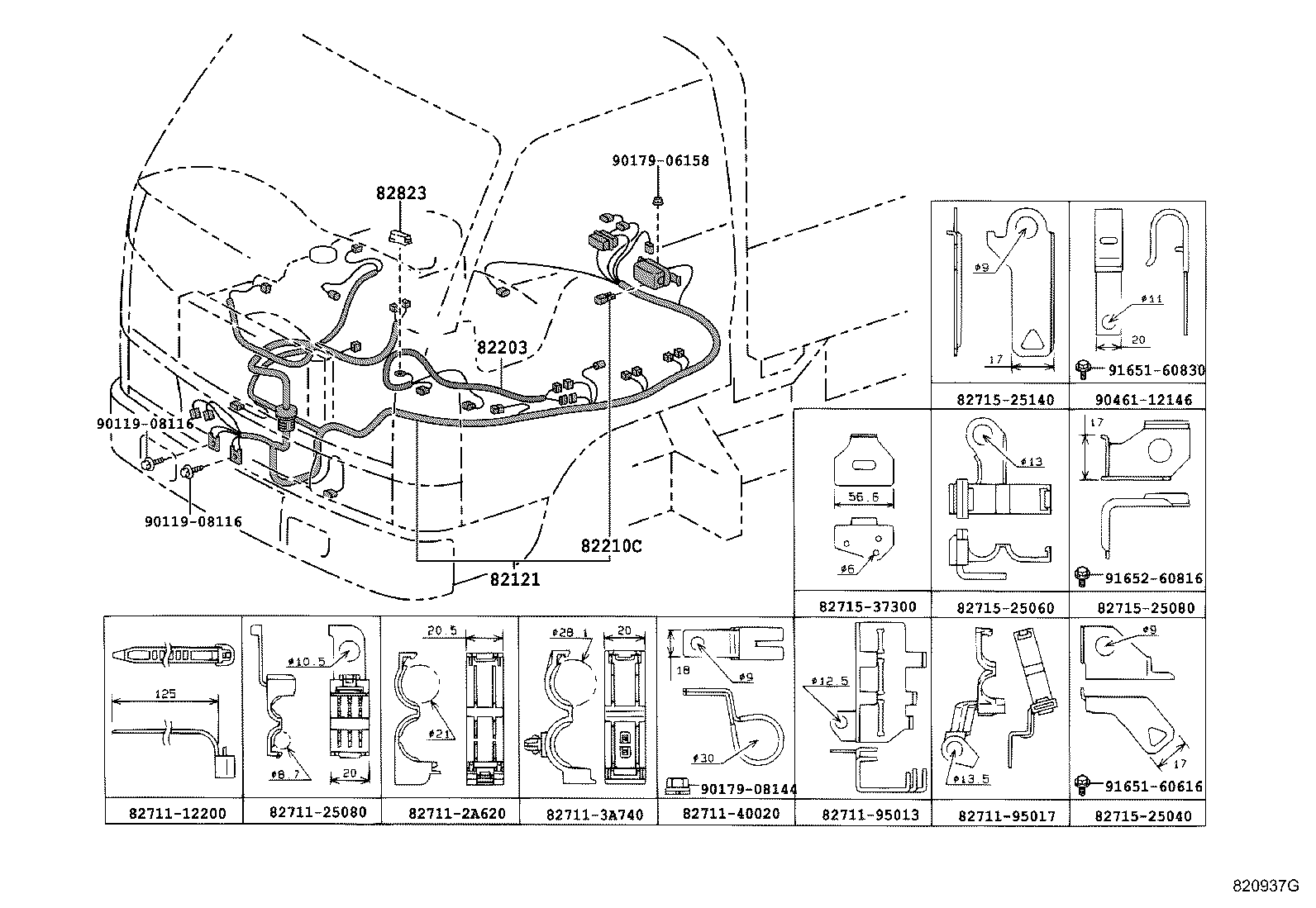

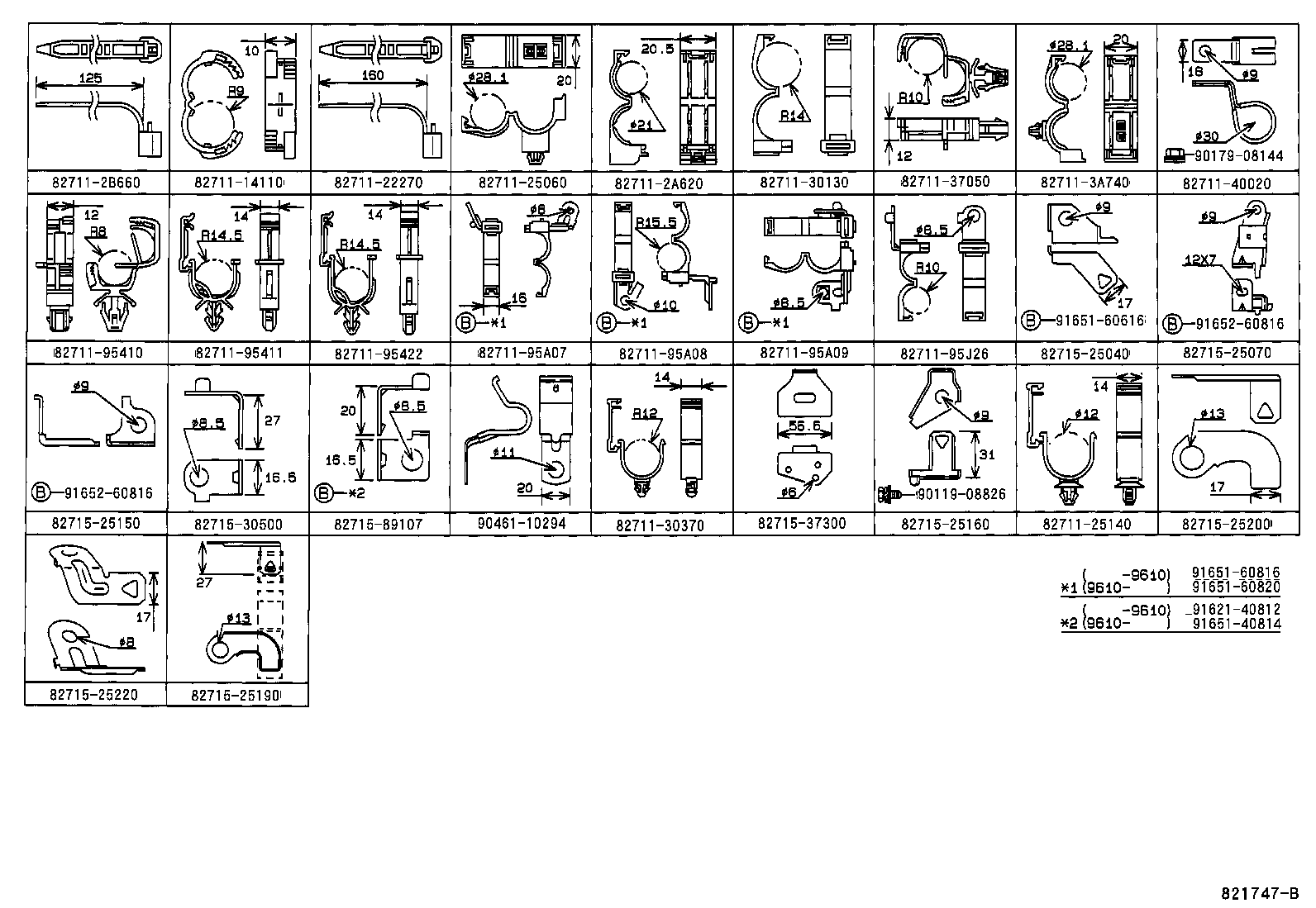

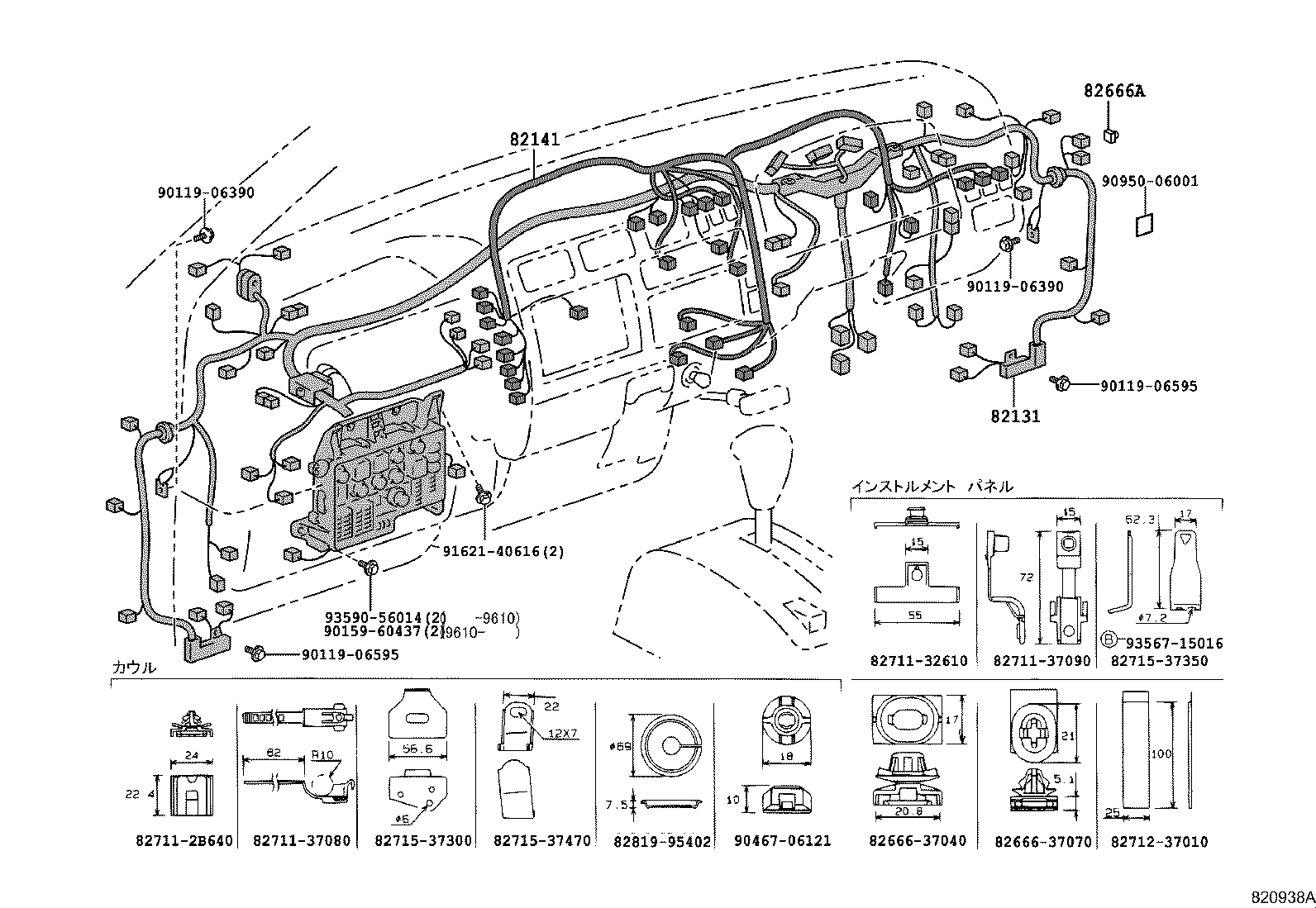

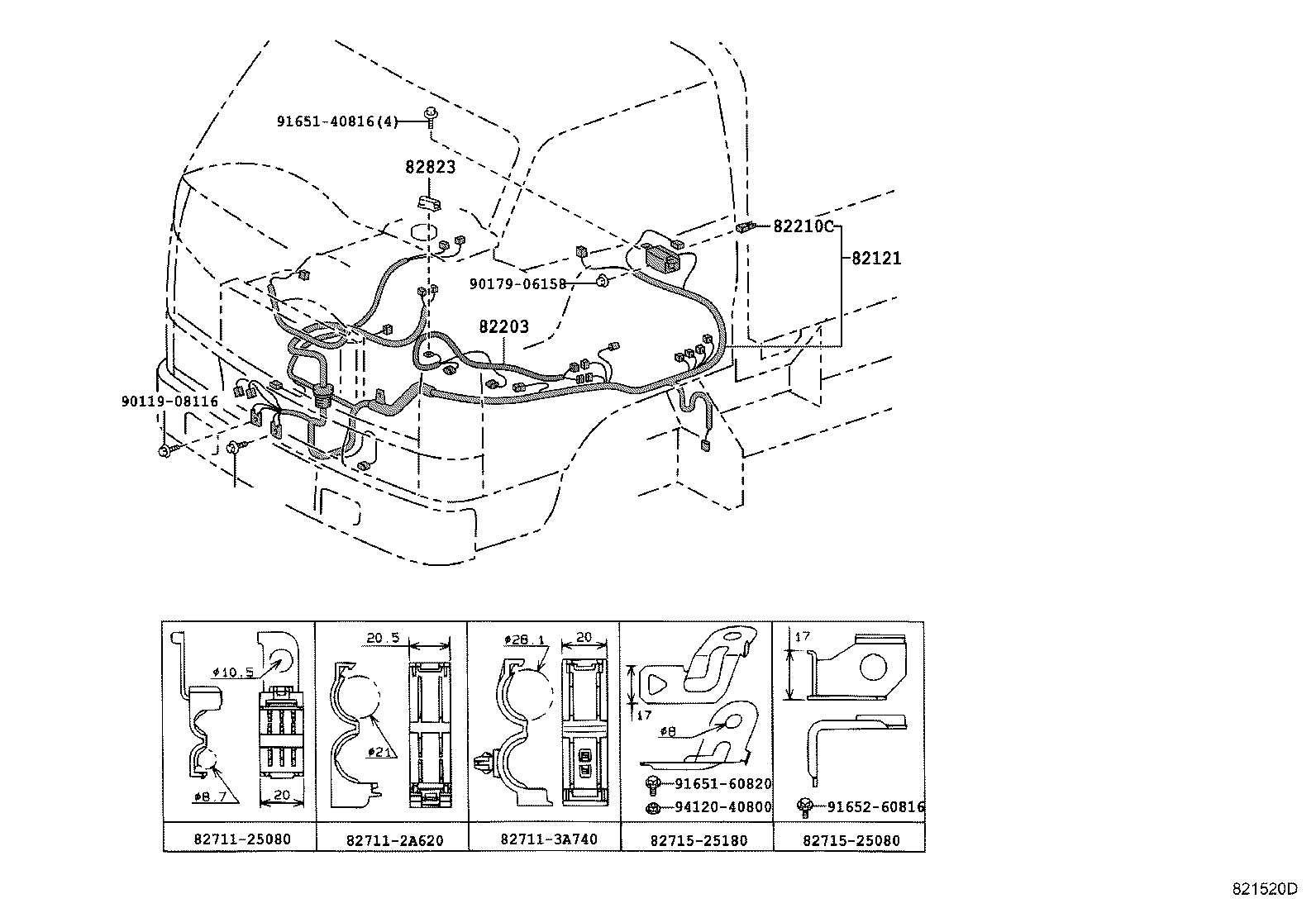

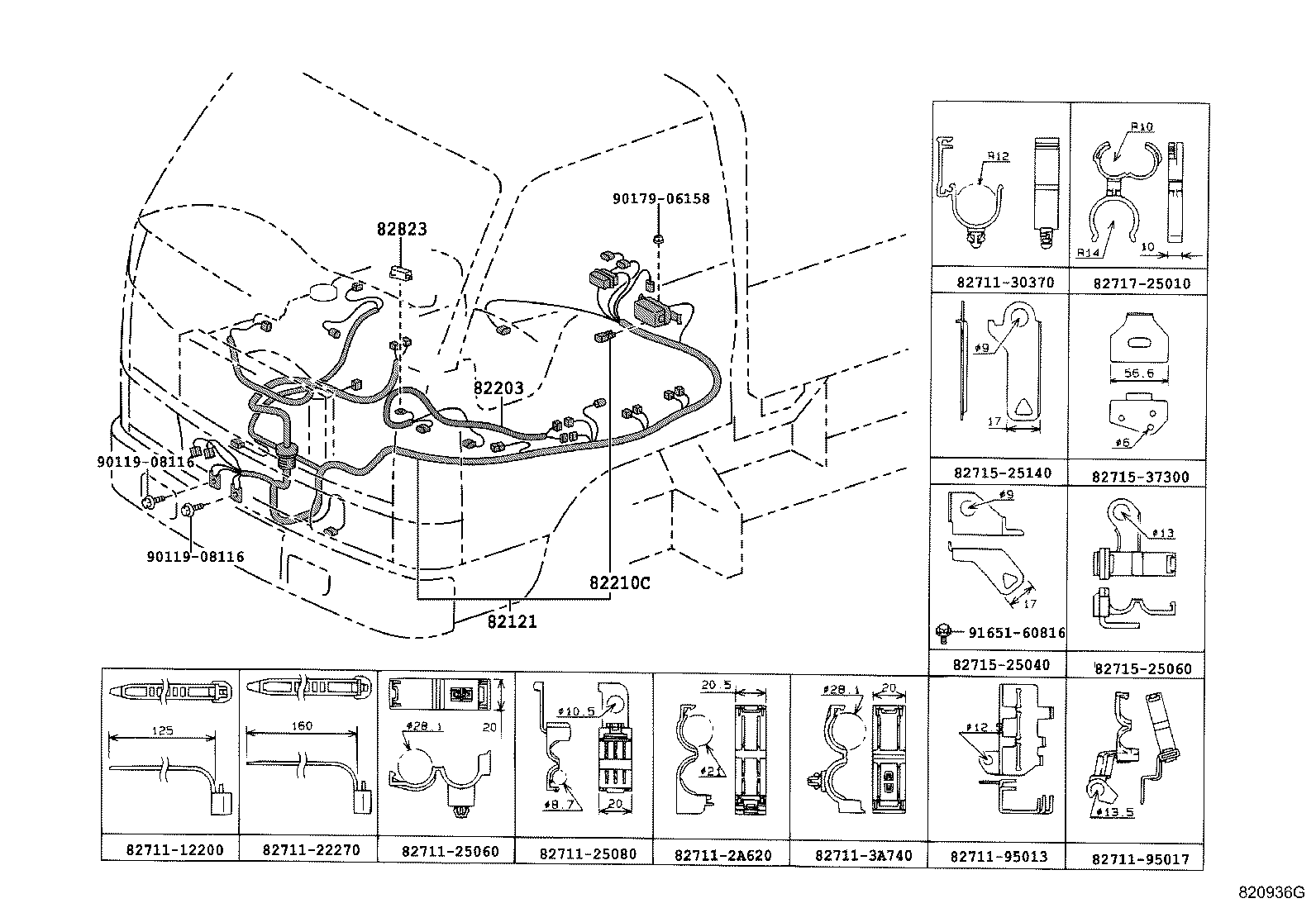

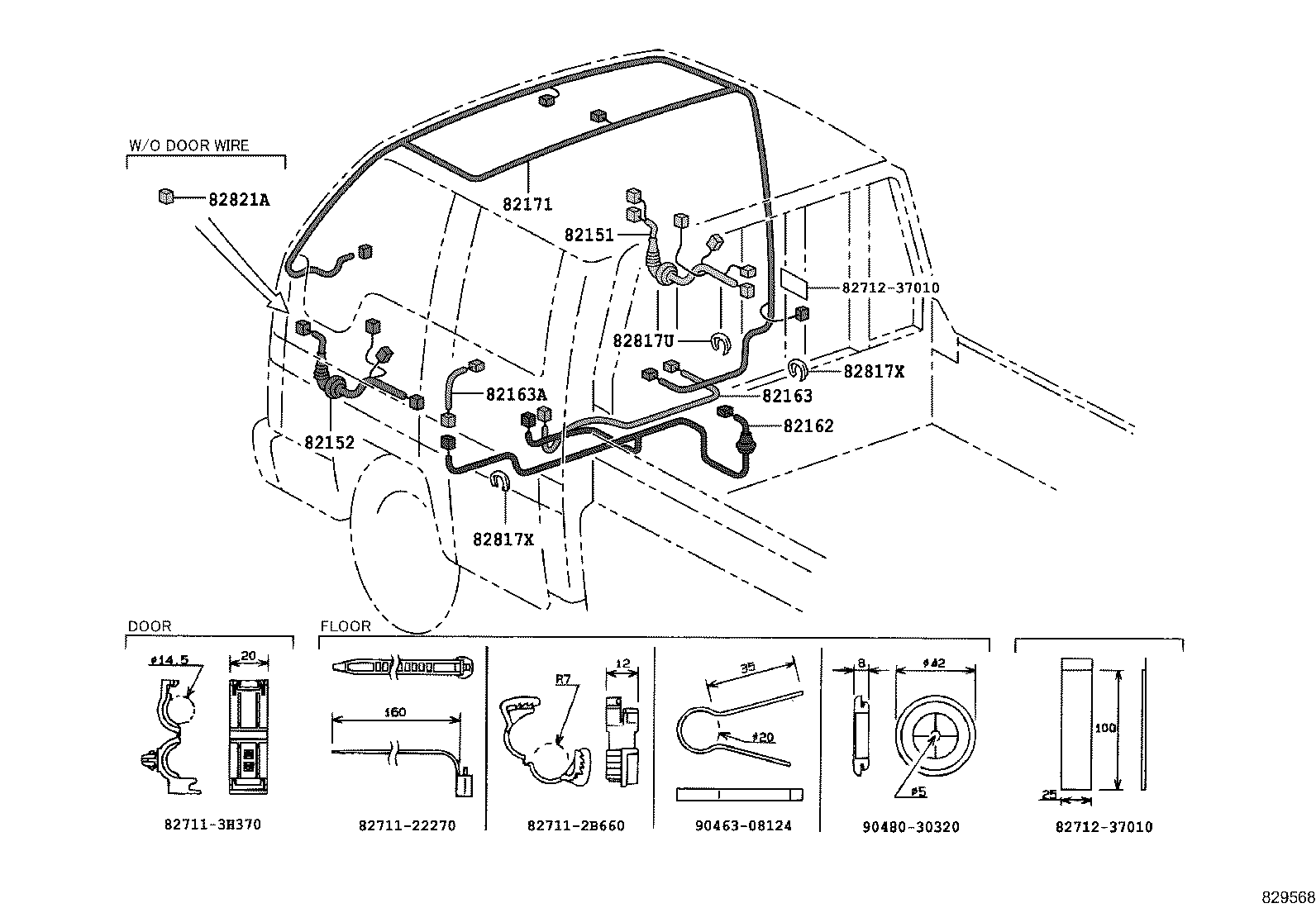

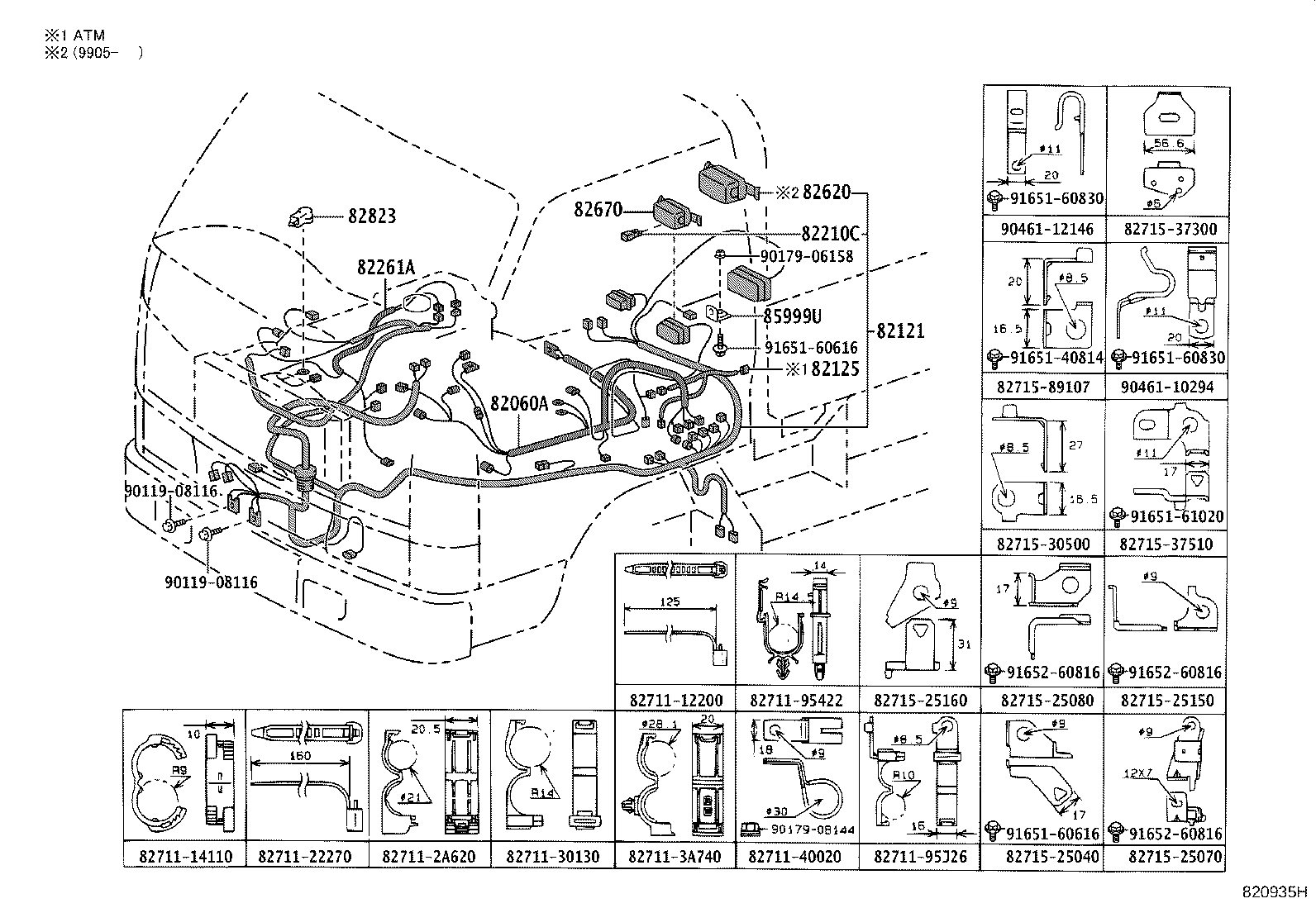

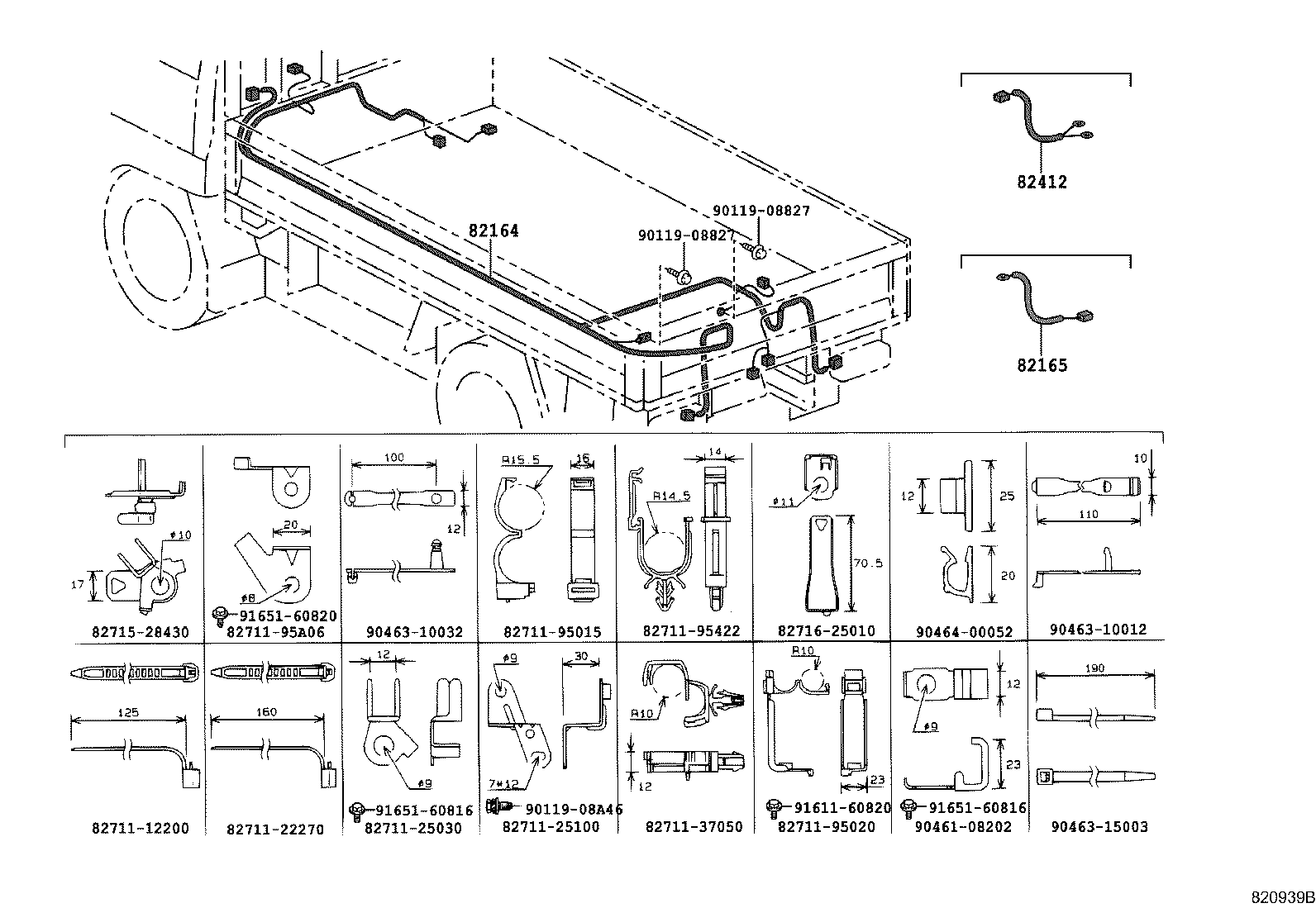

Figure 821571G 821571G 1995-05 → — Figure 820935H 820935H 1995-05 → — Figure 820936G 820936G 1995-05 → — Figure 820937G 820937G 1995-05 → — Figure 821520D 821520D 1998-05 → — Figure 820938A 820938A 1995-05 → — Figure 829568 829568 1995-05 → — Figure 820939B 820939B 1995-05 → — Figure 821262B 821262B 1995-05 → — Figure 820934B 820934B 1995-05 → — Figure 821747B 821747B 1995-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82060A Wire Assy, Engine, NO.2
82121 Wire, Engine
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163A Wire, Floor, NO.4
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82203 Wire Sub-assy, Alternator
82210C Fusible Link
82261A Wire, Alternator
82412 Wire, Fuel Gage
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82670 Block Assy, Junction, NO.1
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82821A Cover, Connector
82823 Cap, Terminal, NO.1
85999U Bracket, Relay Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
