Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10

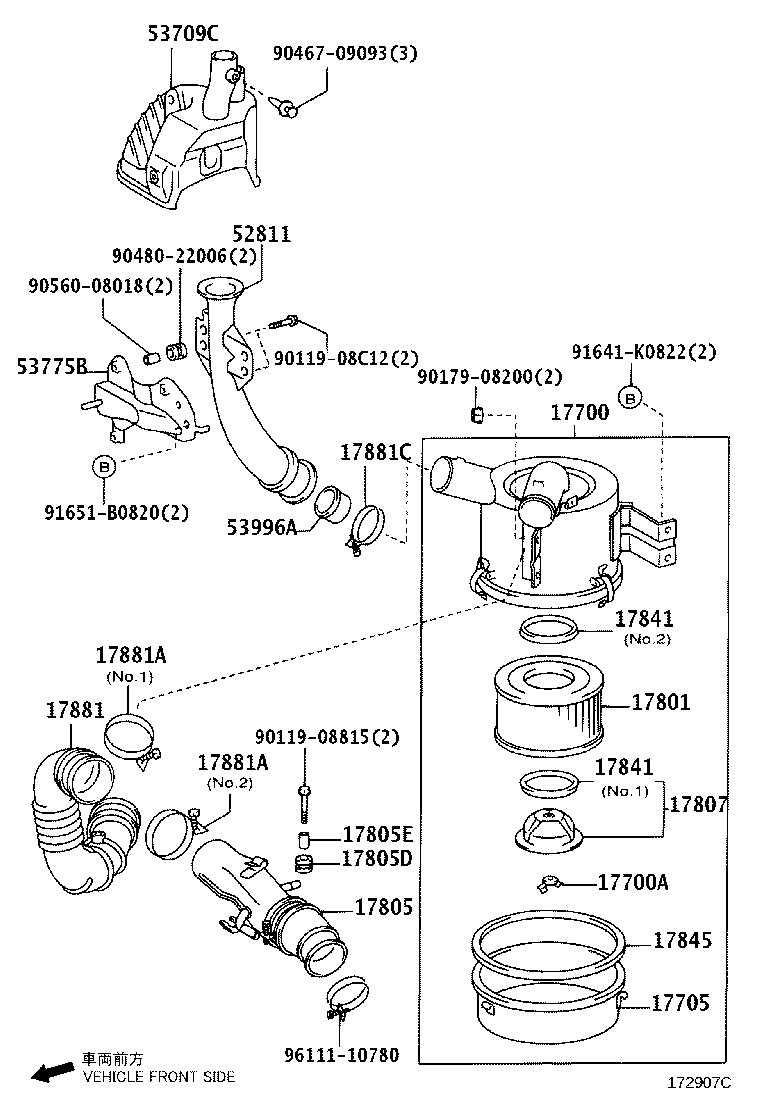

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17700 — Cleaner Assy, Air | ||||
| 17700-30170 |
Cleaner Assy, Air
2004-08 → 2007-08
ended
|
2KDFTV KDY220,230,240,270,280,290 | ¥41,500 | |
| 17700-30240 |
Cleaner Assy, Air
2007-09 → 2009-04
ended
|
1KDFTV KDY221,231,241,271,281 | ¥41,500 | |
| 17700-30241 |
Cleaner Assy, Air
2009-05 → —
|
1KDFTV KDY221,231,241,271,281 | ¥28,800 | |
| 17700-5B200 |
Cleaner Assy, Air
2001-07 → 2004-08
ended
|
5L,3RZFPE LY220,230,240,270,280,290 | ¥31,100 | |
| 17700-75380 |
Cleaner Assy, Air
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | ¥25,000 | |
| 17700-75430 |
Cleaner Assy, Air
2003-08 → —
|
1TRFPE TRY231,281 | ¥20,800 | |
| 17700-75430 |
Cleaner Assy, Air
2003-08 → 2007-09
ended
|
1TRFE TRY220,230 | ¥20,800 | |
| 17700-75450 |
Cleaner Assy, Air
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | ¥25,000 | |
| 17700-75530 |
Cleaner Assy, Air
2007-09 → —
|
1TRFE TRY220,230 | ¥17,300 | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 note |
Nut, Wing(FOR AIR CLEANER)
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2001-07 → 2004-08
ended
|
5L,3RZFPE LY220,230,240,270,280,290 | — | |
| 90175-08008 note |
Nut, Wing(FOR AIR CLEANER)
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2003-08 → —
|
1TR# TRY220,23#,281 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
2004-08 → —
|
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-30110 |
Cap Sub-assy, Air Cleaner
2007-09 → —
|
1KDFTV KDY221,231,241,271,281 | — | |
| 17705-54490 |
Cap Sub-assy, Air Cleaner
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | — | |
| 17705-54490 |
Cap Sub-assy, Air Cleaner
2001-07 → 2004-08
ended
|
5L,3RZFPE LY220,230,240,270,280,290 | — | |
| 17705-54490 |
Cap Sub-assy, Air Cleaner
2004-08 → 2007-08
ended
|
2KDFTV KDY220,230,240,270,280,290 | — | |
| 17705-54490 |
Cap Sub-assy, Air Cleaner
2003-08 → —
|
1TR# TRY220,23#,281 | — | |
| 17705-75290 |
Cap Sub-assy, Air Cleaner
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-54070 |
Element Sub-assy, Air Cleaner Filter
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | ¥3,150 | |
| 17801-56050 |
Element Sub-assy, Air Cleaner Filter
2001-07 → 2004-08
ended
|
5L,3RZFPE LY220,230,240,270,280,290 | ¥4,100 | |
| 17801-56050 |
Element Sub-assy, Air Cleaner Filter
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | ¥4,100 | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
2003-08 → —
|
1TR# TRY220,23#,281 | ¥3,990 | |
| 17801-68030 |
Element Sub-assy, Air Cleaner Filter
2004-08 → —
|
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 | ¥5,100 | |
| 17805 — Connector Sub-assy, Intake Air | ||||
| 17805-54370 |
Connector Sub-assy, Intake Air
2001-07 → 2004-08
ended
|
5L LY220,230,240,270,280,290 | ¥18,200 | |
| 17805-75200 |
Connector Sub-assy, Intake Air
2001-07 → 2003-08
ended
|
3RZFPE LY230,280 | ¥33,600 | |
| 17805-75200 |
Connector Sub-assy, Intake Air
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | ¥33,600 | |
| 17860-75020 |
Connector Sub-assy, Intake Air
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | ¥8,800 | |
| 17805D — Grommet(FOR INTAKE AIR CONNECTOR) | ||||
| 90540-12009 |
Grommet(FOR INTAKE AIR CONNECTOR)
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | ¥410 | |
| 17805E — Collar(FOR INTAKE AIR CONNECTOR) | ||||
| 90389-09016 |
Collar(FOR INTAKE AIR CONNECTOR)
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | ¥260 | |
| 17807 — Plate Sub-assy, Air Cleaner Filter Set | ||||
| 17807-54040 |
Plate Sub-assy, Air Cleaner Filter Set
2001-07 → 2004-08
ended
|
5L,3RZFPE LY220,230,240,270,280,290 | — | |
| 17807-54040 |
Plate Sub-assy, Air Cleaner Filter Set
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2003-08 → —
|
1TR# TRY220,23#,281 | — | |
| 17807-58020 |
Plate Sub-assy, Air Cleaner Filter Set
2004-08 → —
|
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 | — | |
| 17807-73010 |
Plate Sub-assy, Air Cleaner Filter Set
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-30030 note |
Gasket, Filter Element
2004-08 → —
|
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 | — | |
| 17841-30030 note |
Gasket, Filter Element
2003-08 → —
|
1TR# TRY220,23#,281 | — | |
| 17841-44030 note |
Gasket, Filter Element
2001-07 → 2004-08
ended
|
5L,3RZFPE LY220,230,240,270,280,290 | — | |
| 17841-44030 note |
Gasket, Filter Element
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | — | |
| 17841-54010 note |
Gasket, Filter Element
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | — | |
| 17841-54020 note |
Gasket, Filter Element
2001-07 → 2004-08
ended
|
5L,3RZFPE LY220,230,240,270,280,290 | — | |
| 17841-54020 note |
Gasket, Filter Element
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | — | |
| 17841-68010 note |
Gasket, Filter Element
2003-08 → —
|
1TR# TRY220,23#,281 | ¥0 | |
| 17841-68010 note |
Gasket, Filter Element
2004-08 → —
|
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 | ¥0 | |
| 17841-75010 note |
Gasket, Filter Element
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-54030 |
Gasket, Air Cleaner Cap
2004-08 → —
|
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 | — | |
| 17845-54030 |
Gasket, Air Cleaner Cap
2003-08 → —
|
1TR# TRY220,23#,281 | — | |
| 17845-54030 |
Gasket, Air Cleaner Cap
2001-07 → 2007-08
ended
|
3RZFPE RZY231,281 | — | |
| 17845-54030 |
Gasket, Air Cleaner Cap
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | — | |
| 17845-54030 |
Gasket, Air Cleaner Cap
2001-07 → 2004-08
ended
|
5L,3RZFPE LY220,230,240,270,280,290 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-30040 |
Hose, Air Cleaner, NO.1
2003-08 → —
|
1TR# TRY220,23#,281 | ¥1,720 | |
| 17881-30040 |
Hose, Air Cleaner, NO.1
2004-08 → —
|
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 | ¥1,720 | |
| 17881-54790 |
Hose, Air Cleaner, NO.1
2001-07 → 2004-08
ended
|
5L LY220,230,270,280 T2,T3,T4 | ¥4,120 | |
| 17881-54810 |
Hose, Air Cleaner, NO.1
2001-07 → 2004-08
ended
|
5L LY220,230,240,270,280,290 TW1,TW2,TW3,TW4,VAN | ¥4,950 | |
| 17881-75181 |
Hose, Air Cleaner, NO.1
2001-07 → 2003-08
ended
|
3RZFPE LY230,280 | ¥6,800 | |
| 17881-75181 |
Hose, Air Cleaner, NO.1
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | ¥6,800 | |
| 17881-75190 |
Hose, Air Cleaner, NO.1
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | ¥5,900 | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → —
|
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 | ¥190 | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2003-08 → —
|
1TR# TRY220,23#,281 | ¥190 | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2003-08 → 2007-08
ended
|
3RZFPE RZY231,281 | ¥190 | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2003-08
ended
|
3RZFPE LY230,280 | ¥190 | |
| 96111-10750 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | ¥190 | |
| 96111-10750 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2004-08
ended
|
5L LY220,230,240,270,280,290 | ¥190 | |
| 96111-10850 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2003-08
ended
|
1RZE RZY220,230 | ¥240 | |
| 17881C — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2003-08 → 2021-11
ended
|
1TR# TRY220,23#,281 T2,T3,T4 | ¥410 | |
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2003-08 → —
|
1TRFE TRY220,230 TW1,TW2,TW3 | ¥410 | |
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2007-08
ended
|
2KDFTV KDY220,230,240,270,280,290 | ¥410 | |
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-09 → 2007-08
ended
|
1RZE,3RZFPE RZY220,23#,281 | ¥410 | |
| 96111-10780 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-09 → 2004-08
ended
|
5L LY220,230,240,270,280,290 | ¥410 | |
| 96111-10800 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2001-09
ended
|
5L,3RZFPE LY220,230,240,270,280,290 | ¥160 | |
| 96111-10800 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2001-09
ended
|
1RZE RZY220,230 | ¥160 | |
| 96111-10880 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
2007-09 → —
|
1KDFTV KDY221,231,241,271,281 | ¥520 | |
| 52811 — Duct, Cool Air Intake, NO.1 | ||||
| 52811-25010 |
Duct, Cool Air Intake, NO.1
2001-07 → 2004-08
ended
|
LY220,230,270,280 (T2,T3,T4) DSL | ¥2,960 | |
| 52811-25010 |
Duct, Cool Air Intake, NO.1
2001-07 → 2007-08
ended
|
RZY220,23#,281 T2,T3,T4 | ¥2,960 | |
| 52811-25010 |
Duct, Cool Air Intake, NO.1
2004-08 → 2007-08
ended
|
KDY220,230,270,280 T2,T3,T4 | ¥2,960 | |
| 52811-25010 |
Duct, Cool Air Intake, NO.1
2003-08 → 2021-11
ended
|
TRY220,23#,281 T2,T3,T4 | ¥2,960 | |
| 52811-25020 |
Duct, Cool Air Intake, NO.1
2001-07 → 2003-08
ended
|
RZY220,230 TW1,TW2,TW3,TW4 | ¥2,960 | |
| 52811-25020 |
Duct, Cool Air Intake, NO.1
2003-08 → —
|
TRY220,230 TW1,TW2,TW3 | ¥2,960 | |
| 52811-25020 |
Duct, Cool Air Intake, NO.1
2001-07 → 2004-08
ended
|
LY220,230,240,270,280,290 TW1,TW2,TW3,TW4,VAN | ¥2,960 | |
| 52811-25020 |
Duct, Cool Air Intake, NO.1
2004-08 → 2007-08
ended
|
KDY220,230,240,270,280,290 TW1,TW2,TW3,TW4,VAN | ¥2,960 | |
| 52811-25030 |
Duct, Cool Air Intake, NO.1
2007-09 → —
|
KDY221,231,271,281 T2,T3,T4 | ¥2,020 | |
| 52811-25040 |
Duct, Cool Air Intake, NO.1
2007-09 → —
|
KDY221,231,241,271,281 TW1,TW2,TW3,TW4,VAN | ¥1,920 | |
| 53709C — Cover Sub-assy, Air Cleaner Inlet | ||||
| 53767-25040 |
Cover Sub-assy, Air Cleaner Inlet
2001-07 → 2004-08
ended
|
LY220,230,270,280 (T2,T3,T4) DSL | ¥2,540 | |
| 53767-25040 |
Cover Sub-assy, Air Cleaner Inlet
2001-07 → 2007-08
ended
|
RZY220,23#,281 T2,T3,T4 | ¥2,540 | |
| 53767-25040 |
Cover Sub-assy, Air Cleaner Inlet
2003-08 → 2021-11
ended
|
TRY220,23#,281 T2,T3,T4 | ¥2,540 | |
| 53767-25040 |
Cover Sub-assy, Air Cleaner Inlet
2004-08 → —
|
KDY22#,23#,27#,28# T2,T3,T4 | ¥2,540 | |
| 53775B — Bracket, Cool Air Intake Duct Mounting | ||||
| 53707-25020 |
Bracket, Cool Air Intake Duct Mounting
2003-08 → 2007-08
ended
|
RZY231,281 | ¥1,540 | |
| 53775-25010 |
Bracket, Cool Air Intake Duct Mounting
2001-07 → 2004-08
ended
|
LY220,230,270,280 (T2,T3,T4) DSL | ¥950 | |
| 53775-25010 |
Bracket, Cool Air Intake Duct Mounting
2004-08 → —
|
KDY22#,23#,27#,28# T2,T3,T4 | ¥950 | |
| 53775-25010 |
Bracket, Cool Air Intake Duct Mounting
2003-08 → 2021-11
ended
|
TRY220,23#,281 T2,T3,T4 | ¥950 | |
| 53775-25010 |
Bracket, Cool Air Intake Duct Mounting
2001-07 → 2003-08
ended
|
RZY220,230 T2,T3,T4 | ¥950 | |
| 53996A — Packing, Air Cleaner Inlet Pipe | ||||
| 53996-25020 |
Packing, Air Cleaner Inlet Pipe
2001-07 → 2004-08
ended
|
LY220,230,240,270,280,290 DSL | ¥380 | |
| 53996-25020 |
Packing, Air Cleaner Inlet Pipe
2001-07 → 2007-08
ended
|
RZY220,23#,281 | ¥380 | |
| 53996-25020 |
Packing, Air Cleaner Inlet Pipe
2004-08 → 2007-08
ended
|
KDY220,230,240,270,280,290 | ¥380 | |
| 53996-25020 |
Packing, Air Cleaner Inlet Pipe
2003-08 → 2021-11
ended
|
TRY220,23#,281 T2,T3,T4 | ¥380 | |
| 53996-25020 |
Packing, Air Cleaner Inlet Pipe
2003-08 → —
|
TRY220,230 TW1,TW2,TW3 | ¥380 | |
| 53996-25030 |
Packing, Air Cleaner Inlet Pipe
2007-09 → —
|
KDY221,231,241,271,281 | ¥460 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
