Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

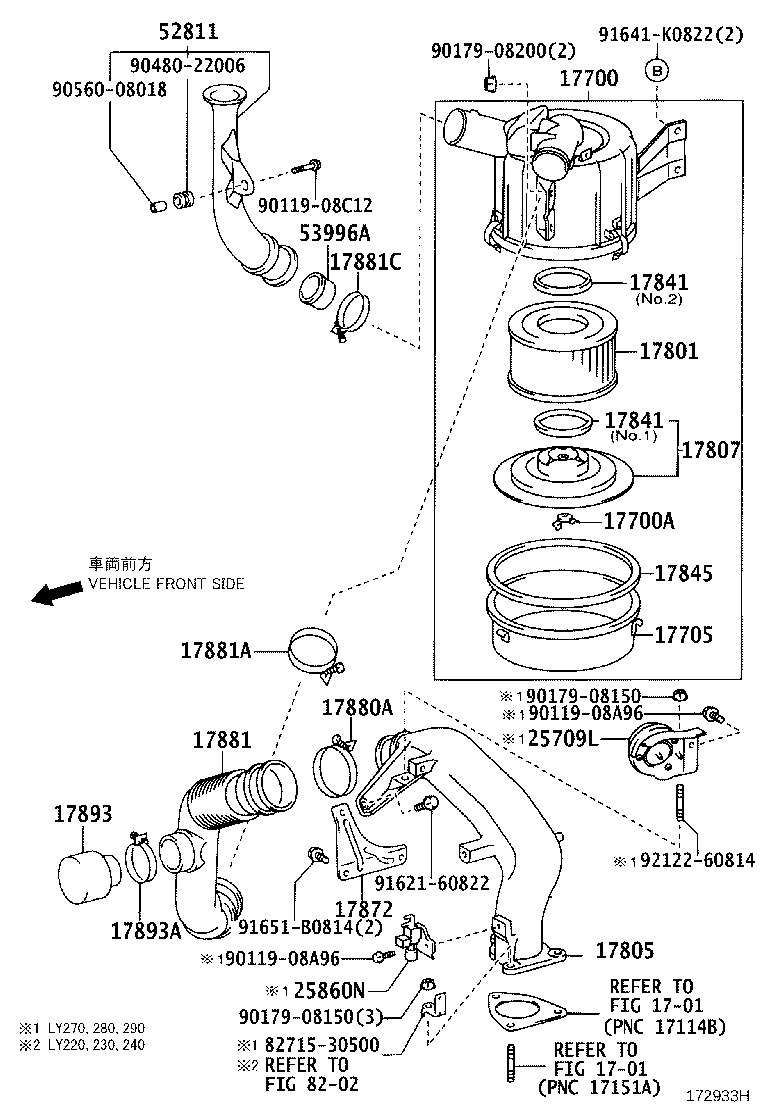

Exploded illustration 172933H 52811 — DUCT, COOL AIR INTAKE, NO.1 (10 parts) 9048022006 — not listed in this catalogue 9056008018 — not listed in this catalogue 9011908C12 — not listed in this catalogue 53996A — PACKING, AIR CLEANER INLET PIPE (6 parts) 17881C — CLAMP(FOR AIR CLEANER HOSE, NO.1) (8 parts) 1701 — not listed in this catalogue 17700 — CLEANER ASSY, AIR (9 parts) 17841 — GASKET, FILTER ELEMENT (10 parts) 17801 — ELEMENT SUB-ASSY, AIR CLEANER FILTER (5 parts) 17841 — GASKET, FILTER ELEMENT (10 parts) 17700A — NUT, WING(FOR AIR CLEANER) (6 parts) 17845 — GASKET, AIR CLEANER CAP (5 parts) 17705 — CAP SUB-ASSY, AIR CLEANER (6 parts) 17807 — PLATE SUB-ASSY, AIR CLEANER FILTER SET (5 parts) 9017908150 — not listed in this catalogue 9011908A96 — not listed in this catalogue 25709L — VALVE SUB-ASSY, ALTITUDE COMPENSATOR (1 parts) 9212260814 — not listed in this catalogue 17805 — CONNECTOR SUB-ASSY, INTAKE AIR (4 parts) 8271530500 — not listed in this catalogue 9162160822 — not listed in this catalogue 17872 — BRACKET, INTAKE AIR CONNECTOR (1 parts) 25860N — VALVE ASSY, VACUUM SWITCHING (1 parts) 9017908150 — not listed in this catalogue 17893A — CLAMP, HOSE (1 parts) 17893 — RESONATOR, INTAKE AIR (1 parts) 17881A — CLAMP(FOR AIR CLEANER HOSE, NO.1) (7 parts) 17880A — CLAMP, HOSE (1 parts) 17881 — HOSE, AIR CLEANER, NO.1 (7 parts) 9011908A96 — not listed in this catalogue 9017908200 — not listed in this catalogue 91641K0822 — not listed in this catalogue 91651B0814 — not listed in this catalogue 1701 — not listed in this catalogue 8202 — not listed in this catalogue
172933H · 20 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
94 parts on this figure
Part number Description Fitment Price
17700 — Cleaner Assy, Air
17700-30170 Cleaner Assy, Air
2004-08 → 2007-08 ended
2KDFTV KDY220,230,240,270,280,290 ¥41,500
17700-30240 Cleaner Assy, Air
2007-09 → 2009-04 ended
1KDFTV KDY221,231,241,271,281 ¥41,500
17700-30241 Cleaner Assy, Air
2009-05 → —
1KDFTV KDY221,231,241,271,281 ¥28,800
17700-5B200 Cleaner Assy, Air
2001-07 → 2004-08 ended
5L,3RZFPE LY220,230,240,270,280,290 ¥31,100
17700-75380 Cleaner Assy, Air
2001-07 → 2003-08 ended
1RZE RZY220,230 ¥25,000
17700-75430 Cleaner Assy, Air
2003-08 → —
1TRFPE TRY231,281 ¥20,800
17700-75430 Cleaner Assy, Air
2003-08 → 2007-09 ended
1TRFE TRY220,230 ¥20,800
17700-75450 Cleaner Assy, Air
2003-08 → 2007-08 ended
3RZFPE RZY231,281 ¥25,000
17700-75530 Cleaner Assy, Air
2007-09 → —
1TRFE TRY220,230 ¥17,300
17700A — Nut, Wing(FOR AIR CLEANER)
90175-06003 note Nut, Wing(FOR AIR CLEANER)
2003-08 → 2007-08 ended
3RZFPE RZY231,281 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2001-07 → 2003-08 ended
1RZE RZY220,230 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2001-07 → 2004-08 ended
5L,3RZFPE LY220,230,240,270,280,290 —
90175-08008 note Nut, Wing(FOR AIR CLEANER)
2003-08 → 2007-08 ended
3RZFPE RZY231,281 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2003-08 → —
1TR# TRY220,23#,281 —
90175-08008 Nut, Wing(FOR AIR CLEANER)
2004-08 → —
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 —
17705 — Cap Sub-assy, Air Cleaner
17705-30110 Cap Sub-assy, Air Cleaner
2007-09 → —
1KDFTV KDY221,231,241,271,281 —
17705-54490 Cap Sub-assy, Air Cleaner
2001-07 → 2003-08 ended
1RZE RZY220,230 —
17705-54490 Cap Sub-assy, Air Cleaner
2001-07 → 2004-08 ended
5L,3RZFPE LY220,230,240,270,280,290 —
17705-54490 Cap Sub-assy, Air Cleaner
2004-08 → 2007-08 ended
2KDFTV KDY220,230,240,270,280,290 —
17705-54490 Cap Sub-assy, Air Cleaner
2003-08 → —
1TR# TRY220,23#,281 —
17705-75290 Cap Sub-assy, Air Cleaner
2003-08 → 2007-08 ended
3RZFPE RZY231,281 —
17801 — Element Sub-assy, Air Cleaner Filter
17801-54070 Element Sub-assy, Air Cleaner Filter
2001-07 → 2003-08 ended
1RZE RZY220,230 ¥3,150
17801-56050 Element Sub-assy, Air Cleaner Filter
2001-07 → 2004-08 ended
5L,3RZFPE LY220,230,240,270,280,290 ¥4,100
17801-56050 Element Sub-assy, Air Cleaner Filter
2003-08 → 2007-08 ended
3RZFPE RZY231,281 ¥4,100
17801-68020 Element Sub-assy, Air Cleaner Filter
2003-08 → —
1TR# TRY220,23#,281 ¥3,990
17801-68030 Element Sub-assy, Air Cleaner Filter
2004-08 → —
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 ¥5,100
17805 — Connector Sub-assy, Intake Air
17805-54370 Connector Sub-assy, Intake Air
2001-07 → 2004-08 ended
5L LY220,230,240,270,280,290 ¥18,200
17805-75200 Connector Sub-assy, Intake Air
2001-07 → 2003-08 ended
3RZFPE LY230,280 ¥33,600
17805-75200 Connector Sub-assy, Intake Air
2003-08 → 2007-08 ended
3RZFPE RZY231,281 ¥33,600
17860-75020 Connector Sub-assy, Intake Air
2001-07 → 2003-08 ended
1RZE RZY220,230 ¥8,800
17807 — Plate Sub-assy, Air Cleaner Filter Set
17807-54040 Plate Sub-assy, Air Cleaner Filter Set
2001-07 → 2004-08 ended
5L,3RZFPE LY220,230,240,270,280,290 —
17807-54040 Plate Sub-assy, Air Cleaner Filter Set
2003-08 → 2007-08 ended
3RZFPE RZY231,281 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2003-08 → —
1TR# TRY220,23#,281 —
17807-58020 Plate Sub-assy, Air Cleaner Filter Set
2004-08 → —
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 —
17807-73010 Plate Sub-assy, Air Cleaner Filter Set
2001-07 → 2003-08 ended
1RZE RZY220,230 —
17841 — Gasket, Filter Element
17841-30030 note Gasket, Filter Element
2004-08 → —
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 —
17841-30030 note Gasket, Filter Element
2003-08 → —
1TR# TRY220,23#,281 —
17841-44030 note Gasket, Filter Element
2001-07 → 2004-08 ended
5L,3RZFPE LY220,230,240,270,280,290 —
17841-44030 note Gasket, Filter Element
2003-08 → 2007-08 ended
3RZFPE RZY231,281 —
17841-54010 note Gasket, Filter Element
2001-07 → 2003-08 ended
1RZE RZY220,230 —
17841-54020 note Gasket, Filter Element
2001-07 → 2004-08 ended
5L,3RZFPE LY220,230,240,270,280,290 —
17841-54020 note Gasket, Filter Element
2003-08 → 2007-08 ended
3RZFPE RZY231,281 —
17841-68010 note Gasket, Filter Element
2003-08 → —
1TR# TRY220,23#,281 ¥0
17841-68010 note Gasket, Filter Element
2004-08 → —
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 ¥0
17841-75010 note Gasket, Filter Element
2001-07 → 2003-08 ended
1RZE RZY220,230 —
17845 — Gasket, Air Cleaner Cap
17845-54030 Gasket, Air Cleaner Cap
2004-08 → —
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 —
17845-54030 Gasket, Air Cleaner Cap
2003-08 → —
1TR# TRY220,23#,281 —
17845-54030 Gasket, Air Cleaner Cap
2001-07 → 2007-08 ended
3RZFPE RZY231,281 —
17845-54030 Gasket, Air Cleaner Cap
2001-07 → 2003-08 ended
1RZE RZY220,230 —
17845-54030 Gasket, Air Cleaner Cap
2001-07 → 2004-08 ended
5L,3RZFPE LY220,230,240,270,280,290 —
17872 — Bracket, Intake Air Connector
17872-54030 Bracket, Intake Air Connector
2001-07 → 2004-08 ended
5L LY220,230,240,270,280,290 ¥1,030
17880A — Clamp, Hose
96111-10800 Clamp, Hose
2001-07 → 2004-08 ended
5L LY220,230,240,270,280,290 ¥160
17881 — Hose, Air Cleaner, NO.1
17881-30040 Hose, Air Cleaner, NO.1
2004-08 → —
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 ¥1,720
17881-30040 Hose, Air Cleaner, NO.1
2003-08 → —
1TR# TRY220,23#,281 ¥1,720
17881-54790 Hose, Air Cleaner, NO.1
2001-07 → 2004-08 ended
5L LY220,230,270,280 T2,T3,T4 ¥4,120
17881-54810 Hose, Air Cleaner, NO.1
2001-07 → 2004-08 ended
5L LY220,230,240,270,280,290 TW1,TW2,TW3,TW4,VAN ¥4,950
17881-75181 Hose, Air Cleaner, NO.1
2003-08 → 2007-08 ended
3RZFPE RZY231,281 ¥6,800
17881-75181 Hose, Air Cleaner, NO.1
2001-07 → 2003-08 ended
3RZFPE LY230,280 ¥6,800
17881-75190 Hose, Air Cleaner, NO.1
2001-07 → 2003-08 ended
1RZE RZY220,230 ¥5,900
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10750 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2003-08 ended
1RZE RZY220,230 ¥190
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2003-08 ended
3RZFPE LY230,280 ¥190
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2004-08 ended
5L LY220,230,240,270,280,290 ¥190
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2003-08 → 2007-08 ended
3RZFPE RZY231,281 ¥190
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2003-08 → —
1TR# TRY220,23#,281 ¥190
96111-10750 Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → —
1KDFTV,2KDFTV KDY22#,23#,24#,27#,28#,290 ¥190
96111-10850 note Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2003-08 ended
1RZE RZY220,230 ¥240
17881C — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10780 Clamp(FOR AIR CLEANER HOSE, NO.1)
2003-08 → 2021-11 ended
1TR# TRY220,23#,281 T2,T3,T4 ¥410
96111-10780 Clamp(FOR AIR CLEANER HOSE, NO.1)
2003-08 → —
1TRFE TRY220,230 TW1,TW2,TW3 ¥410
96111-10780 Clamp(FOR AIR CLEANER HOSE, NO.1)
2004-08 → 2007-08 ended
2KDFTV KDY220,230,240,270,280,290 ¥410
96111-10780 Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-09 → 2004-08 ended
5L LY220,230,240,270,280,290 ¥410
96111-10780 Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-09 → 2007-08 ended
1RZE,3RZFPE RZY220,23#,281 ¥410
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2001-09 ended
5L,3RZFPE LY220,230,240,270,280,290 ¥160
96111-10800 Clamp(FOR AIR CLEANER HOSE, NO.1)
2001-07 → 2001-09 ended
1RZE RZY220,230 ¥160
96111-10880 Clamp(FOR AIR CLEANER HOSE, NO.1)
2007-09 → —
1KDFTV KDY221,231,241,271,281 ¥520
17893 — Resonator, Intake Air
17893-54240 Resonator, Intake Air
2001-07 → 2004-08 ended
5L LY220,230,240,270,280,290 ¥1,920
17893A — Clamp, Hose
90460-45001 Clamp, Hose
2001-07 → 2004-08 ended
5L LY220,230,240,270,280,290 ¥190
25709L — Valve Sub-assy, Altitude Compensator
25709-54060 Valve Sub-assy, Altitude Compensator
2001-07 → 2004-08 ended
5L LY270,280,290 ¥19,500
25860N — Valve Assy, Vacuum Switching
25860-54300 Valve Assy, Vacuum Switching
2001-07 → 2004-08 ended
5L LY270,280,290 ¥12,100
52811 — Duct, Cool Air Intake, NO.1
52811-25010 Duct, Cool Air Intake, NO.1
2001-07 → 2007-08 ended
RZY220,23#,281 T2,T3,T4 ¥2,960
52811-25010 Duct, Cool Air Intake, NO.1
2003-08 → 2021-11 ended
TRY220,23#,281 T2,T3,T4 ¥2,960
52811-25010 Duct, Cool Air Intake, NO.1
2004-08 → 2007-08 ended
KDY220,230,270,280 T2,T3,T4 ¥2,960
52811-25010 Duct, Cool Air Intake, NO.1
2001-07 → 2004-08 ended
LY220,230,270,280 (T2,T3,T4) DSL ¥2,960
52811-25020 Duct, Cool Air Intake, NO.1
2001-07 → 2004-08 ended
LY220,230,240,270,280,290 TW1,TW2,TW3,TW4,VAN ¥2,960
52811-25020 Duct, Cool Air Intake, NO.1
2004-08 → 2007-08 ended
KDY220,230,240,270,280,290 TW1,TW2,TW3,TW4,VAN ¥2,960
52811-25020 Duct, Cool Air Intake, NO.1
2001-07 → 2003-08 ended
RZY220,230 TW1,TW2,TW3,TW4 ¥2,960
52811-25020 Duct, Cool Air Intake, NO.1
2003-08 → —
TRY220,230 TW1,TW2,TW3 ¥2,960
52811-25030 Duct, Cool Air Intake, NO.1
2007-09 → —
KDY221,231,271,281 T2,T3,T4 ¥2,020
52811-25040 Duct, Cool Air Intake, NO.1
2007-09 → —
KDY221,231,241,271,281 TW1,TW2,TW3,TW4,VAN ¥1,920
53996A — Packing, Air Cleaner Inlet Pipe
53996-25020 Packing, Air Cleaner Inlet Pipe
2001-07 → 2004-08 ended
LY220,230,240,270,280,290 DSL ¥380
53996-25020 Packing, Air Cleaner Inlet Pipe
2001-07 → 2007-08 ended
RZY220,23#,281 ¥380
53996-25020 Packing, Air Cleaner Inlet Pipe
2004-08 → 2007-08 ended
KDY220,230,240,270,280,290 ¥380
53996-25020 Packing, Air Cleaner Inlet Pipe
2003-08 → 2021-11 ended
TRY220,23#,281 T2,T3,T4 ¥380
53996-25020 Packing, Air Cleaner Inlet Pipe
2003-08 → —
TRY220,230 TW1,TW2,TW3 ¥380
53996-25030 Packing, Air Cleaner Inlet Pipe
2007-09 → —
KDY221,231,241,271,281 ¥460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
