Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

49 part groups · 7 illustrations

Illustrations

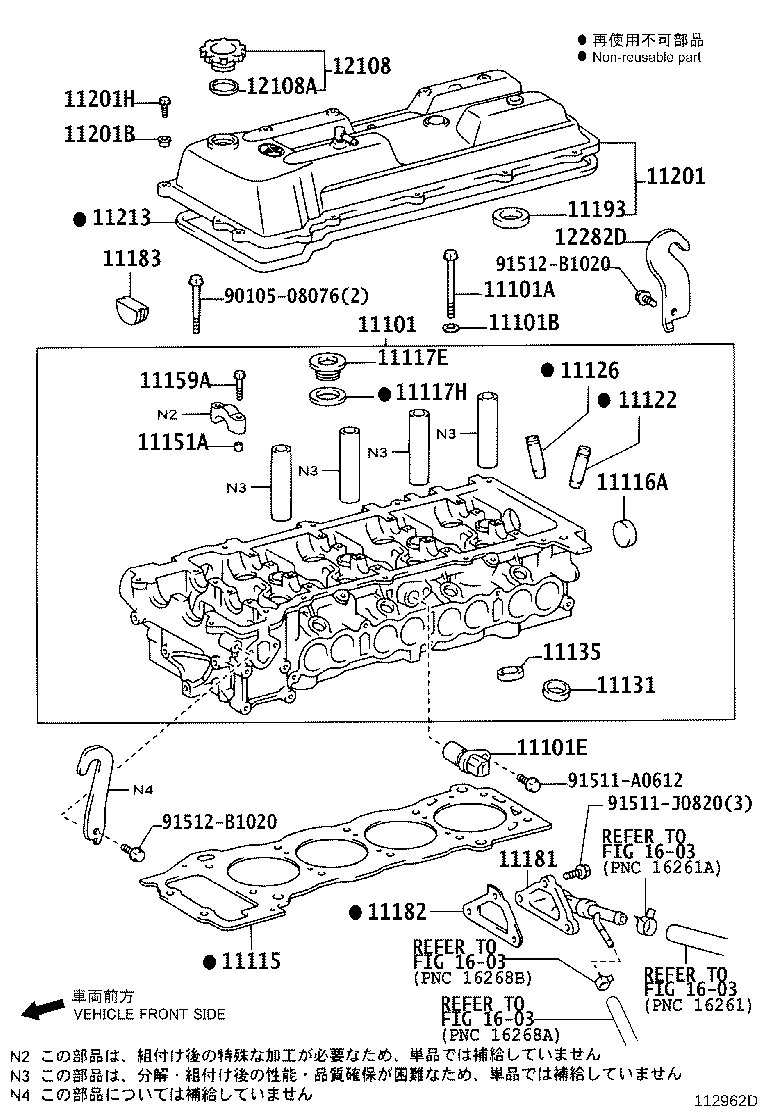

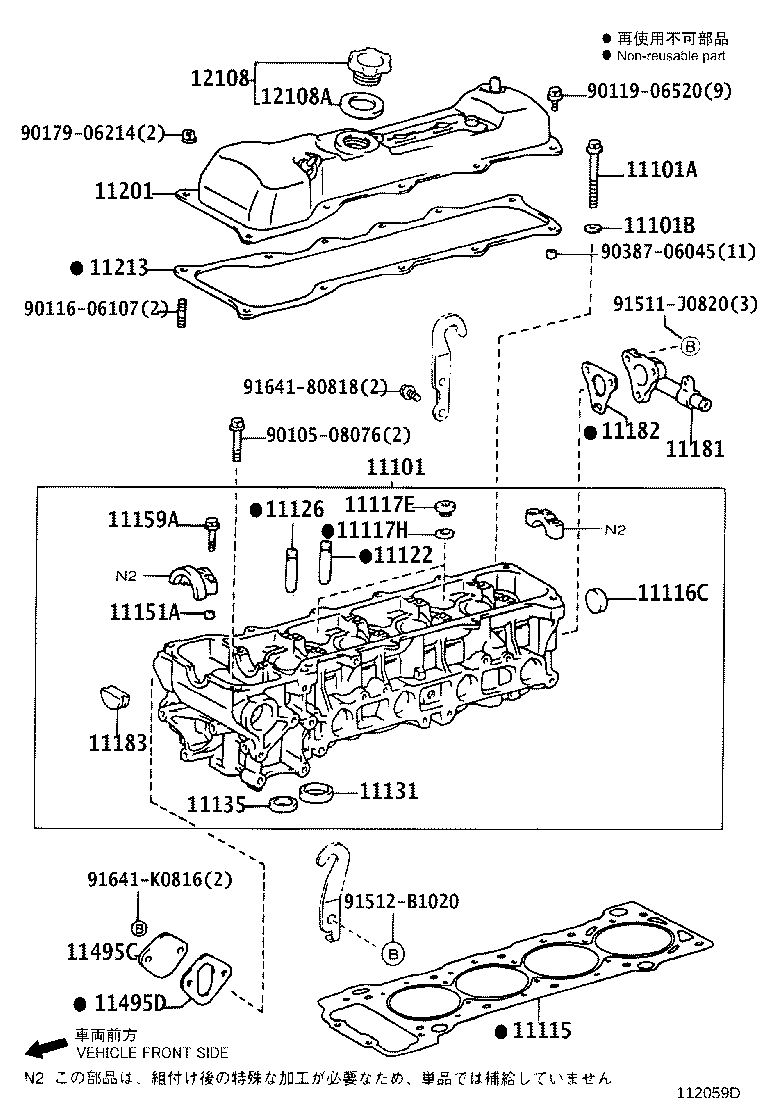

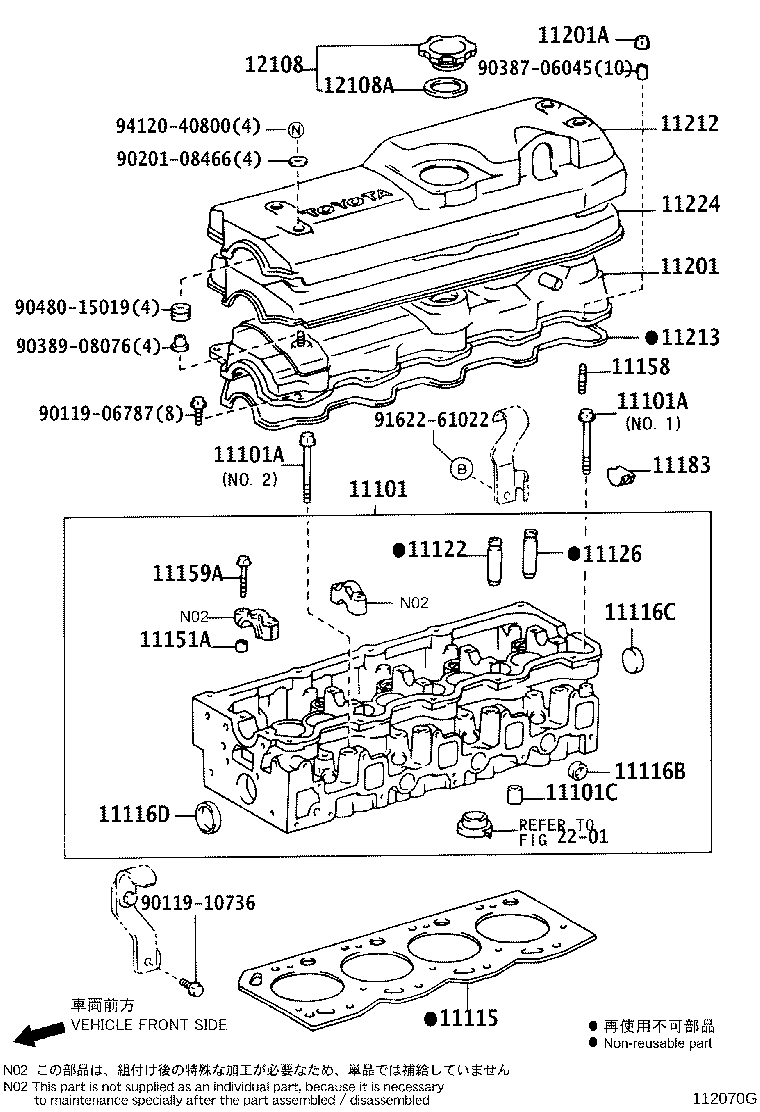

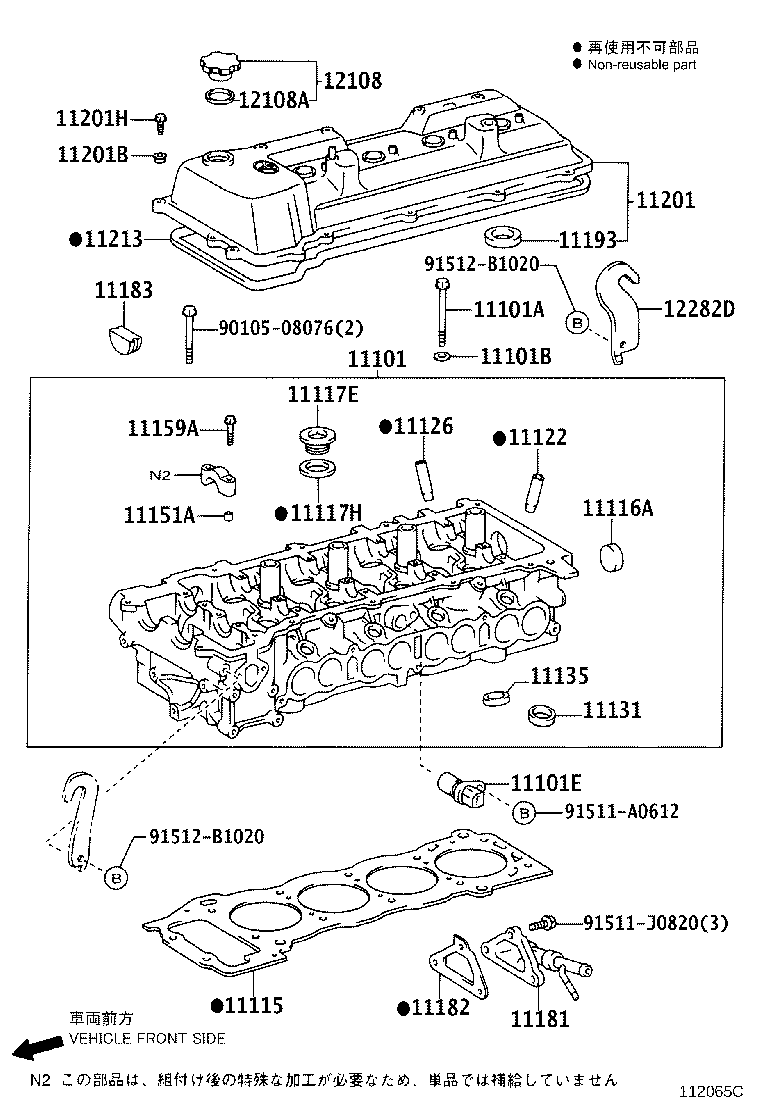

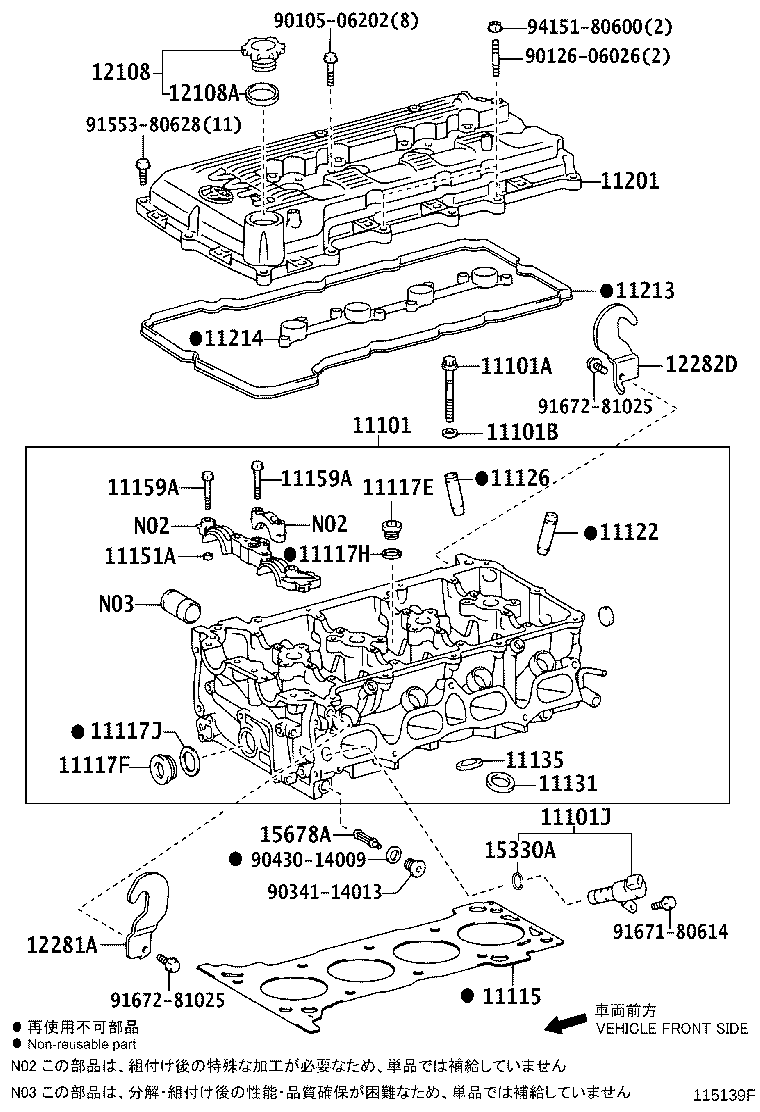

Figure 113391O 113391O 2004-08 → 2007-08 Figure 113391O 113391O 2007-09 → — Figure 112070G 112070G 2001-07 → — Figure 112065C 112065C 2001-07 → — Figure 112059D 112059D 2001-07 → 2003-08 Figure 112962D 112962D 2003-08 → 2007-08 Figure 115139F 115139F 2003-08 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101C Tube(FOR CYLINDER HEAD)
11101E Sensor, Cam Position
11101J Valve Assy, Camshaft Timing Oil Control
11101U Spacer(FOR CYLINDER HEAD SET BOLT)
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11116B Plug, Tight, NO.2
11116C Plug, Tight, NO.3
11116D Plug, Tight, NO.4
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117H Gasket(FOR WATER HOLE)
11117J Gasket(FOR CYLINDER HEAD SCREW PLUG)
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11151A Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
11151B Seal, Oil(FOR CAMSHAFT SETTING)
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201A Nut, Cap(FOR CYLINDER HEAD COVER)
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11201H Bolt(FOR CYLINDER HEAD COVER)
11212 Cover, Cylinder Head, NO.2
11213 Gasket, Cylinder Head Cover
11214 Gasket, Cylinder Head Cover, NO.2
11224 Silencer, Cylinder Head Cover
11224A Silencer, Cylinder Head Cover, NO.1
11229 Gasket, Cylinder Head Cover, NO.3
11495C Plug, Plate(FOR CYLINDER HEAD)
11495D Gasket(FOR CYLINDER HEAD)
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12284A Hanger, Engine, NO.1 Upper
12581C Insulator, Cylinder Block
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
15678A Filter, Oil Control Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
