Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

13 part groups · 8 illustrations

Illustrations

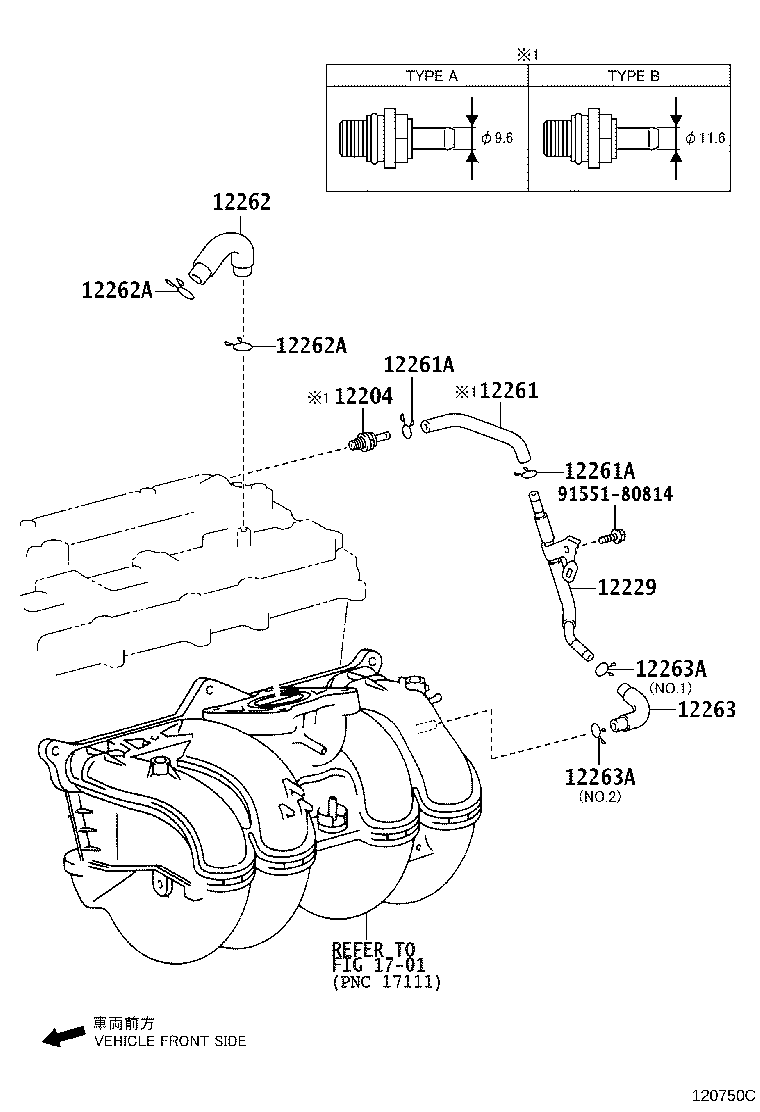

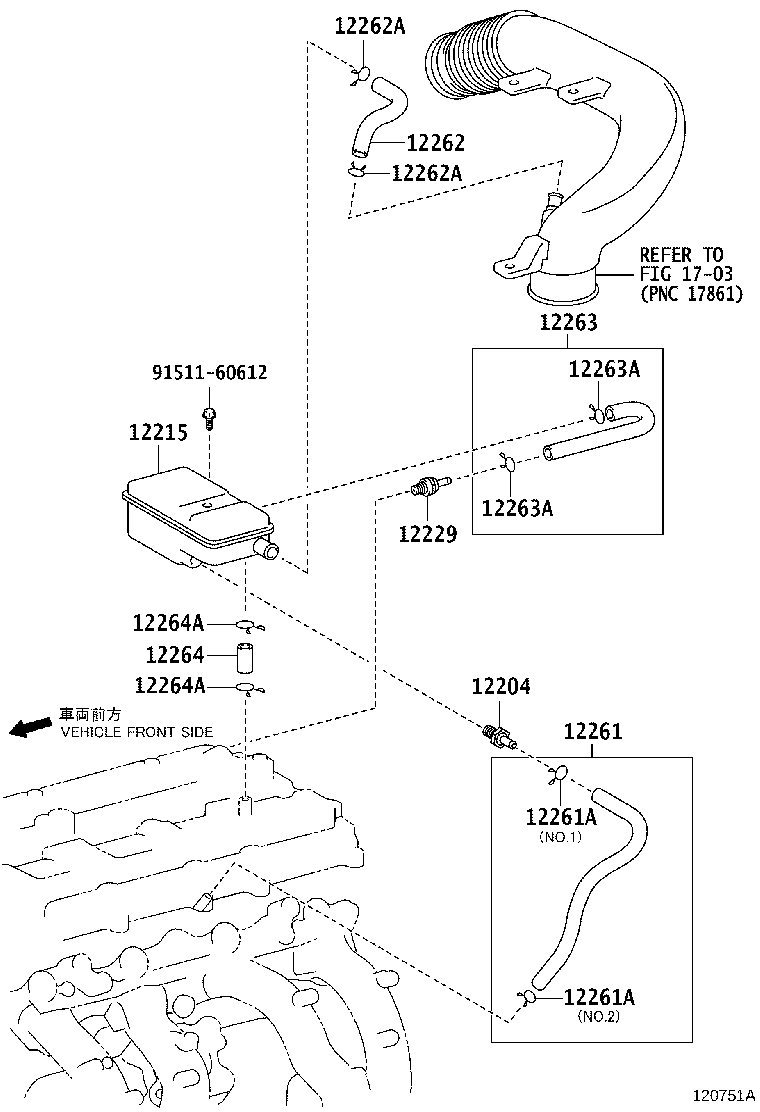

Figure 120423A 120423A 2004-08 → 2007-08 Figure 120879A 120879A 2007-09 → — Figure 121173 121173 2001-07 → — Figure 120185A 120185A 2001-07 → — Figure 121208 121208 2001-07 → 2003-08 Figure 120287A 120287A 2003-08 → 2007-08 Figure 120750C 120750C 2003-08 → — Figure 120751A 120751A 2007-12 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12215 Separator, Case
12229 Pipe, Ventilation
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
12278 Insulator, Ventilation Hose Heat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
