Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

96 part groups · 23 illustrations

Illustrations

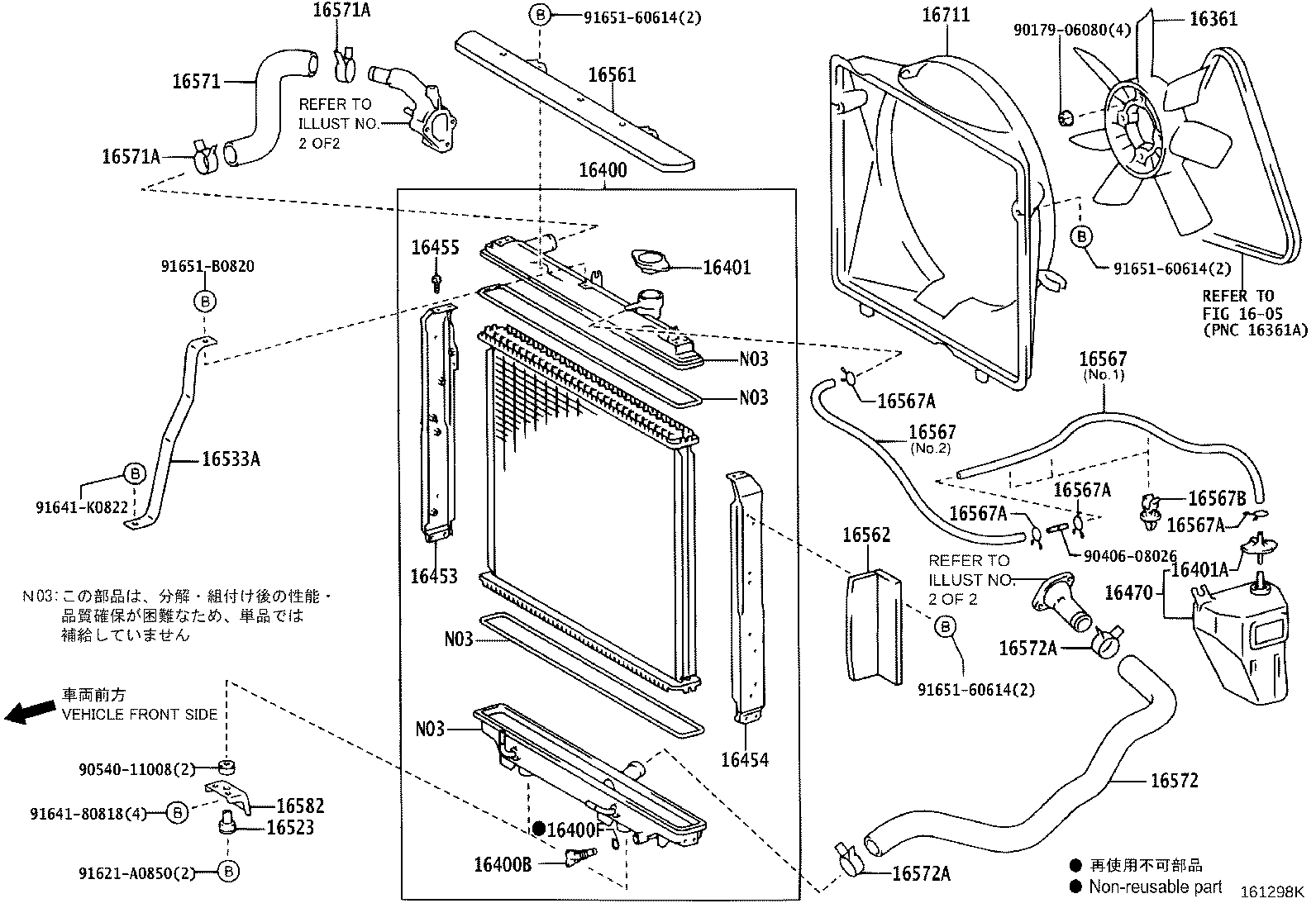

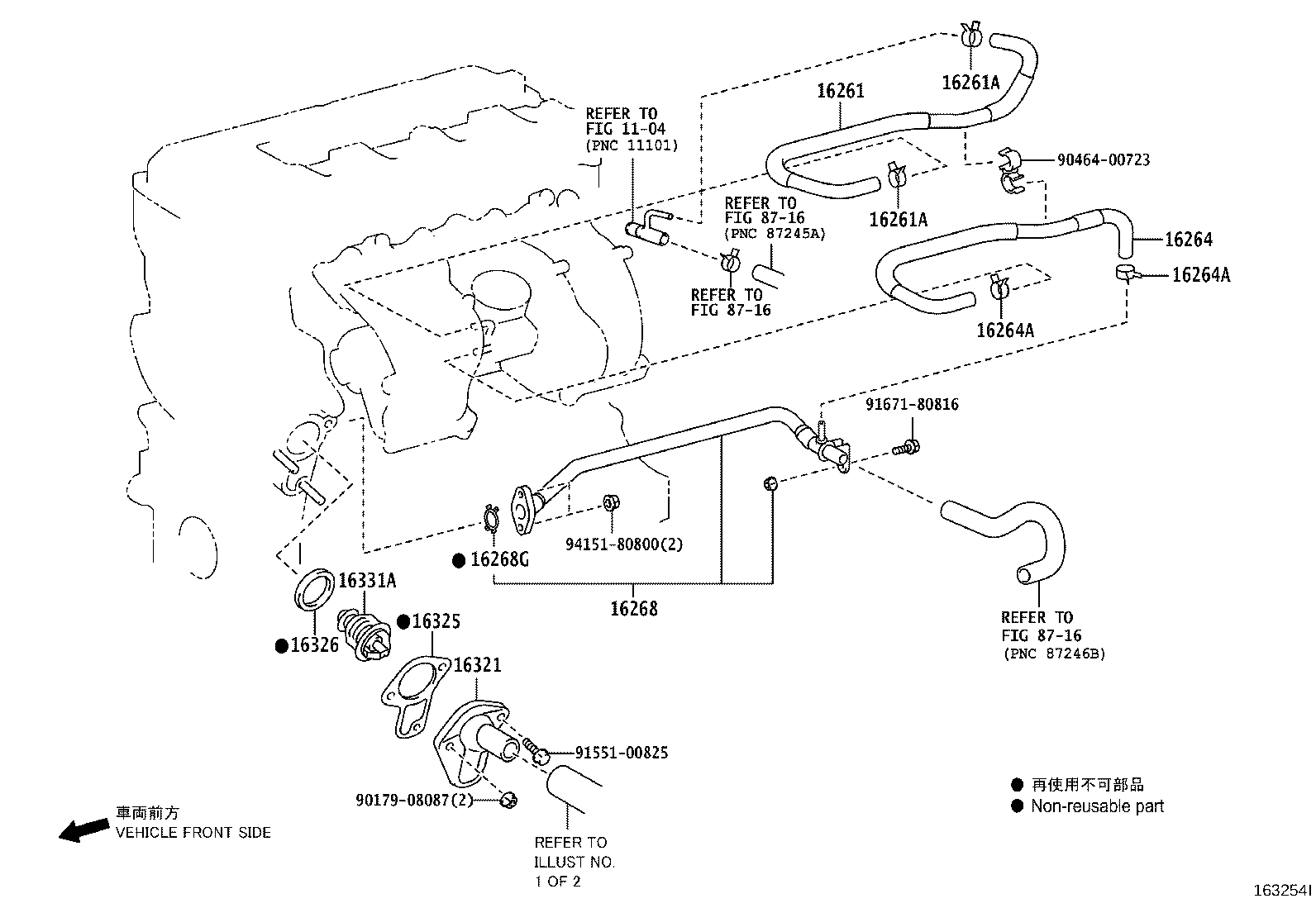

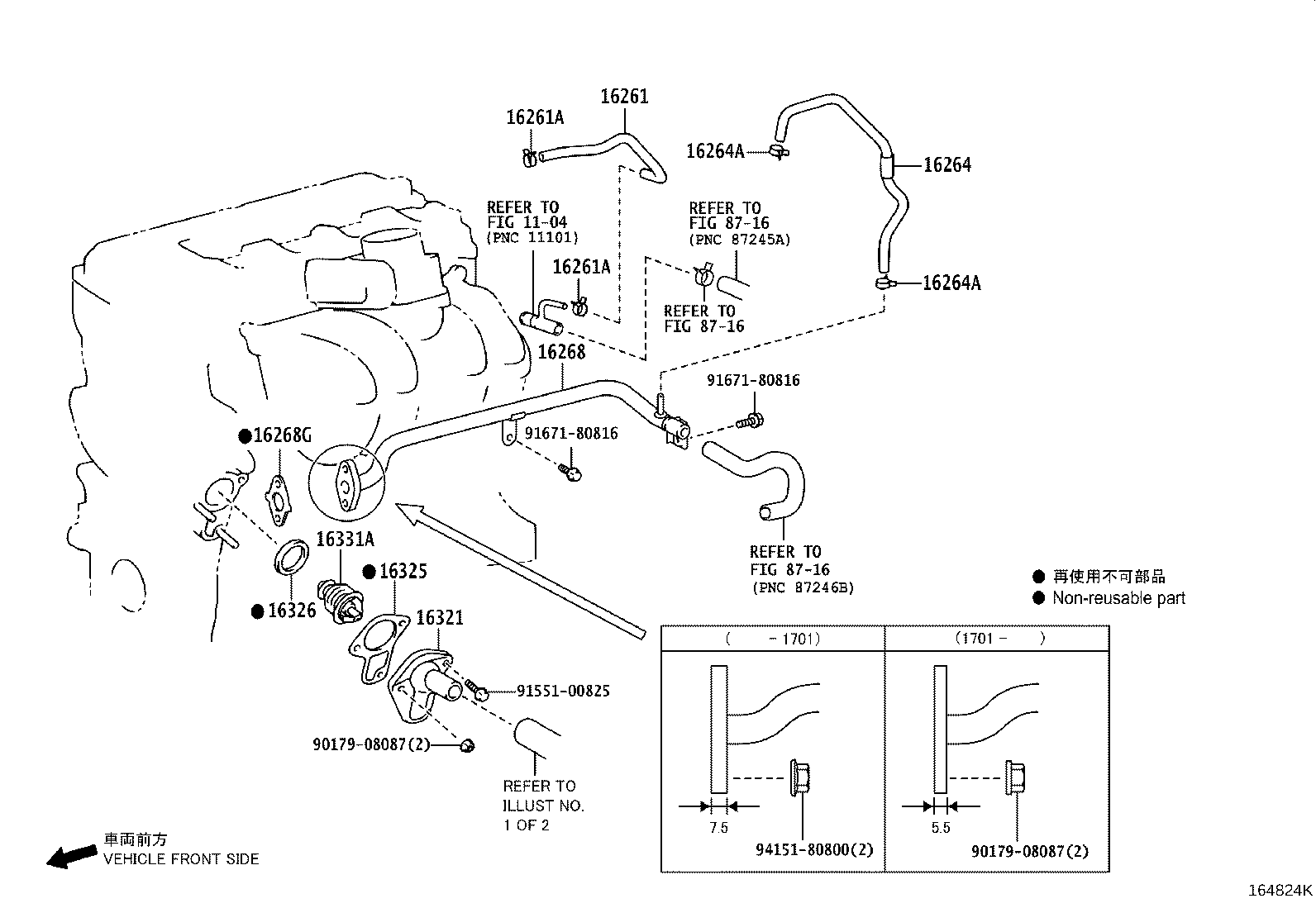

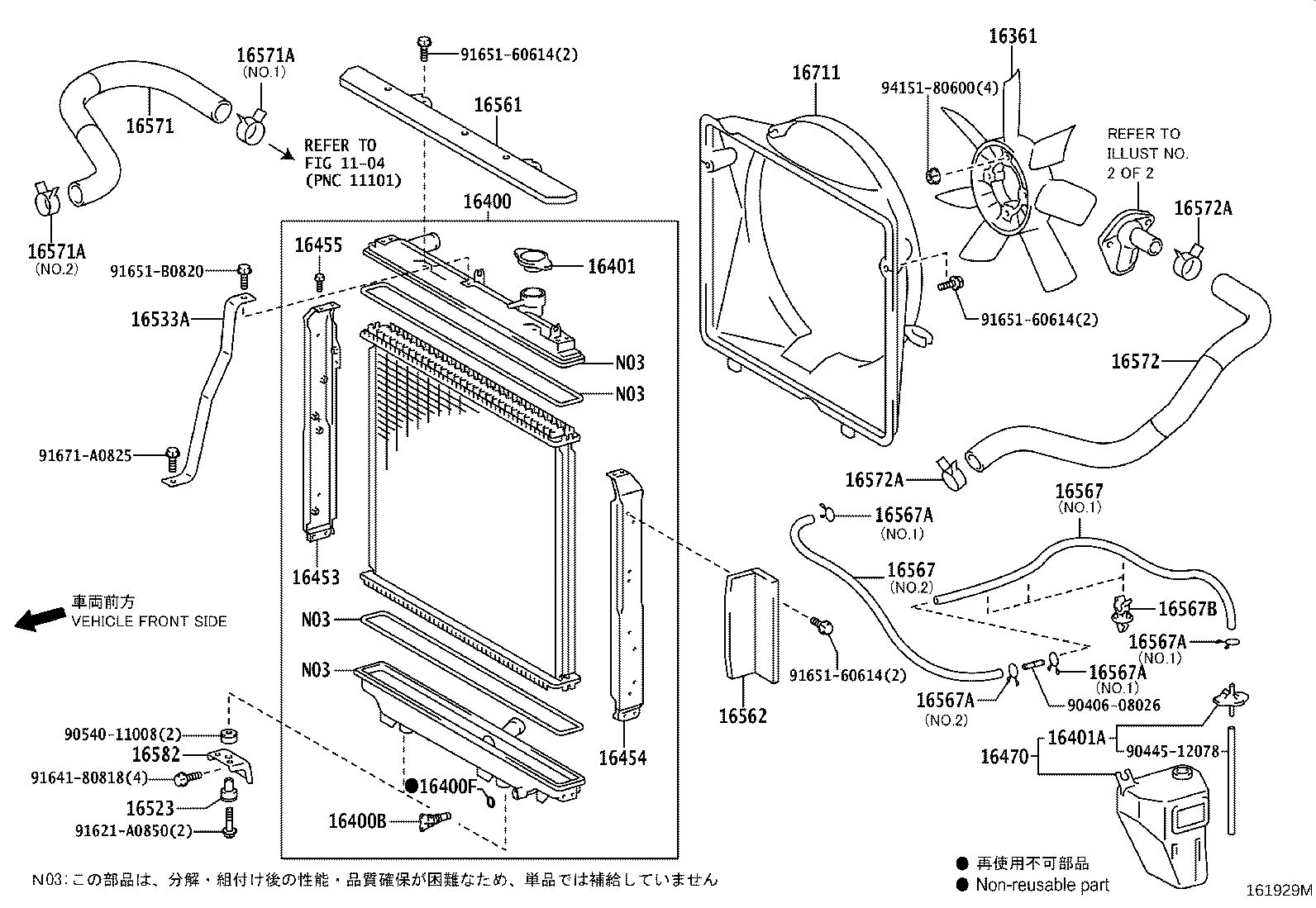

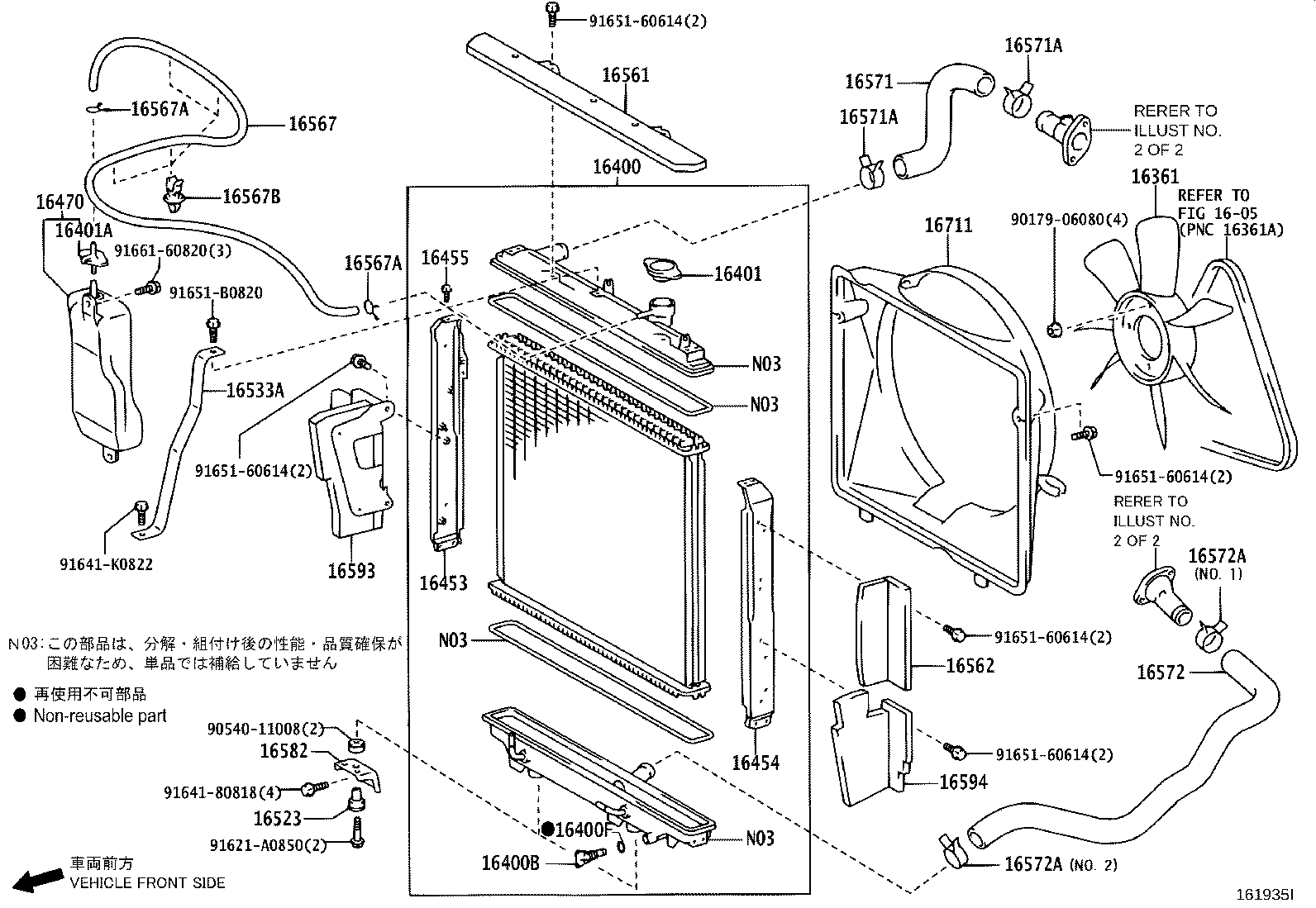

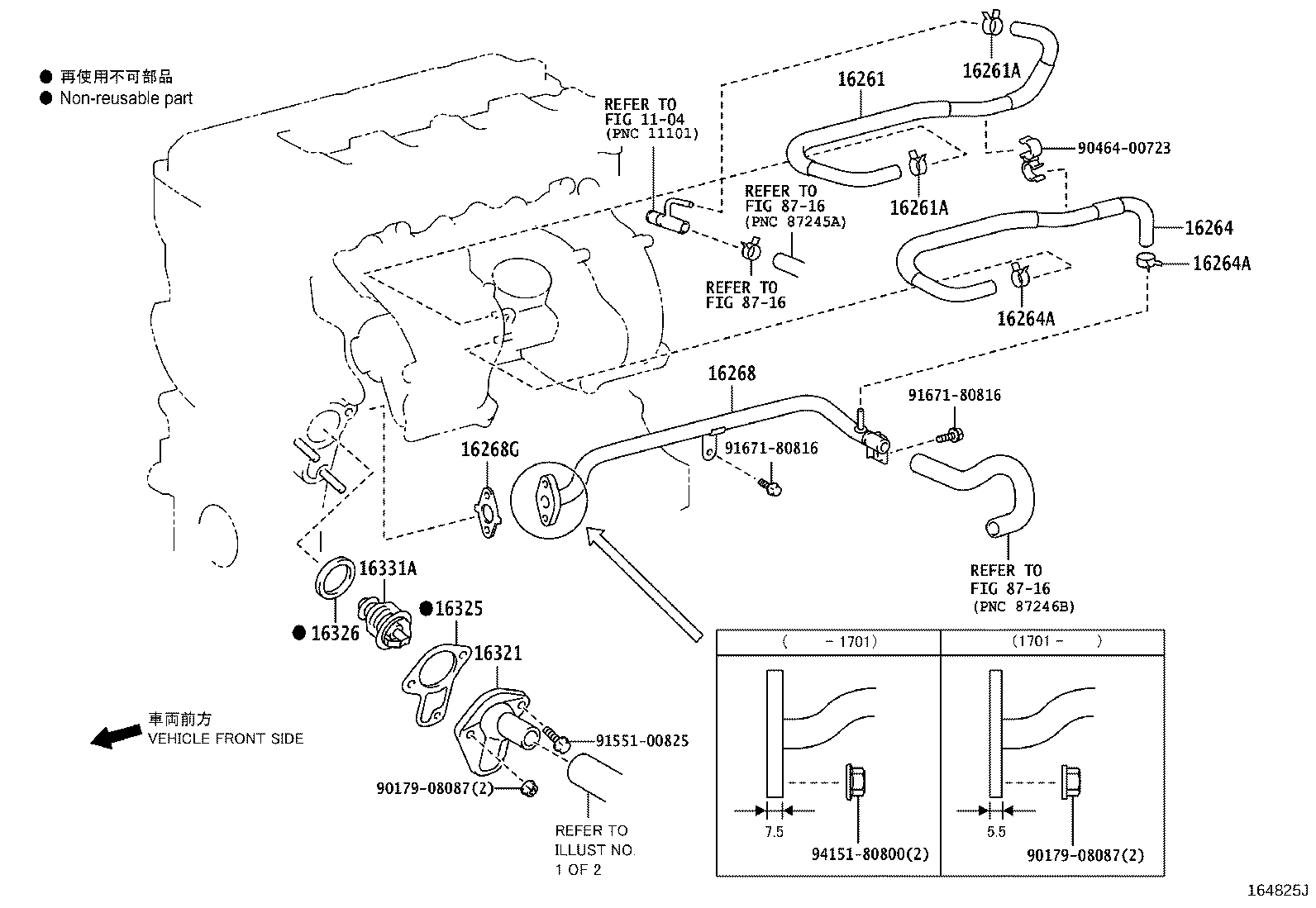

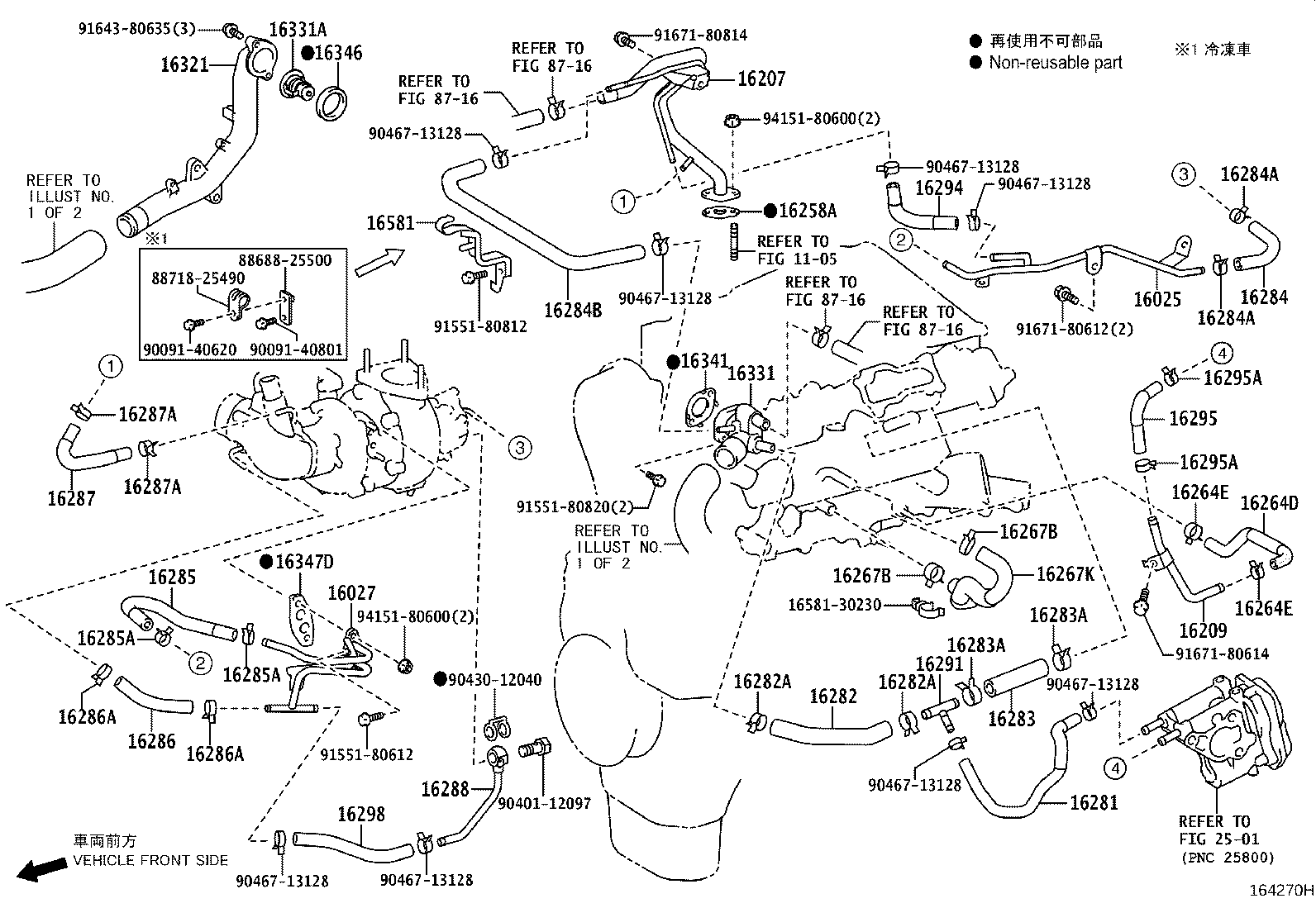

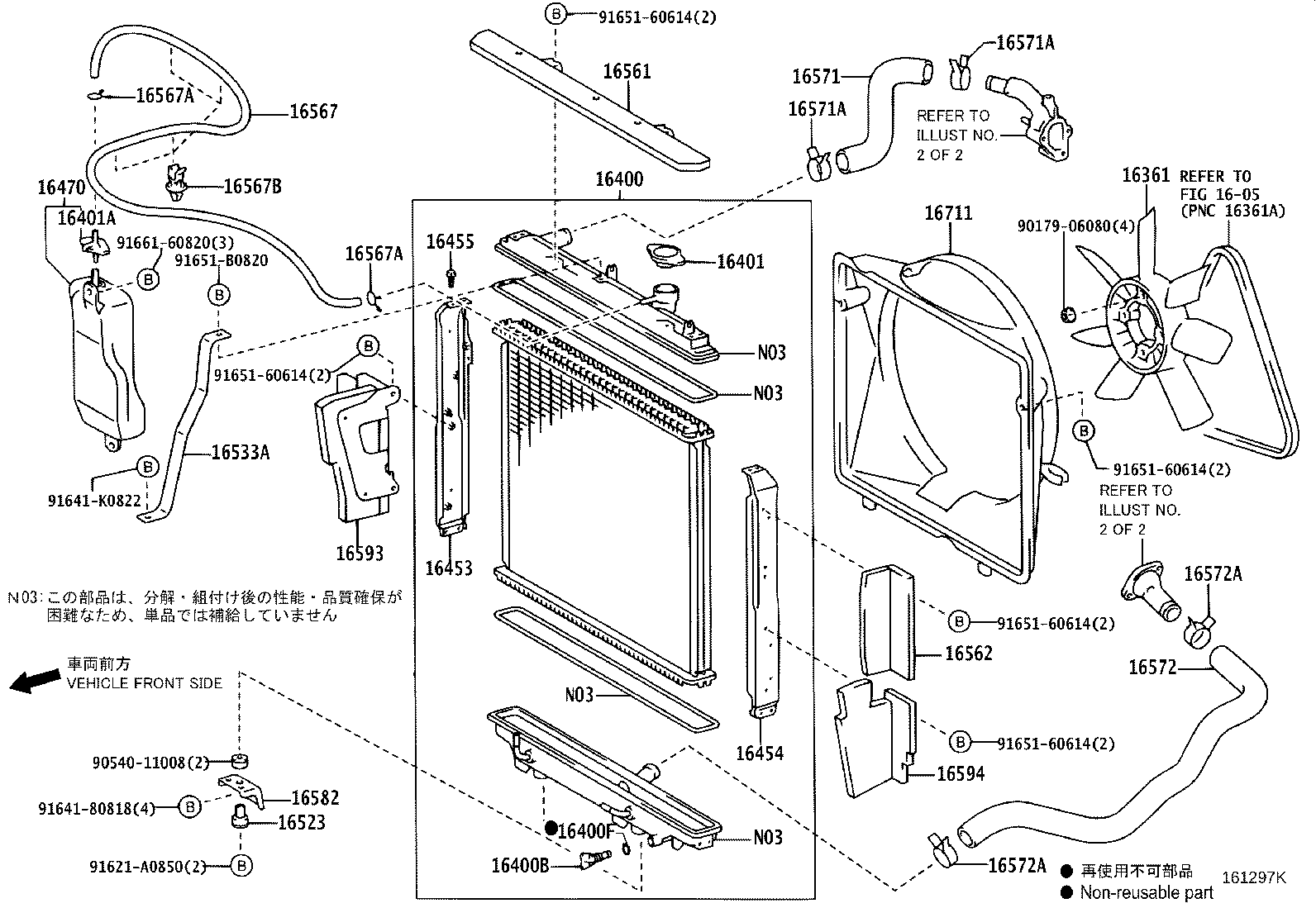

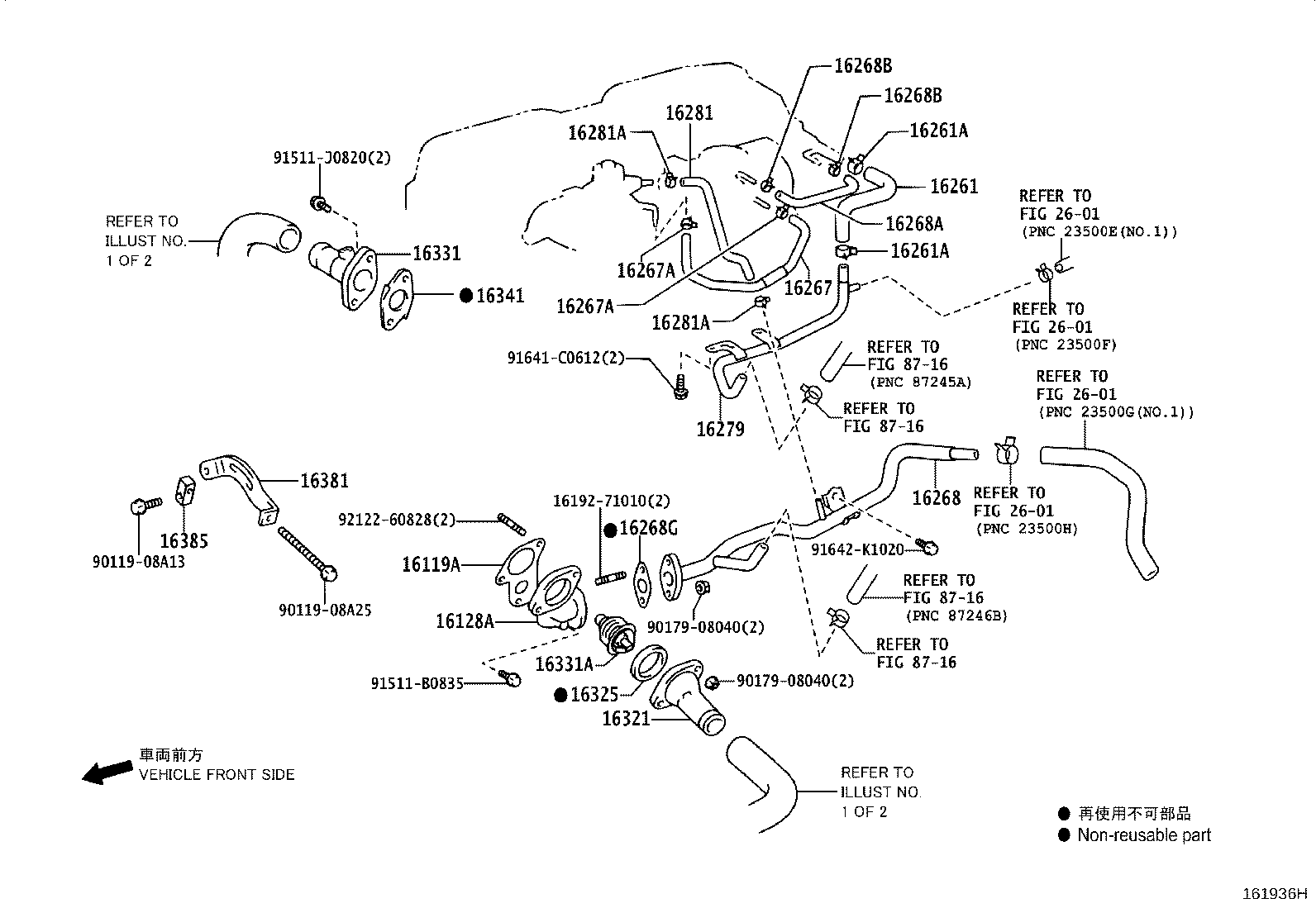

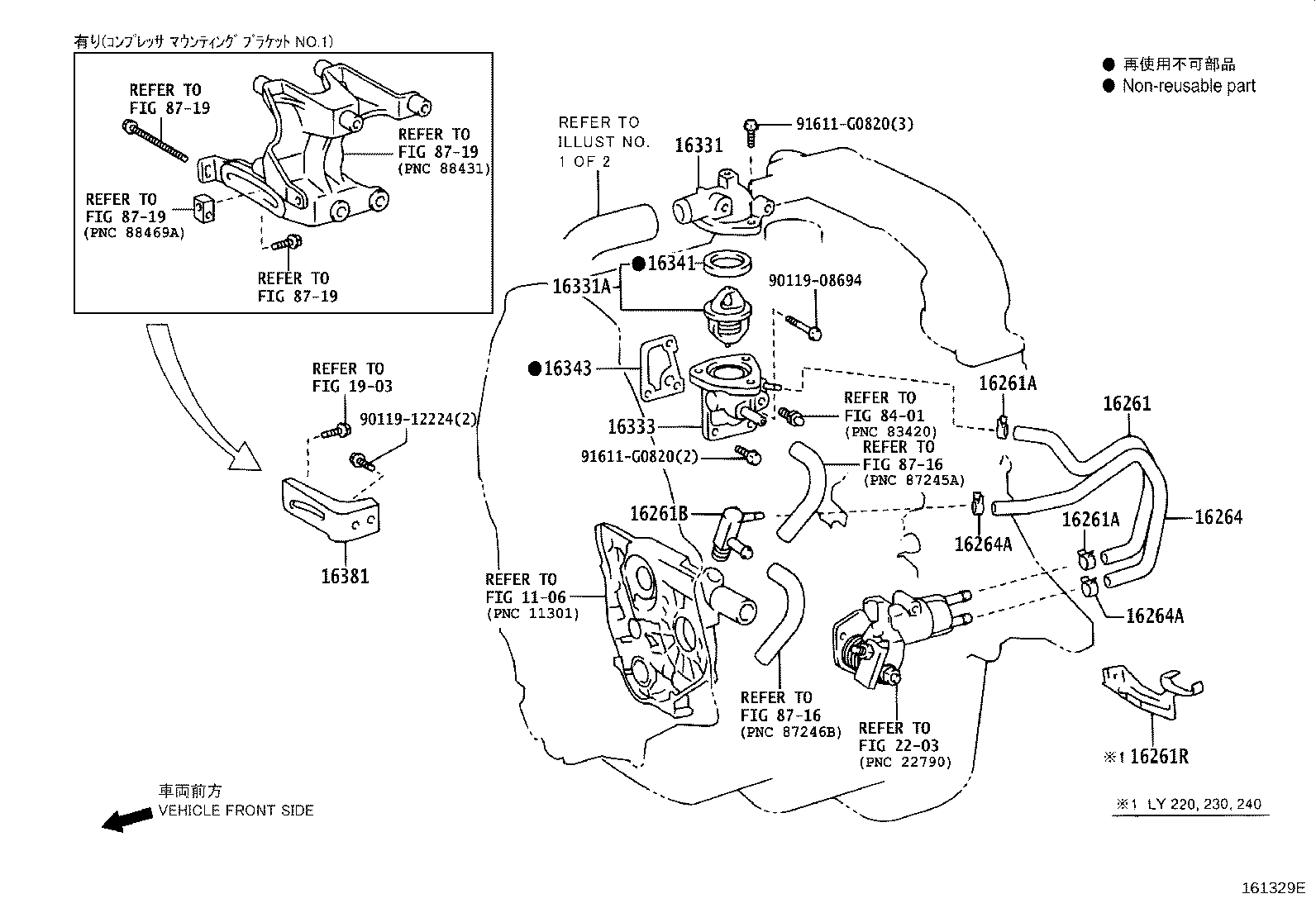

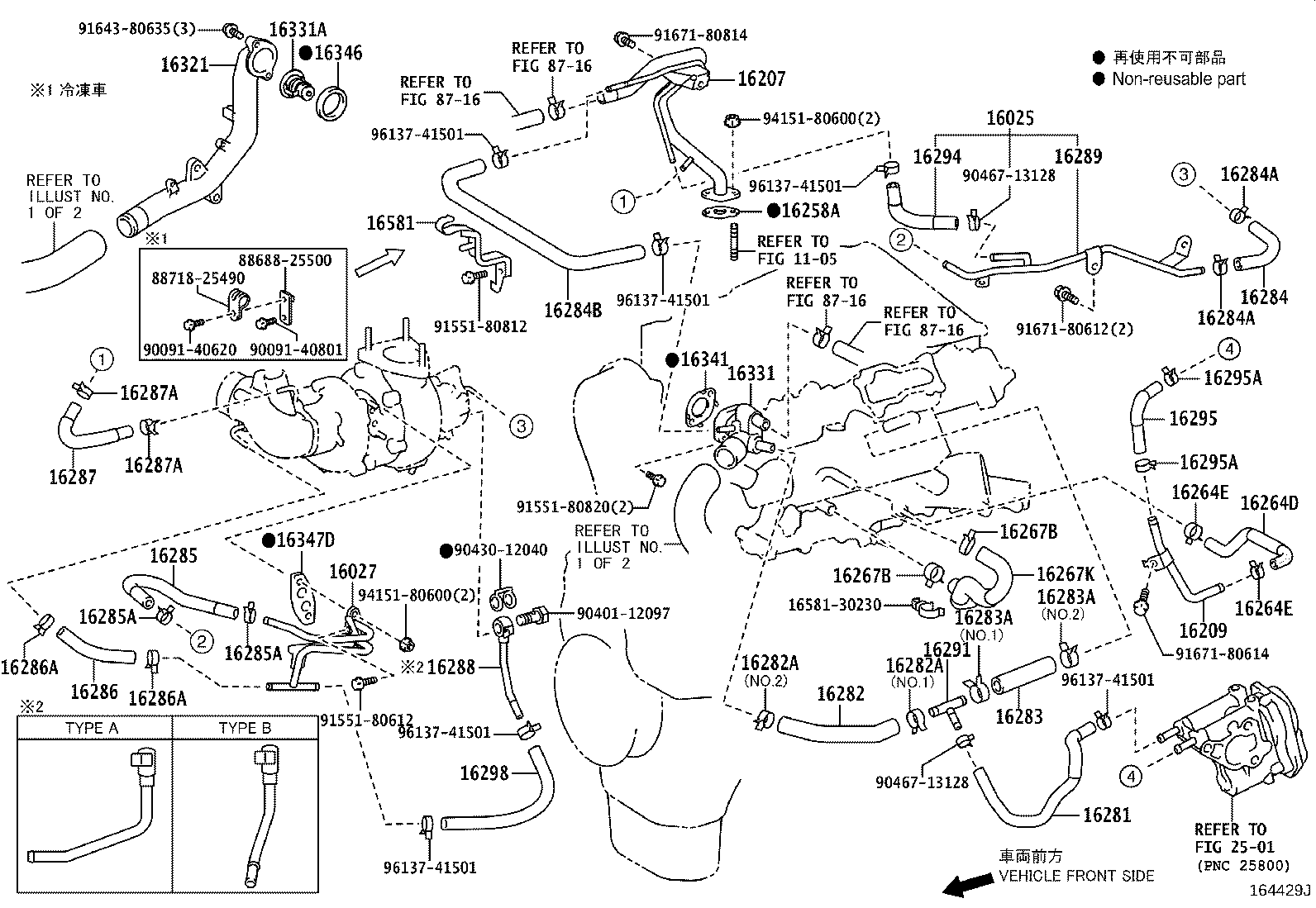

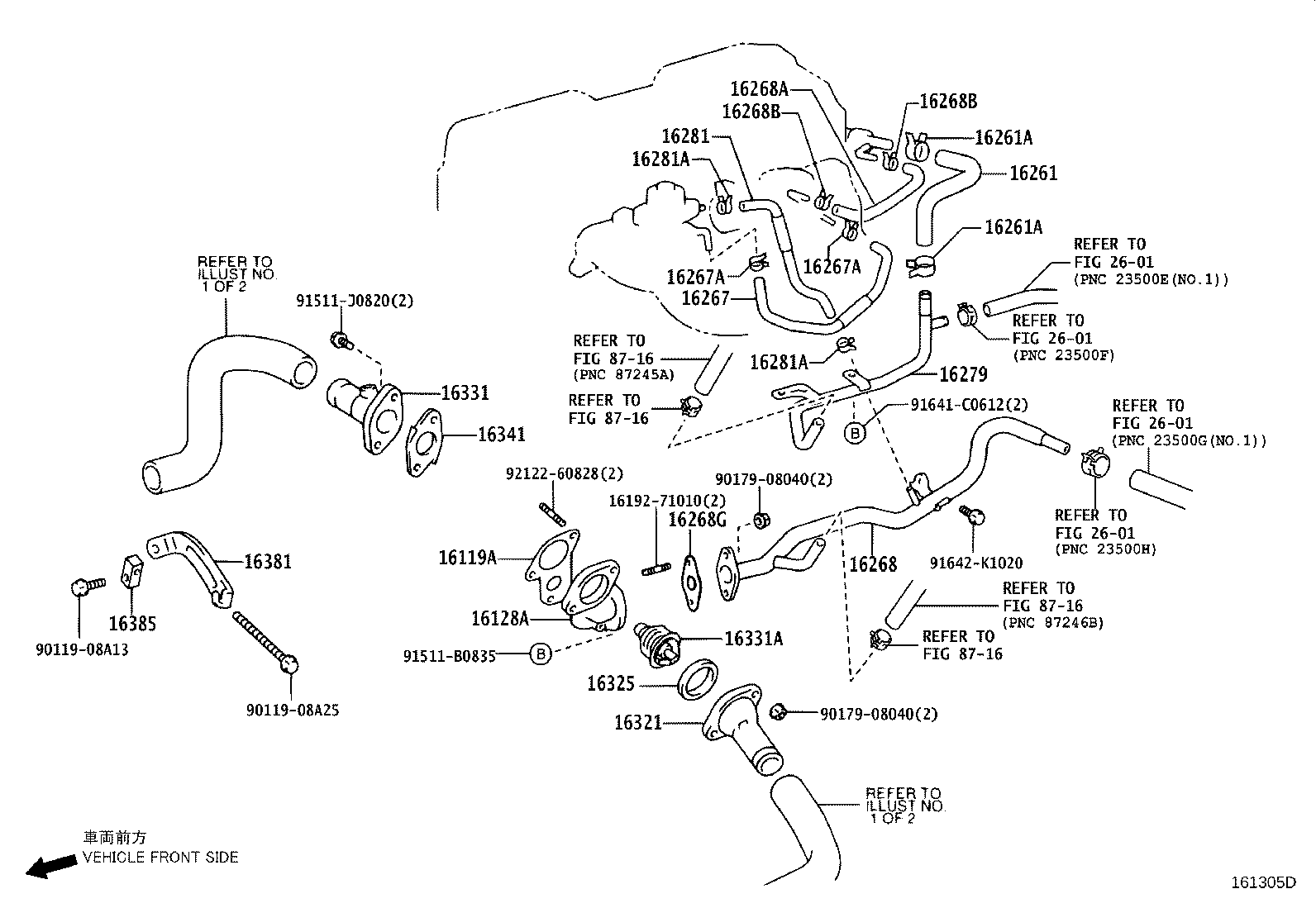

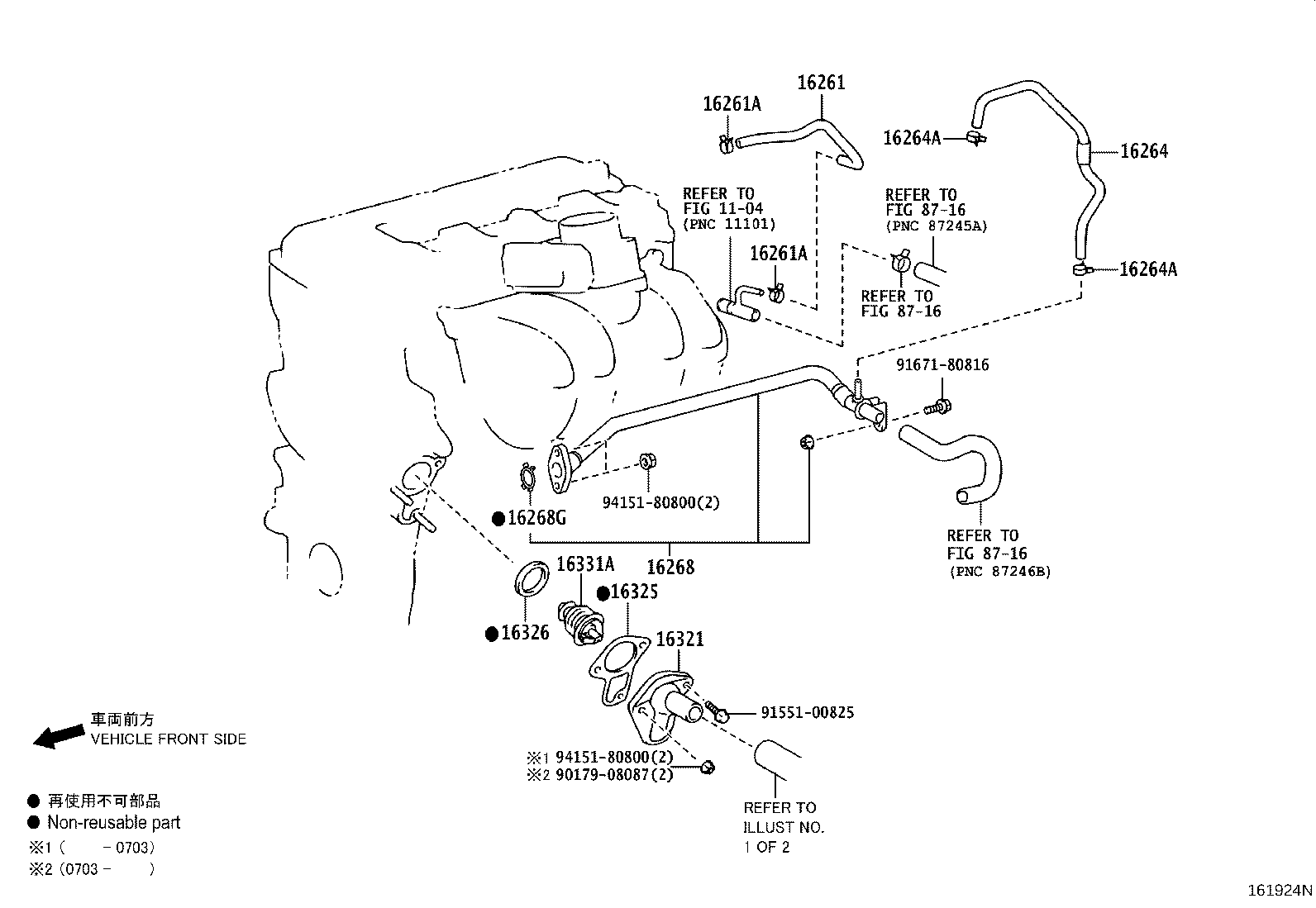

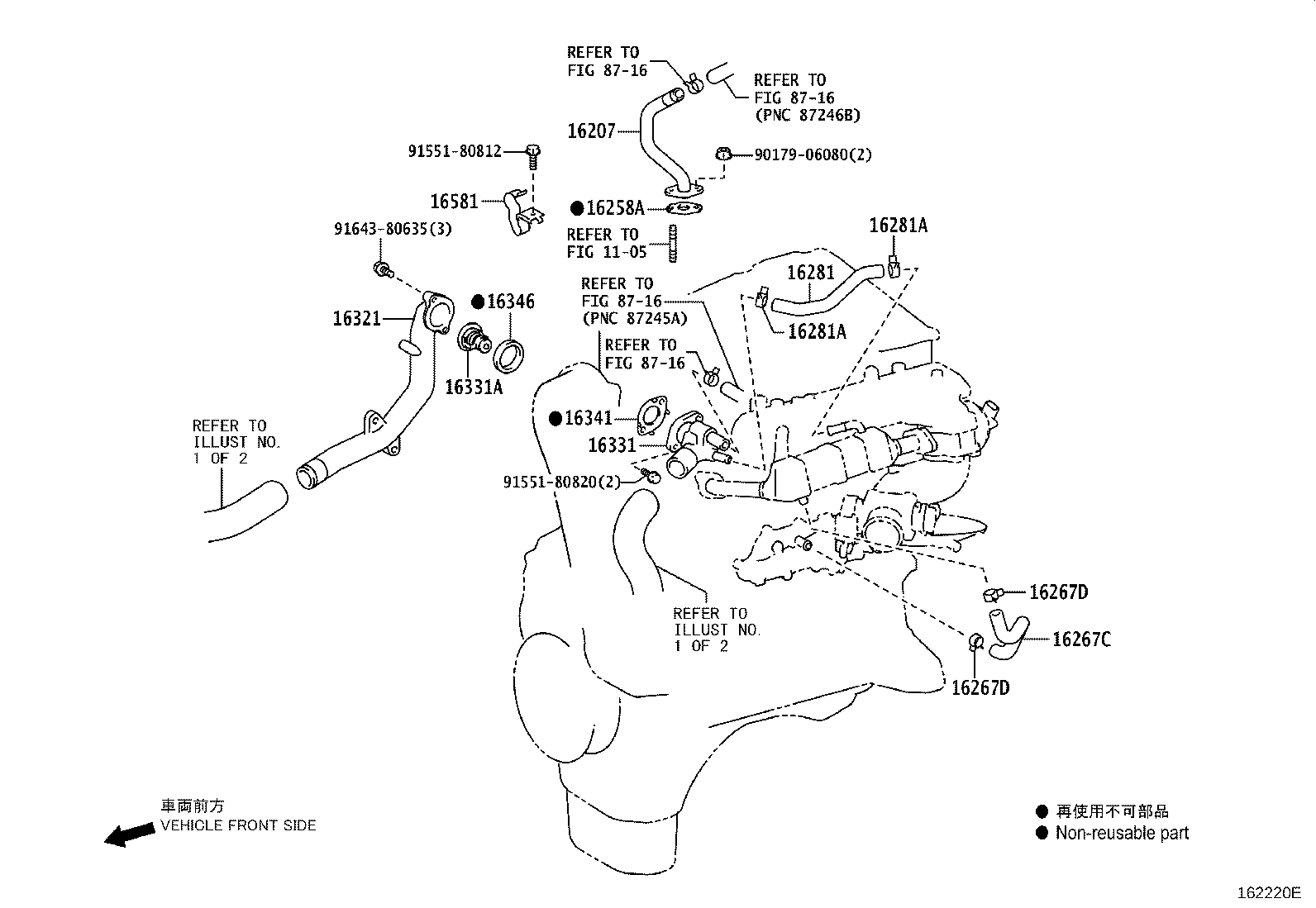

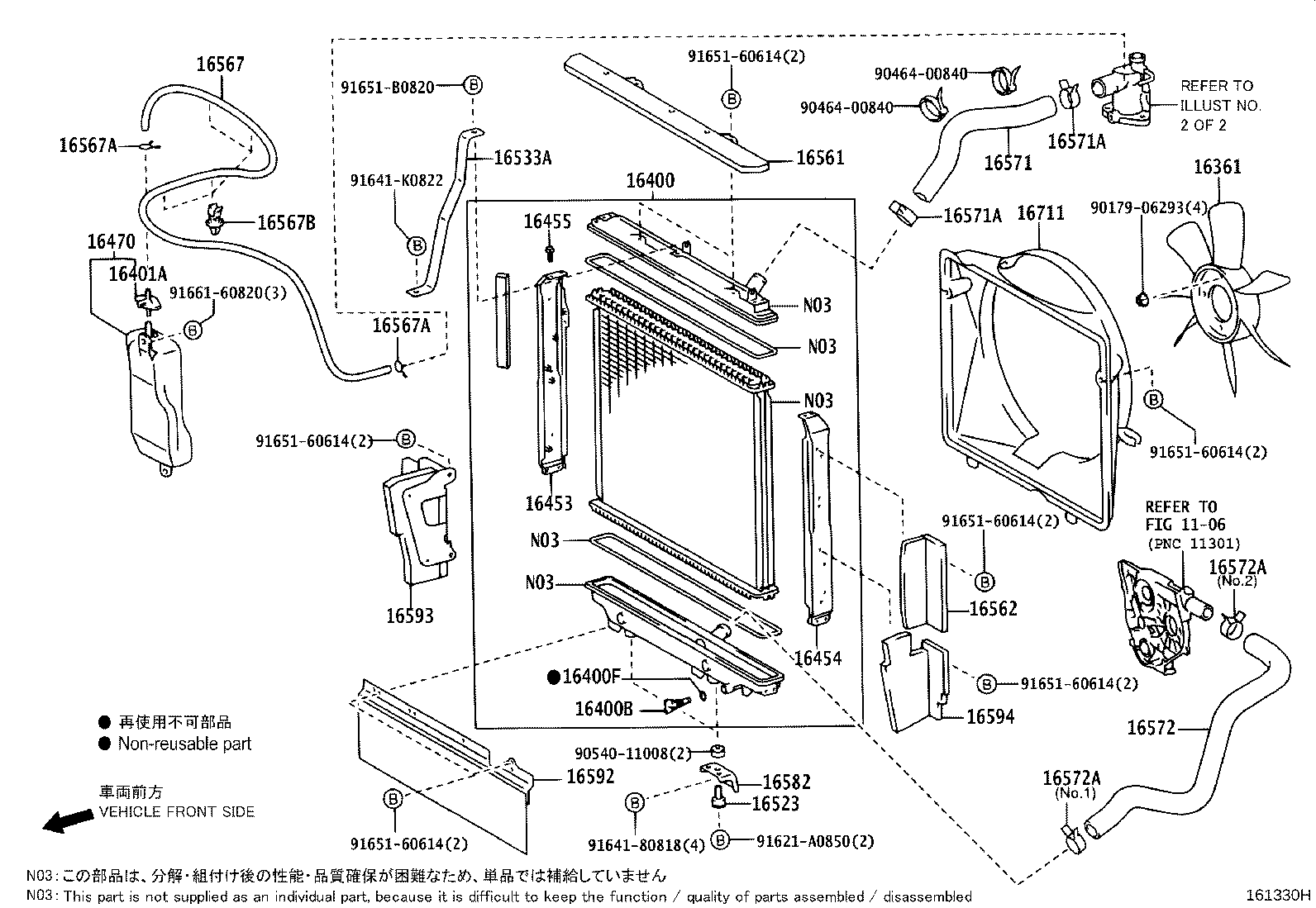

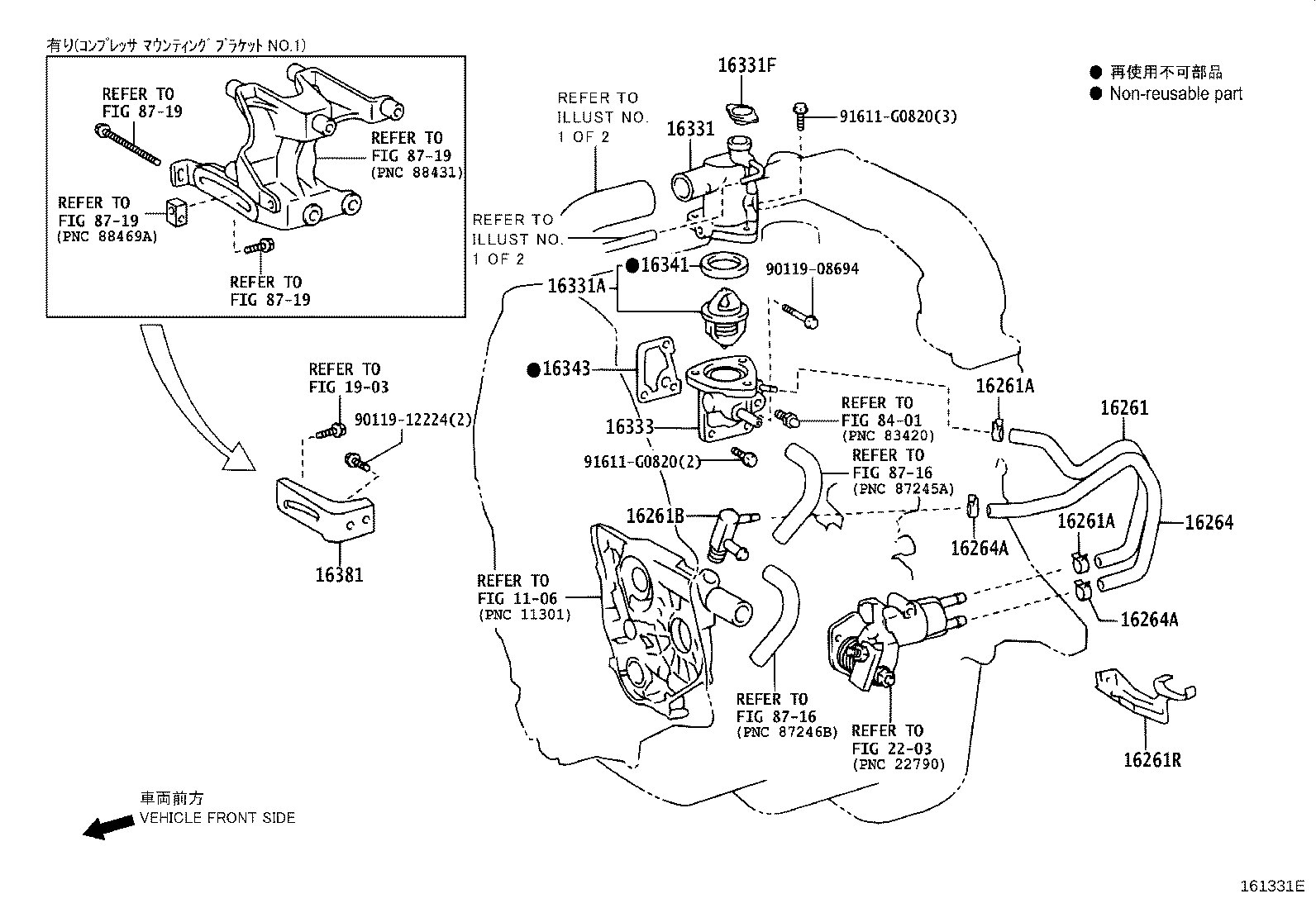

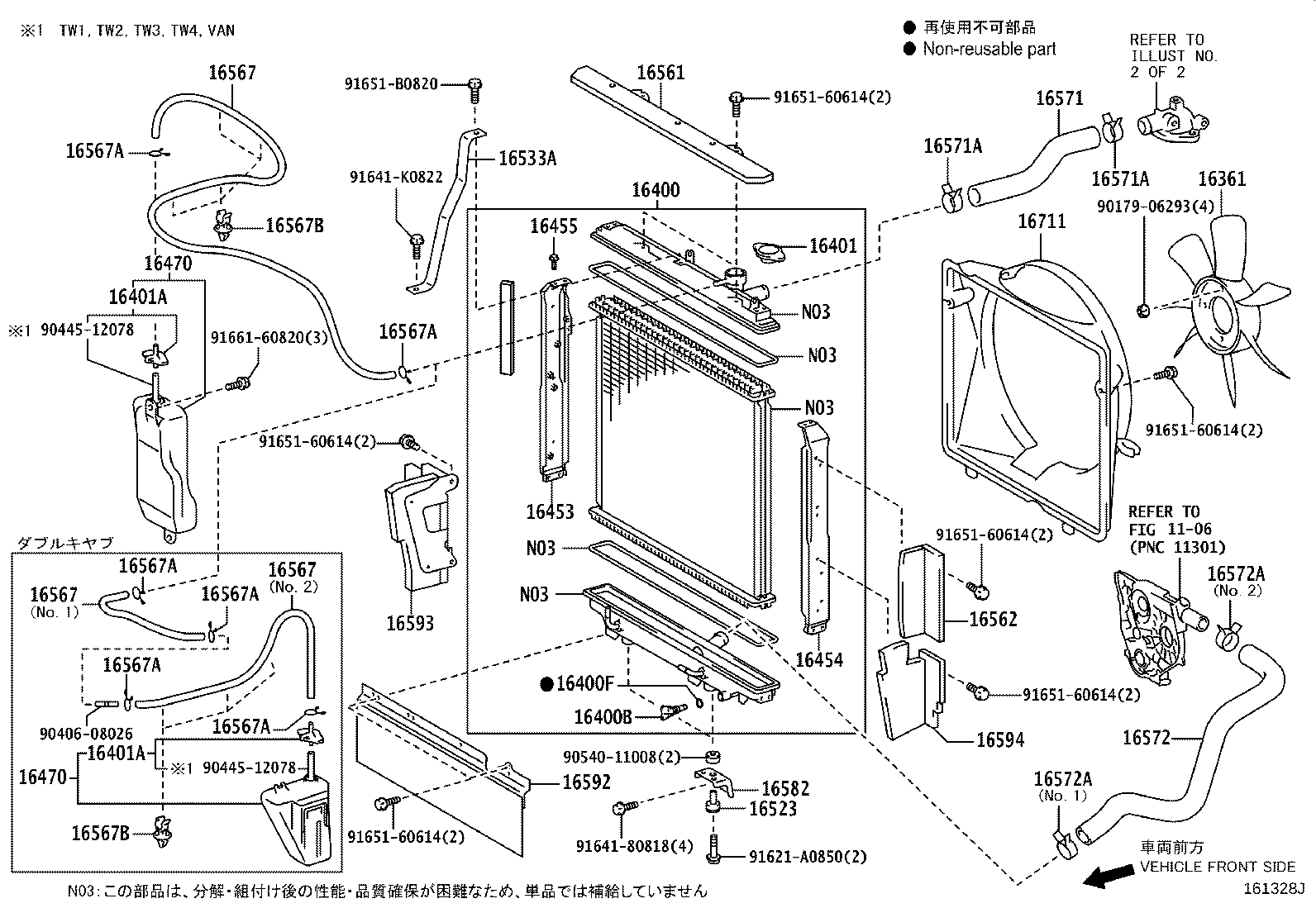

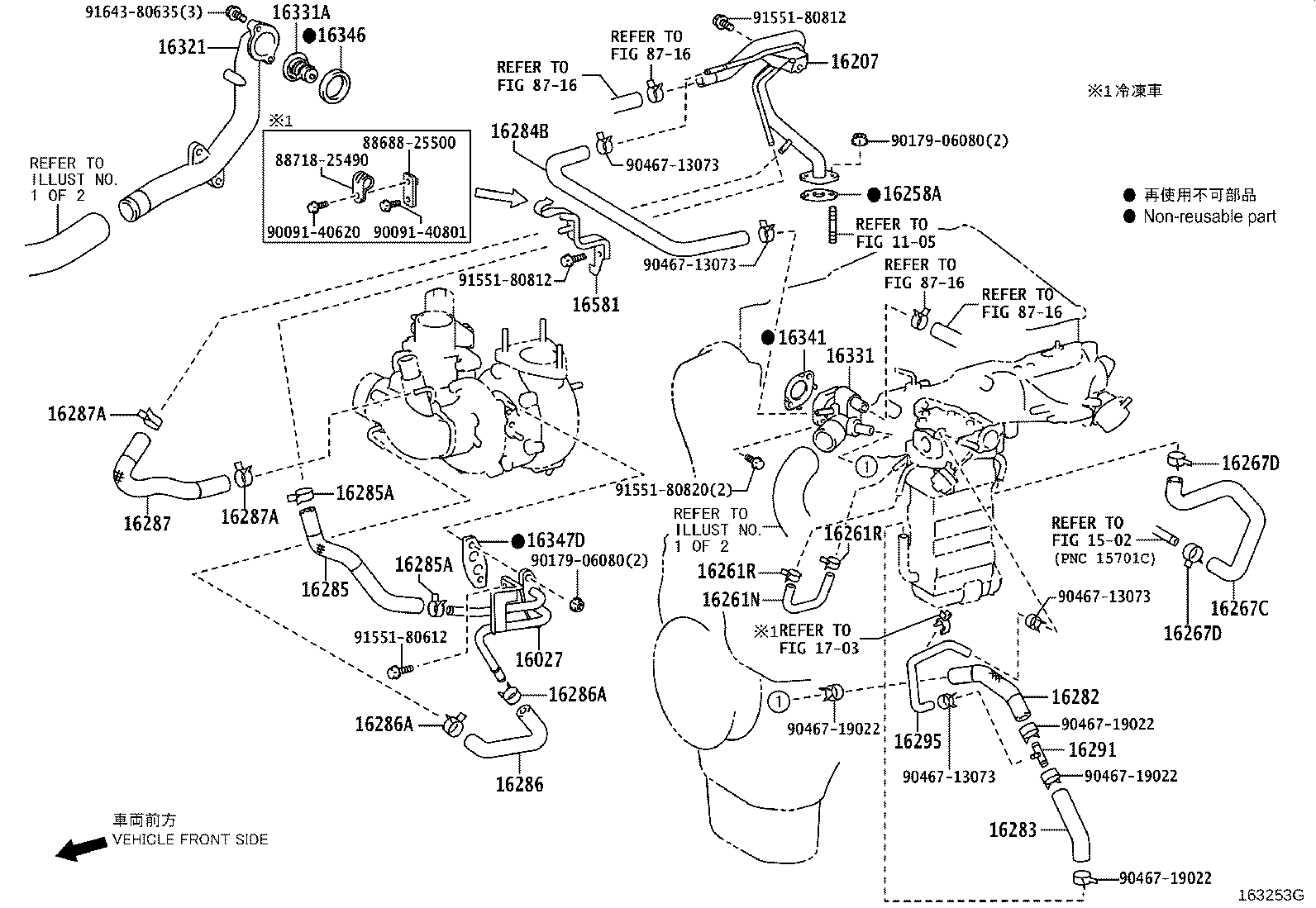

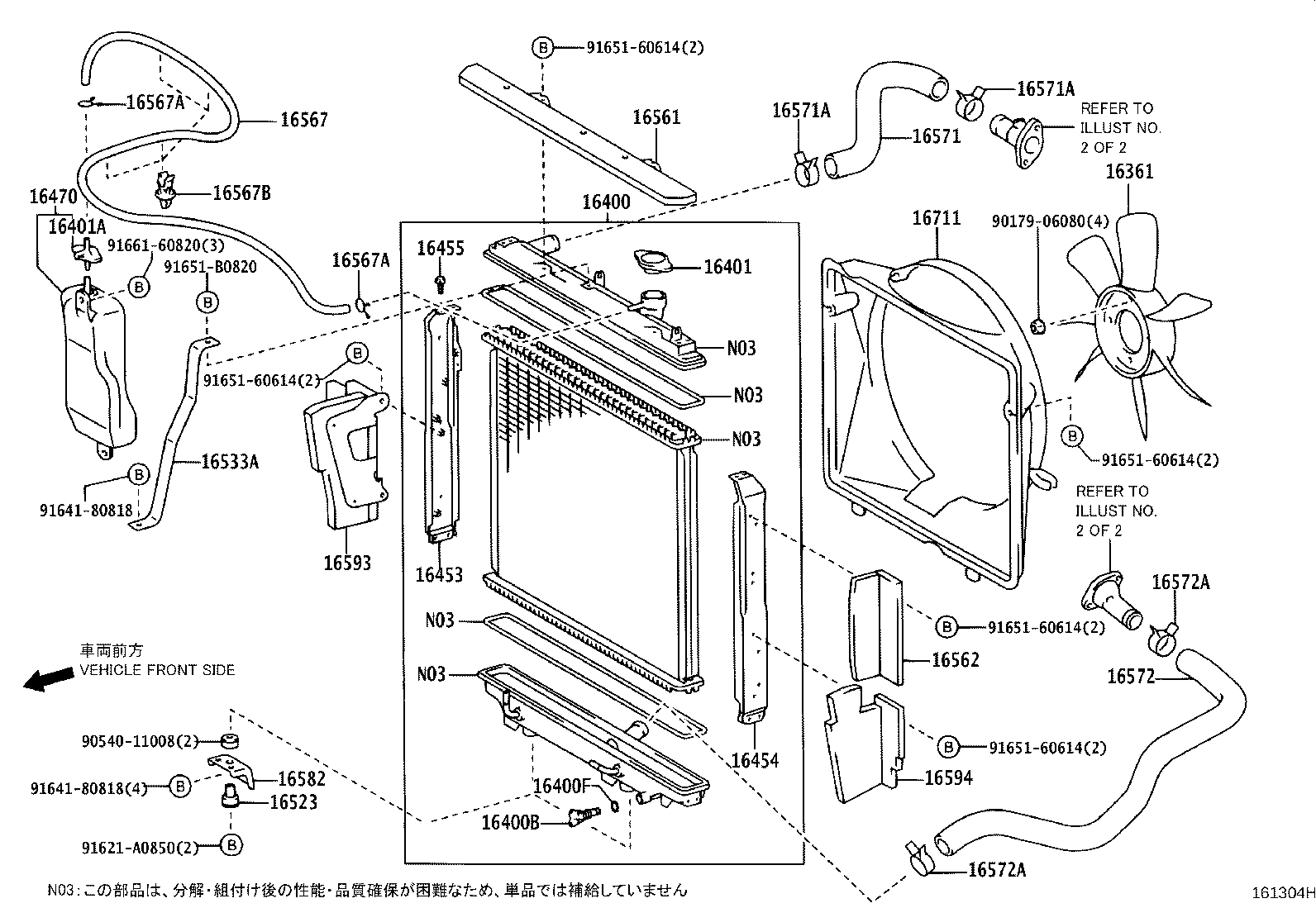

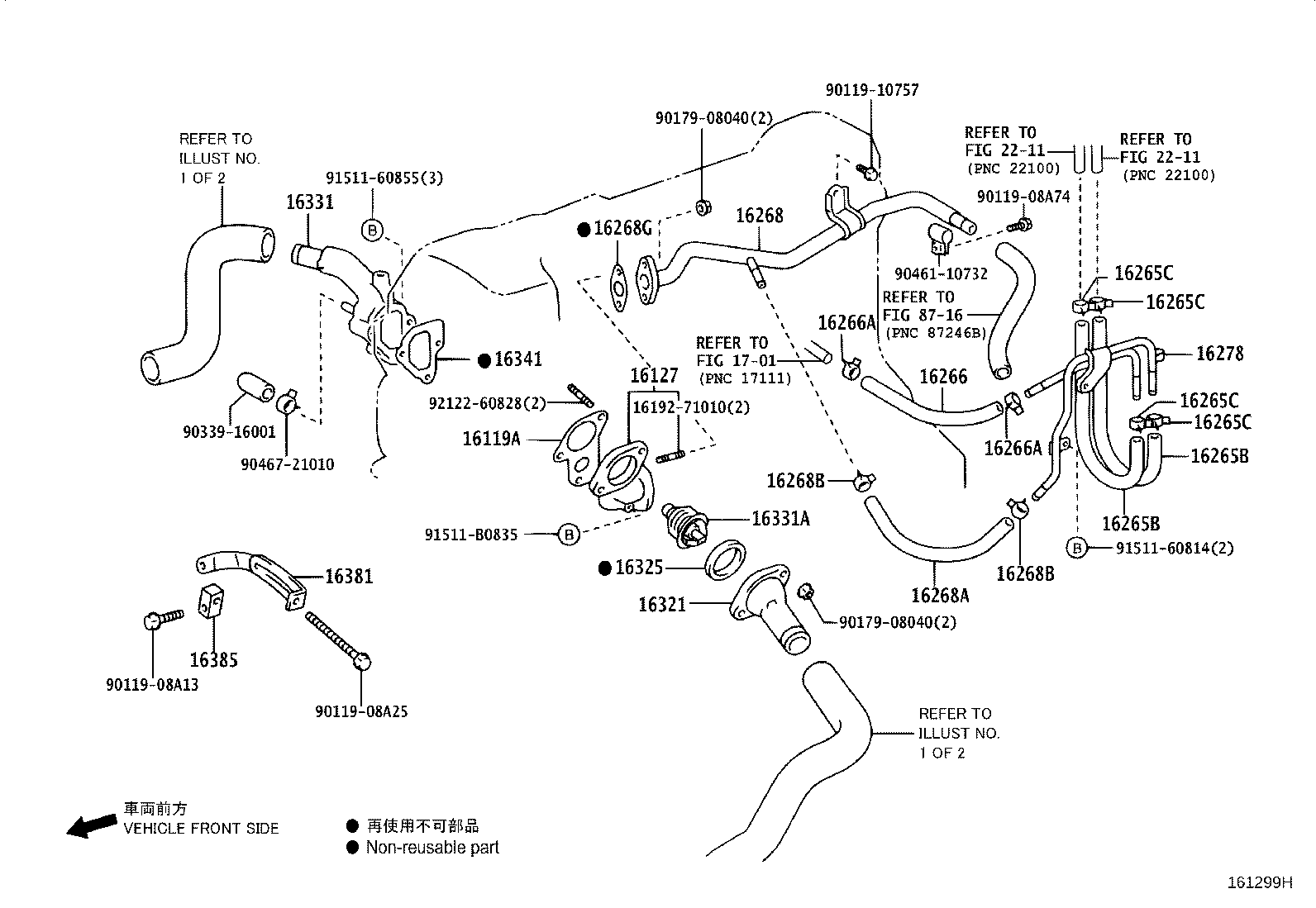

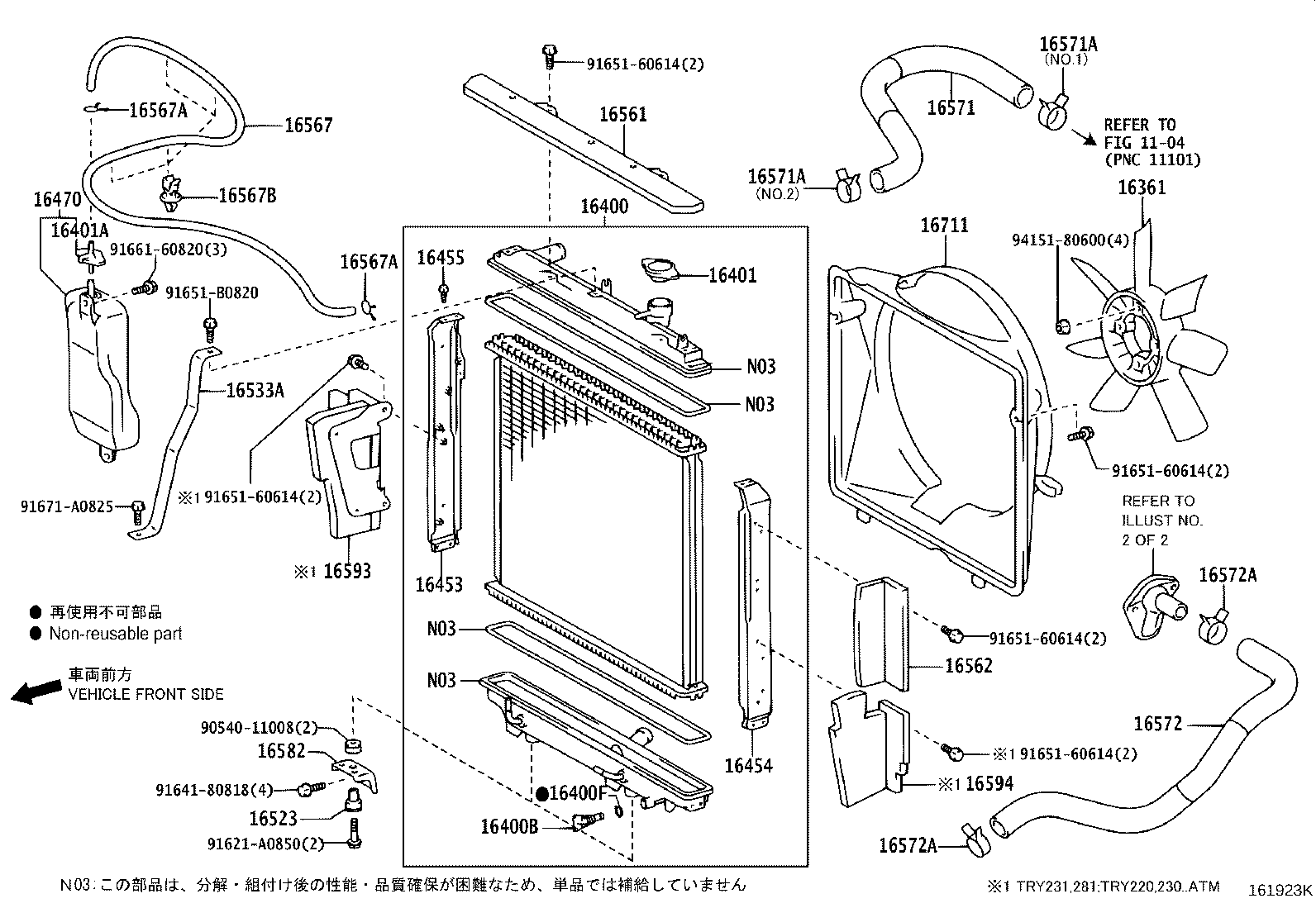

Figure 162219O 162219O 2004-08 → 2007-08 Figure 162219O 162219O 2007-09 → — Figure 162220E 162220E 2004-08 → 2007-08 Figure 163253G 163253G 2007-09 → 2010-08 Figure 164270H 164270H 2010-08 → 2011-09 Figure 164429J 164429J 2011-09 → — Figure 161304H 161304H 2001-07 → 2003-08 Figure 161305D 161305D 2001-07 → 2003-08 Figure 161328J 161328J 2001-07 → 2004-08 Figure 161329E 161329E 2001-07 → 2004-08 Figure 161330H 161330H 2001-07 → 2004-08 Figure 161331E 161331E 2001-07 → 2004-08 Figure 161297K 161297K 2001-07 → 2003-08 Figure 161298K 161298K 2001-07 → 2003-08 Figure 161935I 161935I 2003-08 → 2007-08 Figure 161299H 161299H 2001-07 → 2003-08 Figure 161936H 161936H 2003-08 → 2007-08 Figure 161929M 161929M 2003-08 → — Figure 161923L 161923L 2003-08 → — Figure 161924N 161924N 2003-08 → 2011-05 Figure 164824K 164824K 2011-05 → — Figure 163254I 163254I 2007-12 → 2011-07 Figure 164825J 164825J 2011-07 → —

Part groups

PNCDescription
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16119A Gasket, Thermostat Guide
16127 Plate, Water Pump Thermostat Guide
16128A Plate, Water Pump Thermostat Guide
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261B Union(FOR WATER BY-PASS HOSE)
16261N Hose, Water By-pass, NO.2
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16265B Hose, Intake Manifold Water, NO.1
16265C Clamp OR Clip(FOR INTAKE MANIFOLD WATER HOSE NO.1)
16266 Hose, Intake Manifold Water, NO.2
16266A Clamp OR Clip(FOR INTAKE MANIFOLD WATER HOSE, NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268A Hose(FOR WATER BY-PASS PIPE)
16268B Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16284B Hose, Turbo Water, NO.2
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16291 Joint, Water Hose
16294 Hose, Water By-pass, NO.11
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16298 Hose, Water By-pass, NO.12
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331 Outlet, Water
16331A Thermostat
16331F Cap Sub-assy(FOR WATER OUTLET)
16333 Housing, Water Outlet
16341 Gasket, Water Outlet
16343 Gasket, Water Outlet Housing
16346 Gasket, Thermostat
16347D Gasket, Water By-pass
16361 Fan
16381 Bar, Fan Belt Adjusting
16385 Slider, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16401A Cap Sub-assy, Radiator Reserve Tank
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16523 Cushion, Sub-radiator Support
16533A Support, Sub-radiator
16561 Seal, Radiator TO Support, NO.1
16562 Seal, Radiator TO Support, NO.2
16567 Hose(FOR RADIATOR RESERVE TANK)
16567A Clip(FOR RADIATOR RESERVE TANK HOSE)
16567B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE NO.2)
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16581 Clamp, Hose(FOR WATER HOSE)
16582 Bracket, Radiator, NO.1
16592 Guide, Radiator Air, NO.3
16593 Guide, Radiator Air, NO.1
16594 Guide, Radiator Air, NO.2
16711 Shroud, Fan
88688D Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
