Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

56 part groups · 14 illustrations

Illustrations

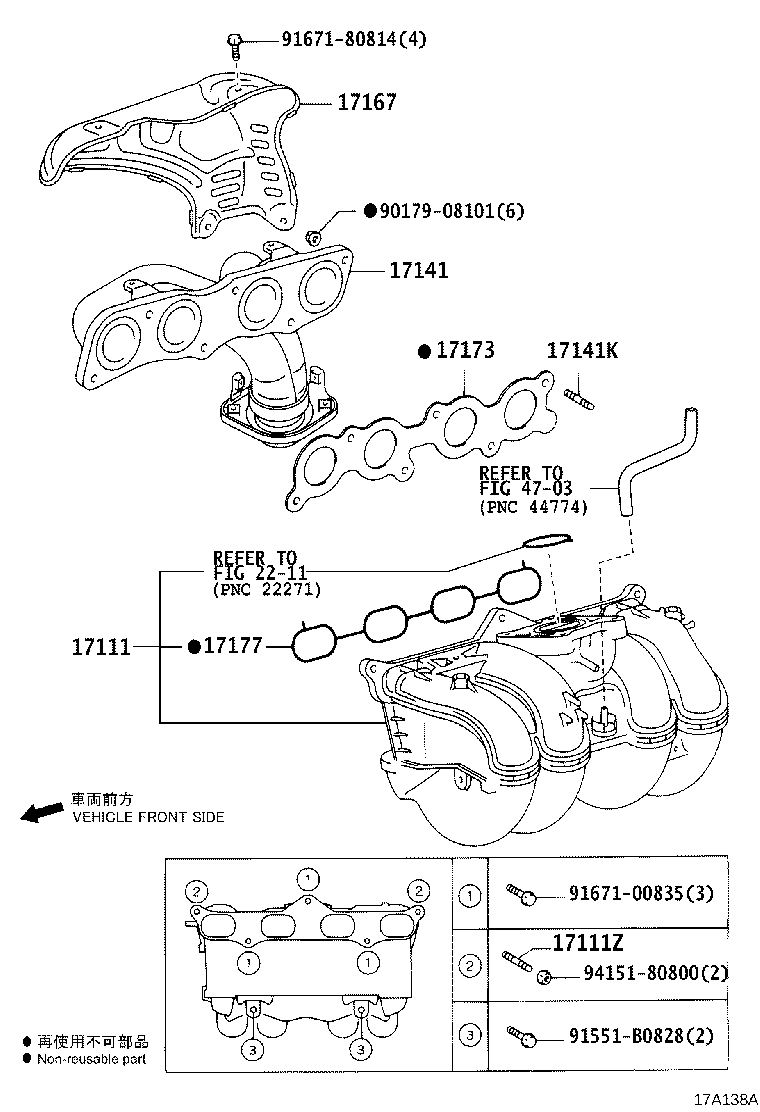

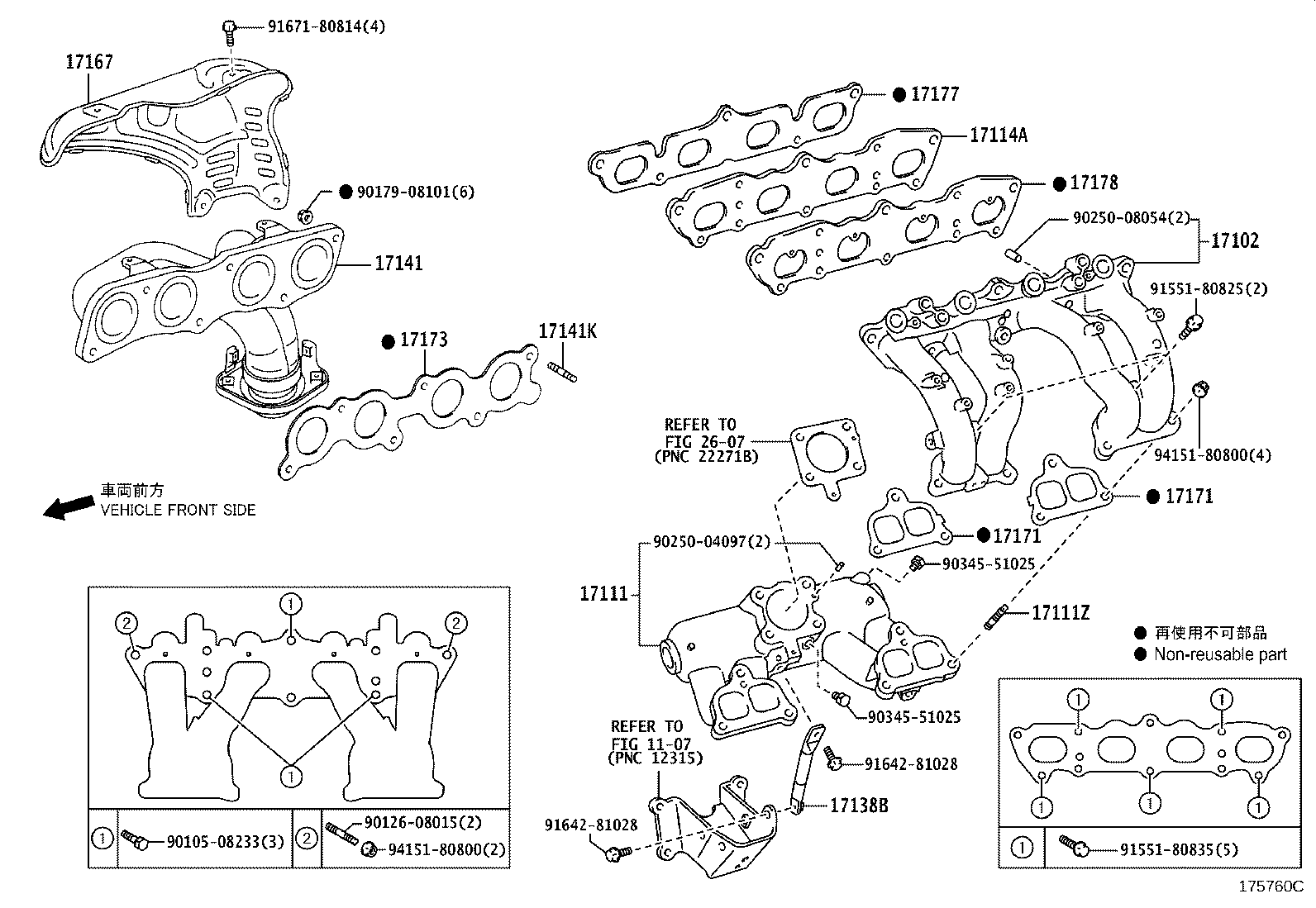

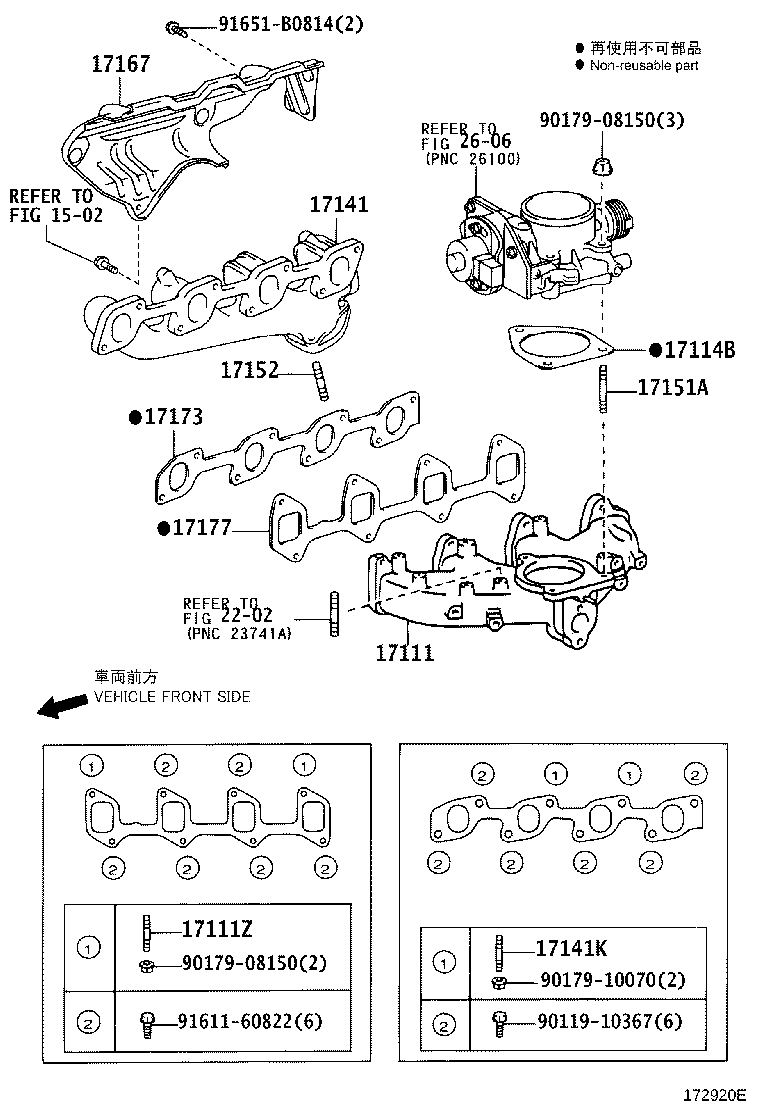

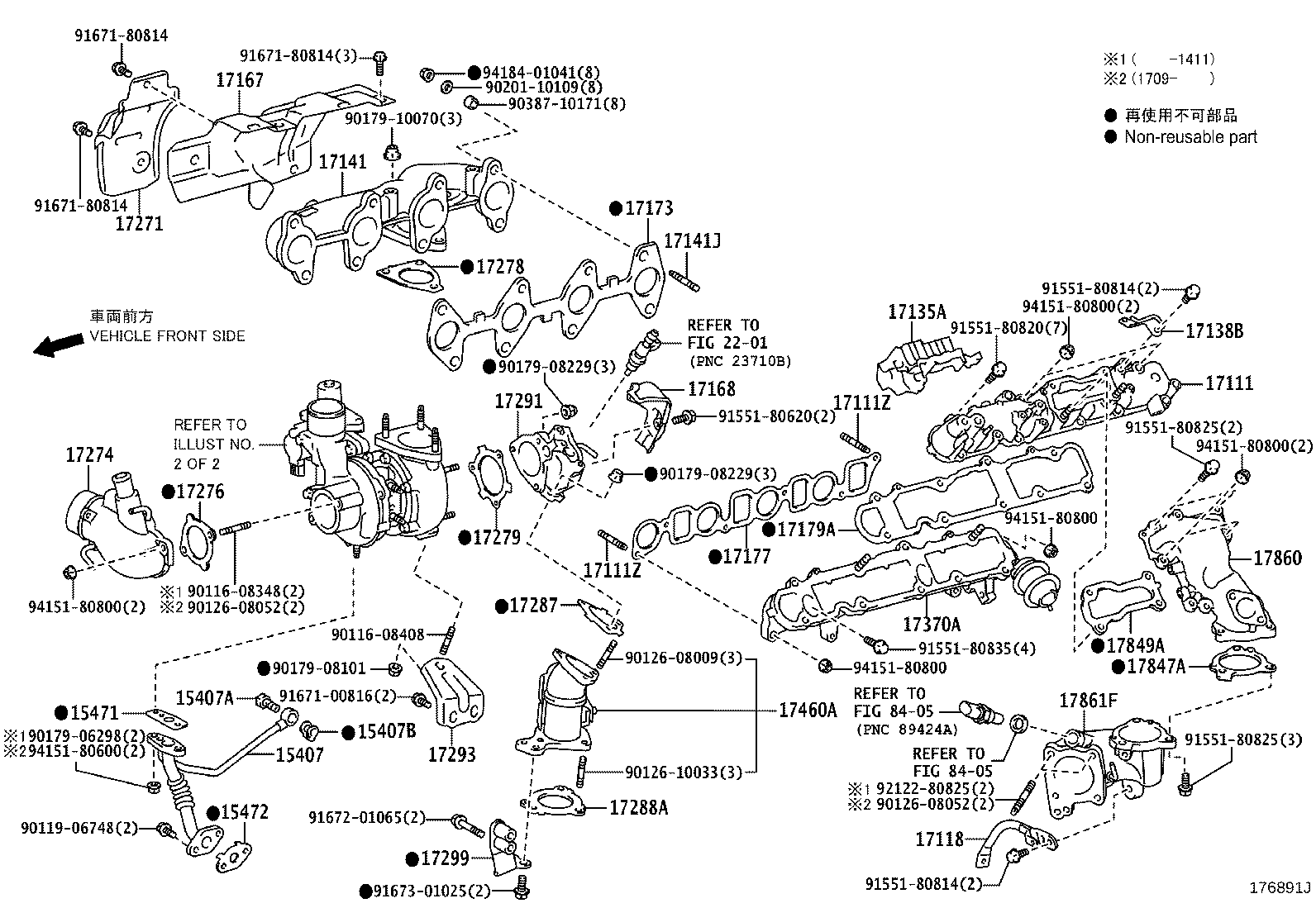

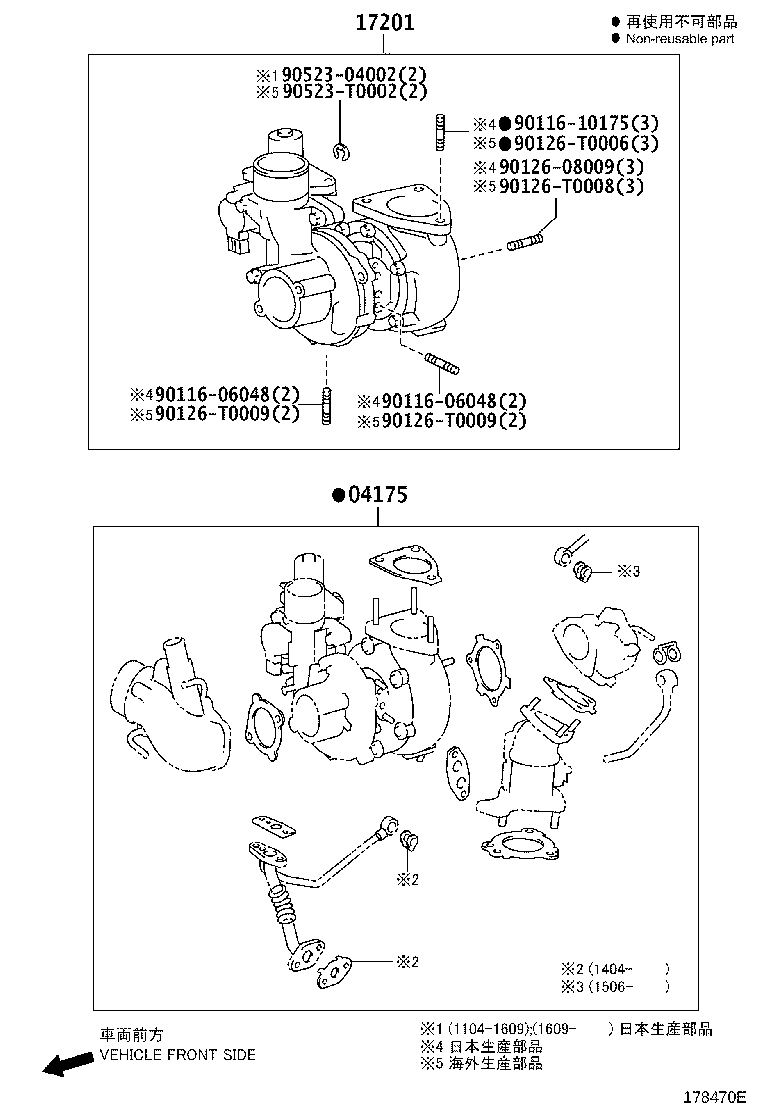

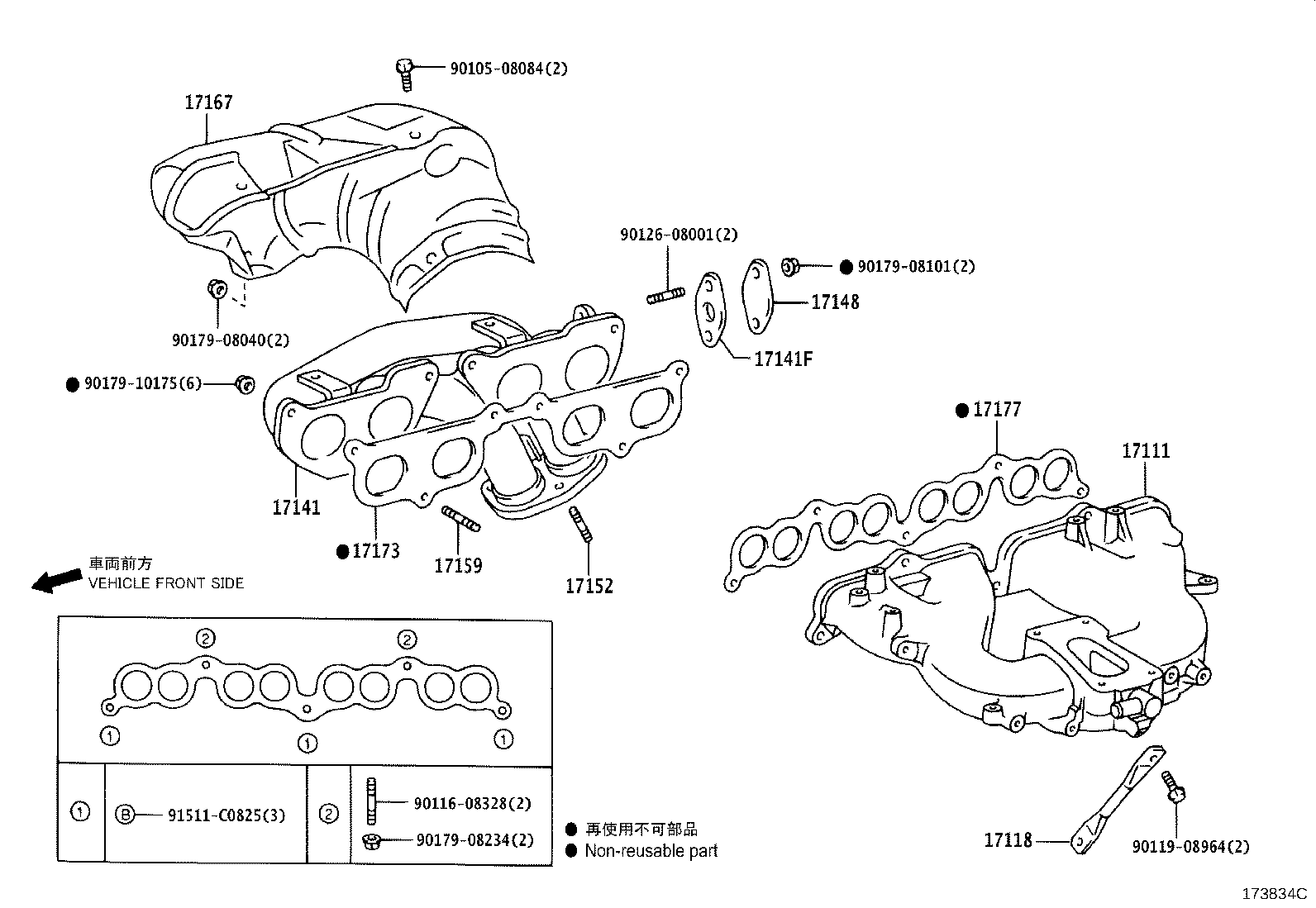

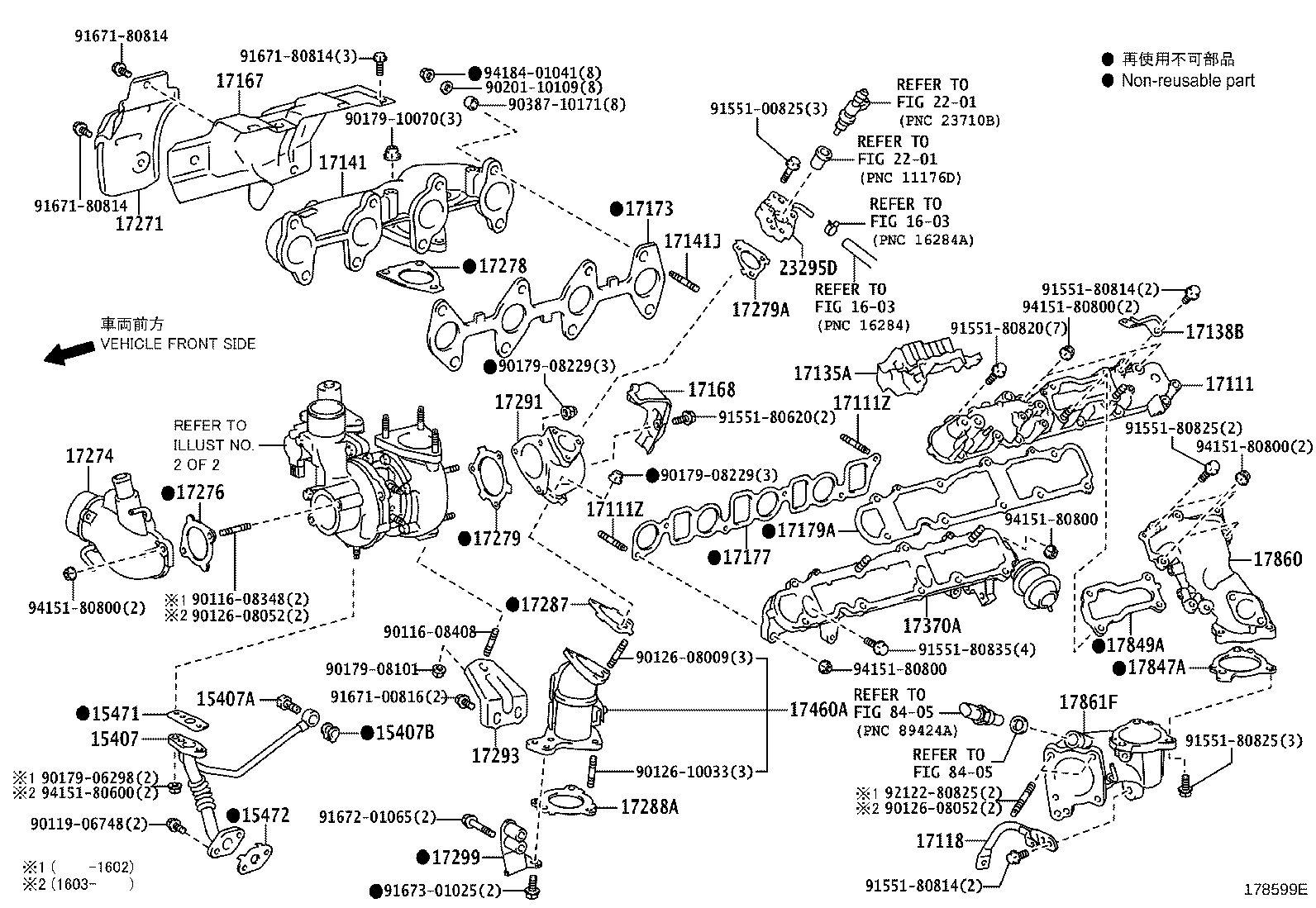

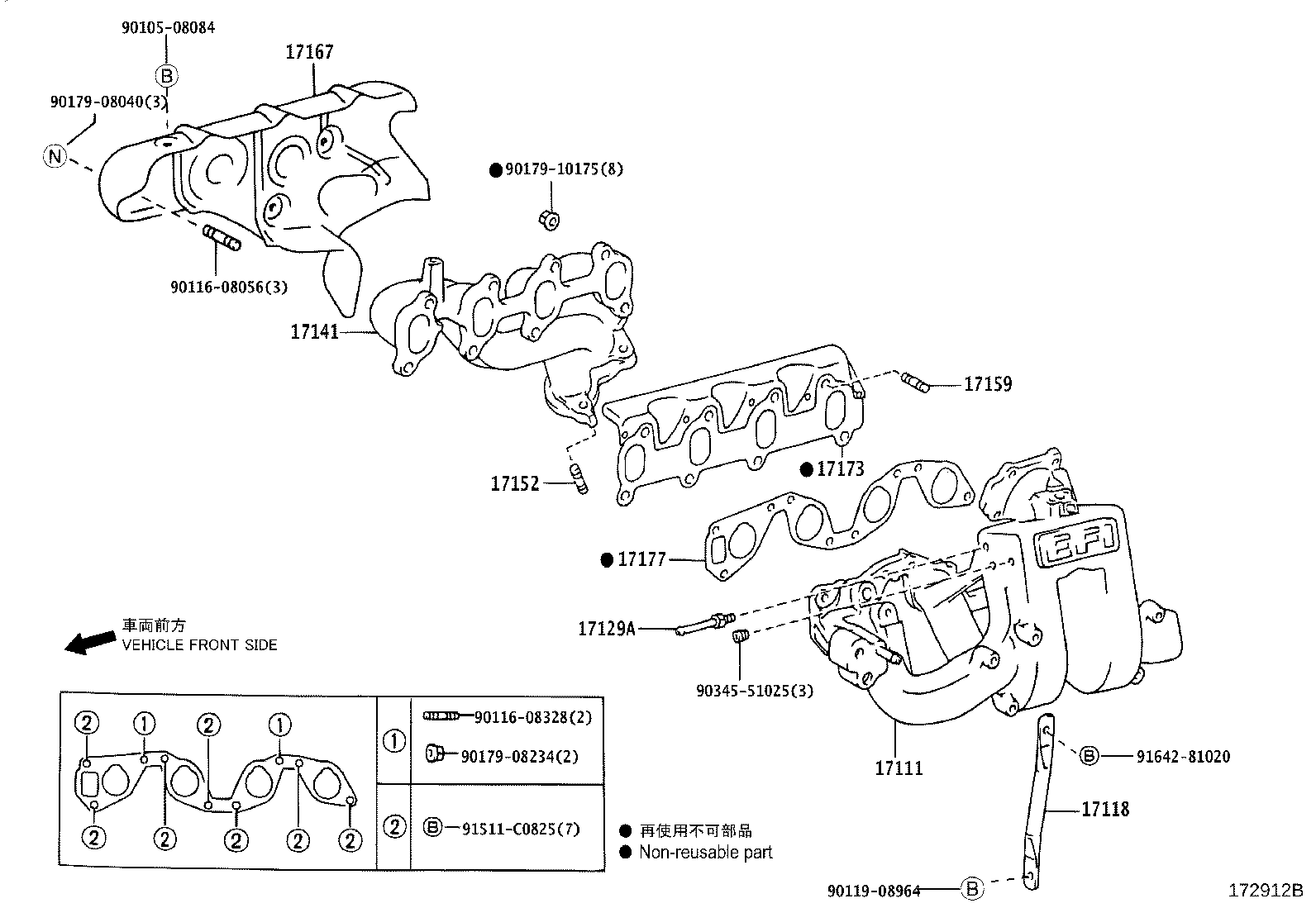

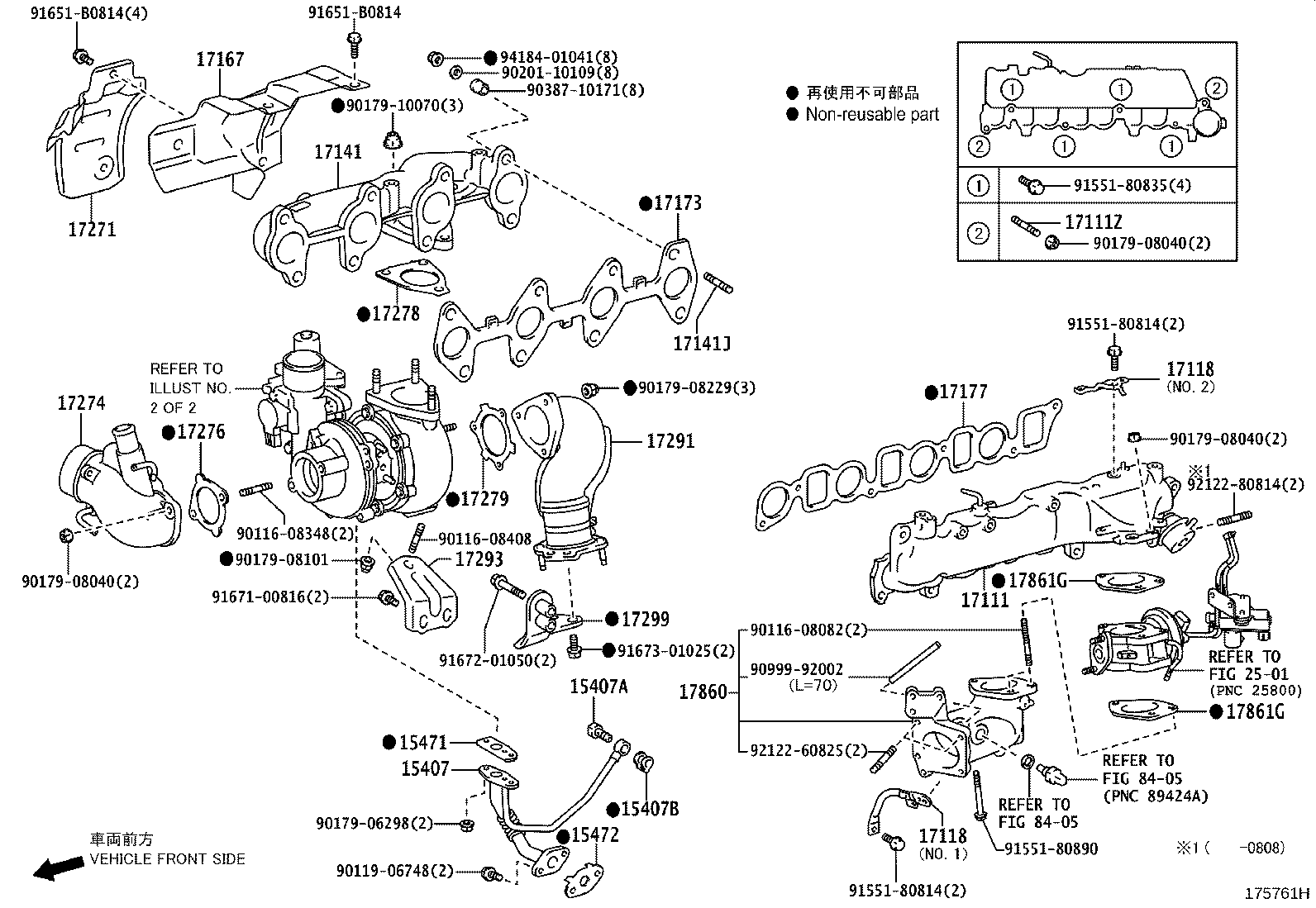

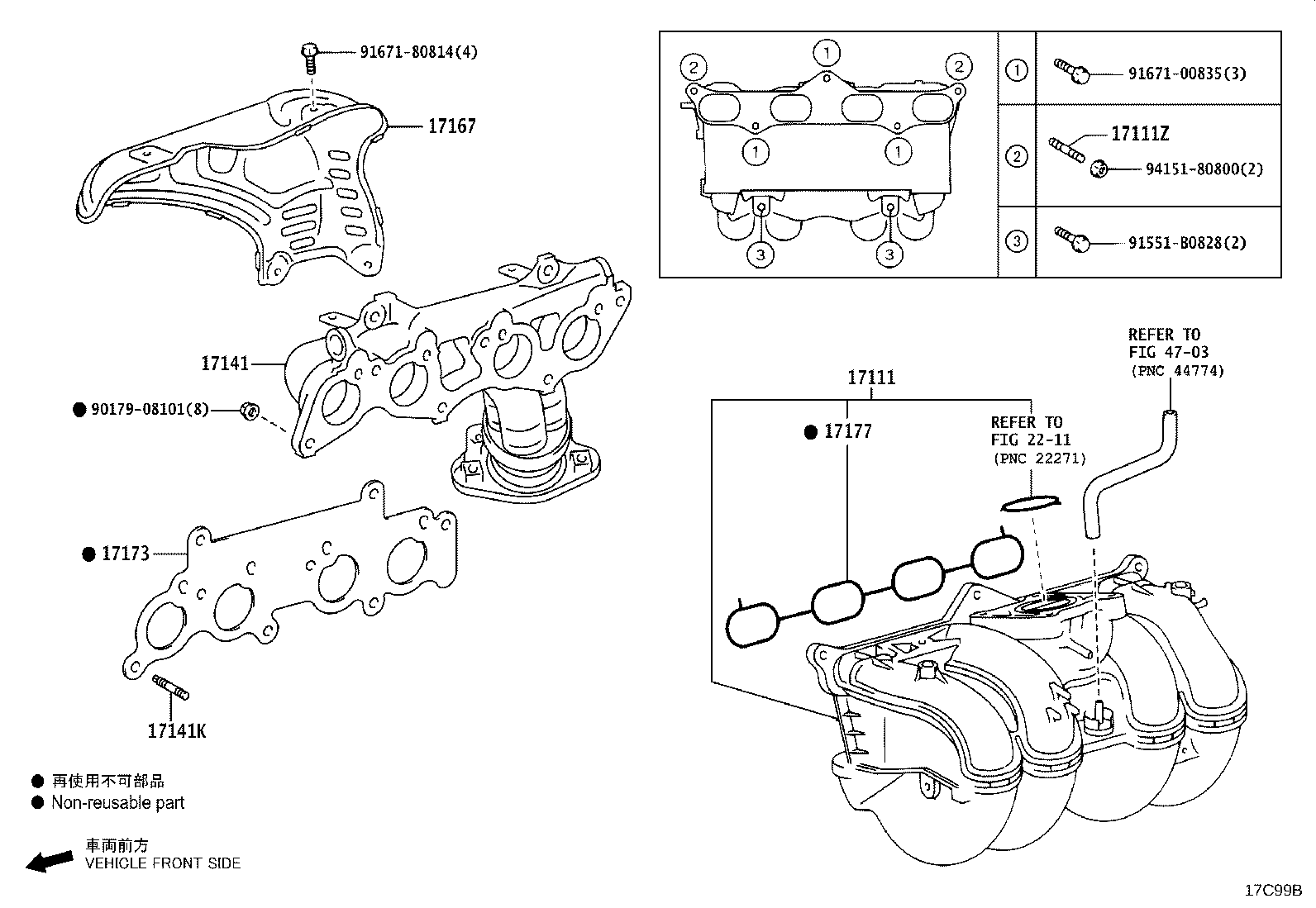

Figure 174233I 174233I 2004-08 → 2007-08 Figure 175761H 175761H 2007-09 → 2010-08 Figure 177544B 177544B 2007-09 → 2010-08 Figure 176891J 176891J 2010-08 → 2014-11 Figure 176891J 176891J 2017-09 → — Figure 178599E 178599E 2014-11 → 2017-09 Figure 178470E 178470E 2010-08 → — Figure 172920E 172920E 2001-07 → — Figure 172425G 172425G 2001-07 → — Figure 172912B 172912B 2001-07 → 2003-08 Figure 173834C 173834C 2003-08 → 2007-08 Figure 17A138A 17A138A 2003-08 → 2007-08 Figure 17C99B 17C99B 2007-08 → — Figure 175760C 175760C 2007-12 → —

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
17102 Manifold Sub-assy, Intake, Upper
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17114A Flange, Intake
17114B Gasket, Intake Flange
17118 Stay, Manifold
17129A Union, NO.1
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17138B Stay, Intake Manifold
17141 Manifold, Exhaust
17141F Gasket(FOR EXHAUST MANIFOLD PLATE)
17141J Bolt, Stud(FOR EXHAUST MANIFOLD, RH)
17141K Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
17148 Plate, Exhaust Manifold(FOR EGR INLET)
17151A Bolt, Stud(FOR MANIFOLD TO VENTURI)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17171 Gasket, Intake TO Exhaust Manifold
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17178 Gasket, Intake Manifold TO Head, NO.2
17179A Gasket, Intake Manifold, NO.2
17201 Turbocharger Sub-assy
17230 Actuator Assy, W/Bracket
17230B Washer, Plate(FOR REPAIR ACTUATOR SET)
17230C Bolt, W/Washer(FOR REPAIR ACTUATOR SET)
17271 Insulator, Turbo, NO.1
17274 Elbow, Compressor Inlet
17276 Gasket, Compressor Inlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17279A Gasket, Turbine Outlet Elbow, NO.1
17287 Gasket, Turbine Outlet Elbow, NO.2
17288A Gasket, Turbine Outlet Elbow, NO.3
17291 Elbow, Turbine Outlet
17293 Stay, Turbocharger
17294 Hose, Actuator
17294A Clip(FOR ACTUATOR HOSE)
17299 Stay, Turbine Outlet Elbow
17370A Valve Assy, Swirl Control
17460A Converter Assy, Catalytic W/Pipe
17847A Gasket, Intake Air Connector, NO.2
17849A Gasket, Intake Air Connector
17860 Connector Assy, Intake Air
17861F Connector, Intake Air
17861G Gasket, Intake Air Connector
23295D Holder, Injector, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
