Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10

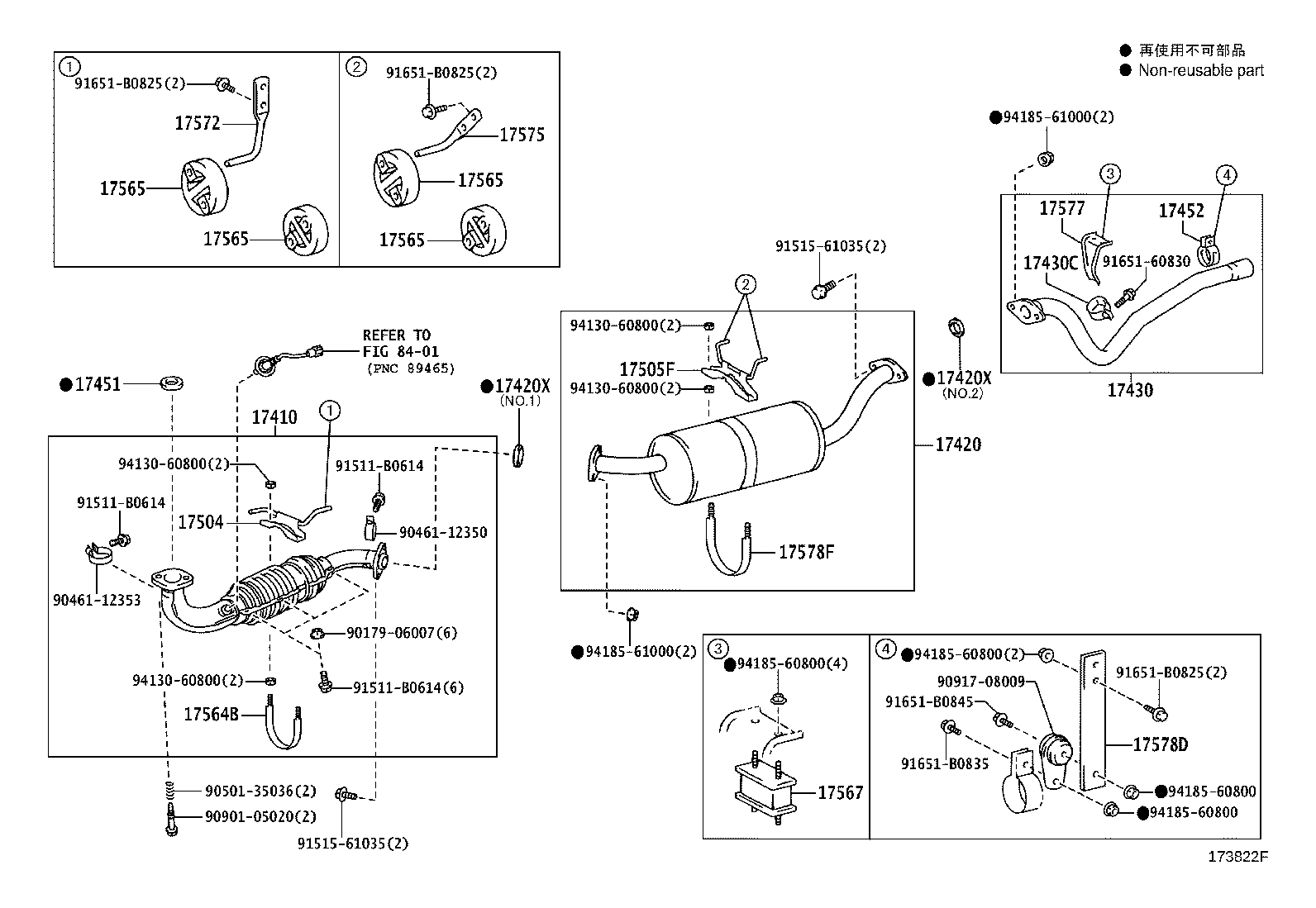

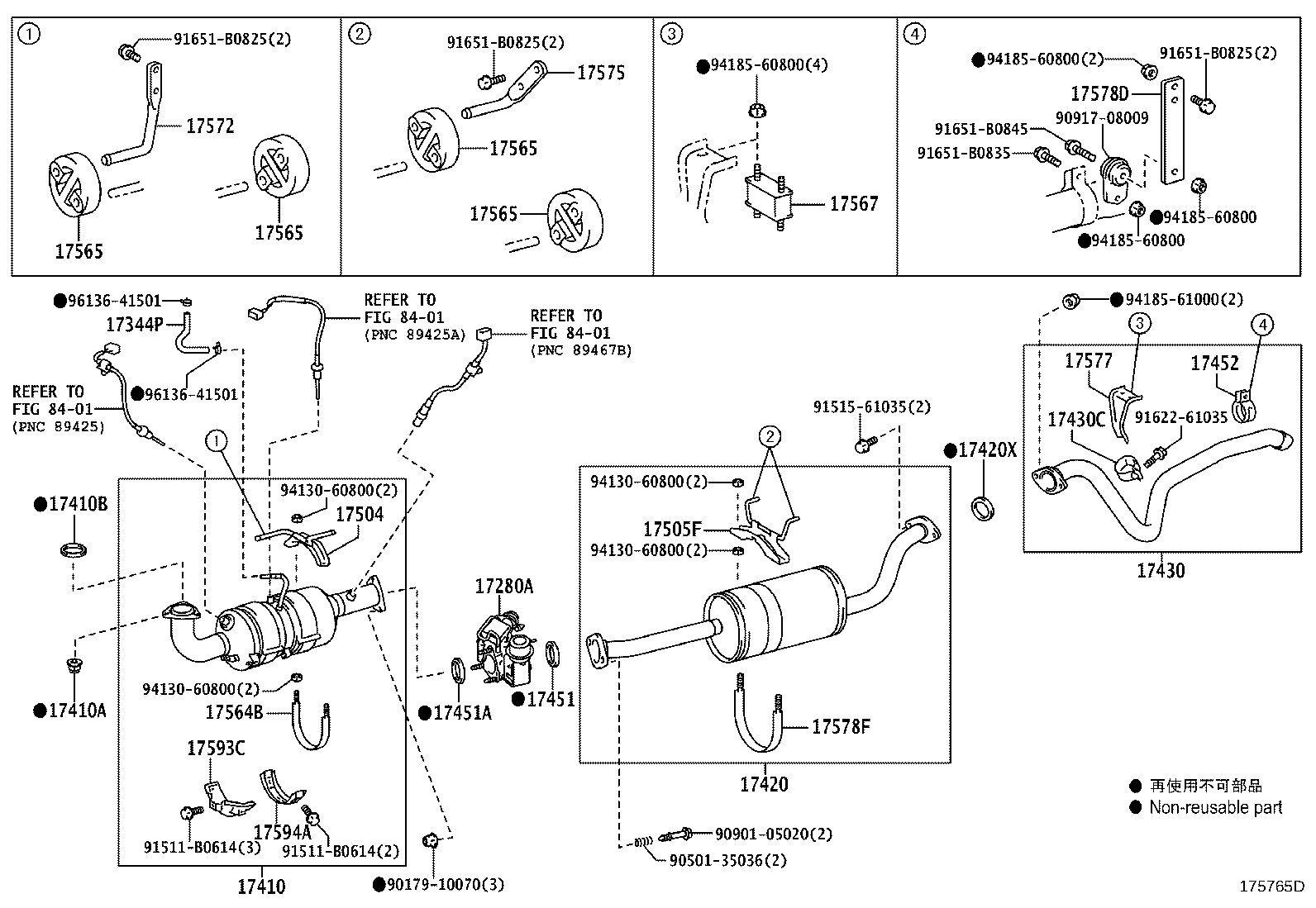

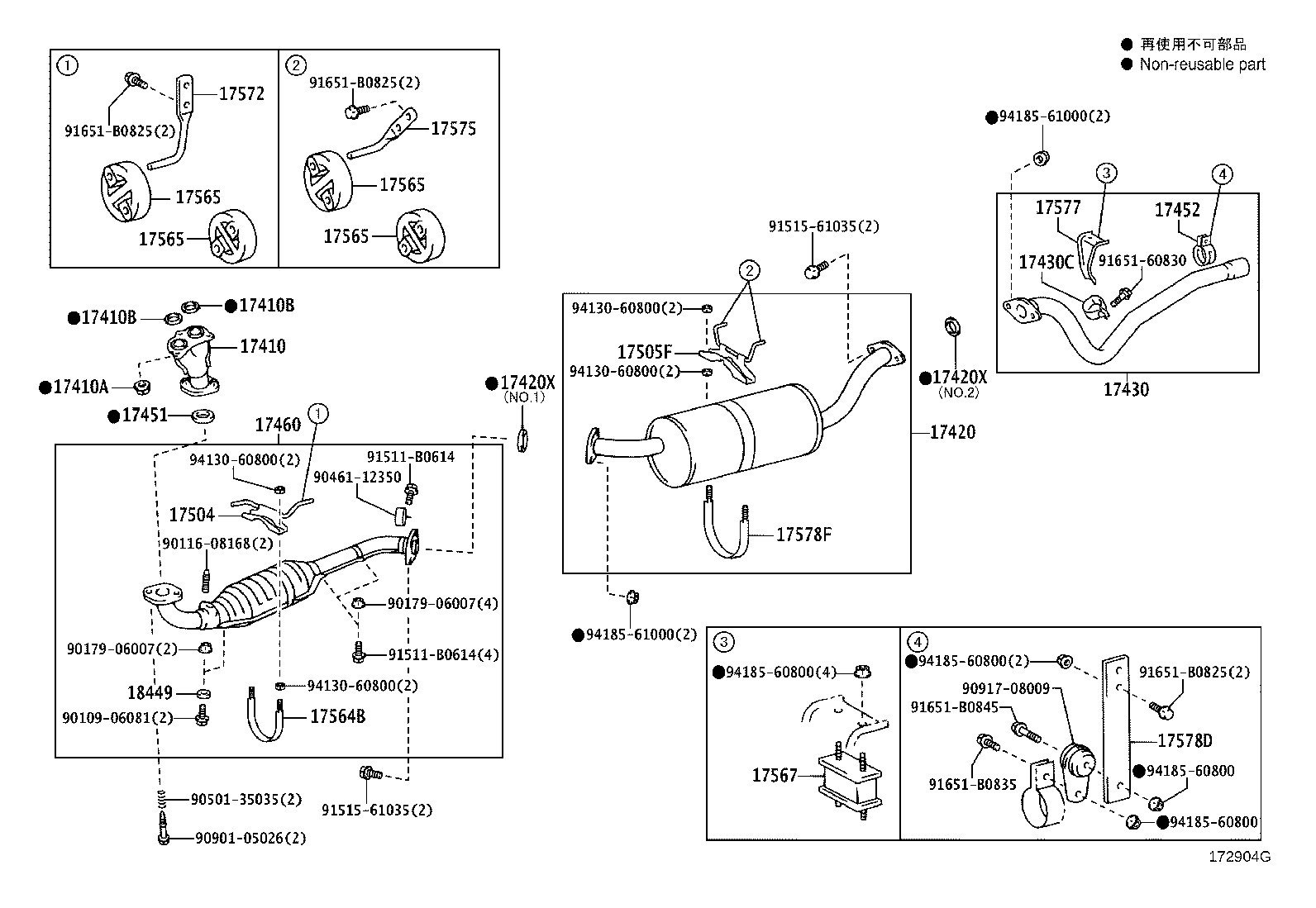

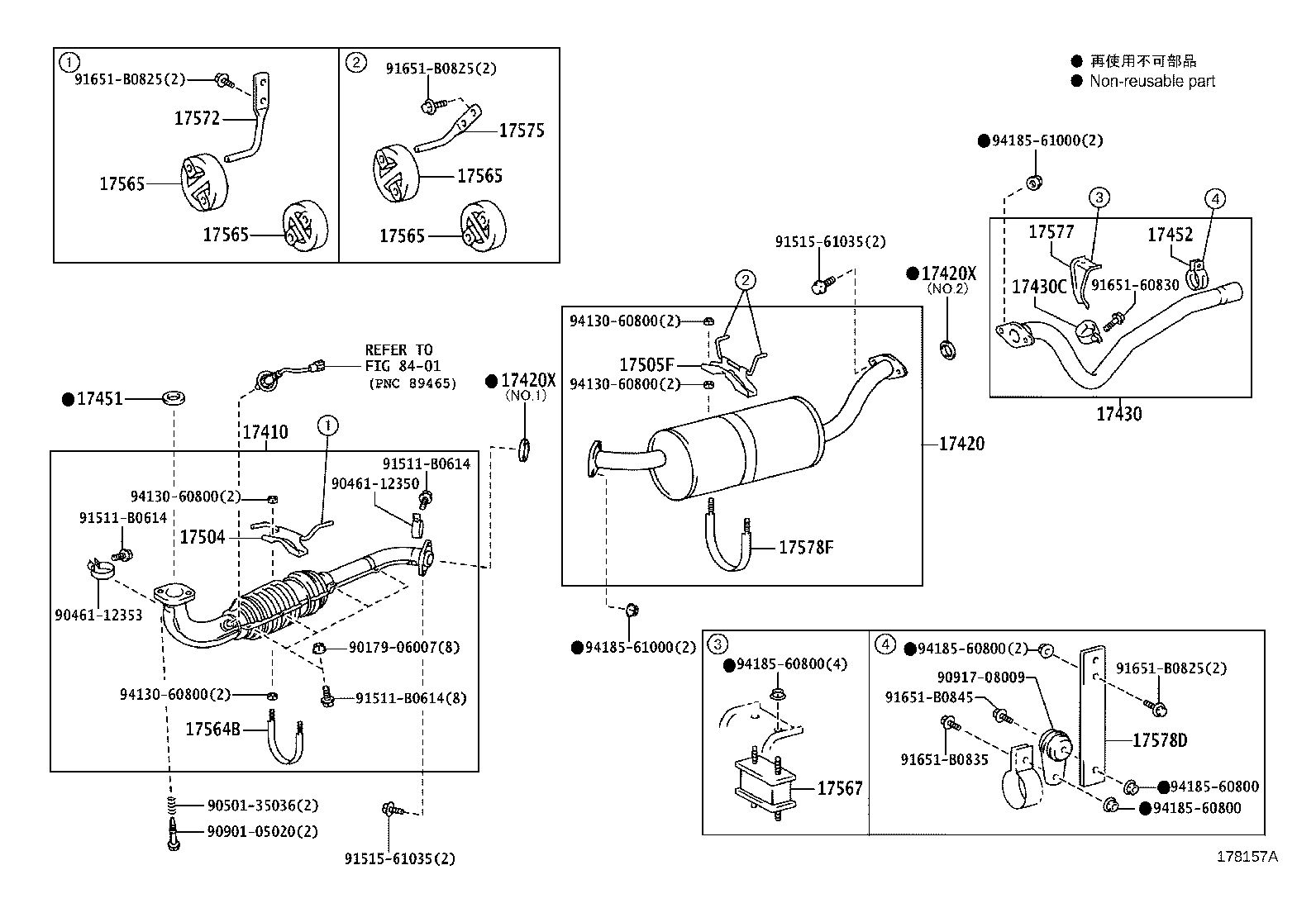

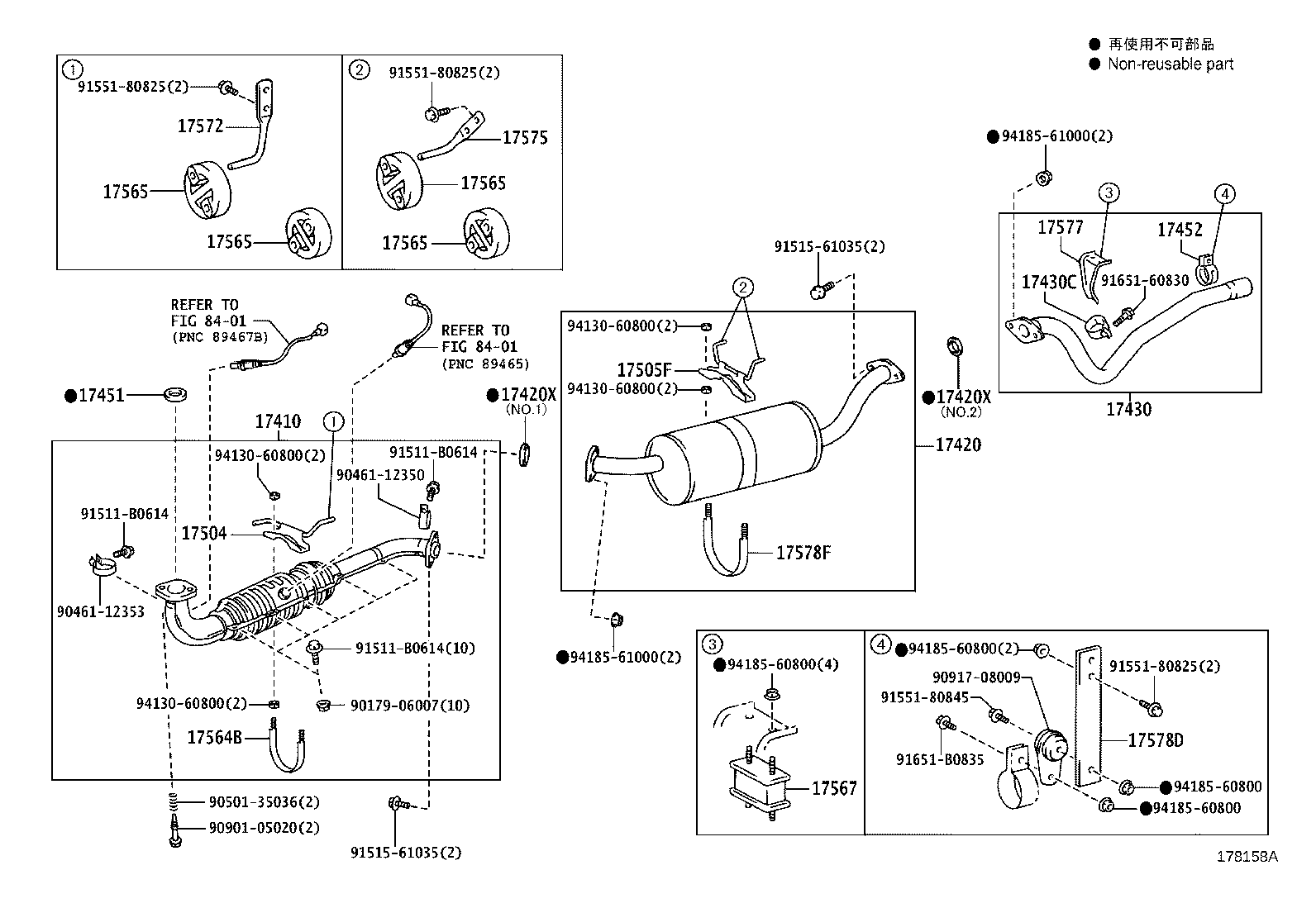

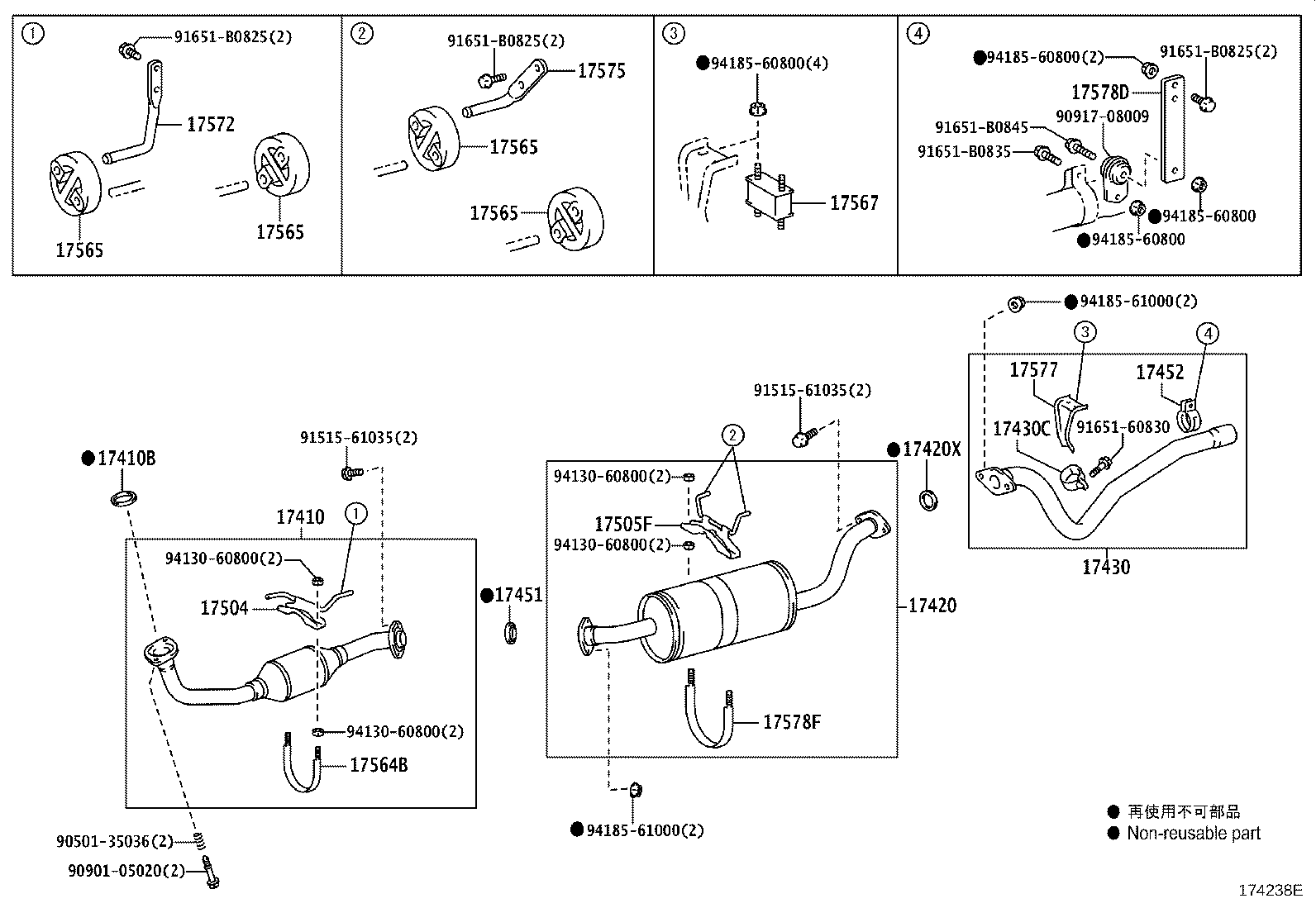

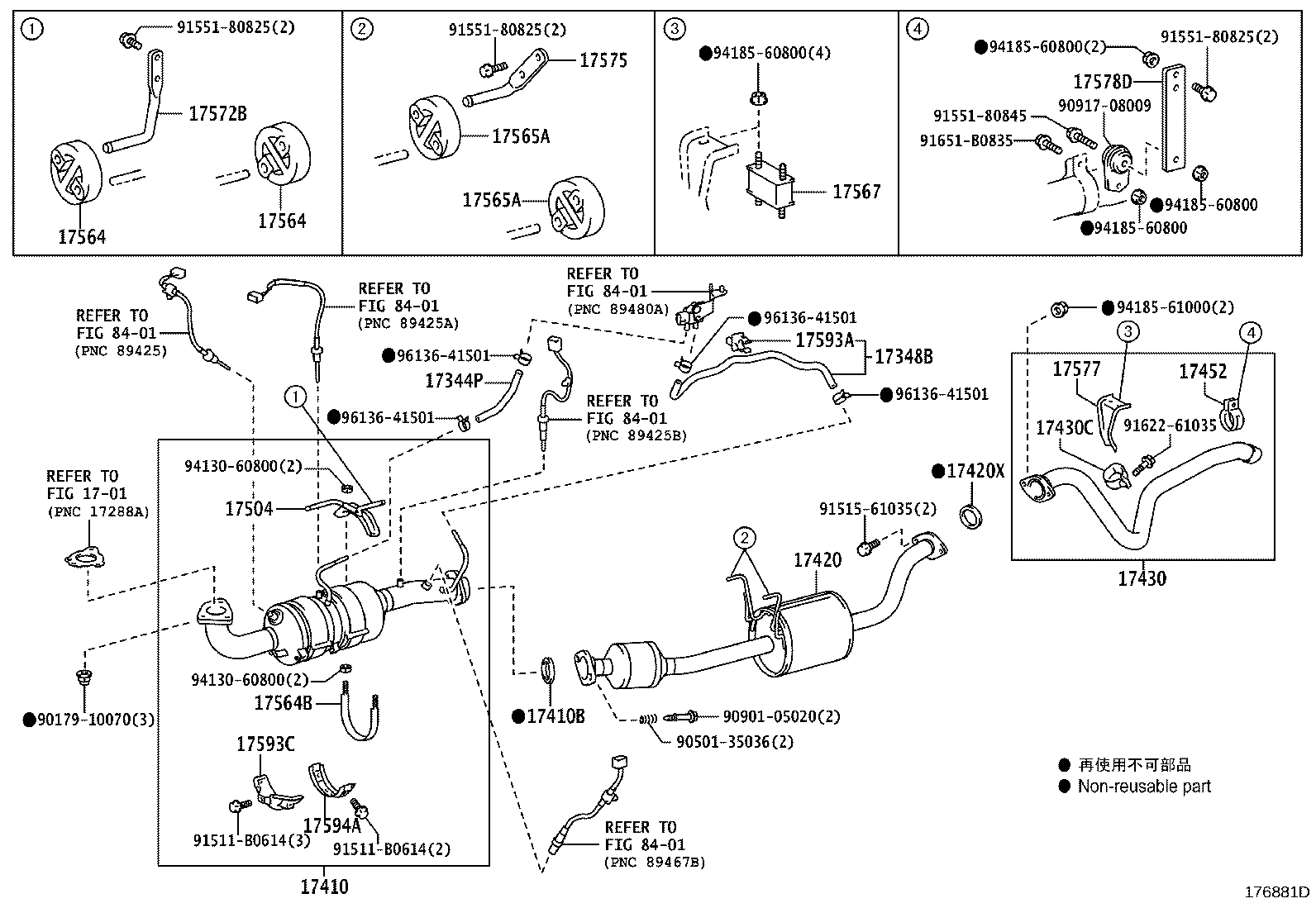

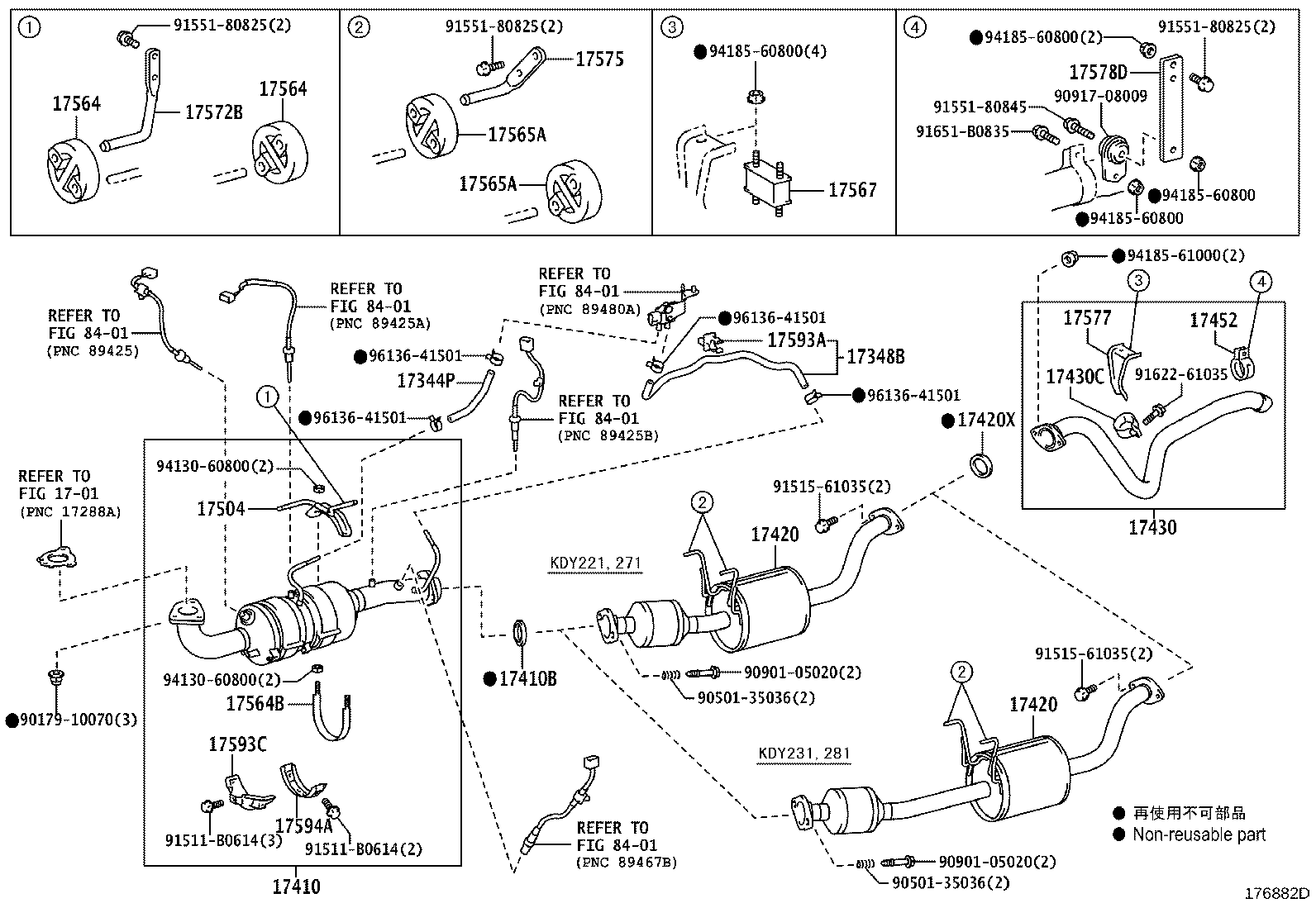

Exhaust Pipe

33 part groups · 13 illustrations

PNC	Description
17280A	Valve Assy, Exhaust Gas Control
17344P	Hose, Air, NO.4(FOR EXHAUST PIPE)
17348B	Hose, Air, NO.8(FOR EXHAUST PIPE)
17410	Pipe Assy, Exhaust, Front
17410A	Nut, Exhaust Pipe Set Stud Bolt
17410B	Gasket, Exhaust Pipe
17420	Pipe Assy, Exhaust, Center
17420X	Gasket, Exhaust Pipe, Center
17430	Pipe Assy, Exhaust, Tail
17430C	Clamp NO.1, Exhaust Tailpipe (FOR FRONT)
17450B	Pipe Assy, Exhaust, Front NO.2
17451	Gasket, Exhaust Pipe
17451A	Gasket, Exhaust Pipe, NO.2
17452	Clamp, Exhaust Pipe
17460	Converter Assy, Catalytic W/Pipe
17504	Bracket Sub-assy, Catalytic Converter
17505F	Support Sub-assy, Exhaust Pipe
17564	Support,Exhaust Pipe, NO.4
17564B	Support, Catalytic Converter
17565	Support, Exhaust Pipe, NO.5
17565A	Support, Exhaust Pipe, NO.4
17567	Cushion, Exhaust Pipe Support
17571	Bracket, Exhaust Pipe Support, NO.1
17572	Bracket, Exhaust Pipe NO.1 Support
17572B	Bracket, Exhaust Pipe Support, NO.2
17575	Bracket, Exhaust Pipe Support, NO.5
17577	Bracket, Exhaust Pipe Support, NO.7
17578D	Bracket, Exhaust Pipe Support, NO.8
17578F	Clamp, Pipe(FOR CENTER PIPE)
17593A	Clamp
17593C	Protector, Exhaust Pipe, Lower NO.1
17594A	Protector, Exhaust Pipe, Lower NO.2
18449	Spacer, Converter Protector

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
