Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

45 part groups · 15 illustrations

Illustrations

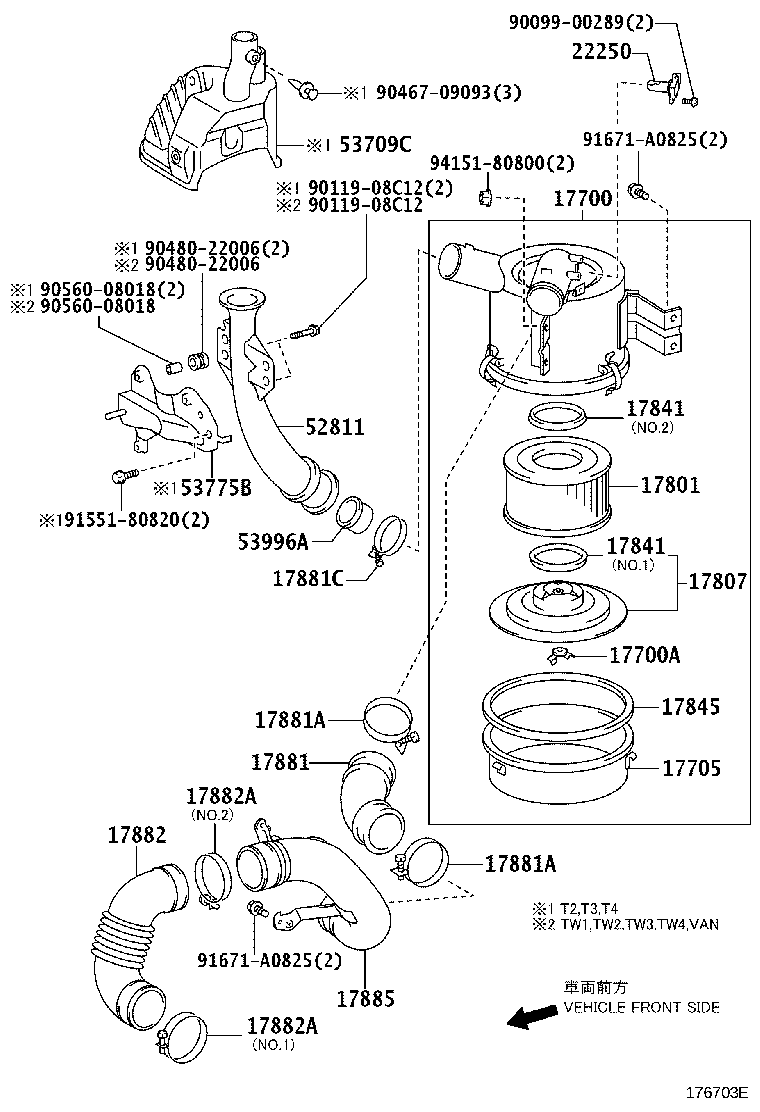

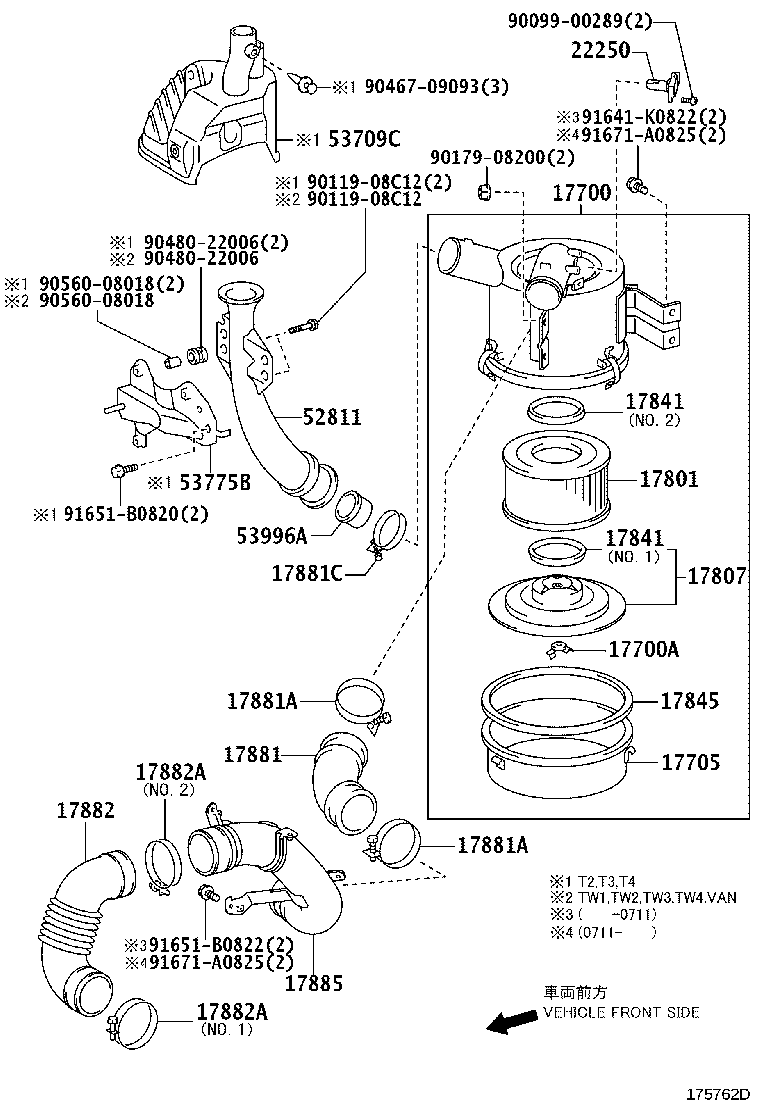

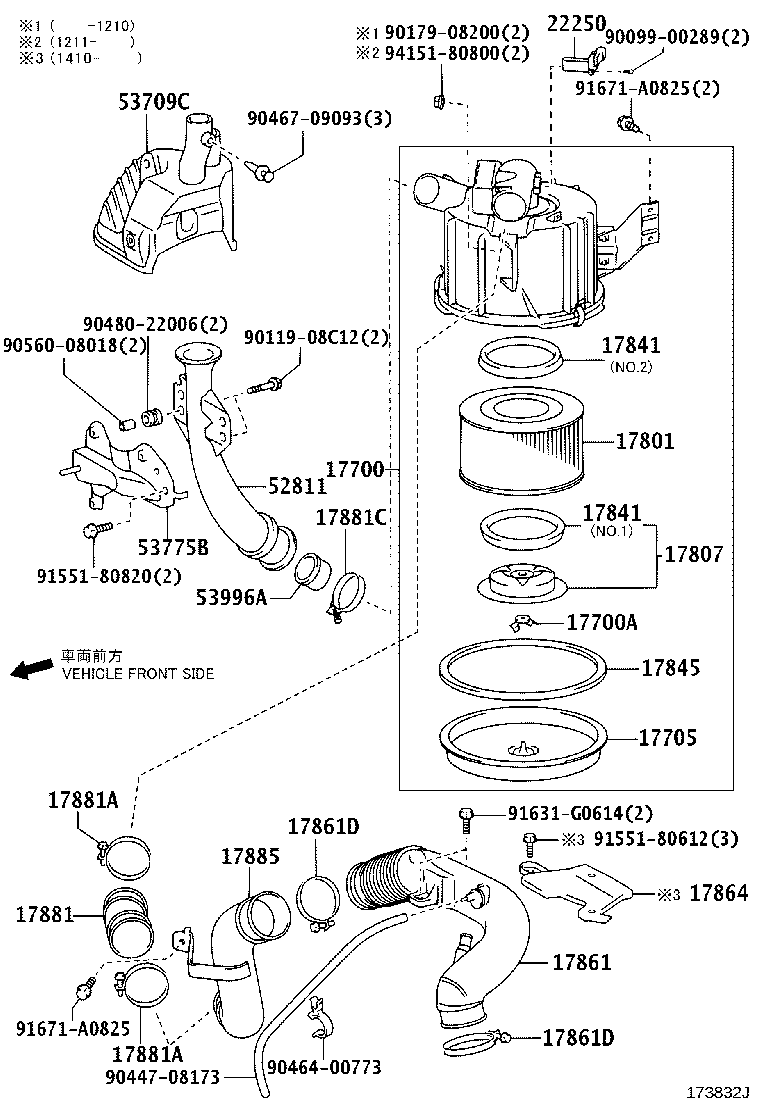

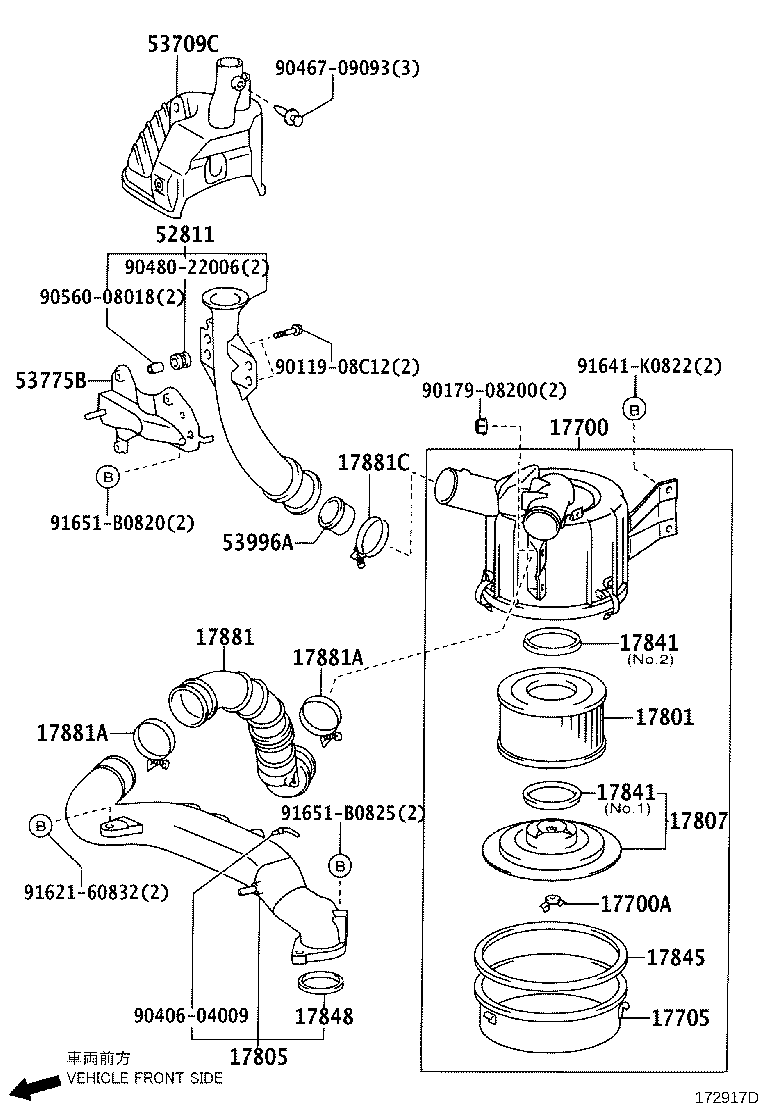

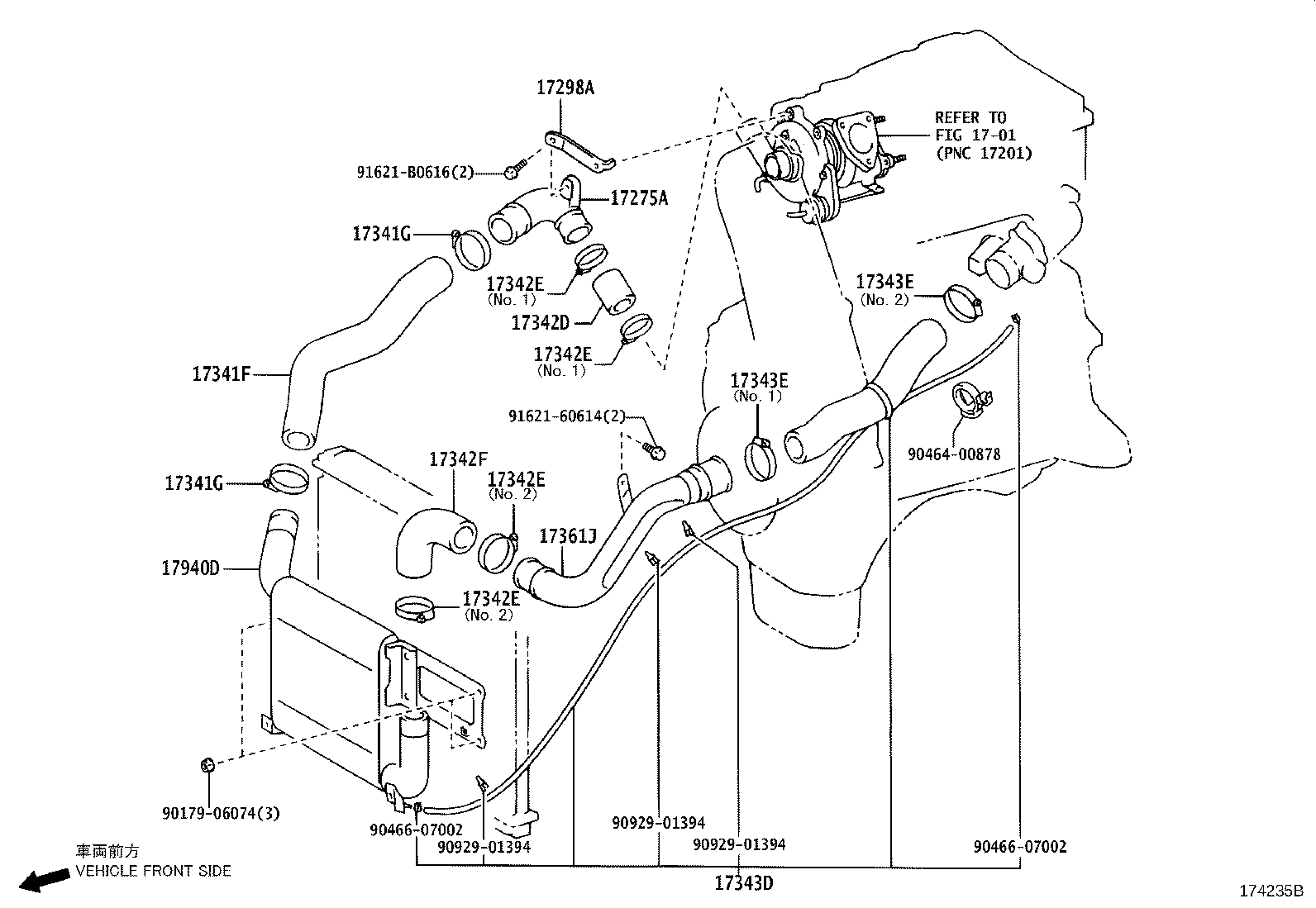

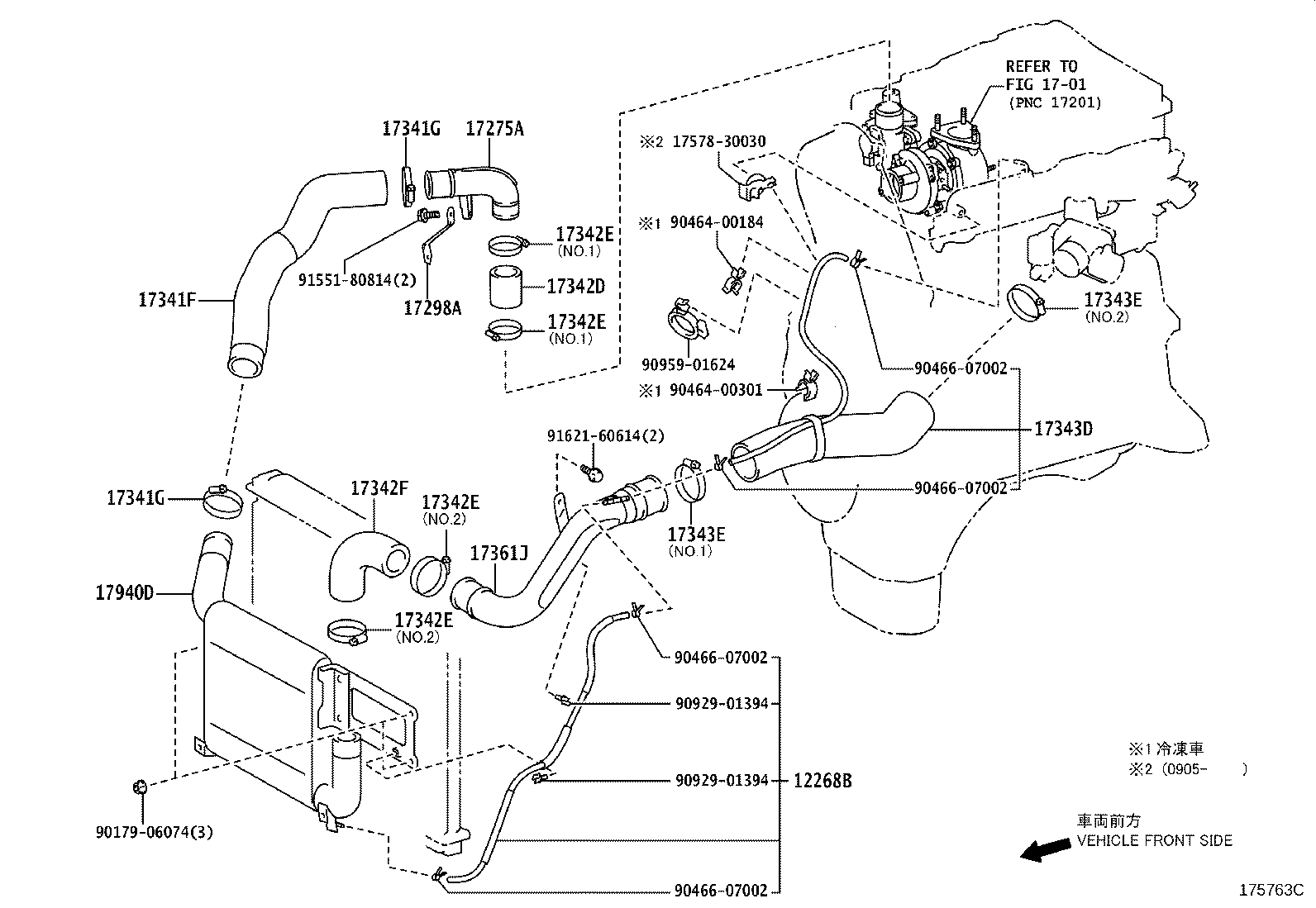

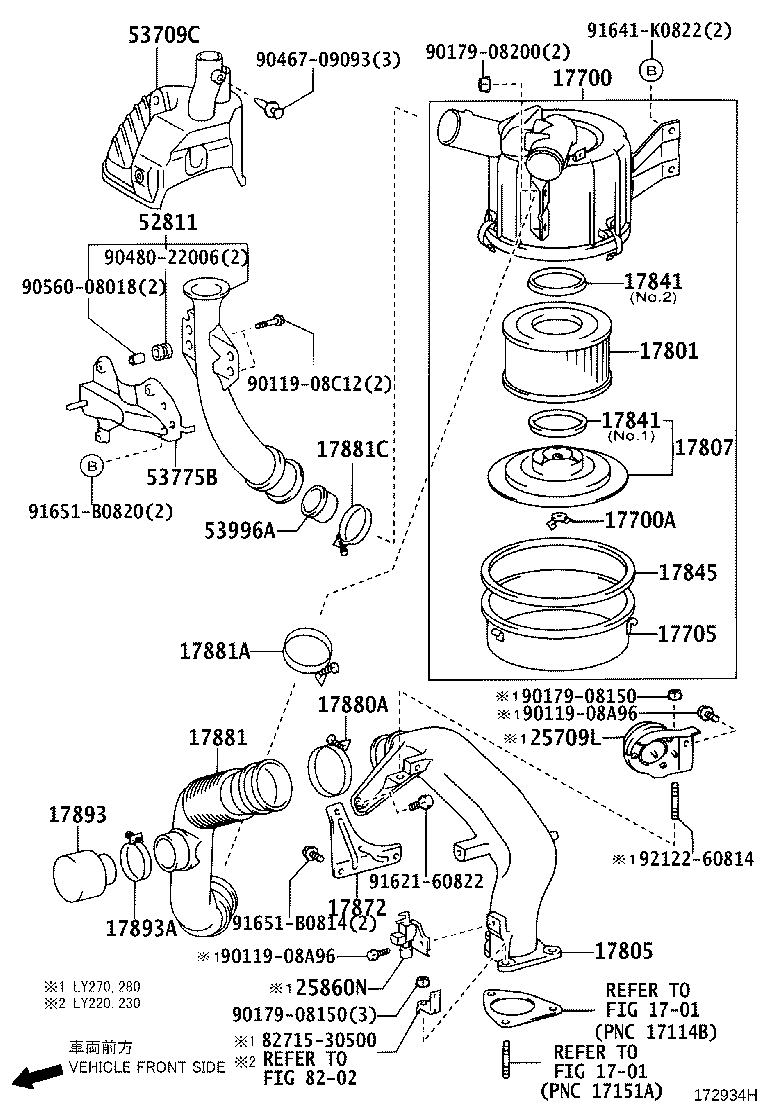

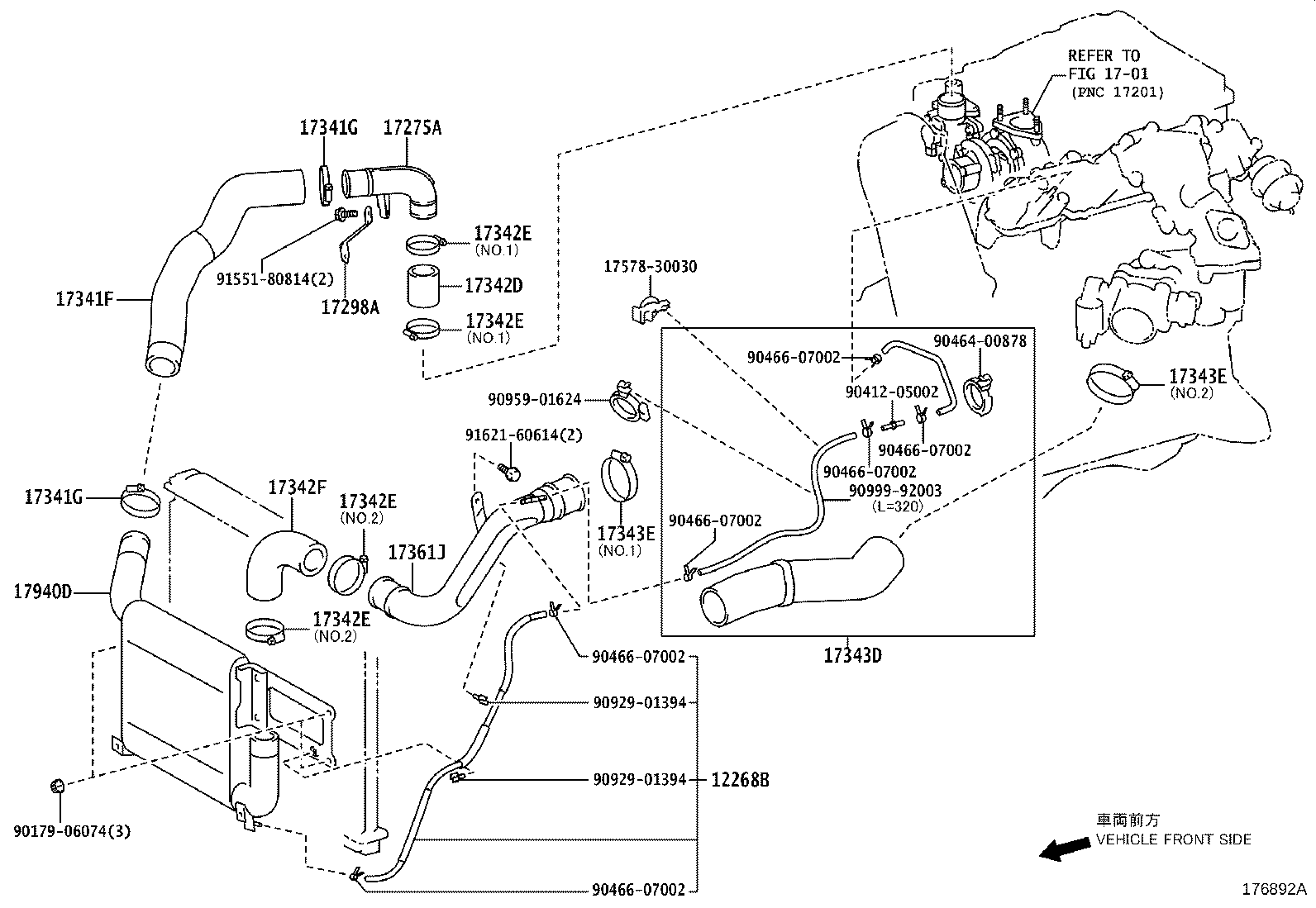

Figure 174234D 174234D 2004-08 → 2007-08 Figure 174235B 174235B 2004-08 → 2007-08 Figure 175762D 175762D 2007-09 → 2010-08 Figure 176703E 176703E 2010-08 → — Figure 175763C 175763C 2007-09 → 2010-08 Figure 176892A 176892A 2010-08 → — Figure 172933H 172933H 2001-07 → 2004-08 Figure 172934H 172934H 2001-07 → 2004-08 Figure 172917D 172917D 2001-07 → 2003-08 Figure 172907C 172907C 2001-07 → — Figure 172908C 172908C 2001-07 → — Figure 173835C 173835C 2003-08 → — Figure 173832J 173832J 2003-08 → — Figure 173831J 173831J 2003-08 → — Figure 175759I 175759I 2007-12 → —

Part groups

PNCDescription
12268B Hose, Oil Return
17275A Elbow, Compressor Outlet
17298A Stay, Compressor Elbow
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17342D Hose, Air, NO.2
17342E Clamp OR Clip(FOR AIR HOSE, NO.2)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17361J Tube, Air, NO.1
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17705 Cap Sub-assy, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805D Grommet(FOR INTAKE AIR CONNECTOR)
17805E Collar(FOR INTAKE AIR CONNECTOR)
17807 Plate Sub-assy, Air Cleaner Filter Set
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17855 Gasket, Air Inlet Duct, NO.1
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17862 Connector, Intake Air, NO.2
17864 Cover, Intake Air Connector
17872 Bracket, Intake Air Connector
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17885 Pipe, Air Cleaner
17893 Resonator, Intake Air
17893A Clamp, Hose
17940D Intercooler Assy
22250 Meter Assy, Intake Air Flow
25709L Valve Sub-assy, Altitude Compensator
25860N Valve Assy, Vacuum Switching
52811 Duct, Cool Air Intake, NO.1
53709C Cover Sub-assy, Air Cleaner Inlet
53775B Bracket, Cool Air Intake Duct Mounting
53996A Packing, Air Cleaner Inlet Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
