Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10

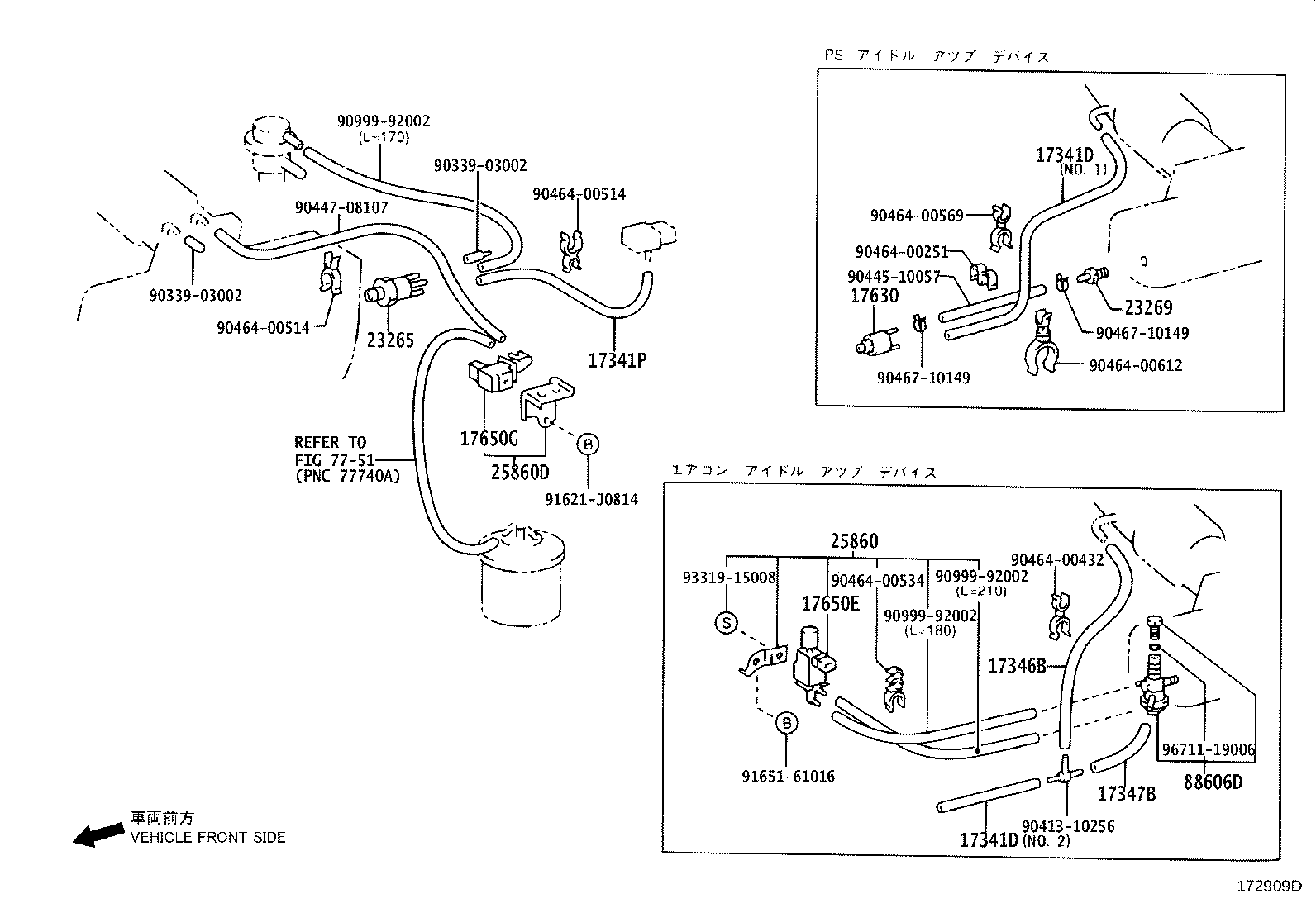

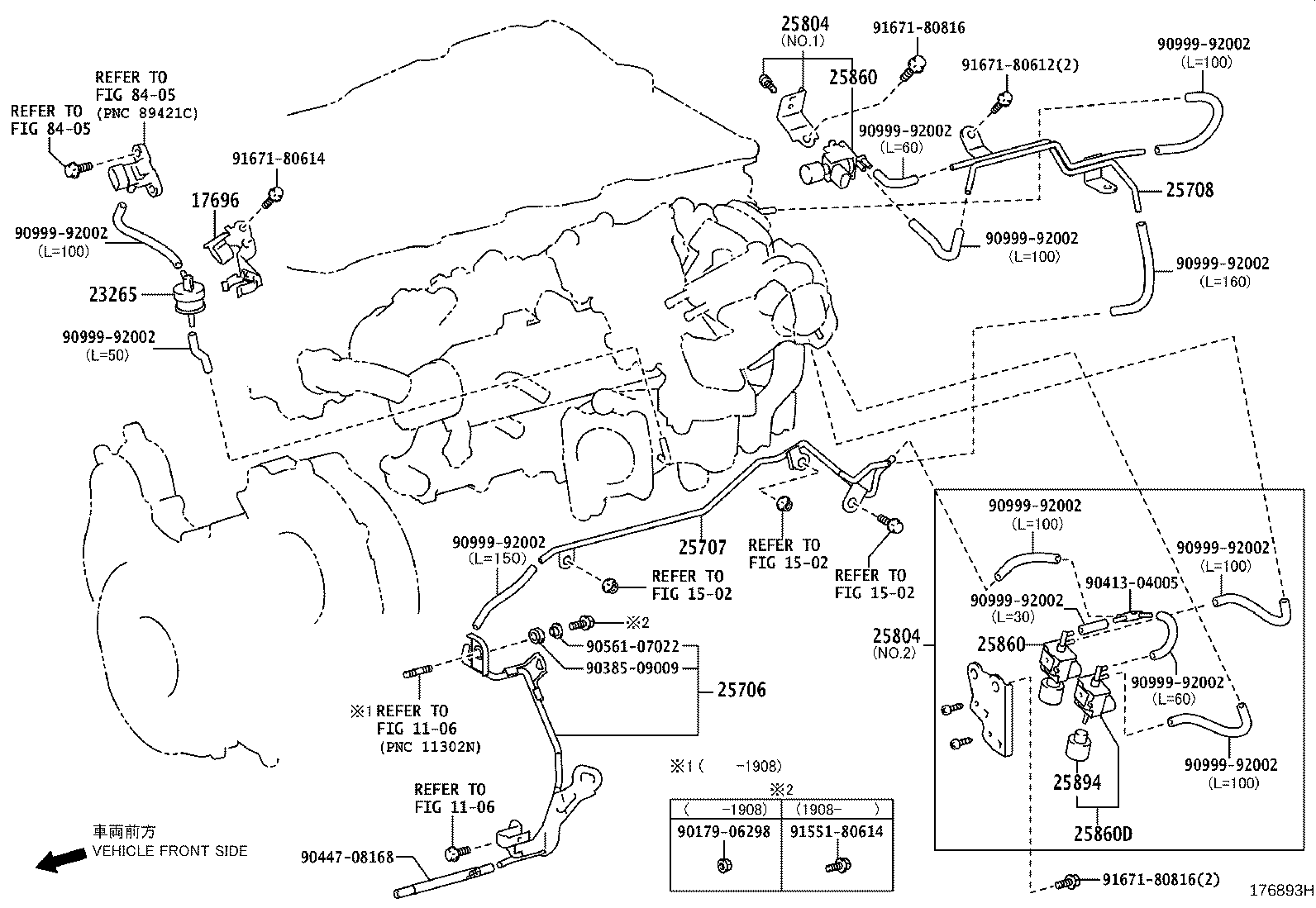

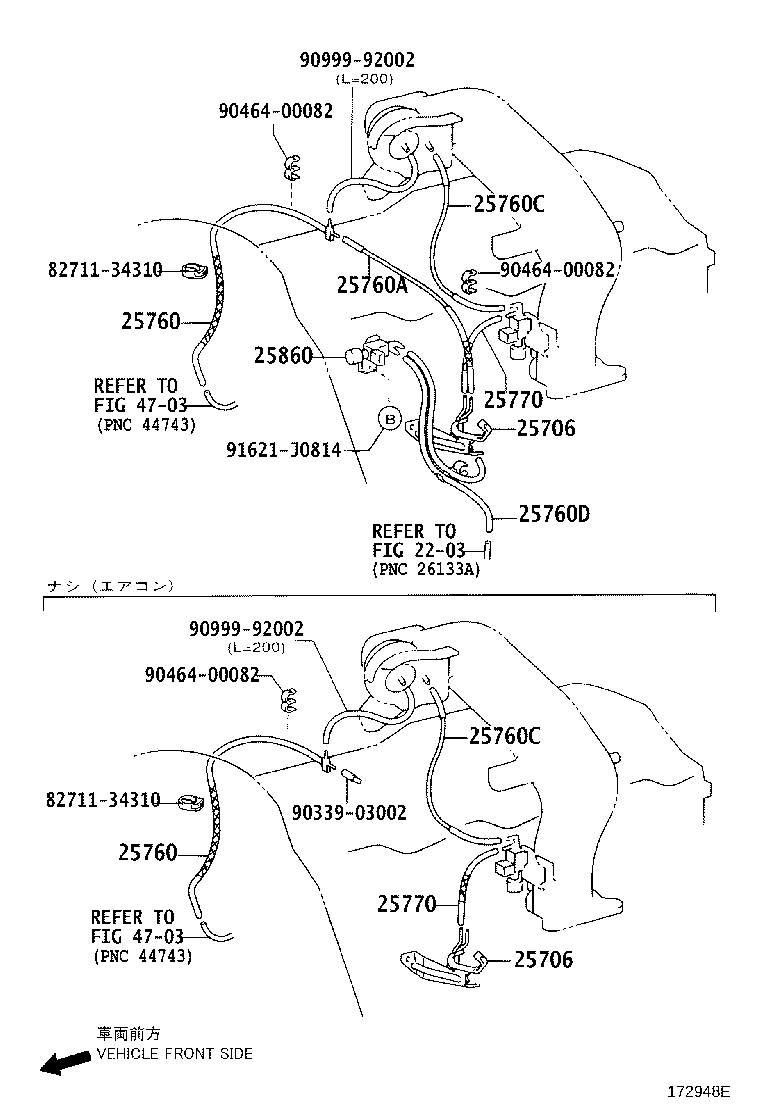

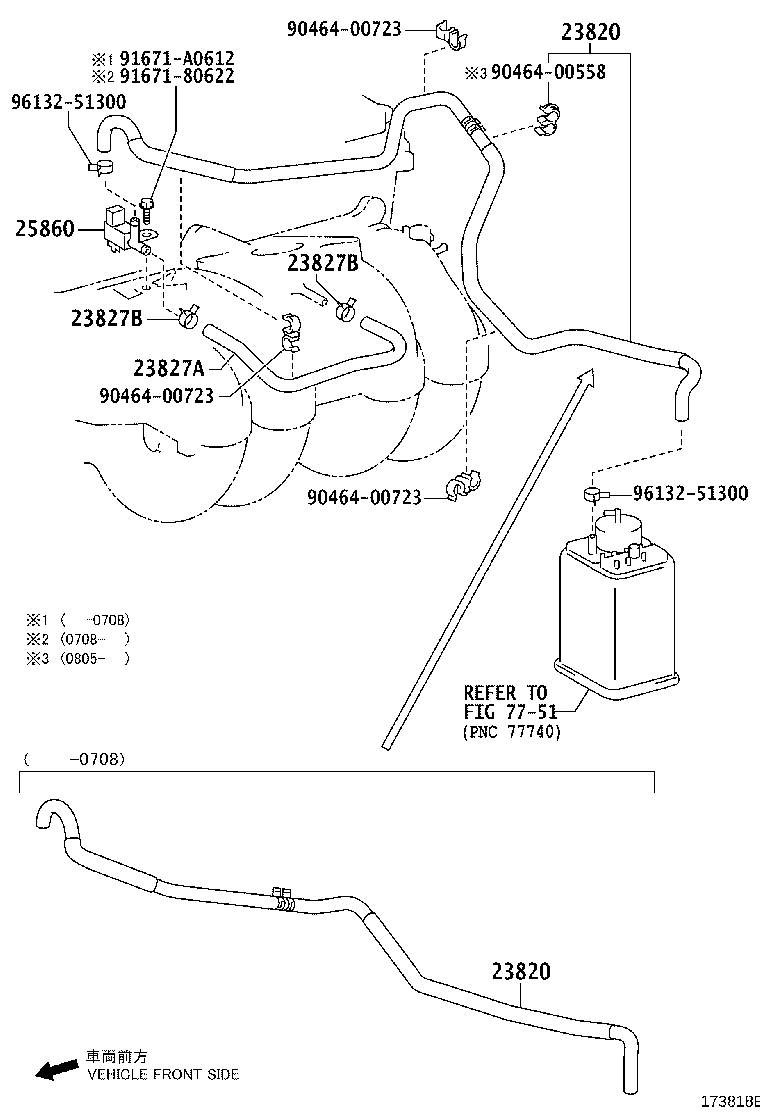

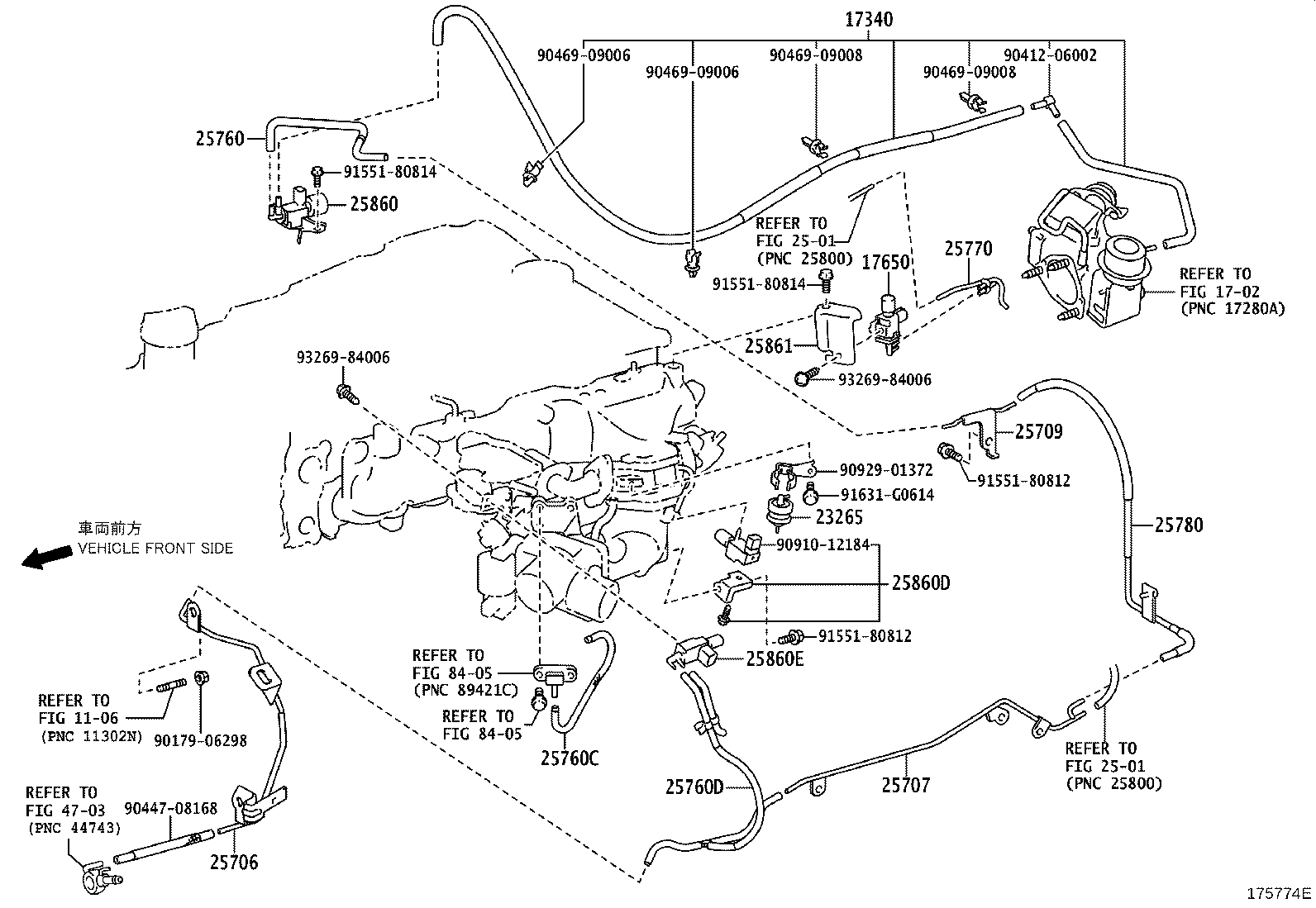

Vacuum Piping

37 part groups · 12 illustrations

PNC	Description
17340	Hose Assy, Vacuum Switching Valve
17341D	Hose, NO.1(FOR IDLE-UP)
17341P	Hose, Air
17346B	Hose, Air, NO.6
17347B	Hose, Air, NO.7
17630	Valve Assy, Air Control
17650	Valve Assy, Vacuum Switching
17650E	Valve, Vacuum Switching
17650G	Valve, Duty Vacuum Switching
17696	Bracket, Gas Filter
22233	Hose, Lpg Auxiliary Air Valve, NO.1
22233A	Clip(FOR LPG AUXILIARY AIR VALVE NO.1)
22234	Hose, Lpg Auxiliary Air Valve, NO.2
22234A	Clip(FOR LPG AUXILIARY AIR VALVE NO.2)
22270K	Valve Assy, Lpg Idle Speed Control
23265	Filter, Gas, NO.1
23269	Union(FOR GAS FILTER)
23820	Hose Assy, Fuel Vapor Feed
23827A	Hose, Fuel Vapor Feed, NO.2
23827B	Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25706	Pipe Sub-assy, Vacuum Transmitting, NO.1
25707	Pipe Sub-assy, Vacuum Transmitting, NO.2
25708	Pipe Sub-assy, Vacuum Transmitting, NO.3
25709	Valve Sub-assy, High Altitude Compensator
25760	Hose Assy, Vacuum Transmitting
25760A	Hose Assy, Vacuum Transmitting
25760C	Hose Assy, Vacuum Transmitting, NO.3
25760D	Hose Assy, Vacuum Transmitting, NO.4
25770	Hose Assy, Vacuum Transmitting, NO.2
25780	Hose Assy, Vacuum Transmitting, NO.3
25804	Valve Set, Vacuum Control
25860	Valve Assy, Vacuum Switching, NO.1
25860D	Valve Assy, Vacuum Switching, NO.2
25860E	Valve, Vacuum Switching, NO.2
25861	Bracket, Vacuum Switching Valve
25894	Filter, NO.1
88606D	Diaphragm Sub-assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
