Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

12 part groups · 14 illustrations

Illustrations

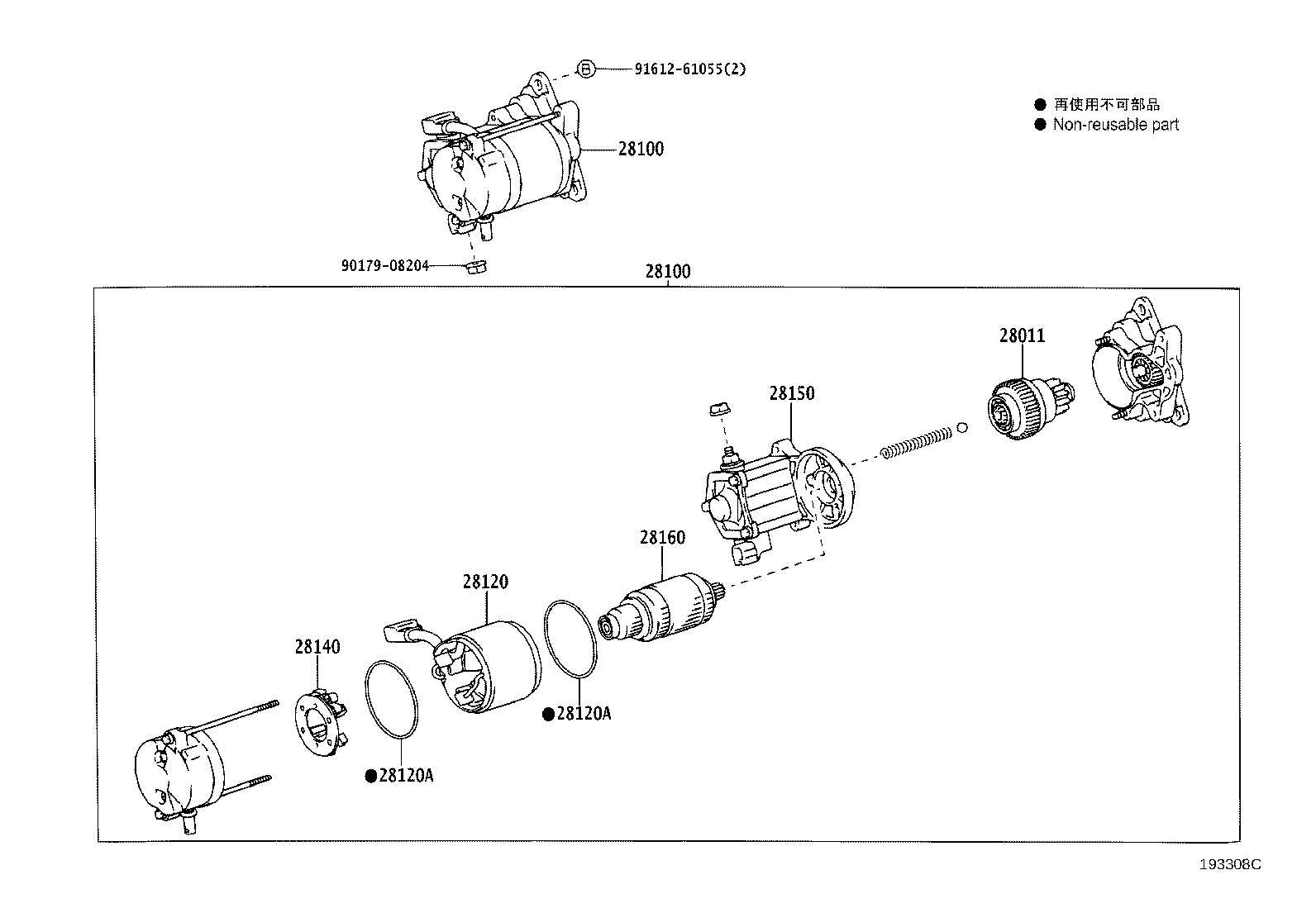

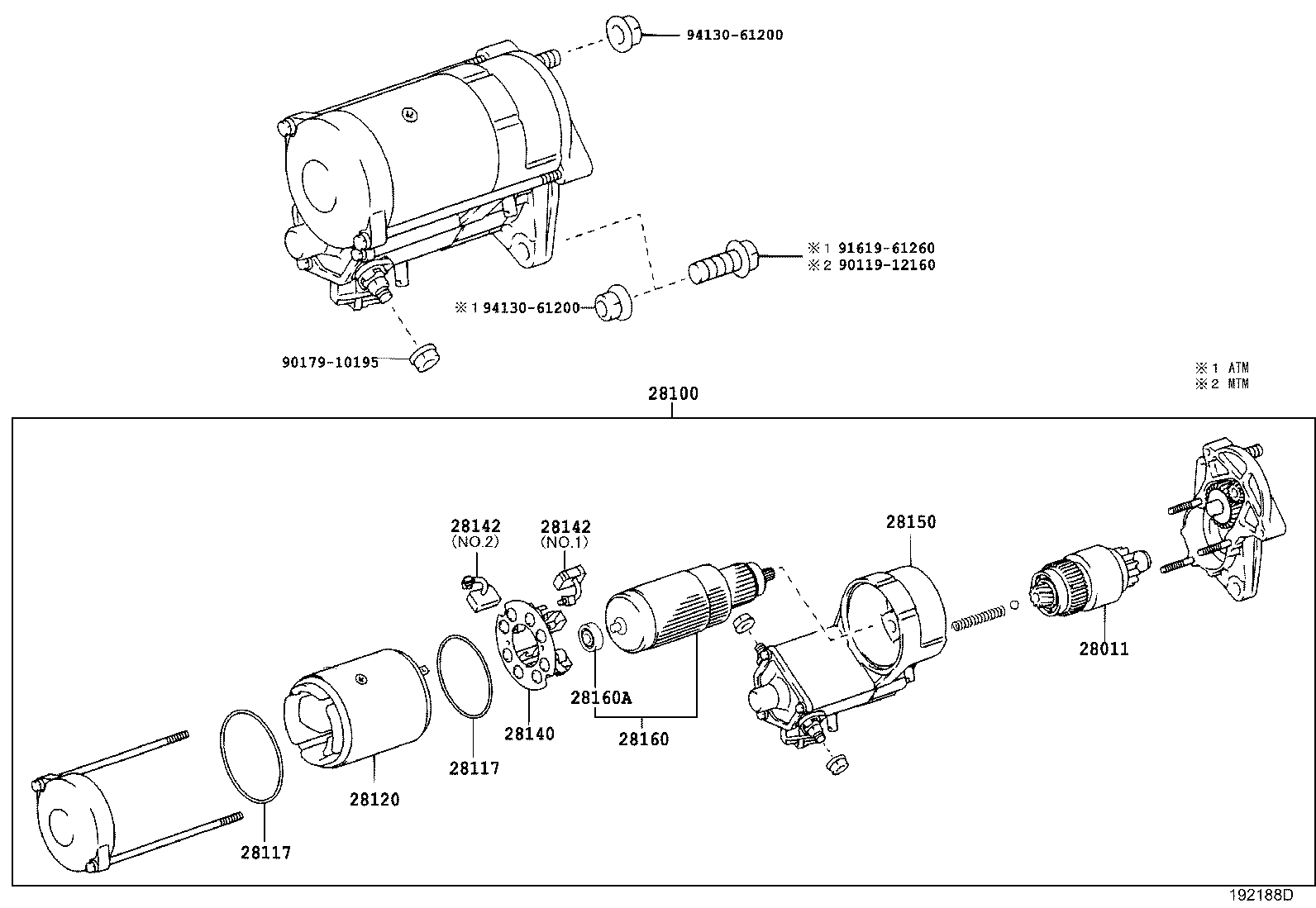

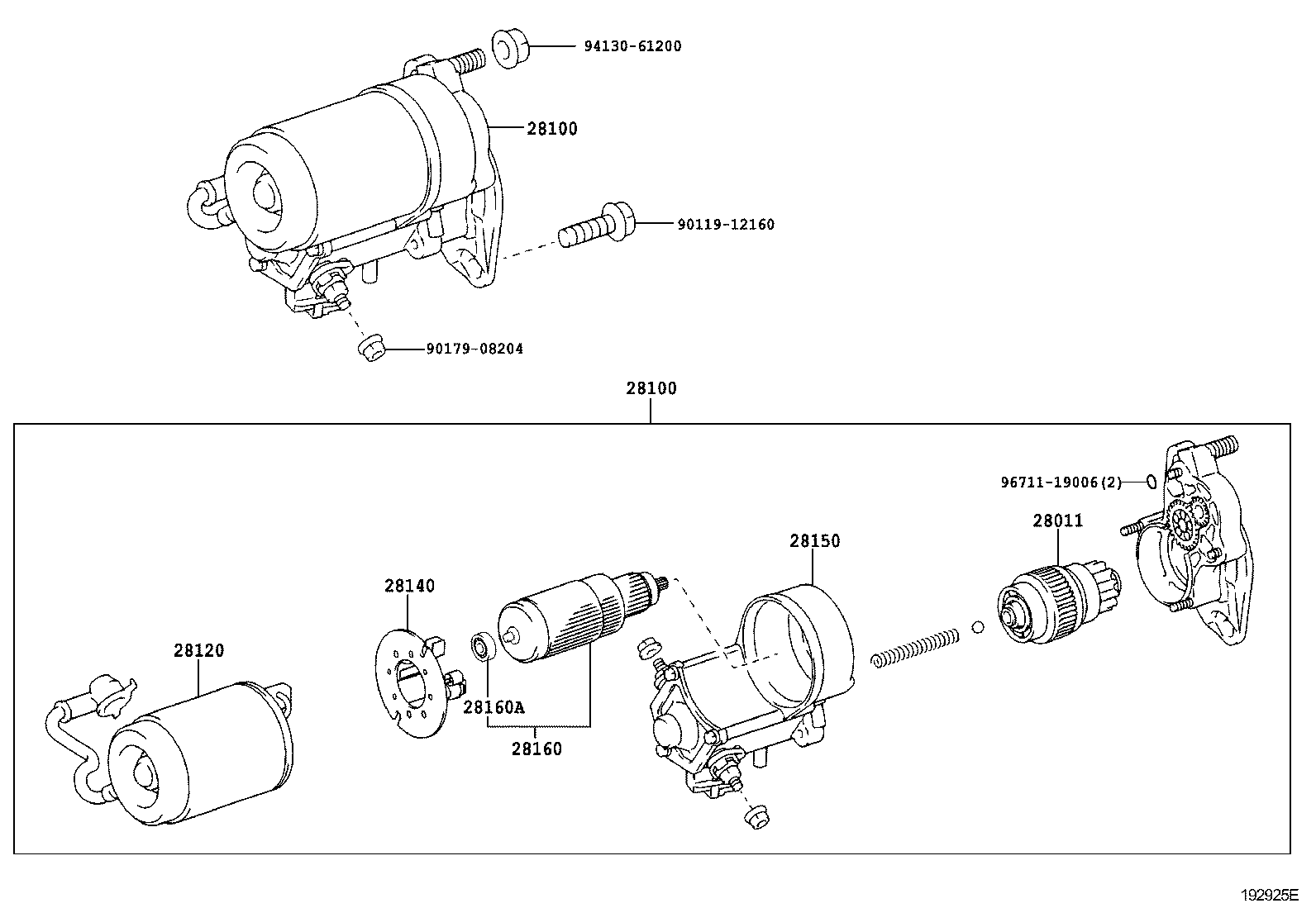

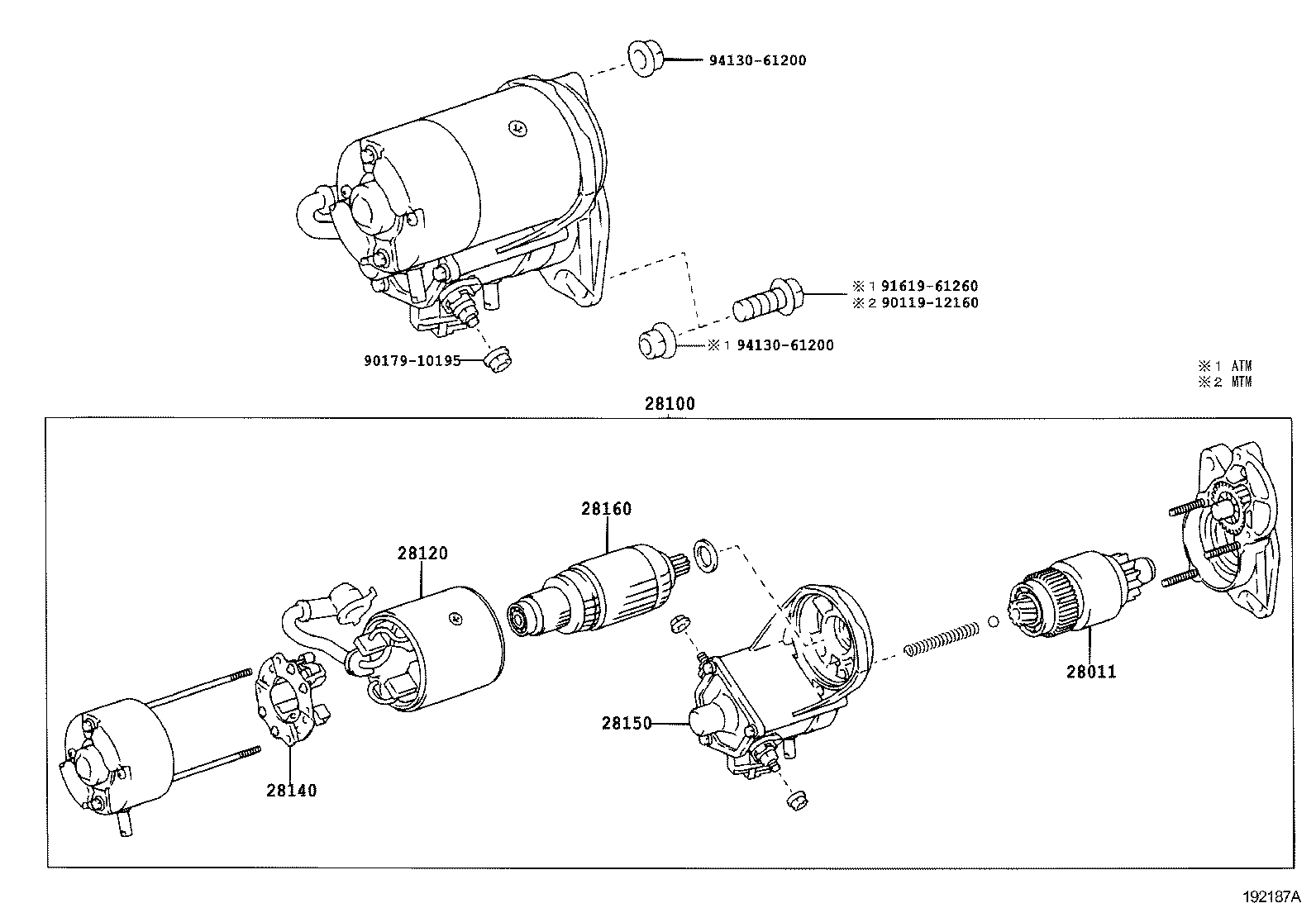

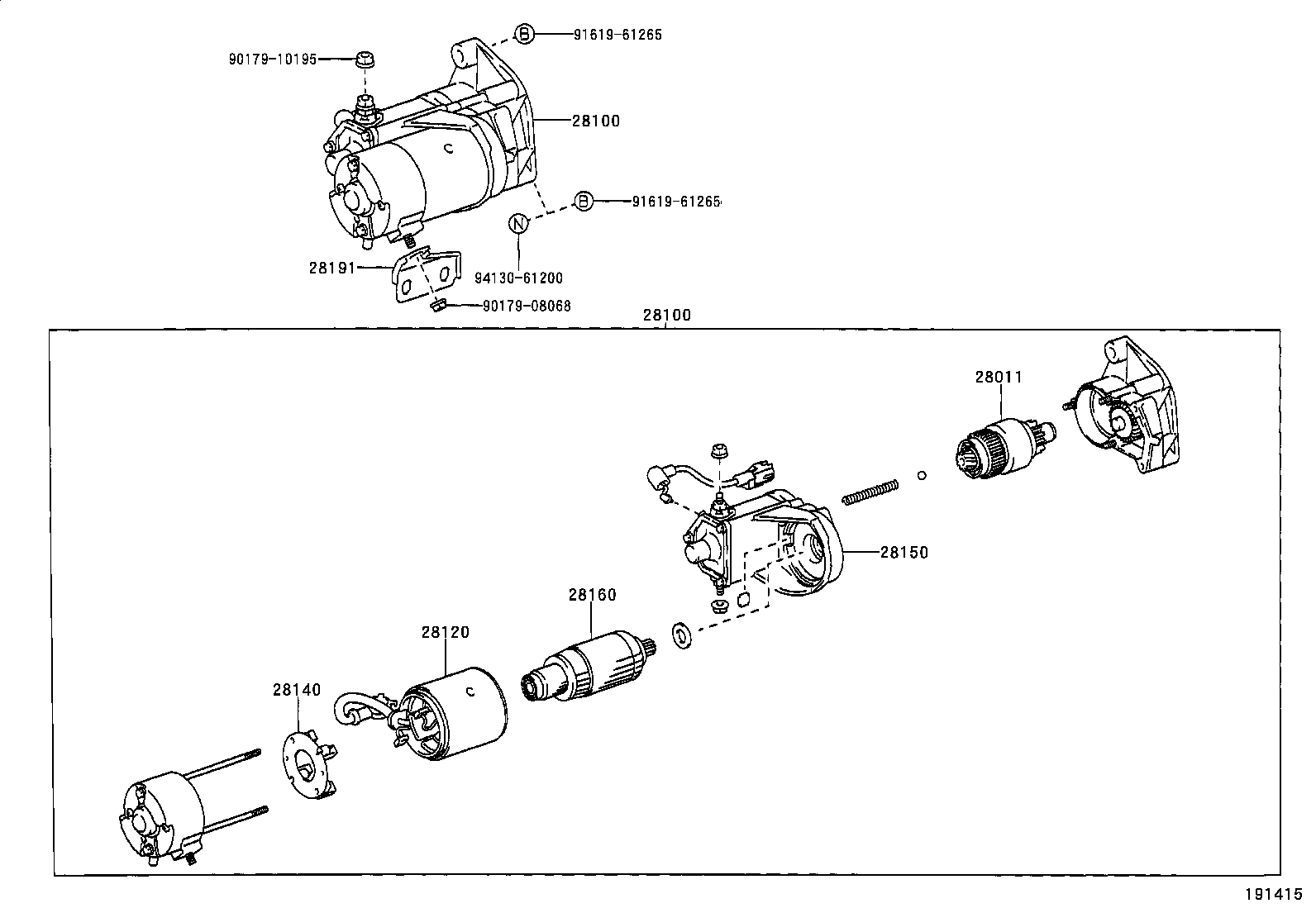

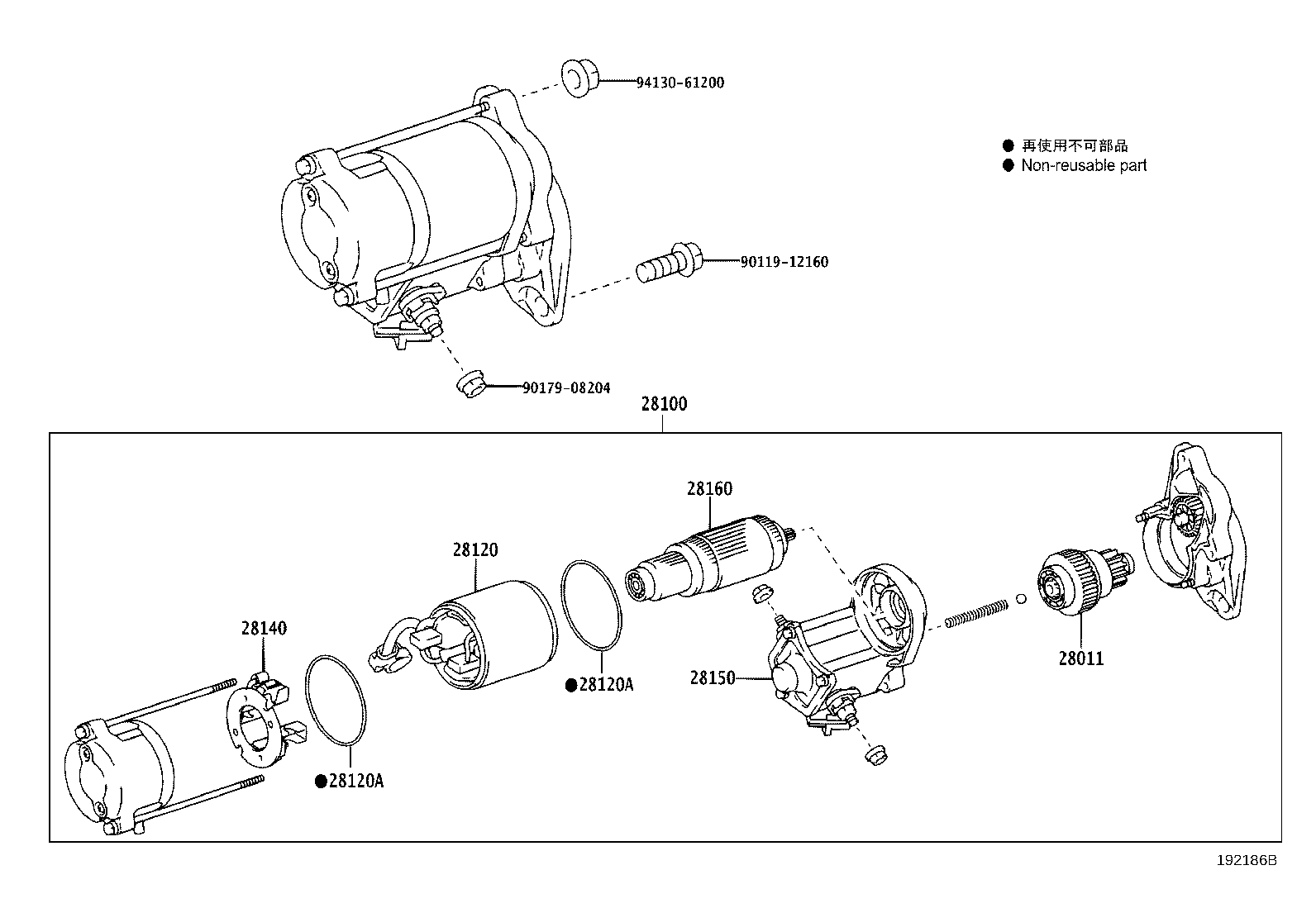

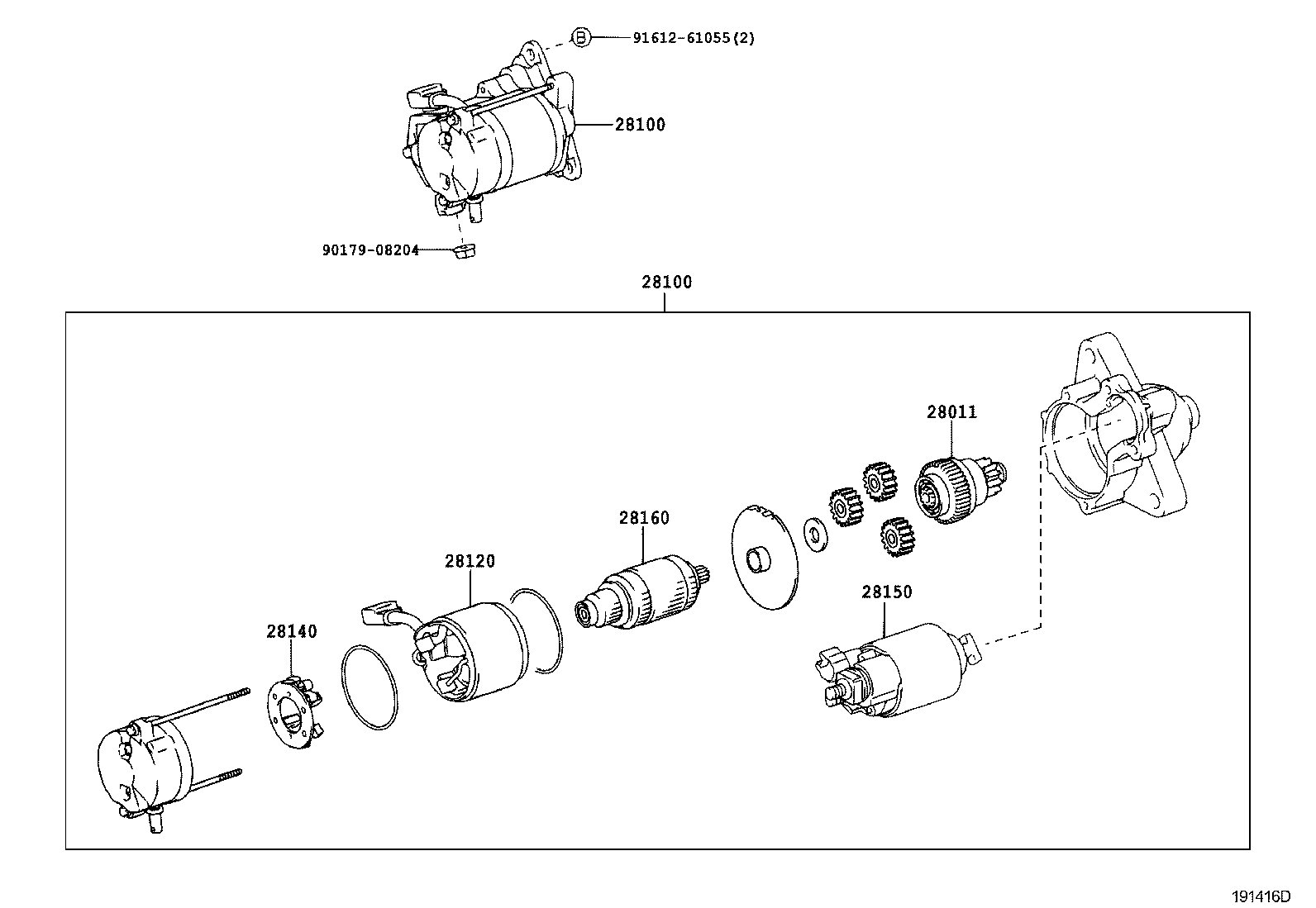

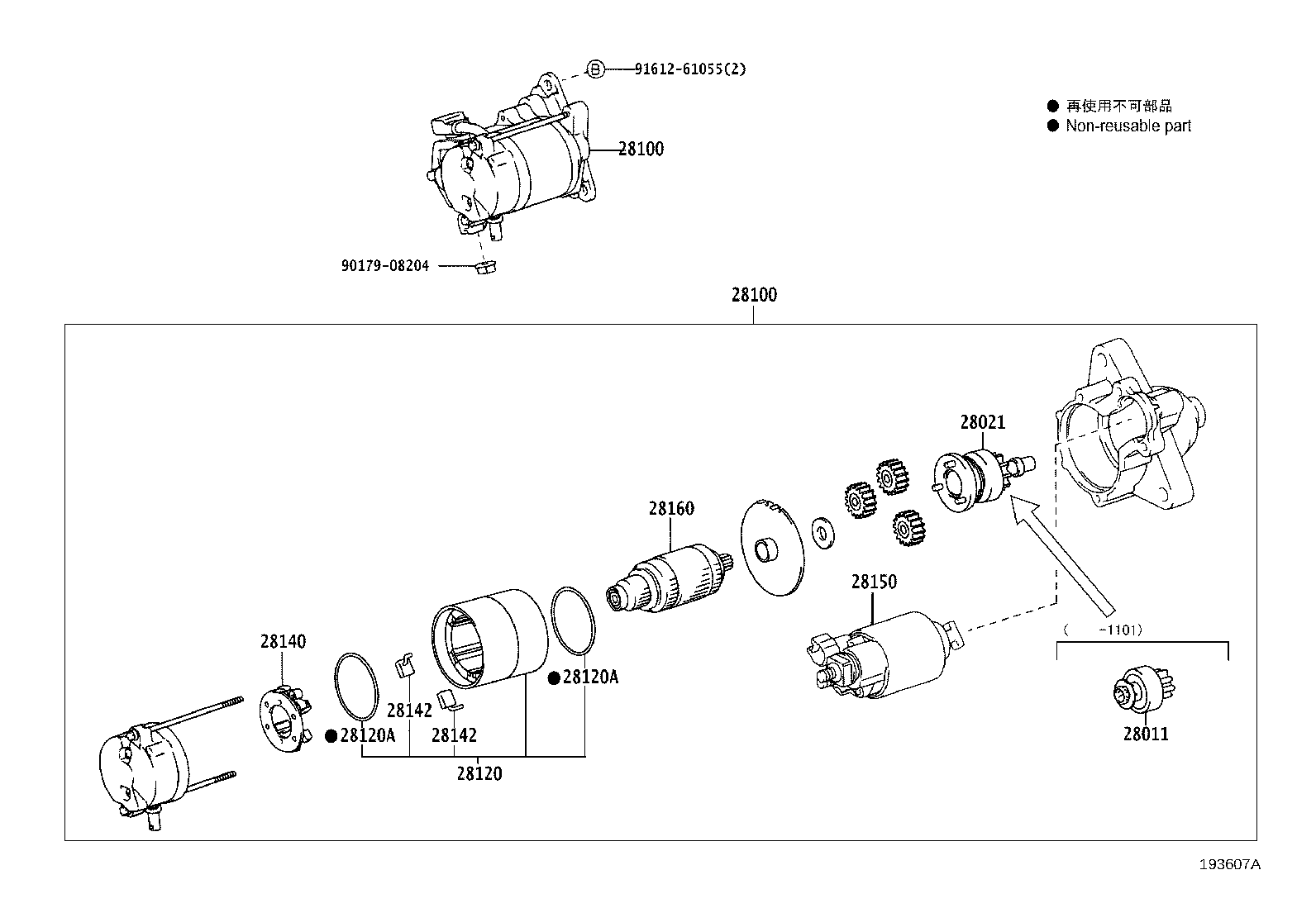

Figure 191414A 191414A 2001-07 → — Figure 191415 191415 2001-07 → — Figure 191416D 191416D 2001-07 → 2009-07 Figure 193607A 193607A 2009-07 → — Figure 193308C 193308C 2001-07 → — Figure 192186B 192186B 2004-08 → 2007-08 Figure 192187A 192187A 2004-08 → — Figure 192188D 192188D 2004-08 → 2010-08 Figure 192188D 192188D 2004-08 → — Figure 192188D 192188D 2004-08 → — Figure 192188D 192188D 2004-08 → — Figure 192925E 192925E 2007-09 → — Figure 192925E 192925E 2010-08 → — Figure 192925E 192925E 2010-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28117 Rubber(FOR STARTER YOKE)
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28160A Bearing, Starter Armature
28191 Stay, Starter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
