Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

8 part groups · 2 illustrations

Illustrations

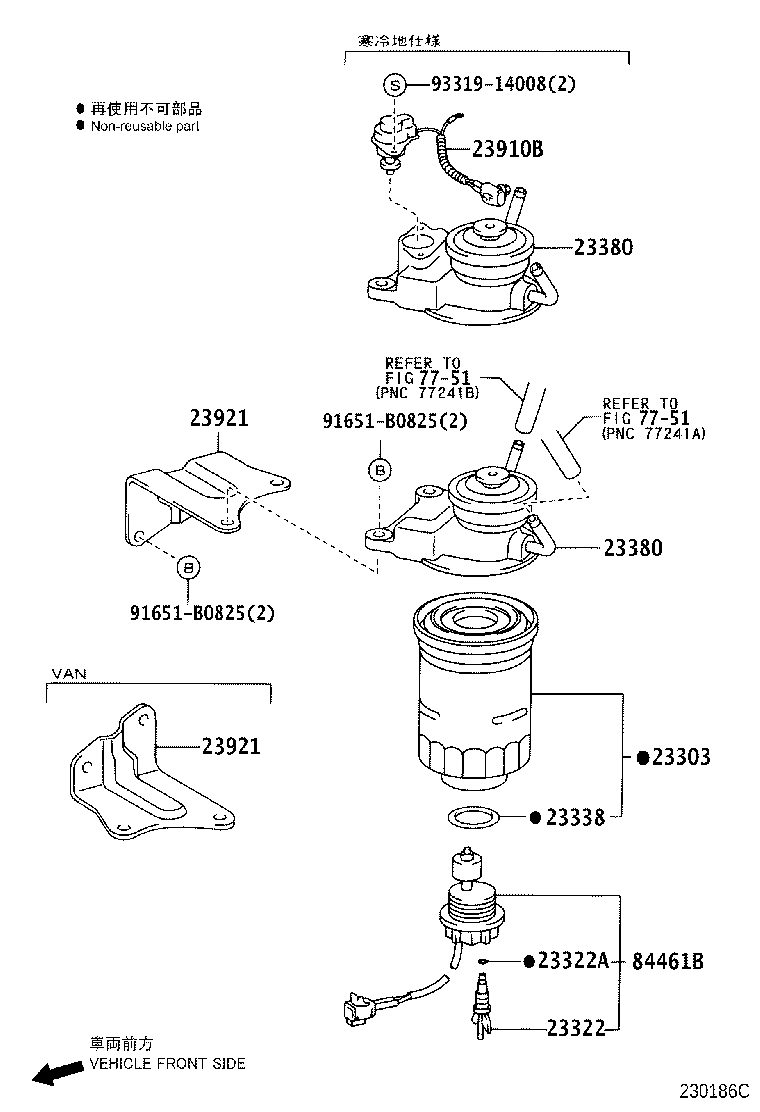

Figure 230361C 230361C 2004-08 → — Figure 230186C 230186C 2001-07 → 2004-08

Part groups

PNCDescription
23303 Element Sub-assy, Fuel Filter
23322 Plug, Drain(FOR FUEL FILTER)
23322A Ring, O(FOR DRAIN PLUG)
23338 Gasket(FOR WARNING SWITCH)
23380 Cap Assy, Fuel Filter
23910B Heater Assy, Fuel
23921 Support, Fuel Filter
84461B Switch, Level Warning
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
