Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10

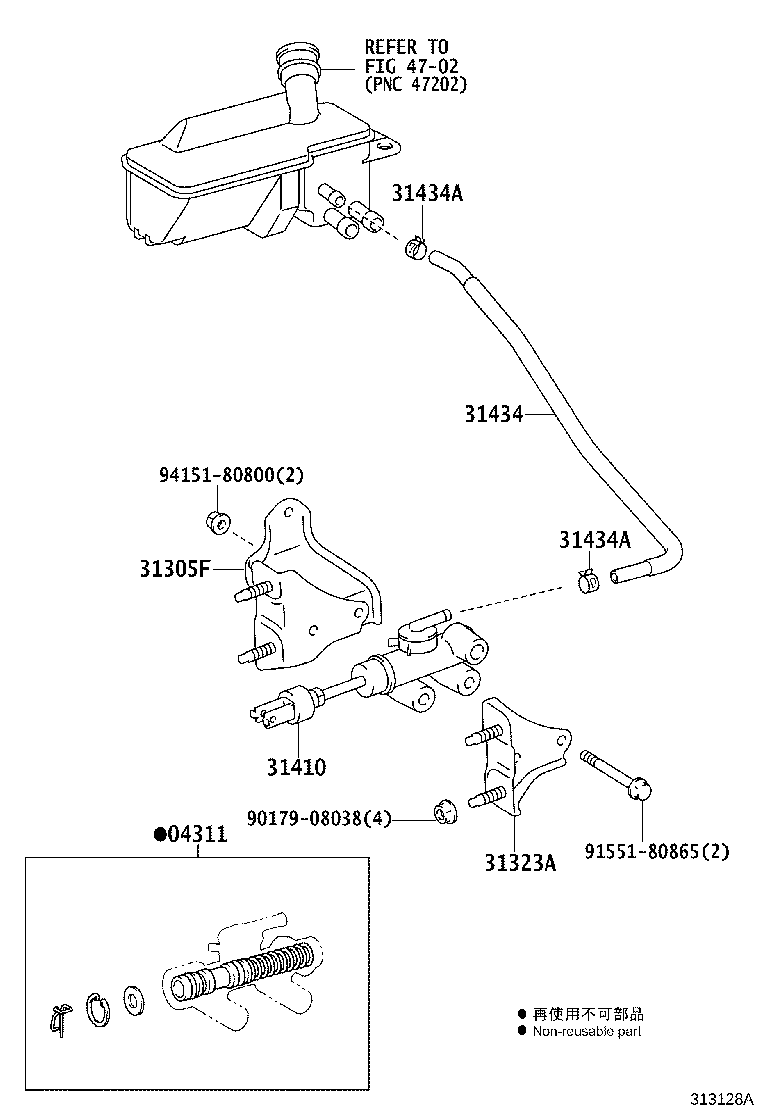

Clutch Master Cylinder
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04311 | Cylinder Kit, Clutch Master |
| 31305F | Bracket Sub-assy, Clutch Pedal |
| 31323A | Bracket, Clutch Pedal |
| 31410 | Cylinder Assy, Clutch Master |
| 31410A | Bolt(FOR CLUTCH MASTER CYLINDER SETTING) |
| 31434 | Tube, Clutch Reservoir |
| 31434A | Clip(FOR CLUTCH RESERVOIR TUBE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
