Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 5 illustrations

Illustrations

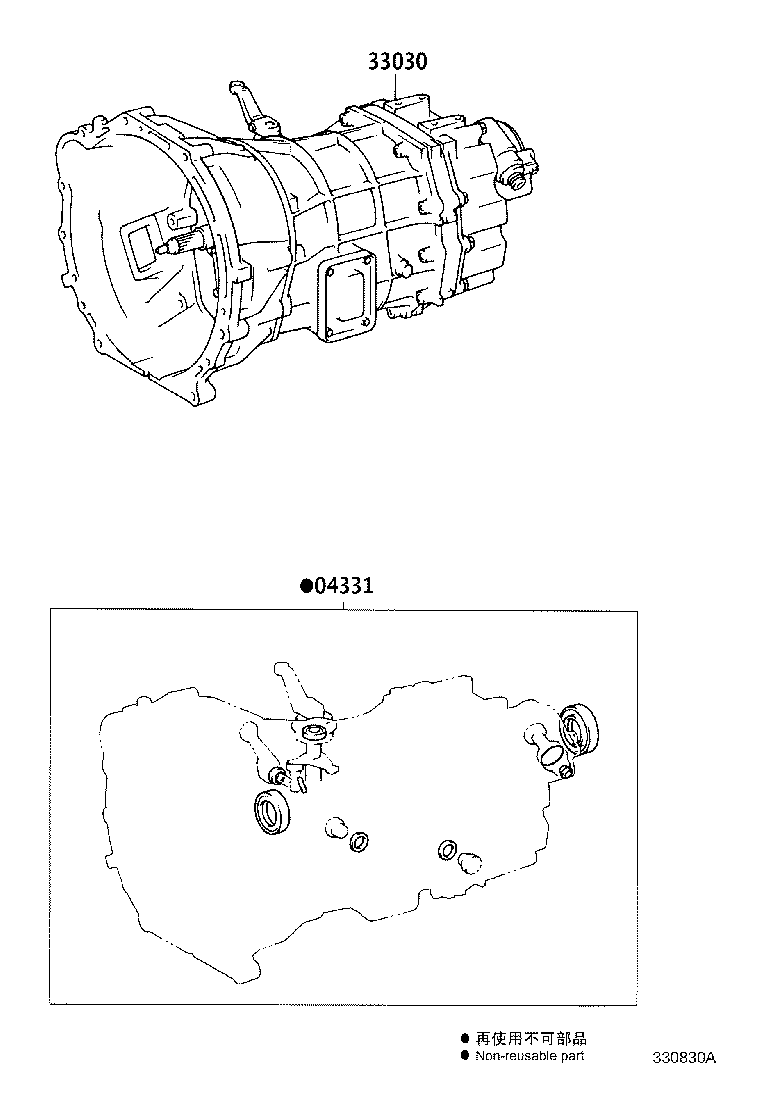

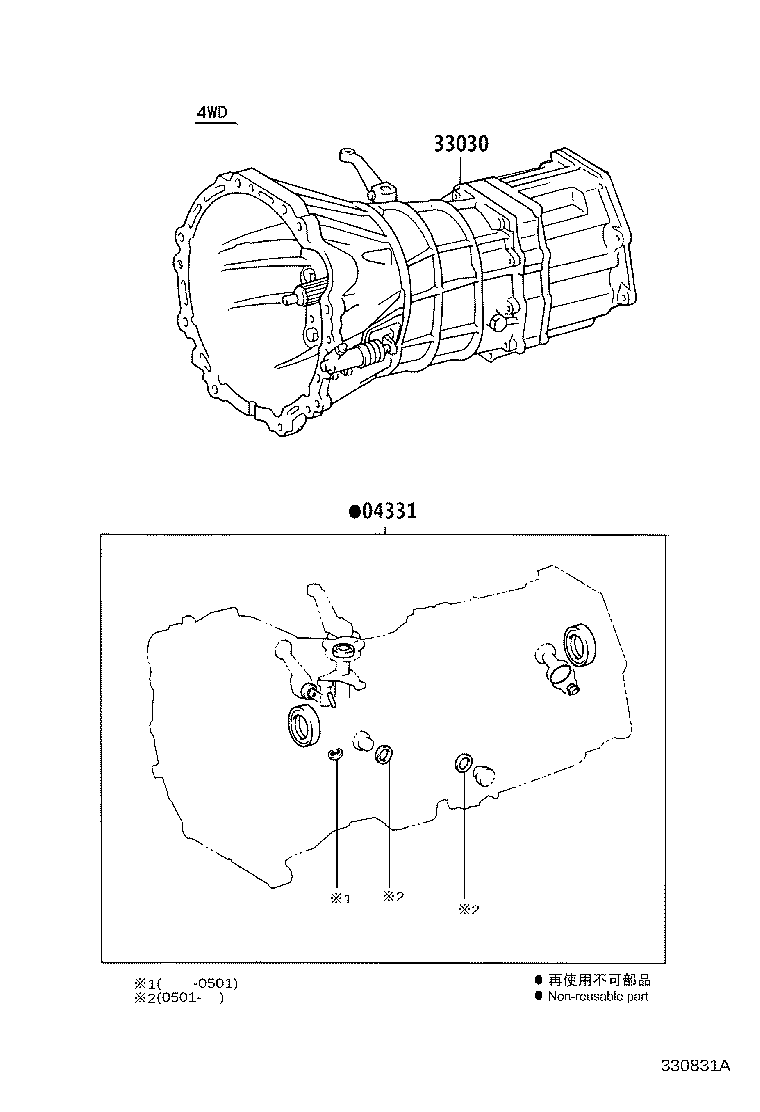

Figure 332163A 332163A 2001-07 → — Figure 330830A 330830A 2001-07 → — Figure 330830A 330830A 2001-07 → — Figure 332652A 332652A 2004-08 → — Figure 330831B 330831B 2001-07 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
