Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

20 part groups · 8 illustrations

Illustrations

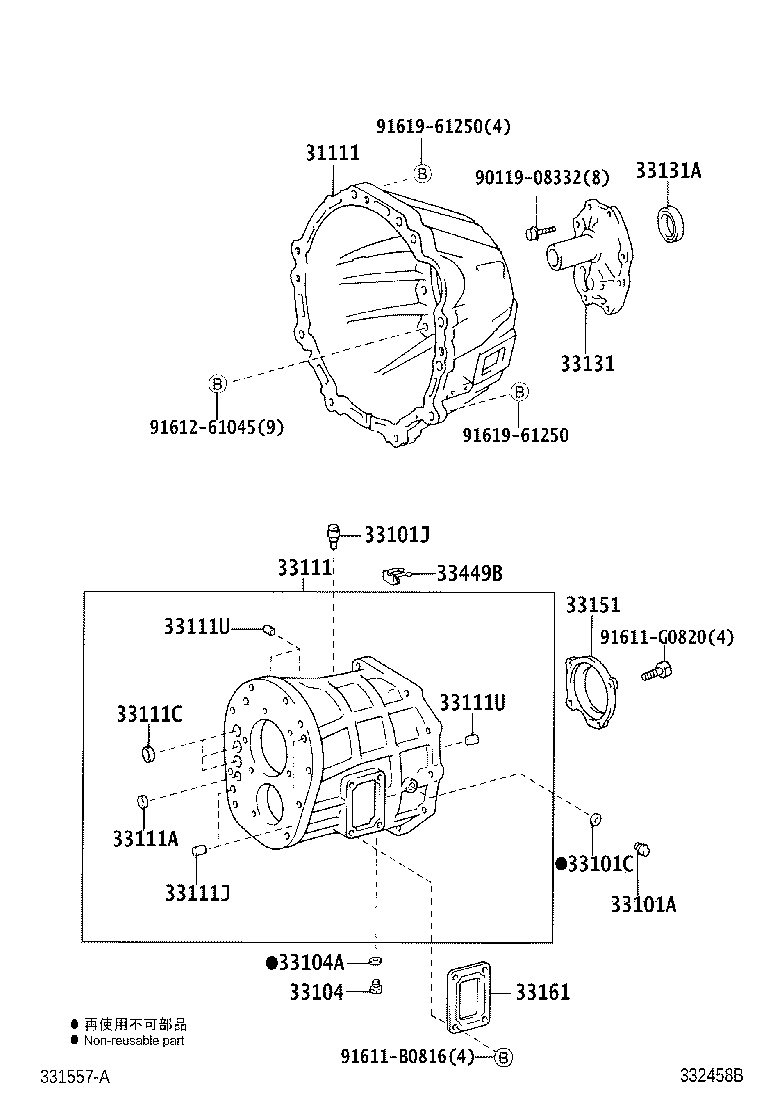

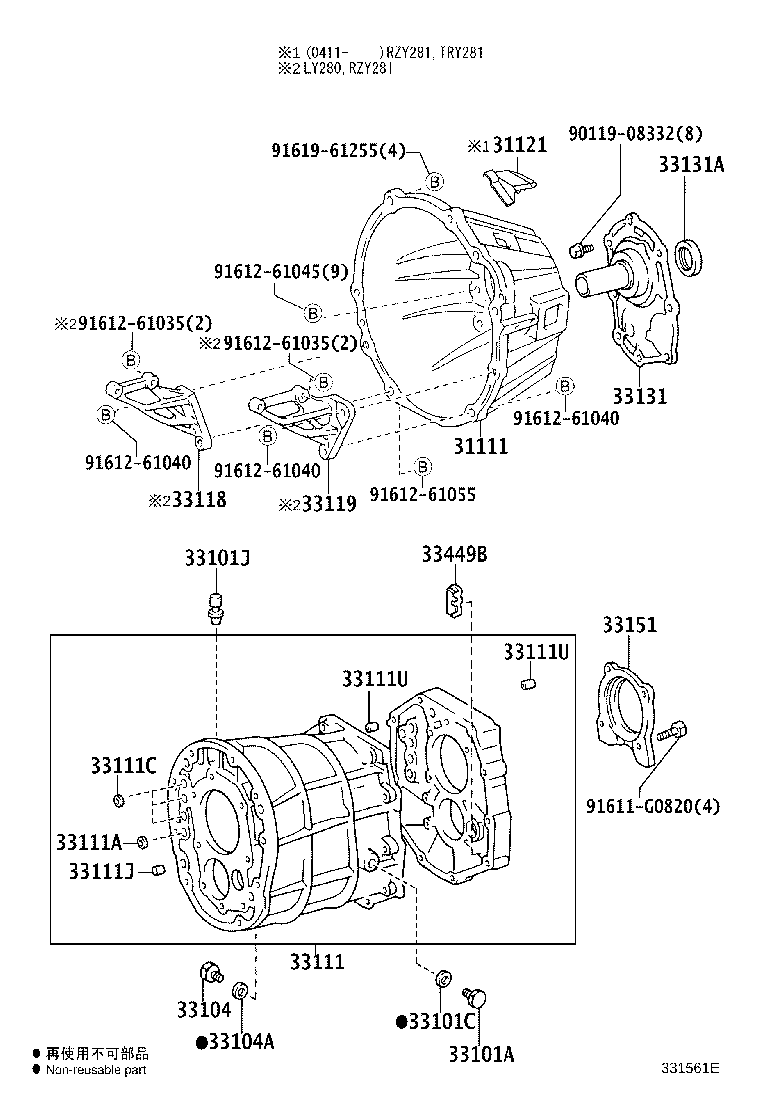

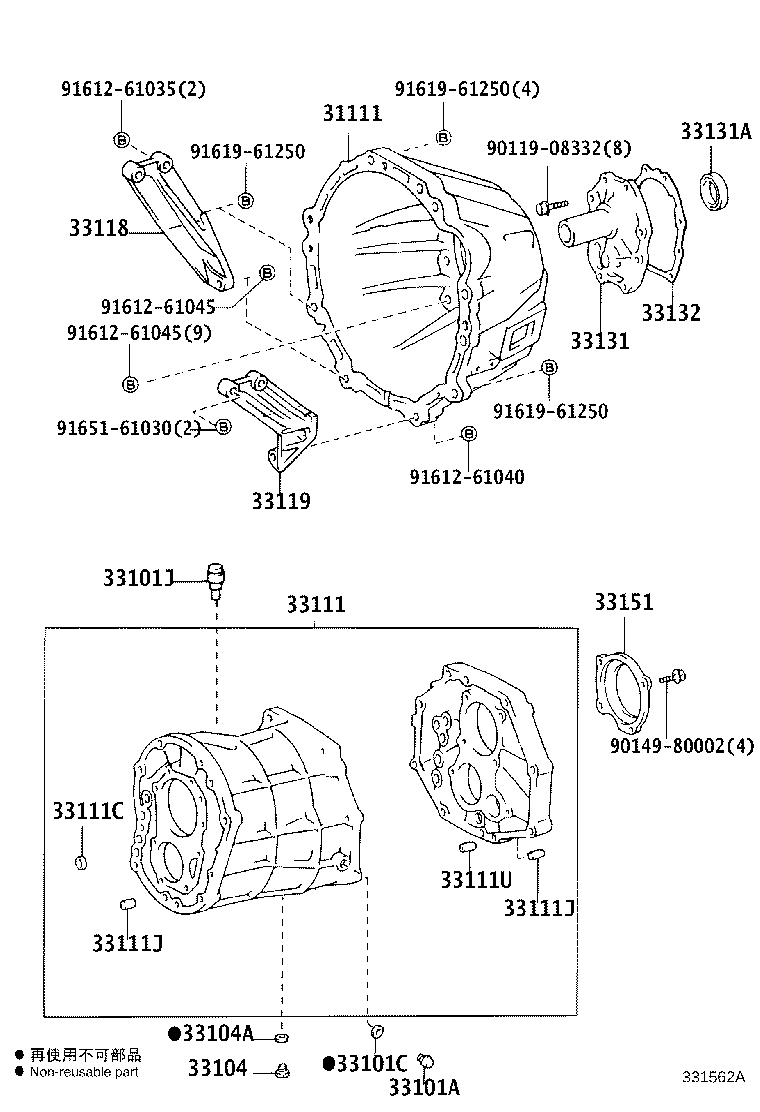

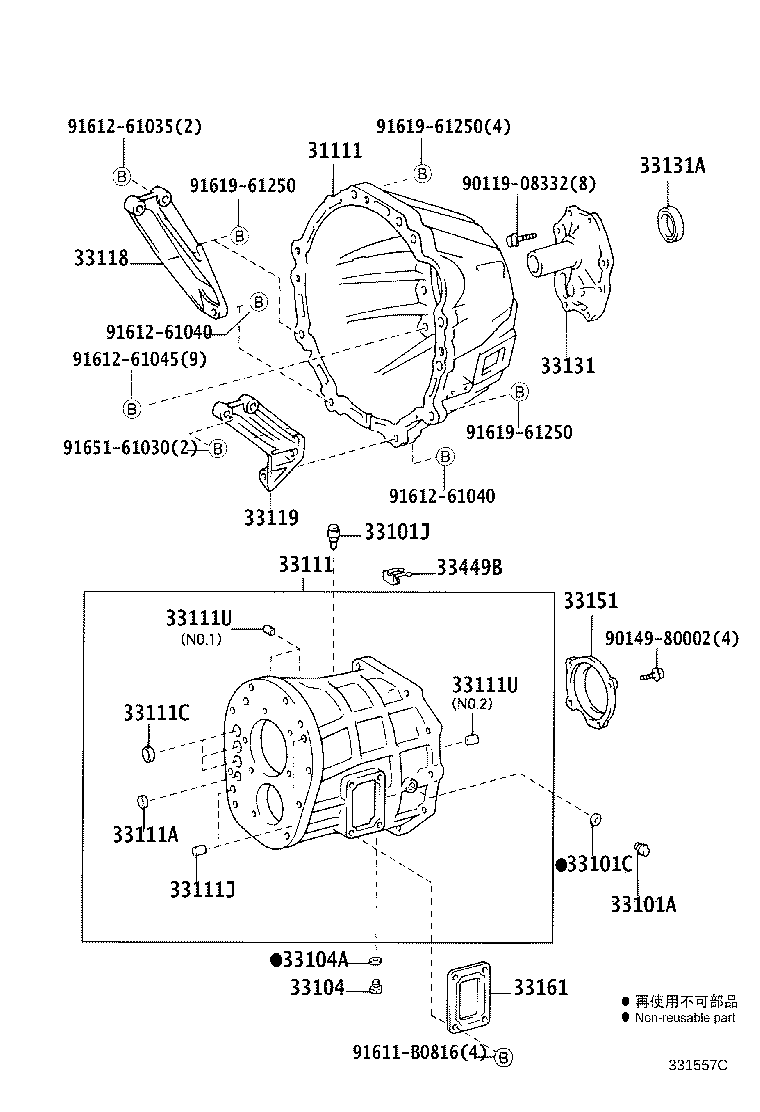

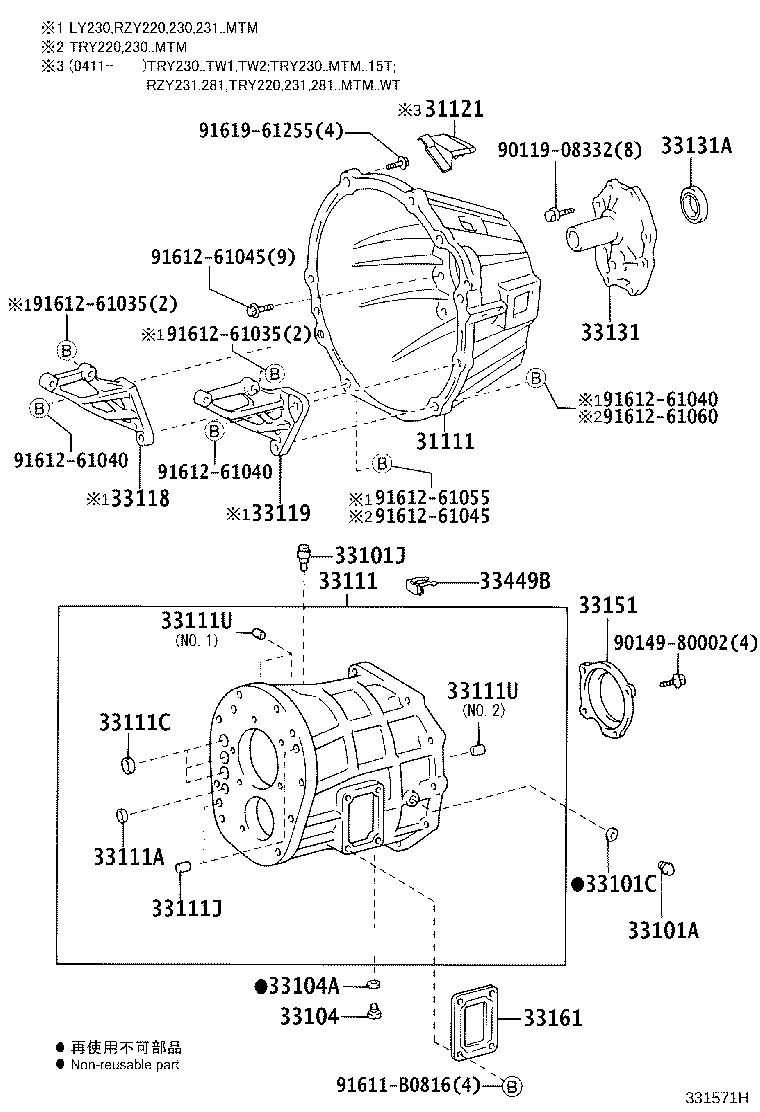

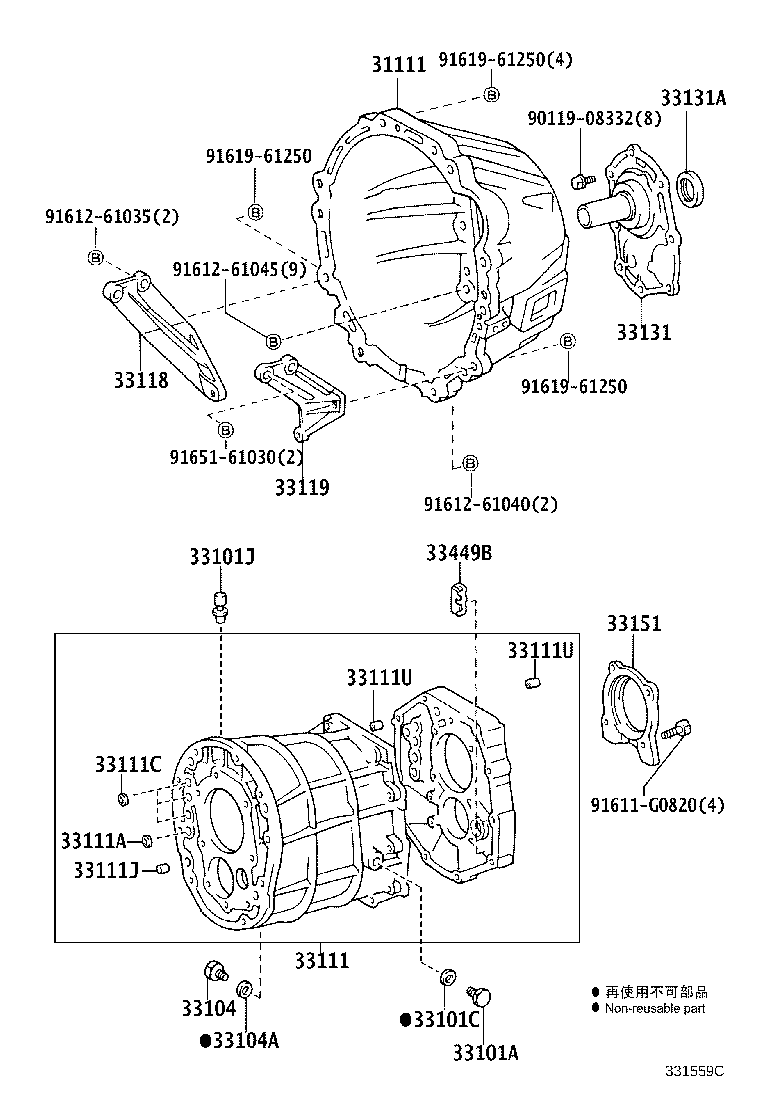

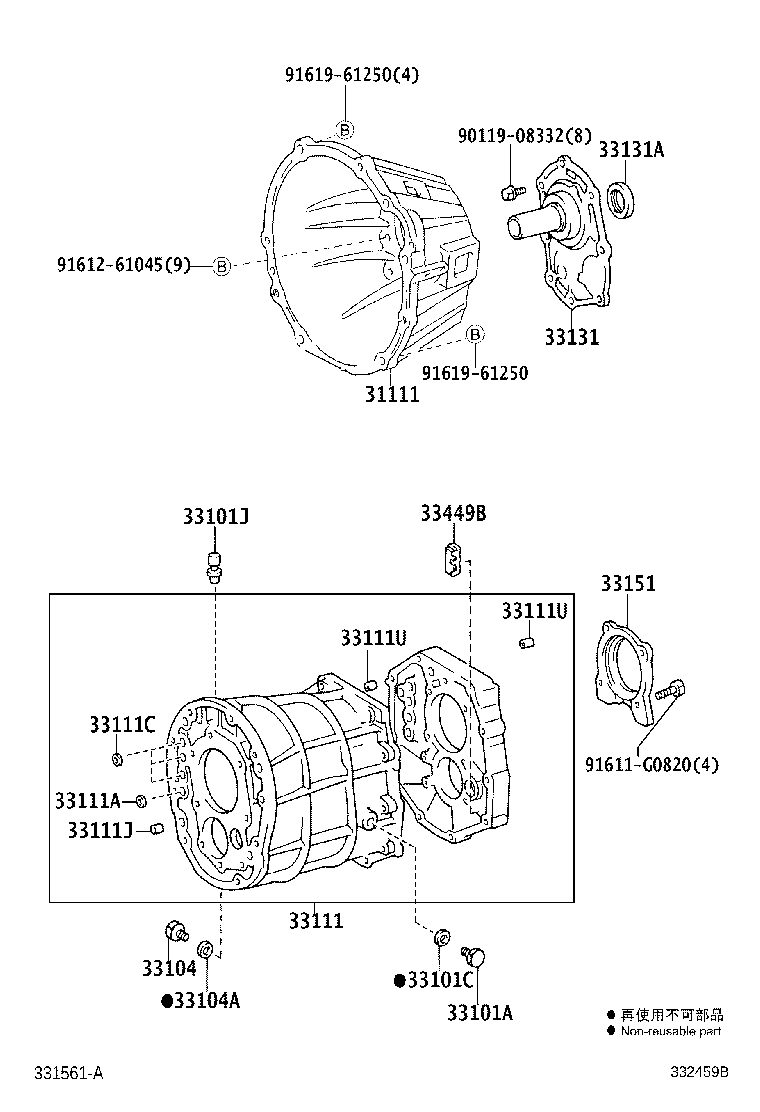

Figure 331558C 331558C 2001-07 → — Figure 331562A 331562A 2001-07 → — Figure 331557C 331557C 2001-07 → — Figure 331571H 331571H 2001-07 → — Figure 331561E 331561E 2001-07 → — Figure 331559C 331559C 2001-07 → — Figure 332458B 332458B 2004-08 → — Figure 332459B 332459B 2004-08 → —

Part groups

PNCDescription
31111 Housing, Clutch
31121 Cover, Clutch Housing, NO.1
33101A Plug(FOR MANUAL TRANSMISSION FILLER)
33101C Gasket(FOR MANUAL TRANSMISSION FILLER PLUG)
33101J Plug, Breather
33104 Plug Sub-assy, Drain(MTM)
33104A Gasket, Drain Plug(MTM)
33111 Case, Manual Transmission
33111A Plug, Manual Transmission Case
33111C Plug(FOR TRANSMISSION CASE)
33111J Pin, Straight(FOR MANUAL TRANSMISSION CASE)
33111U Pin, Ring(FOR MANUAL TRANSMISSION CASE)
33118 Plate, Stiffener, RH(MTM)
33119 Plate, Stiffener, LH(MTM)
33131 Retainer, Bearing, Front(MTM)
33131A Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
33132 Gasket, Front Bearing Retainer(MTM)
33151 Retainer, Output Shaft Rear Bearing(MTM)
33161 Cover, Manual Transmission Power Take-off
33449B Magnet, Transmission
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
