Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 9 illustrations

Illustrations

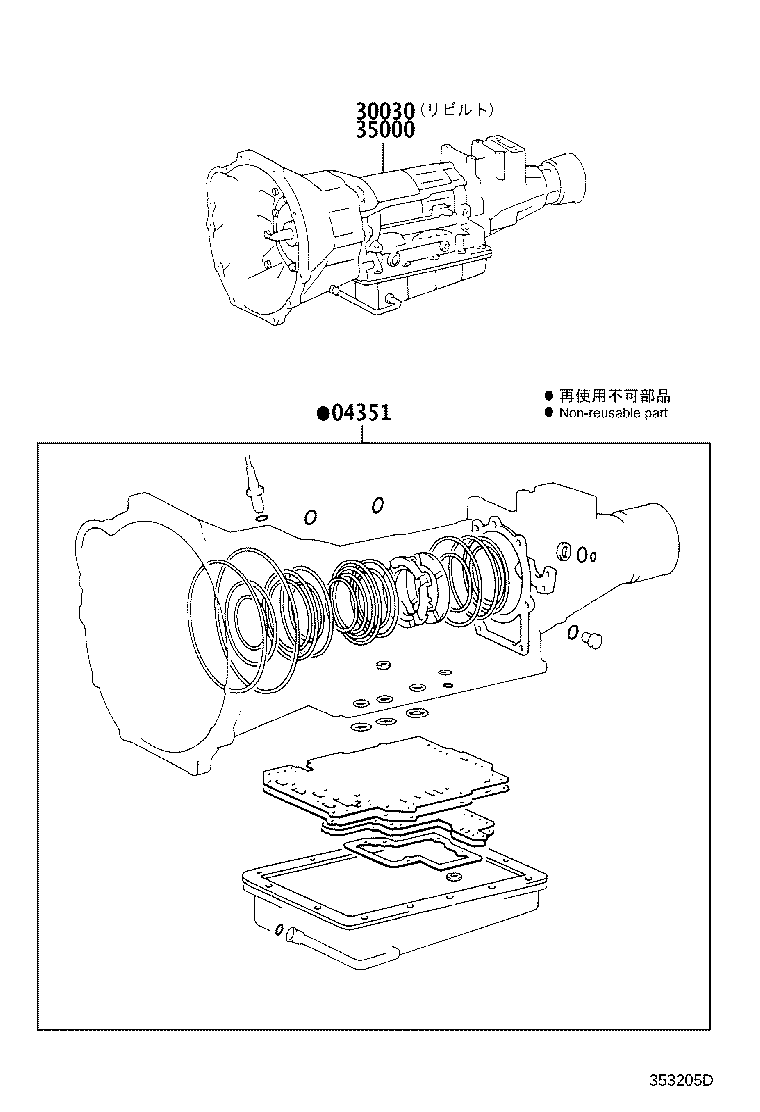

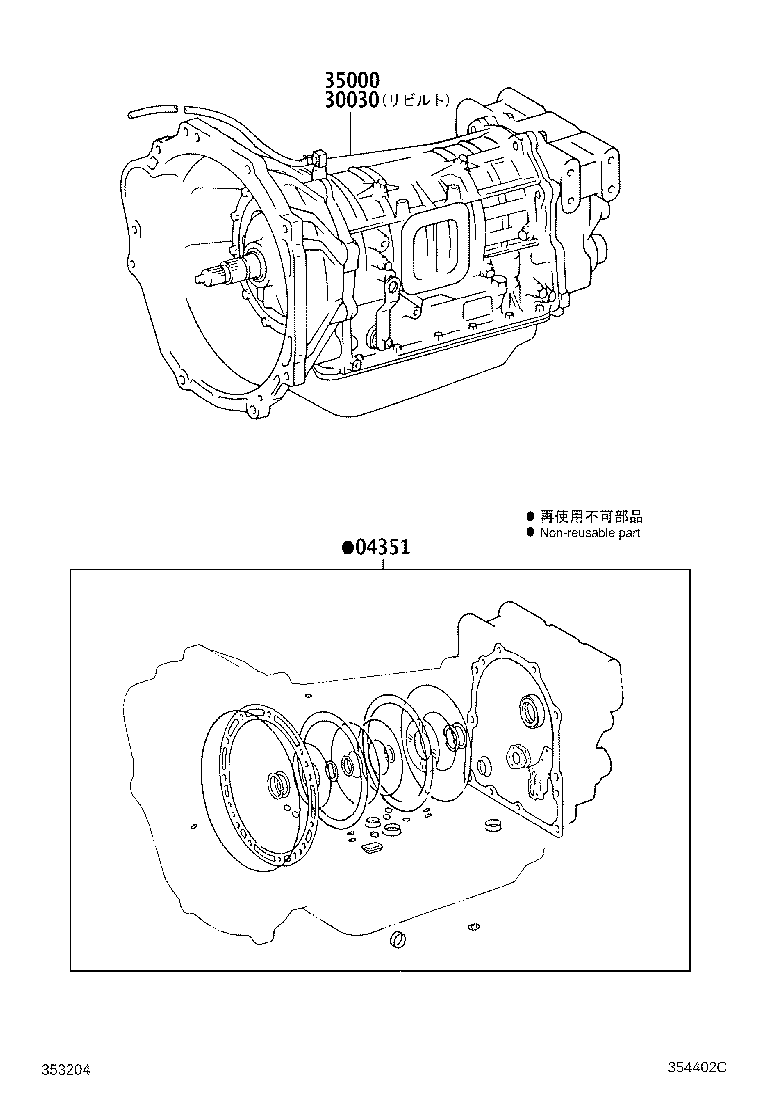

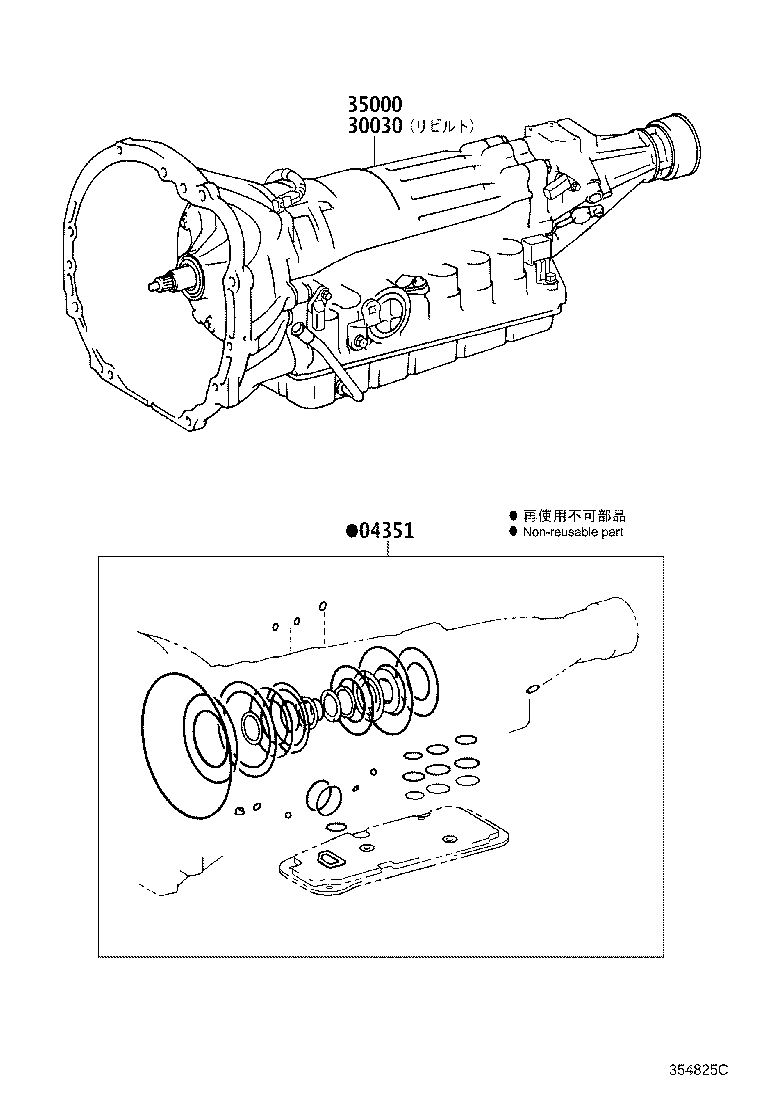

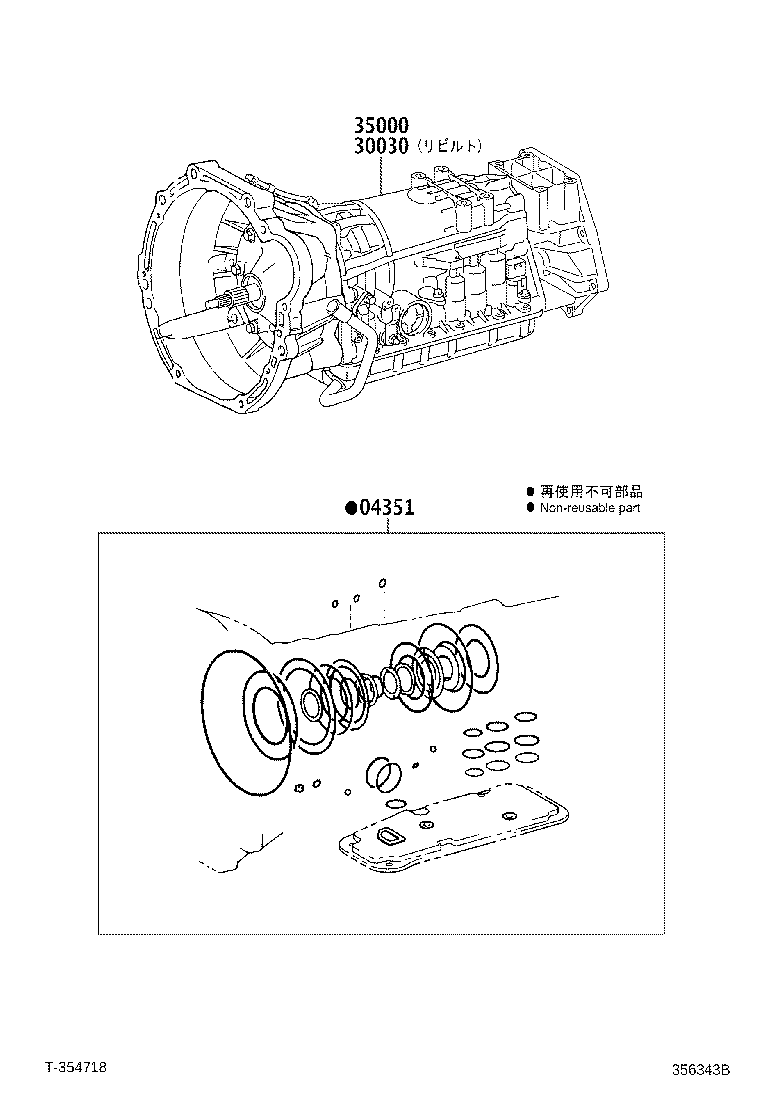

Figure 353204B 353204B 2001-07 → — Figure 353205D 353205D 2001-07 → — Figure 354402C 354402C 2003-08 → — Figure 354402C 354402C 2004-08 → — Figure 354402C 354402C 2006-05 → — Figure 354402C 354402C 2007-09 → — Figure 354402C 354402C 2007-09 → — Figure 354825C 354825C 2004-08 → — Figure 356343B 356343B 2004-08 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
30030 Transmission Assy, Rebuilt
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
