Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

15 part groups · 6 illustrations

Illustrations

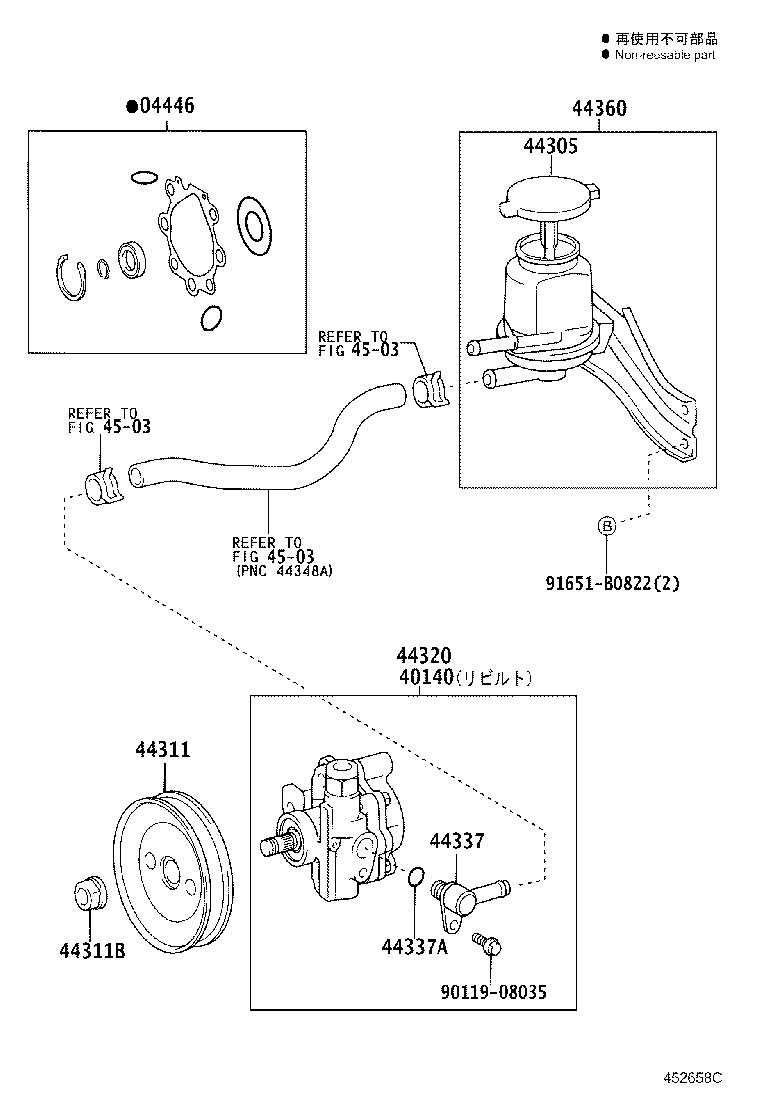

Figure 452656B 452656B 2001-07 → — Figure 452657C 452657C 2001-07 → — Figure 452658C 452658C 2001-07 → — Figure 455398C 455398C 2003-08 → — Figure 453995G 453995G 2004-08 → — Figure 453996E 453996E 2004-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40130 Pump Assy,Vane Rebuilt
40140 Pump Assy,Vane Rebuilt
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44310C Ring, O(FOR VANE PUMP)
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44316 Gear, Vane Pump
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44360 Reservoir Assy, Vane Pump Oil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
