Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10

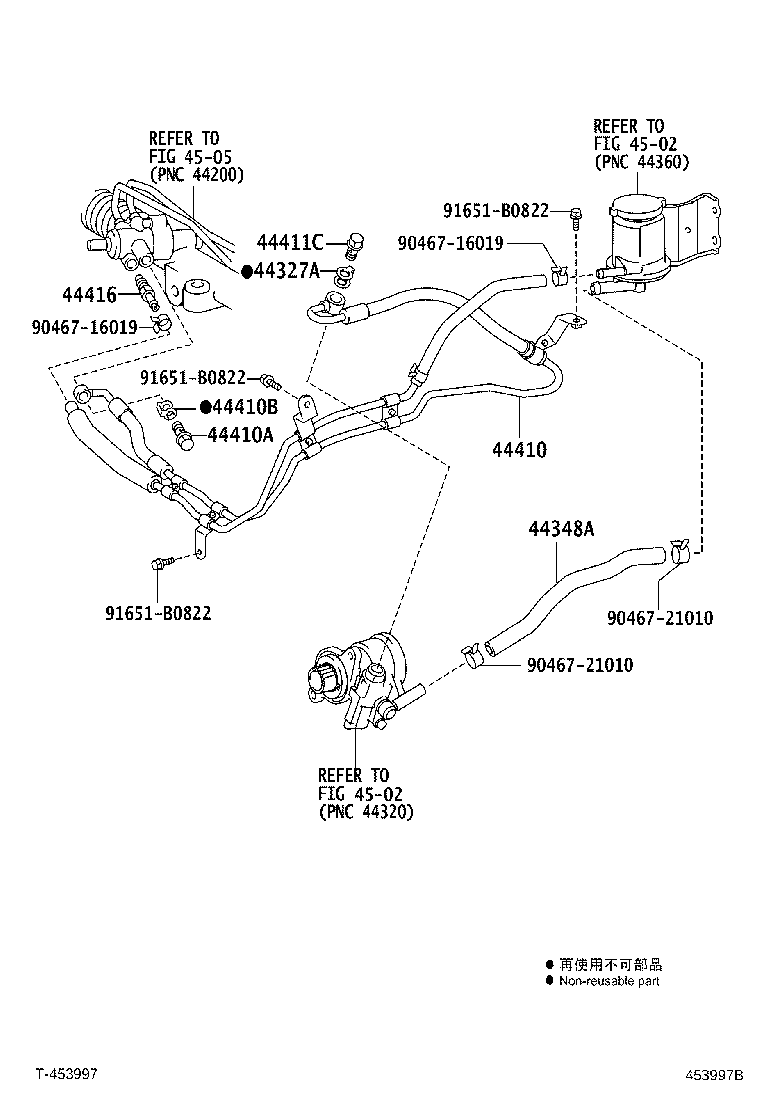

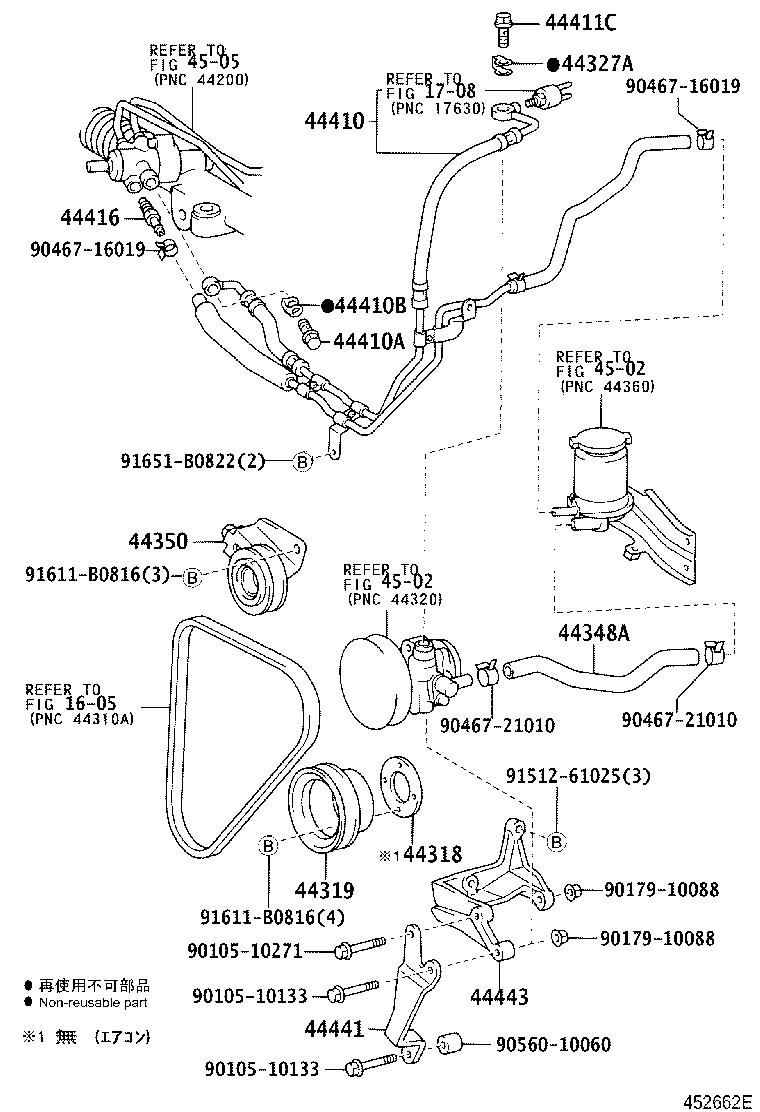

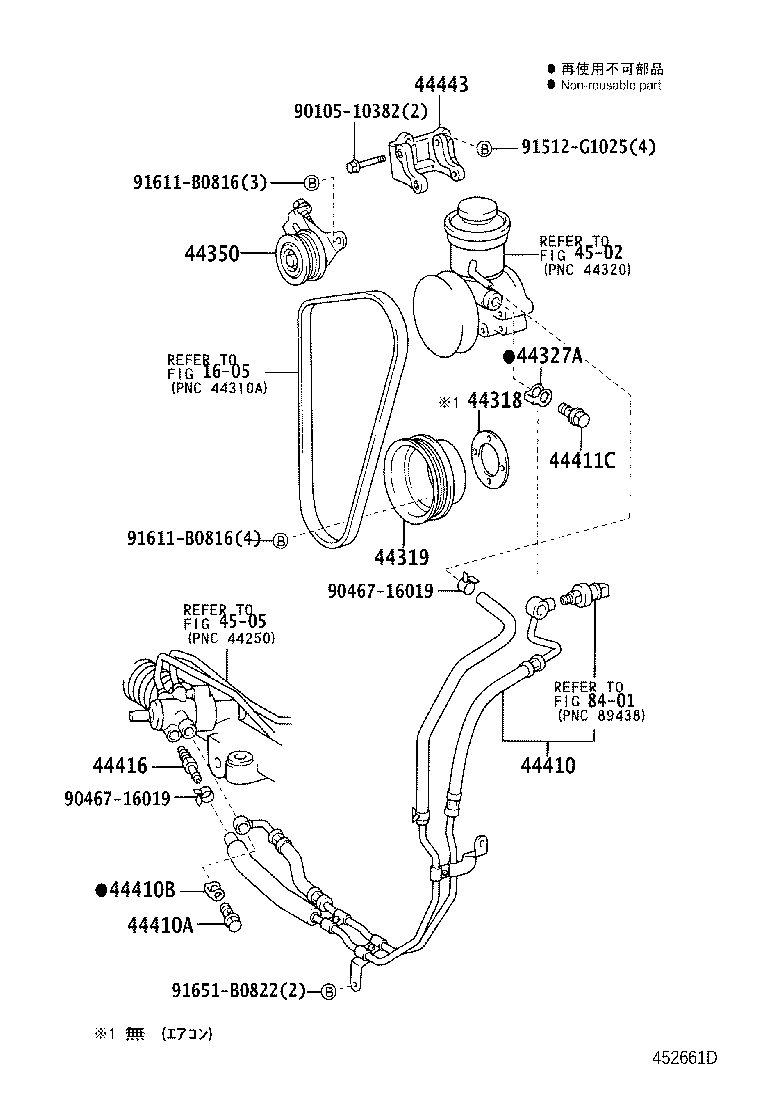

Power Steering Tube
12 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44318 | Spacer, Vane Pump Drive Pulley |
| 44319 | Pulley, Vane Pump Drive |
| 44327A | Gasket, Pressure Port, NO.1 |
| 44348A | Hose, Oil Reservoir TO Pump, NO.1 |
| 44350 | Pulley Assy, Power Steering Idle |
| 44410 | Tube Assy, Pressure Feed |
| 44410A | Bolt, Union(FOR PRESSURE FEED TUBE) |
| 44410B | Gasket(FOR PRESSURE FEED TUBE) |
| 44411C | Bolt, Union(FOR PRESSURE FEED HOSE) |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44441 | Bracket, Pump, Front |
| 44443 | Bracket, Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
