Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

15 part groups · 3 illustrations

Illustrations

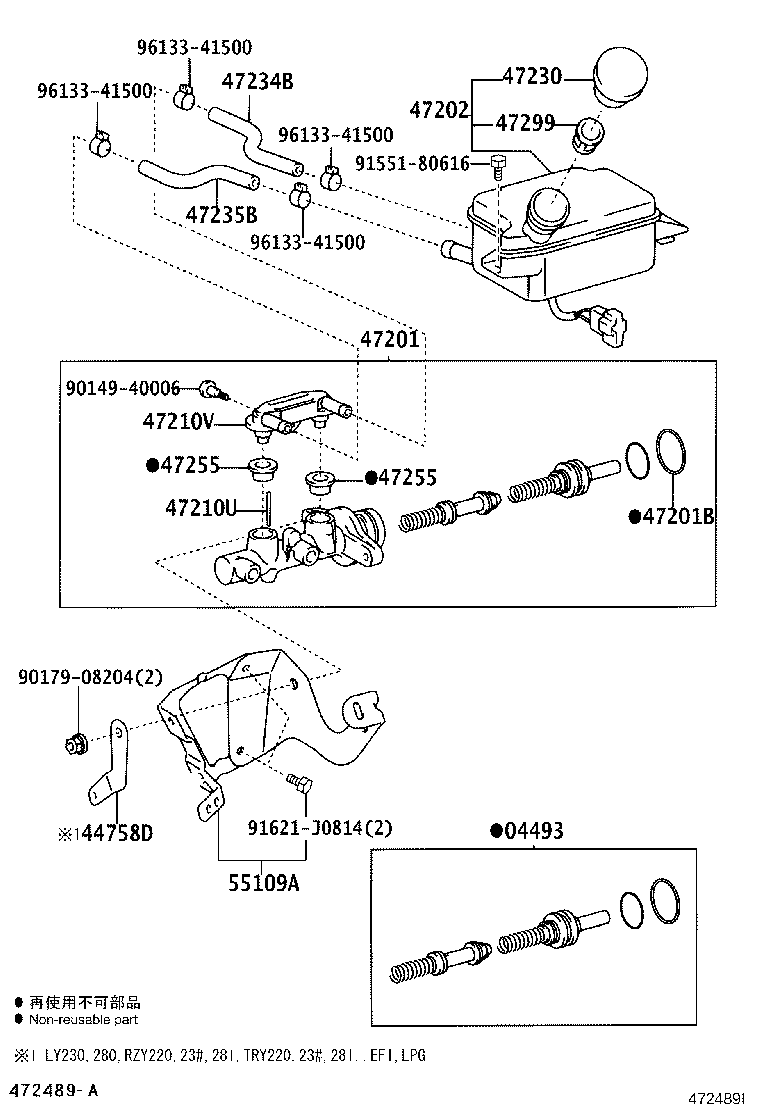

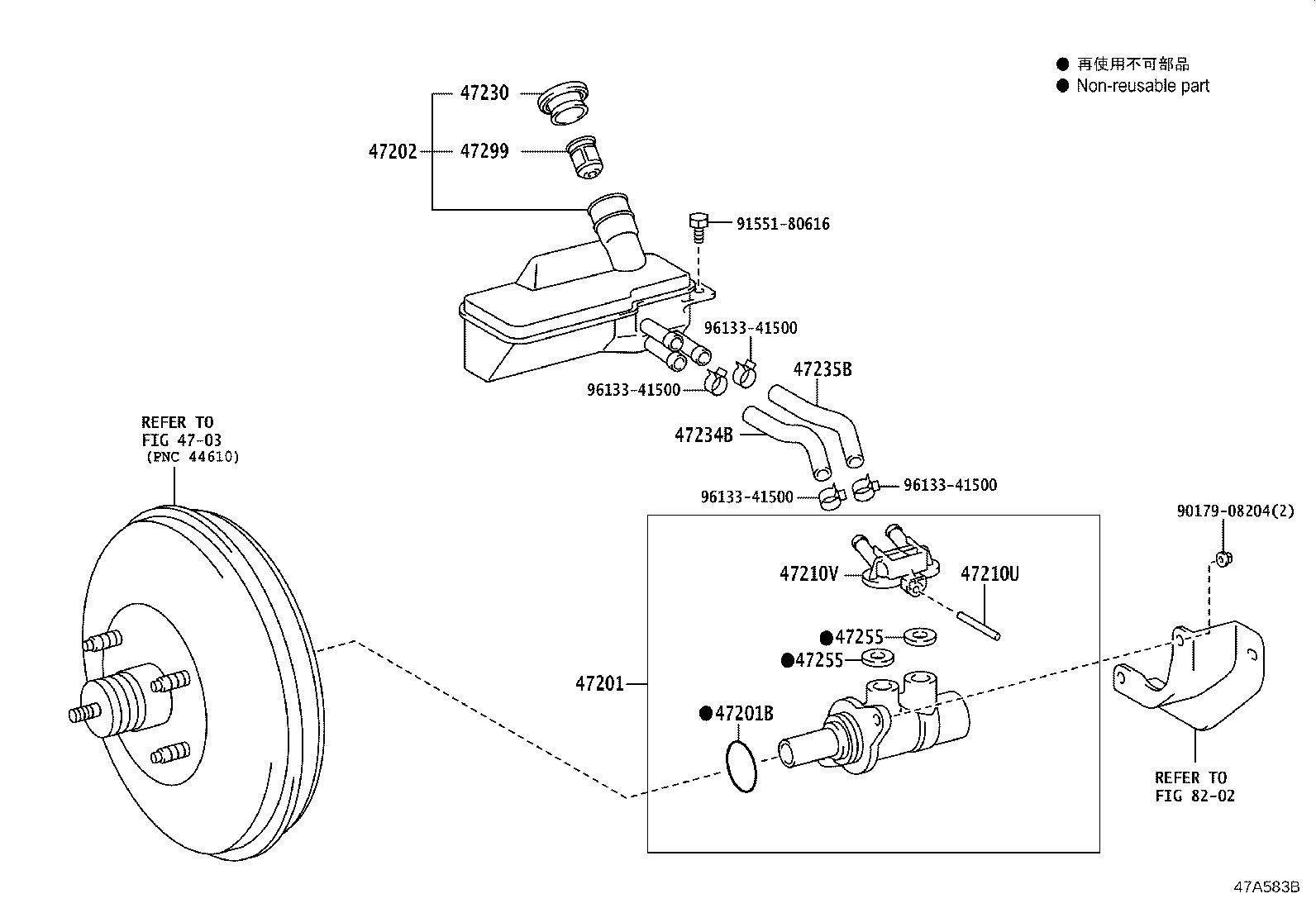

Figure 472488H 472488H 2001-07 → 2016-10 Figure 472489I 472489I 2001-07 → 2016-10 Figure 47A583B 47A583B 2016-10 → —

Part groups

PNCDescription
04493 Cylinder Kit, Brake Master
44758D Bracket, Vacuum Check Valve
47201 Cylinder Sub-assy, Brake Master
47201B Ring, O(FOR BRAKE MASTER CYLINDER)
47202 Reservoir Sub-assy, Brake Master Cylinder
47210J Gasket(FOR MASTER CYLINDER)
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47210U Pin, Straight(FOR BRAKE MASTER CYLINDER)
47210V Union(FOR BRAKE MASTER CYLINDER)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47234B Tube, Reservoir, NO.1
47235B Tube, Brake Master Cyrinder Reservoir, NO.2
47255 Grommet, Master Cylinder Reservoir
47299 Strainer, Brake Master Cylinder Reservoir
55109A Support Sub-assy, Brake Master Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
