Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

22 part groups · 7 illustrations

Illustrations

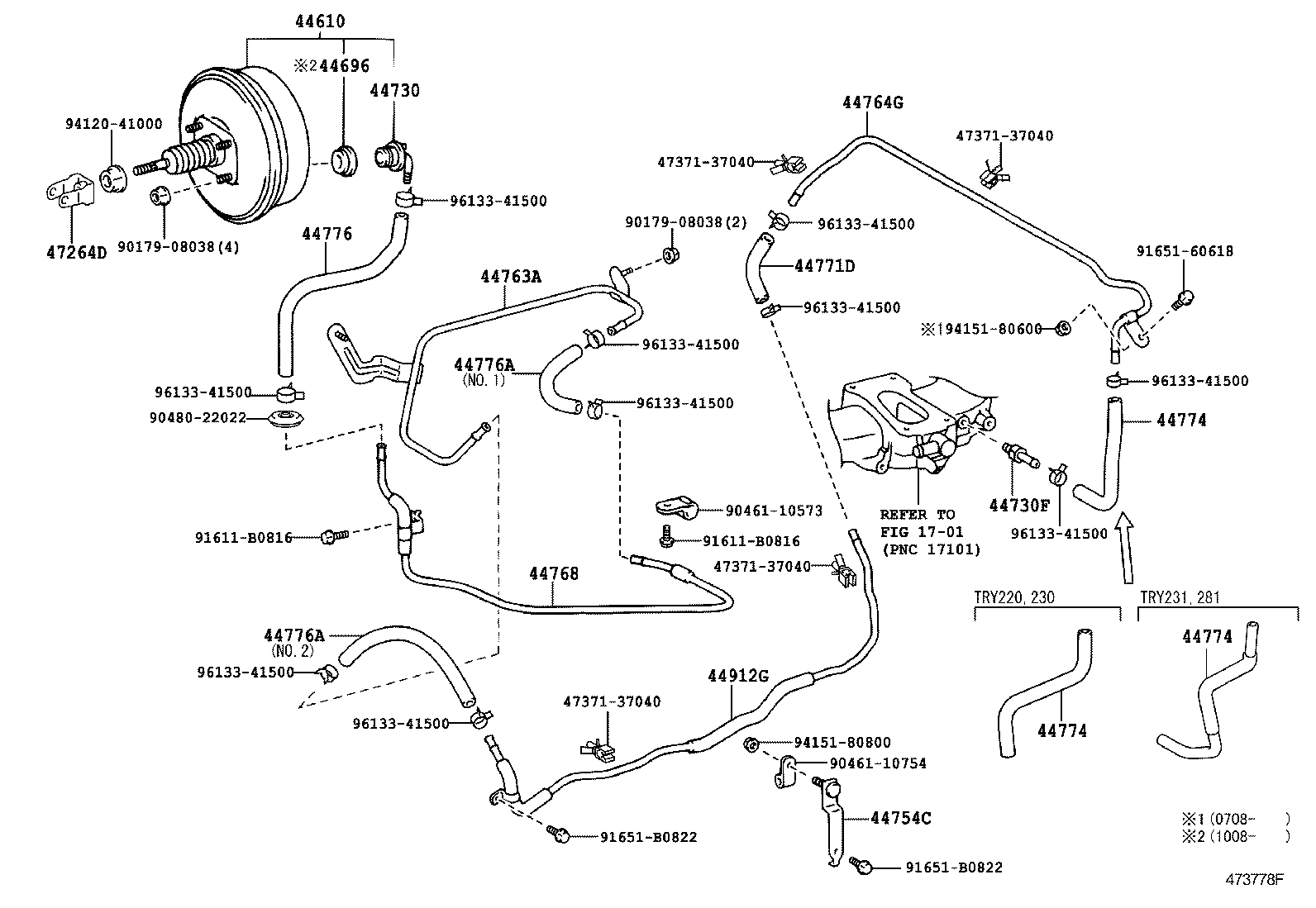

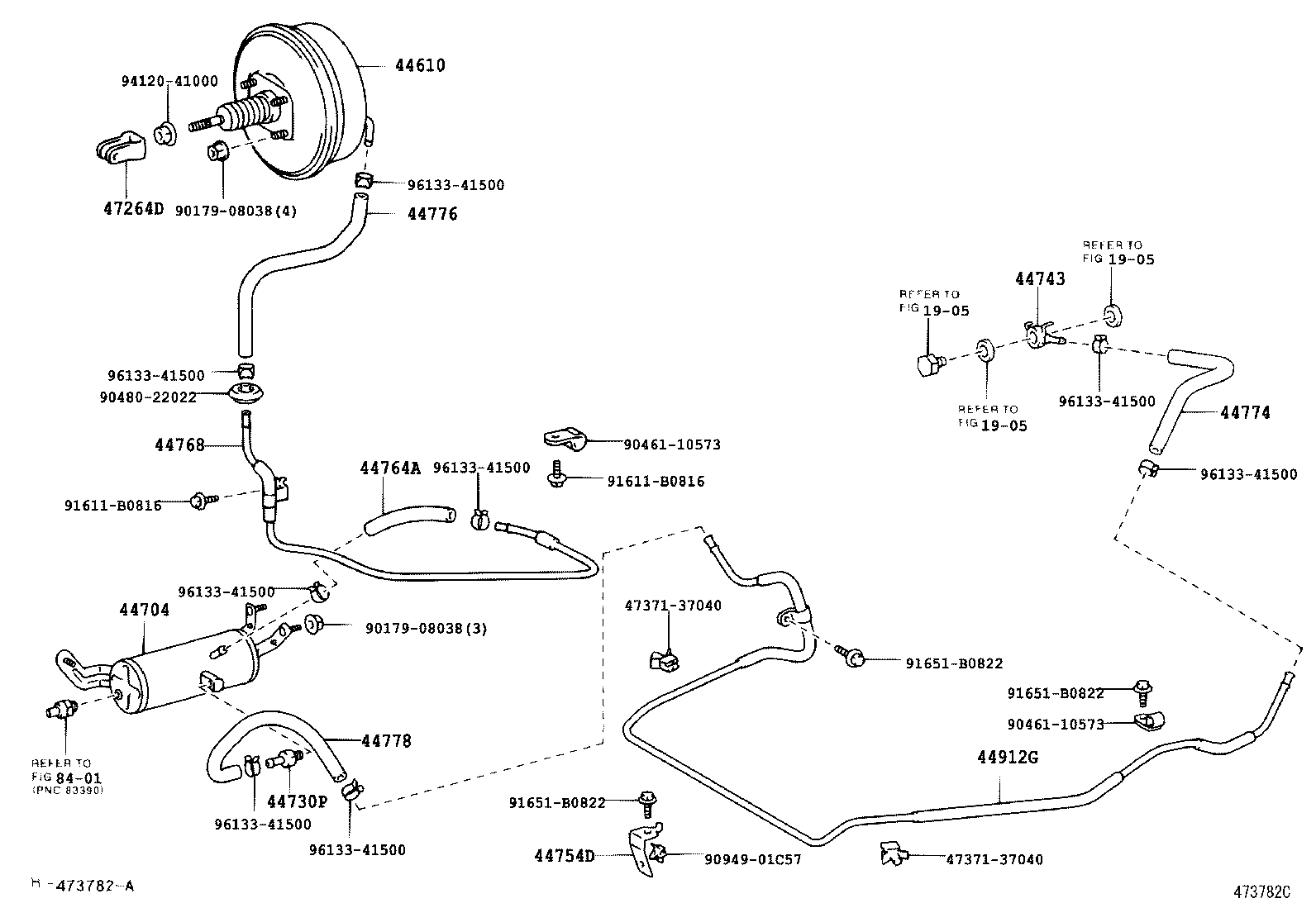

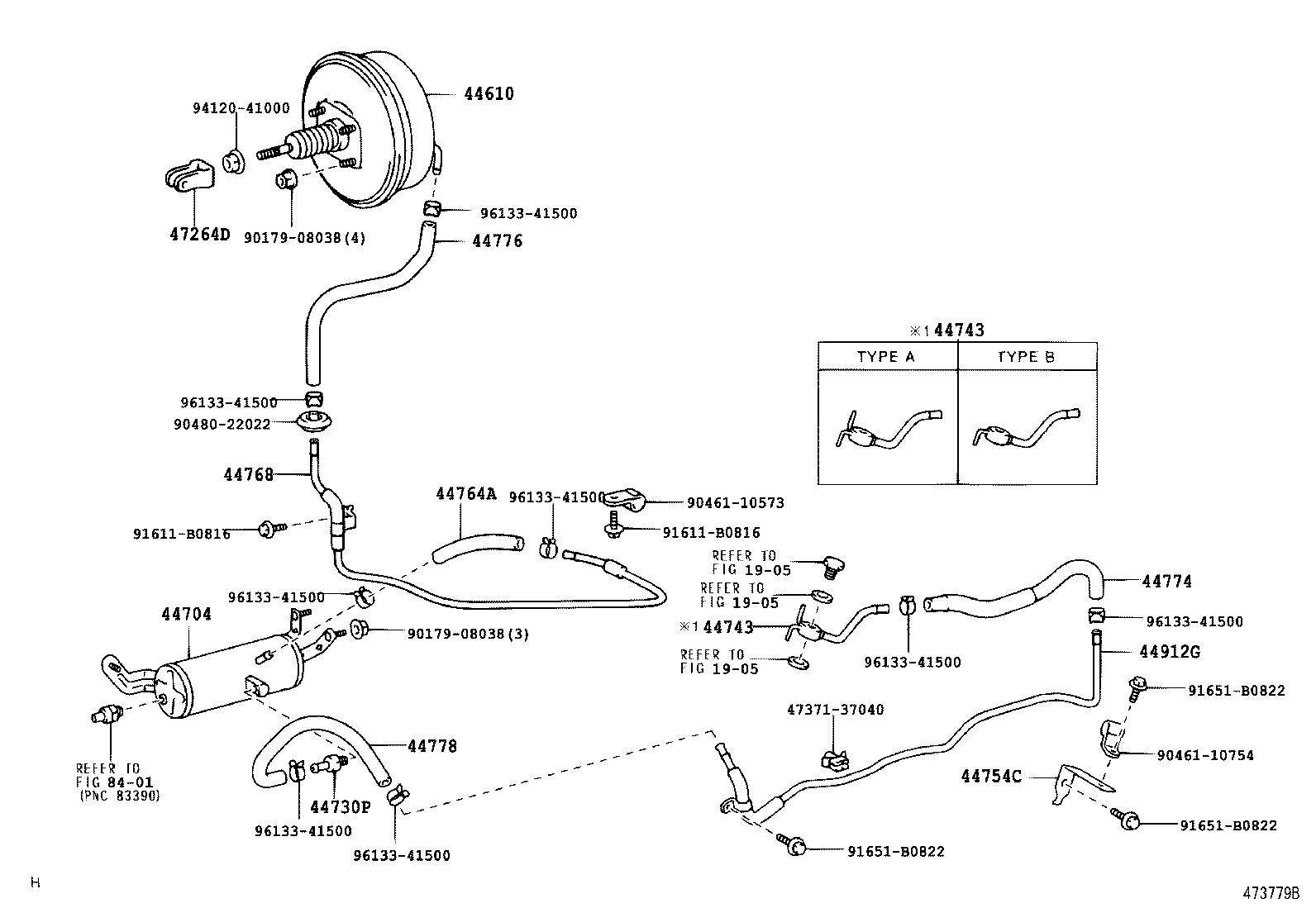

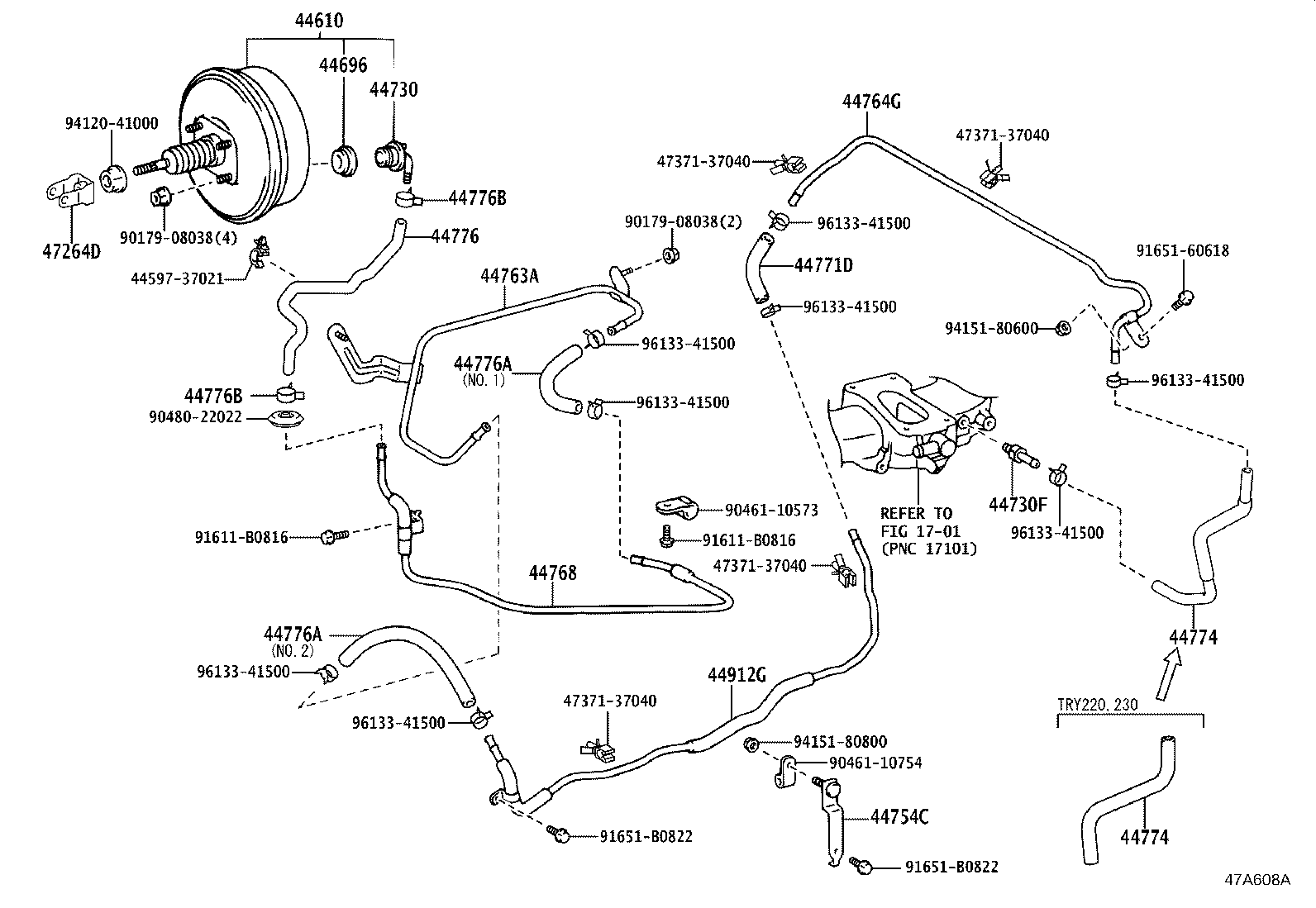

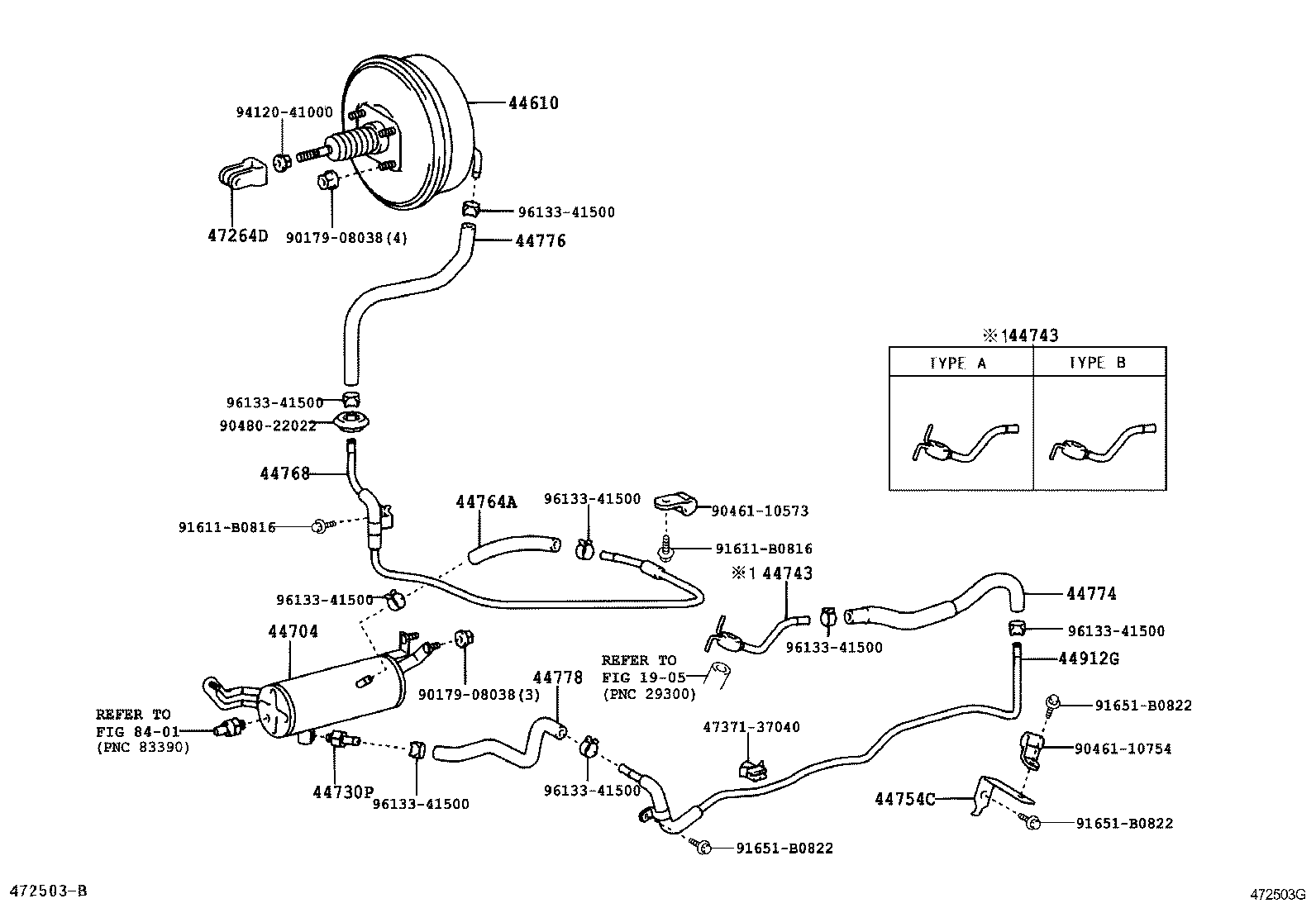

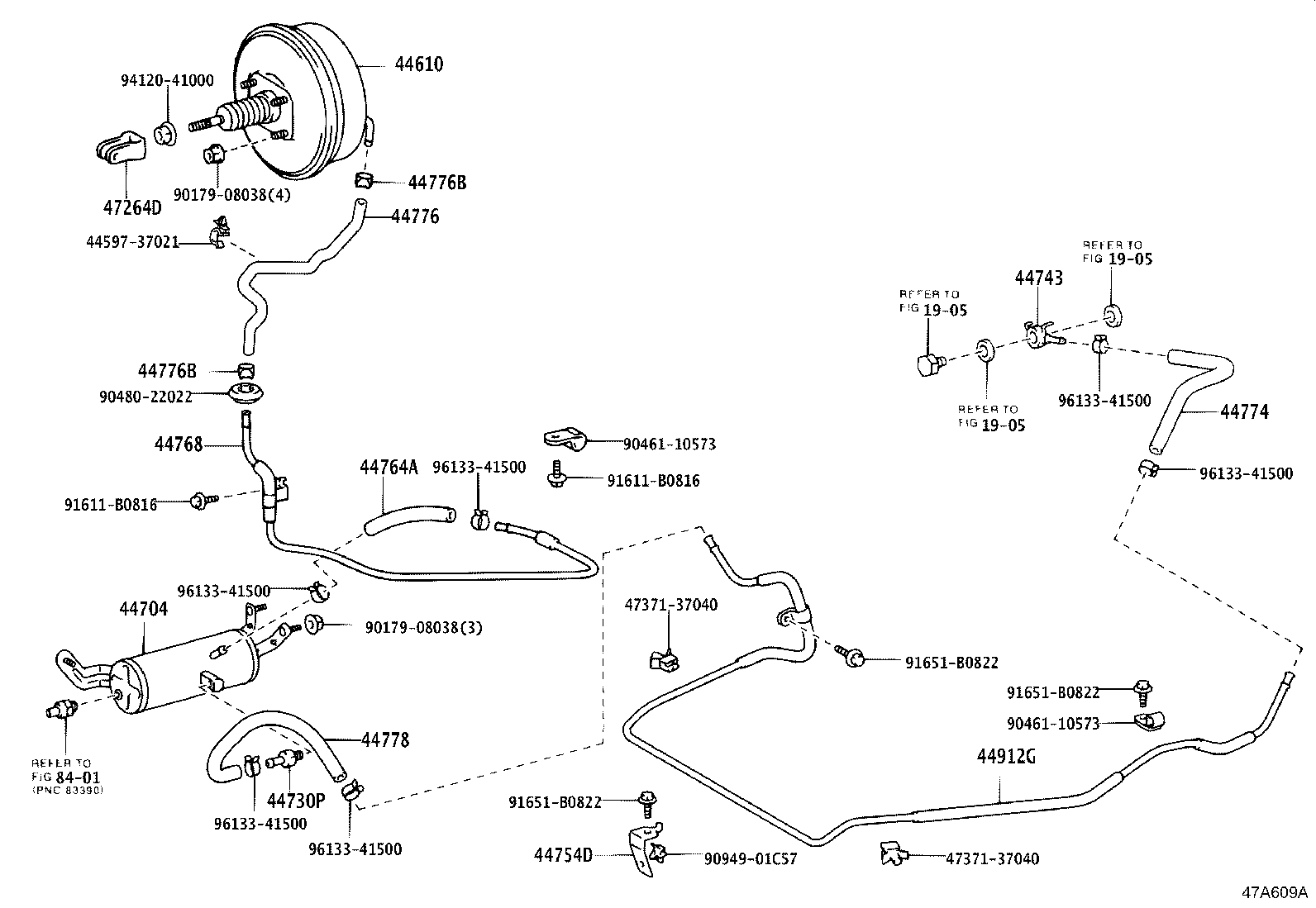

Figure 472502F 472502F 2001-07 → 2003-08 Figure 473778F 473778F 2003-08 → 2016-10 Figure 47A608A 47A608A 2016-10 → — Figure 472503G 472503G 2001-07 → 2003-08 Figure 473779B 473779B 2003-08 → — Figure 473782C 473782C 2004-08 → 2016-10 Figure 47A609A 47A609A 2016-10 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44730P Valve Assy, Vacuum Check, NO.1
44743 Union(FOR VACUUM PUMP)
44754C Bracket, Vacuum Tube, NO.1
44754D Bracket, Vacuum Tube, NO.2
44763A Tube, Hose TO Hose, NO.1
44764A Hose, Booster Vacuum
44764G Tube, Connector TO Brake Booster
44768 Tube, Booster Vacuum
44771 Hose, Vacuum Tube Connector
44771D Hose, Vacuum Tube Connector
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44776A Hose, Vacuum Reservoir TO Brake Booster
44776B Clip(FOR VACUUM RESERVOIR TO BRAKE BOOSTER)
44778 Hose, Connector TO Check Valve
44912G Tube, 3 Way TO Magnetic Valve
47264D Clevis, Brake Master Cylinder Push Rod
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
