Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10
Brake Tube & Clamp
48 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 04477 | Bush & Boot Kit, Load Sensing Spring |
| 44510 | Actuator Assy, Brake |
| 44545D | Holder, Brake Actuator Bolt |
| 44546A | Cushion, Brake Actuator Bolt |
| 44590 | Bracket Assy, Brake Actuator |
| 47190 | Valve Assy, Proportioning & By-pass |

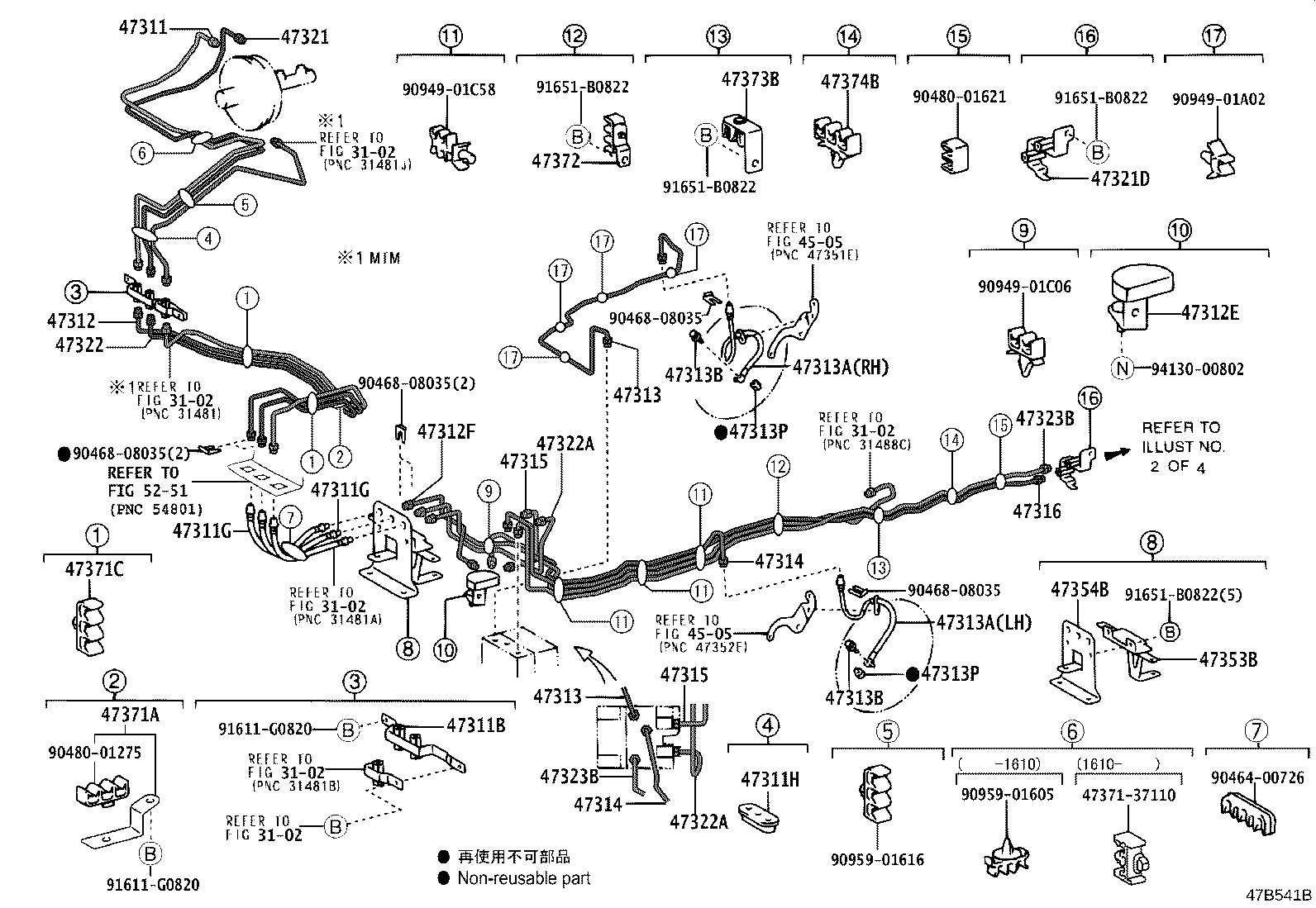

| 47311 | Tube, Front Brake, NO.1 |

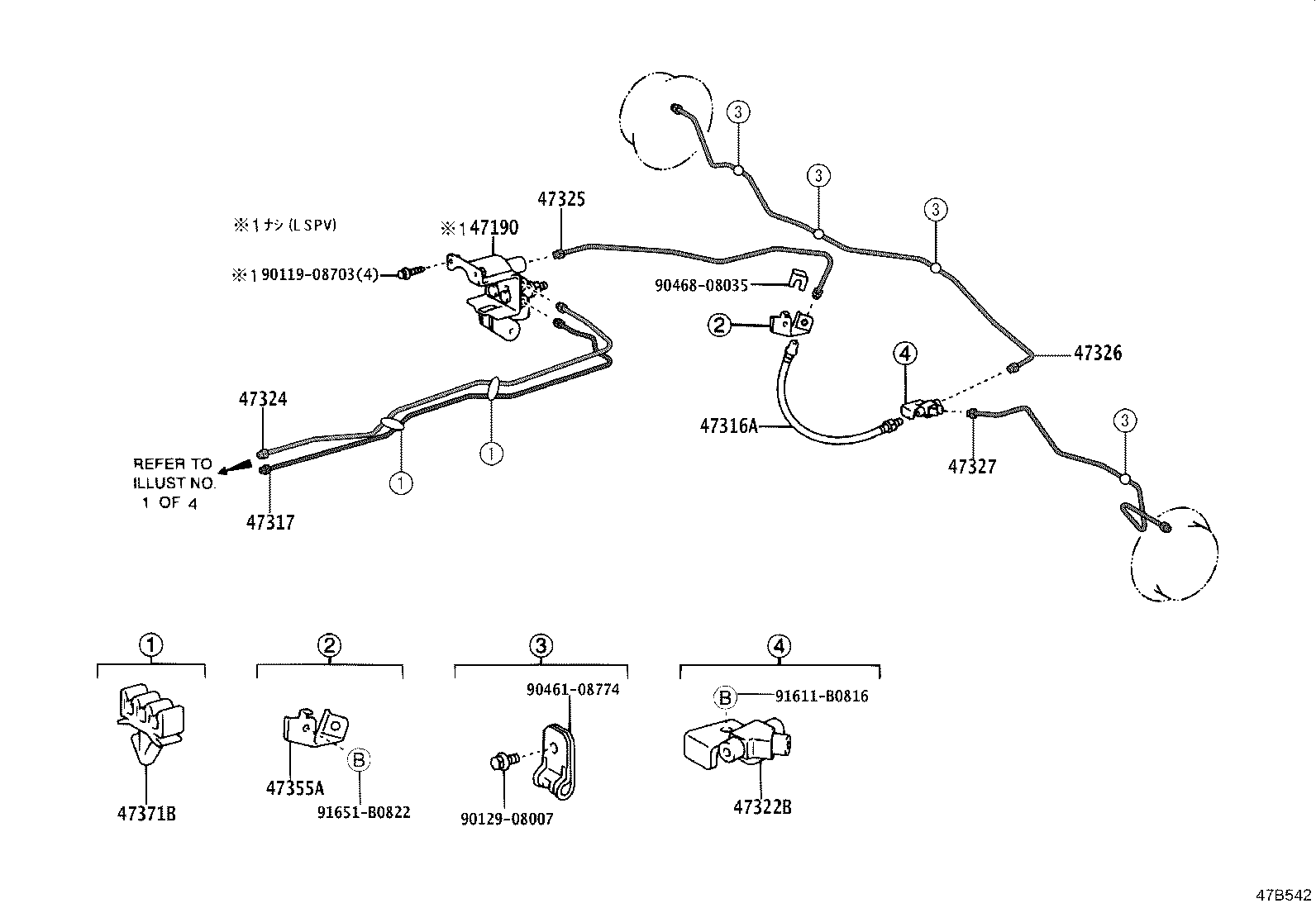

| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47311G | Hose, Flexible(FOR BRAKE TUBE) |
| 47311H | Grommet(FOR BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47312E | Way, NO.2(FOR FRONT BRAKE TUBE) |
| 47312F | Tube, Front Brake, Frame, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316A | Hose, Flexible(FOR REAR BRAKE TUBE) |
| 47317 | Tube, Front Brake, NO.7 |
| 47321 | Tube, Rear Brake, NO.1 |
| 47321D | Way, NO.1(FOR REAR BRAKE TUBE) |
| 47322 | Tube, Rear Brake, NO.2 |
| 47322A | Tube, Rear Brake, Frame NO.2 |
| 47322B | Way, NO.2(FOR REAR BRAKE TUBE) |
| 47323 | Tube, Rear Brake, NO.3 |
| 47323B | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47326 | Tube, Rear Brake, NO.6 |
| 47327 | Tube, Rear Brake, NO.7 |

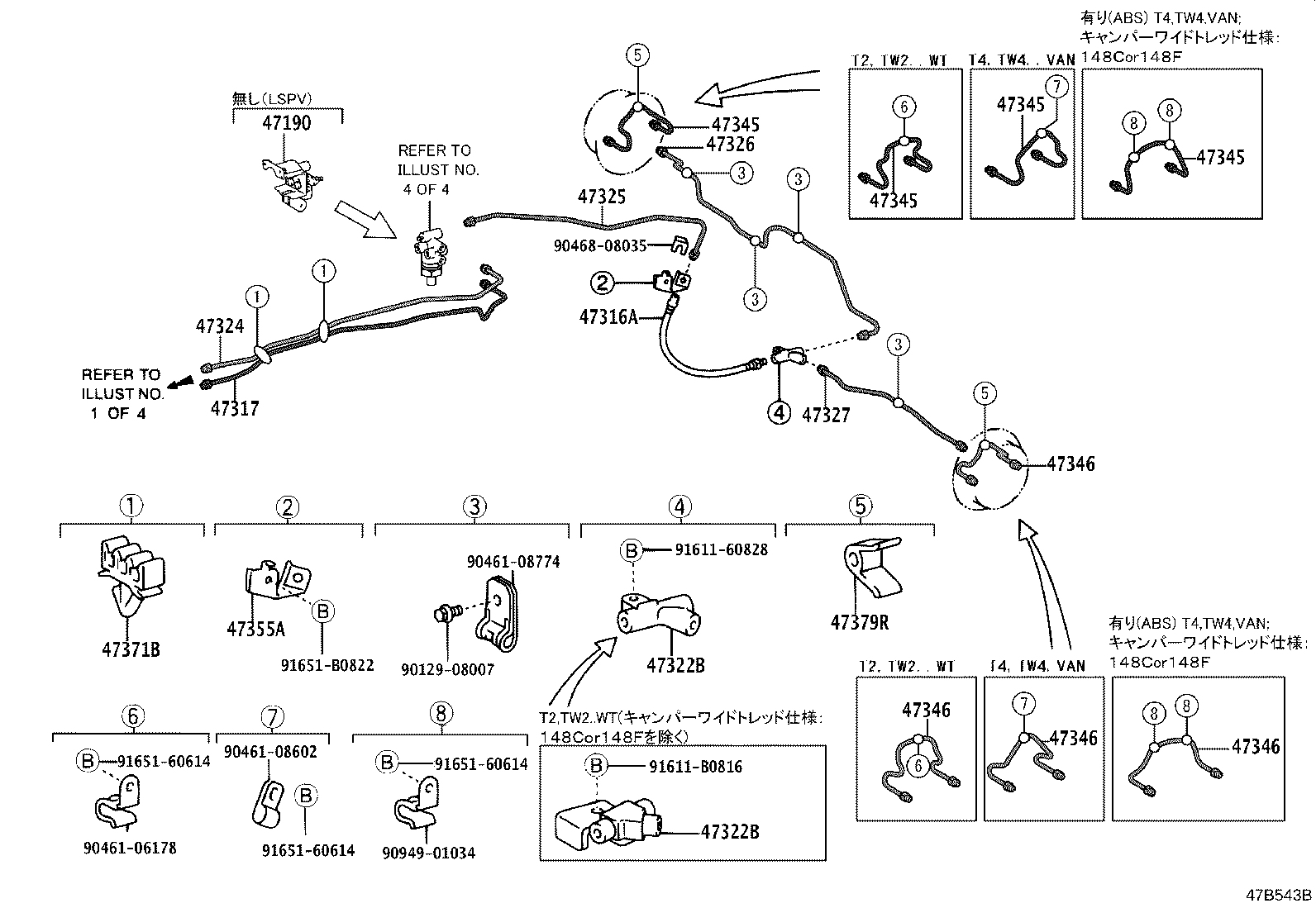

| 47345 | Tube, Wheel Cylinder, Rear RH |
| 47346 | Tube, Wheel Cylinder, Rear LH |
| 47353B | Bracket, Flexible Hose, NO.3 |
| 47354B | Bracket, Flexible Hose, NO.4 |
| 47355A | Bracket, Flexible Hose, NO.5 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47371B | Clamp, Brake Tube, NO.6 |
| 47371C | Clamp, Brake Tube, NO.7 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47373B | Clamp, Brake Tube, NO.3 |
| 47374B | Clamp, Brake Tube, NO.4 |
| 47379R | Damper, Tube(FOR REAR) |

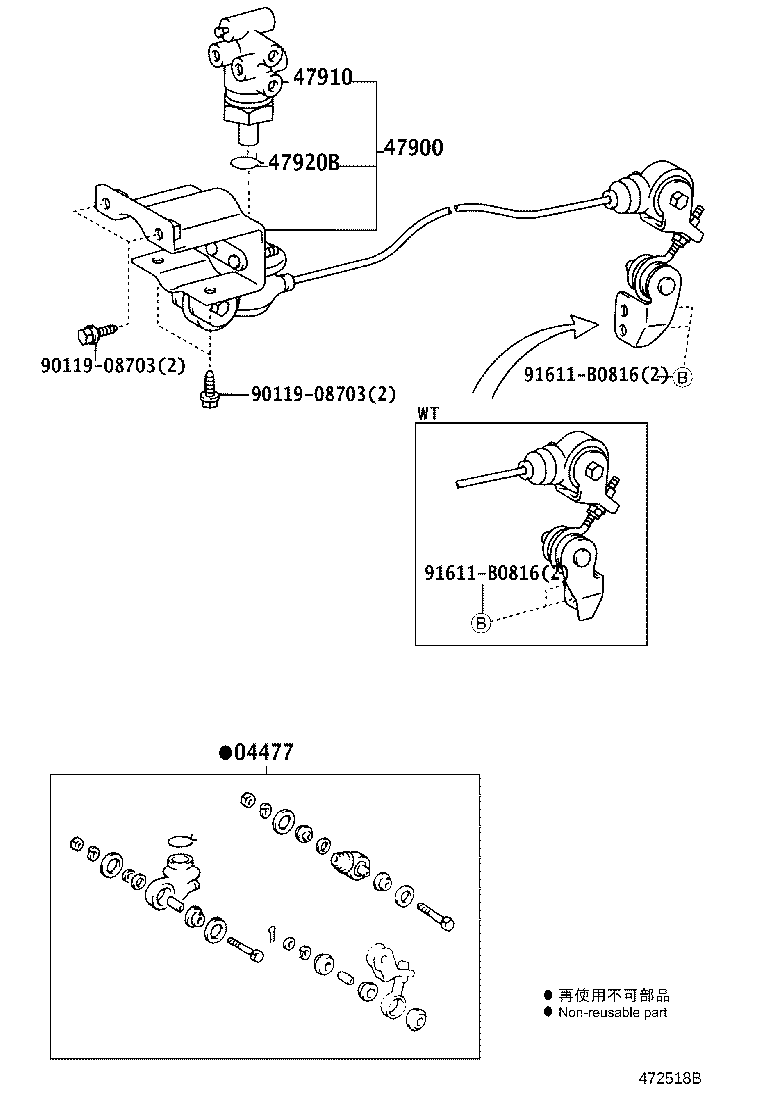

| 47900 | Valve Assy, Load Sensing W/Spring |
| 47910 | Valve Assy, Load Sensing Proportioning |
| 47920B | Clip(FOR LOAD SENSING VALVE BOOT) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
