Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 2 illustrations

Illustrations

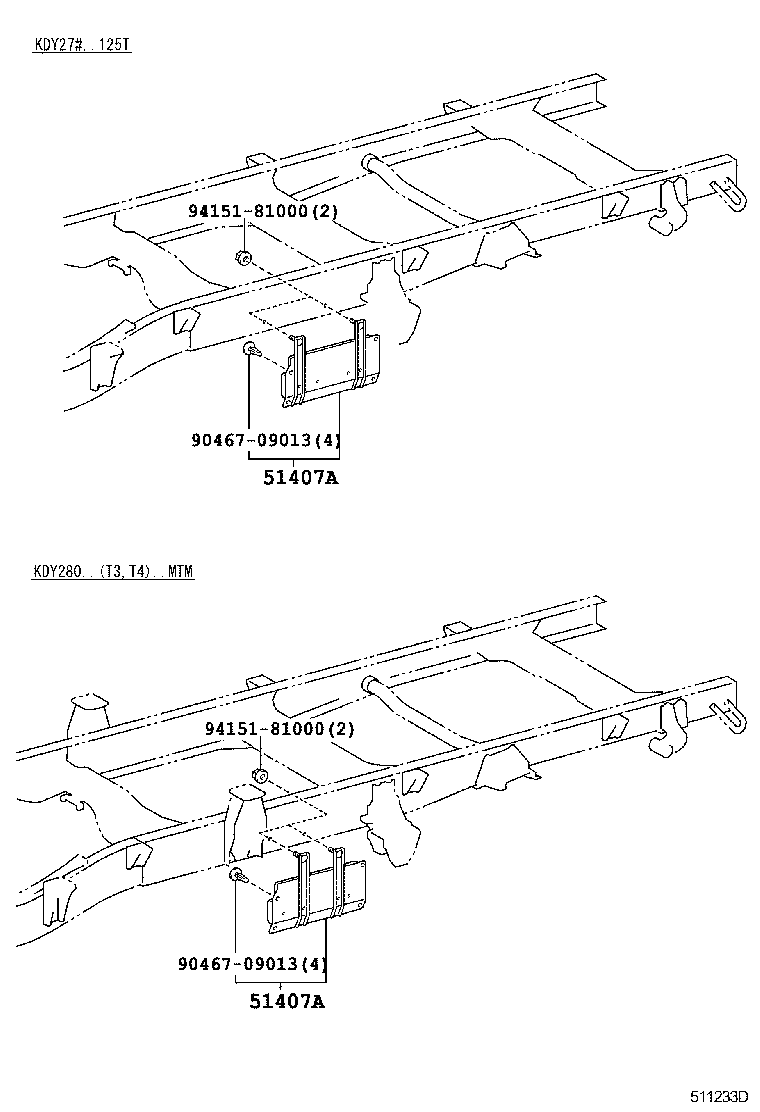

Figure 511828F 511828F 2001-07 → — Figure 511233D 511233D 2004-08 → —

Part groups

PNCDescription
51405A Cover Sub-assy, Engine Under, NO.1
51406A Cover Sub-assy, Engine Under, NO.2
51407A Cover Sub-assy, Engine Under, NO.3
51436B Bracket, Engine Side Cover, NO.1 RH
51437A Bracket, Engine Side Cover, NO.1 LH
51445D Bracket, Engine Under Cover, RH
51446C Bracket, Engine Under Cover, LH
51448A Cover, Engine Side Under, RH
51448E Cover, Engine Side Under, RH NO.2
51454A Silencer, Engine Rear Cover
51457 Seal, Engine Side Cover, Front
51470 Cover Assy, Transmission Under
51473A Cover Sub-assy, Engine Side, RH
51474 Cover Sub-assy, Engine Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
