Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 3 illustrations

Illustrations

Figure 532300A

532300A 2001-05 → 2007-08

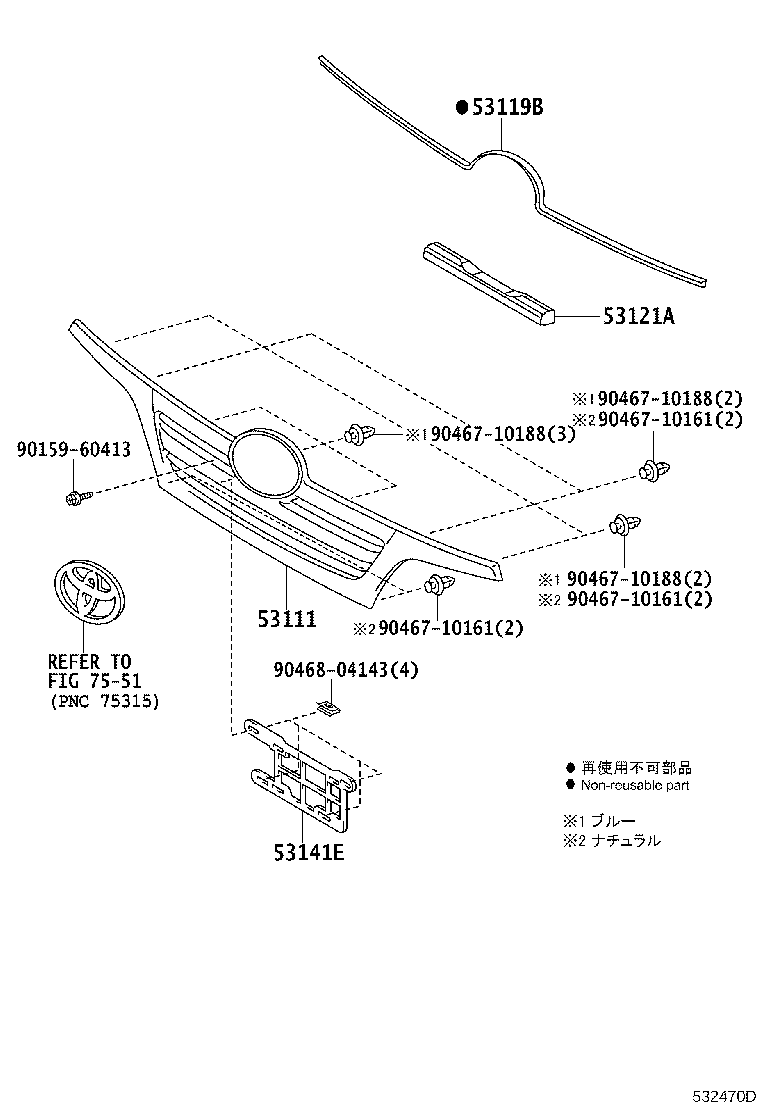

Figure 532470D

532470D 2007-08 → 2016-10

Figure 534850C

534850C 2016-10 → —

Part groups

PNC	Description
53111	Grille, Radiator
53115B	Bracket, Radiator Grille
53117C	Retainer, Radiator Grille, NO.1
53119B	Protector, Radiator Grille
53121A	Moulding, Radiator Grille
53141E	Cover, Radiator, NO.1
53155D	Seal, Radiator Grille, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
