Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

17 part groups · 4 illustrations

Illustrations

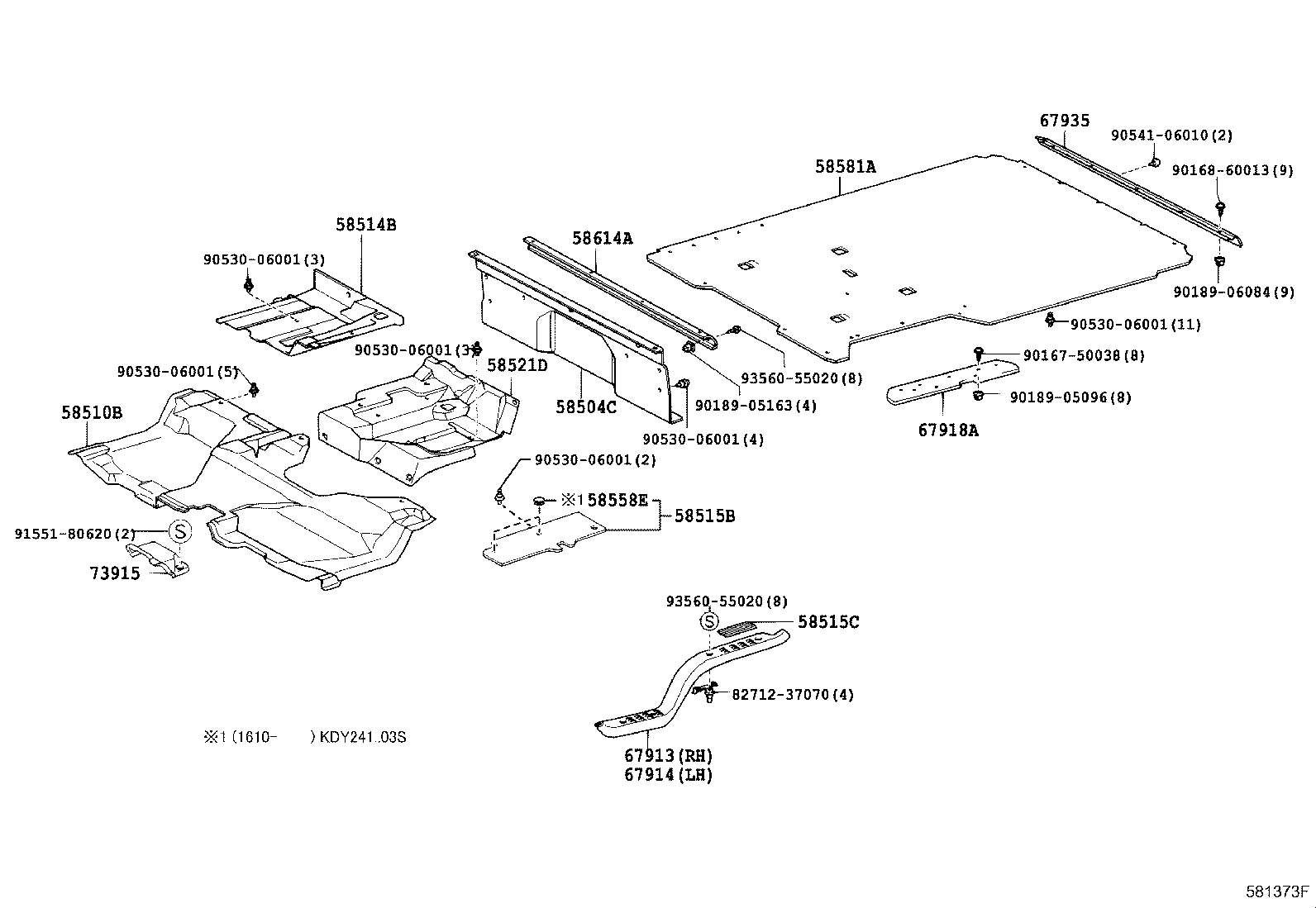

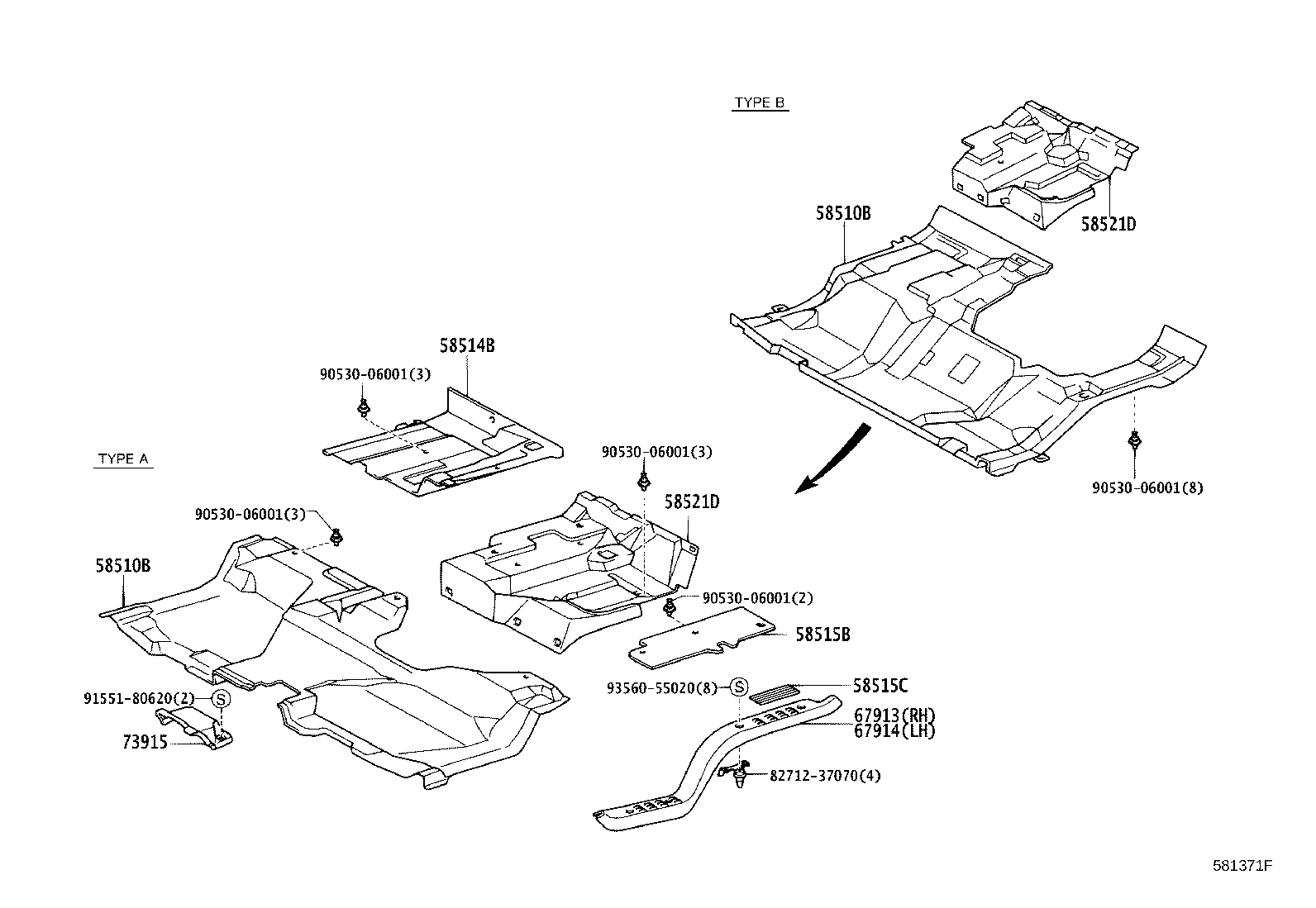

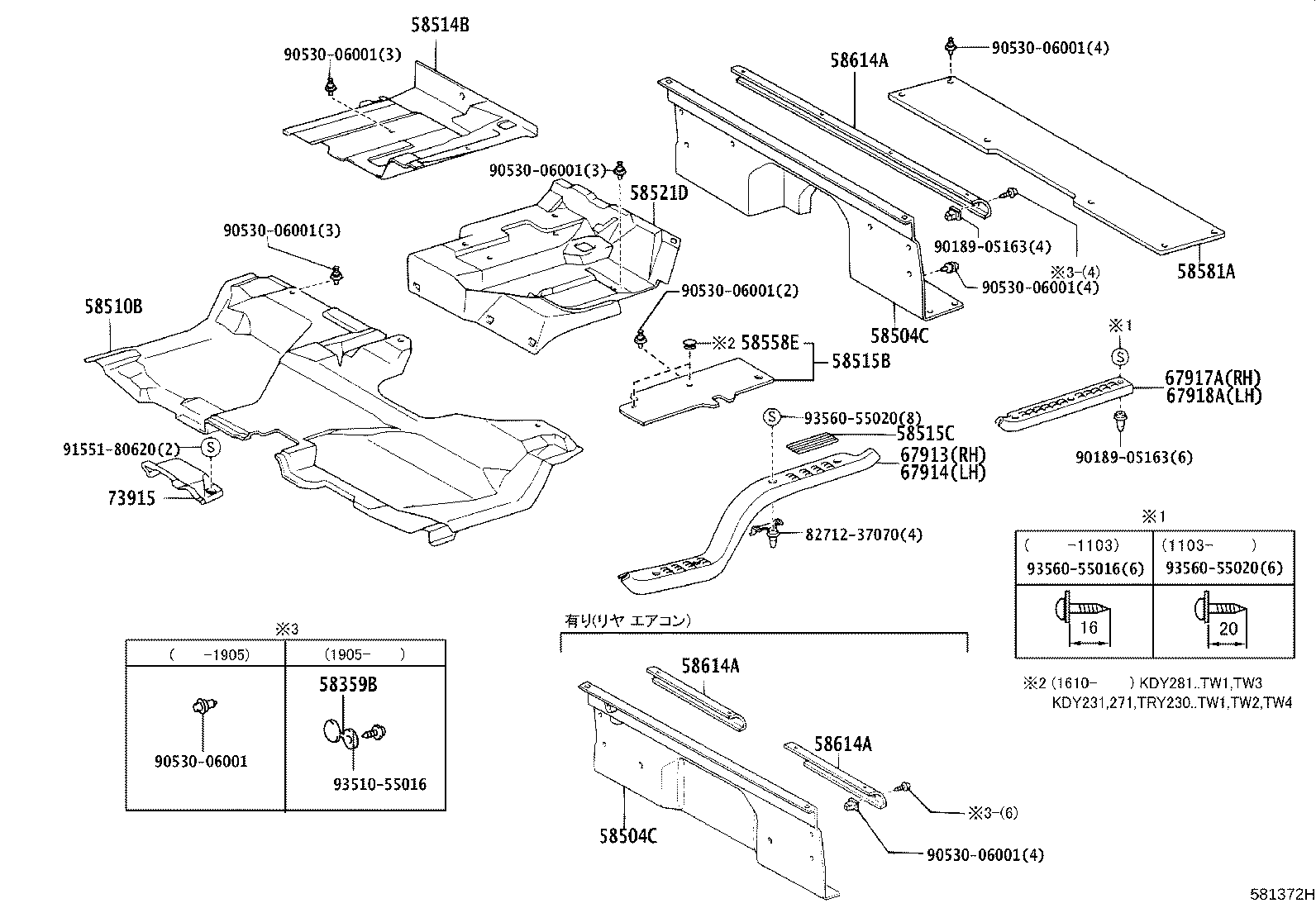

Figure 581489D 581489D 2001-07 → — Figure 581371F 581371F 2001-07 → — Figure 581372H 581372H 2001-07 → — Figure 581373F 581373F 2001-07 → —

Part groups

PNCDescription
58359B Protector, Floor Tapping
58504C Mat Sub-assy, Header
58510B Mat, Front Floor, Front
58514B Mat, Floor, Rear RH
58515B Mat, Floor, Rear LH
58515C Mat, Front Floor, Rear NO.1
58521D Mat, Engine Service Hole Cover
58540C Mat Assy, Floor, Rear
58558E Fastener, Pile
58581A Mat, Rear Floor
58614A Plate, Mat Set, NO.4
67913 Plate, Front Door Scuff, RH
67914 Plate, Front Door Scuff, LH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67935 Plate, Back Door Scuff
73915 Cover, Seat Airbag NO.1, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
