Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

132 part groups · 8 illustrations

Illustrations

611386C 2001-07 → 2016-10

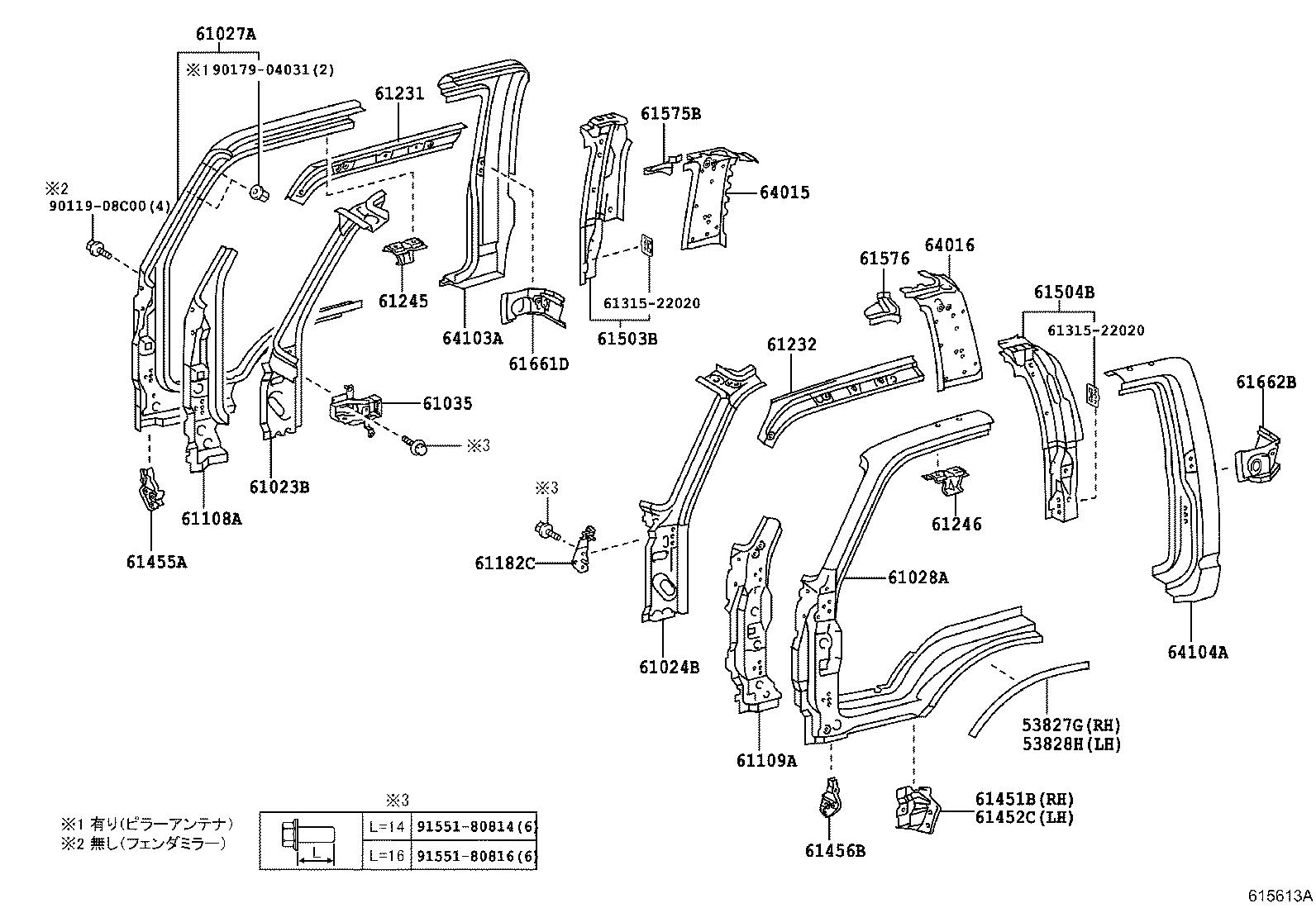

615613A 2016-10 → —

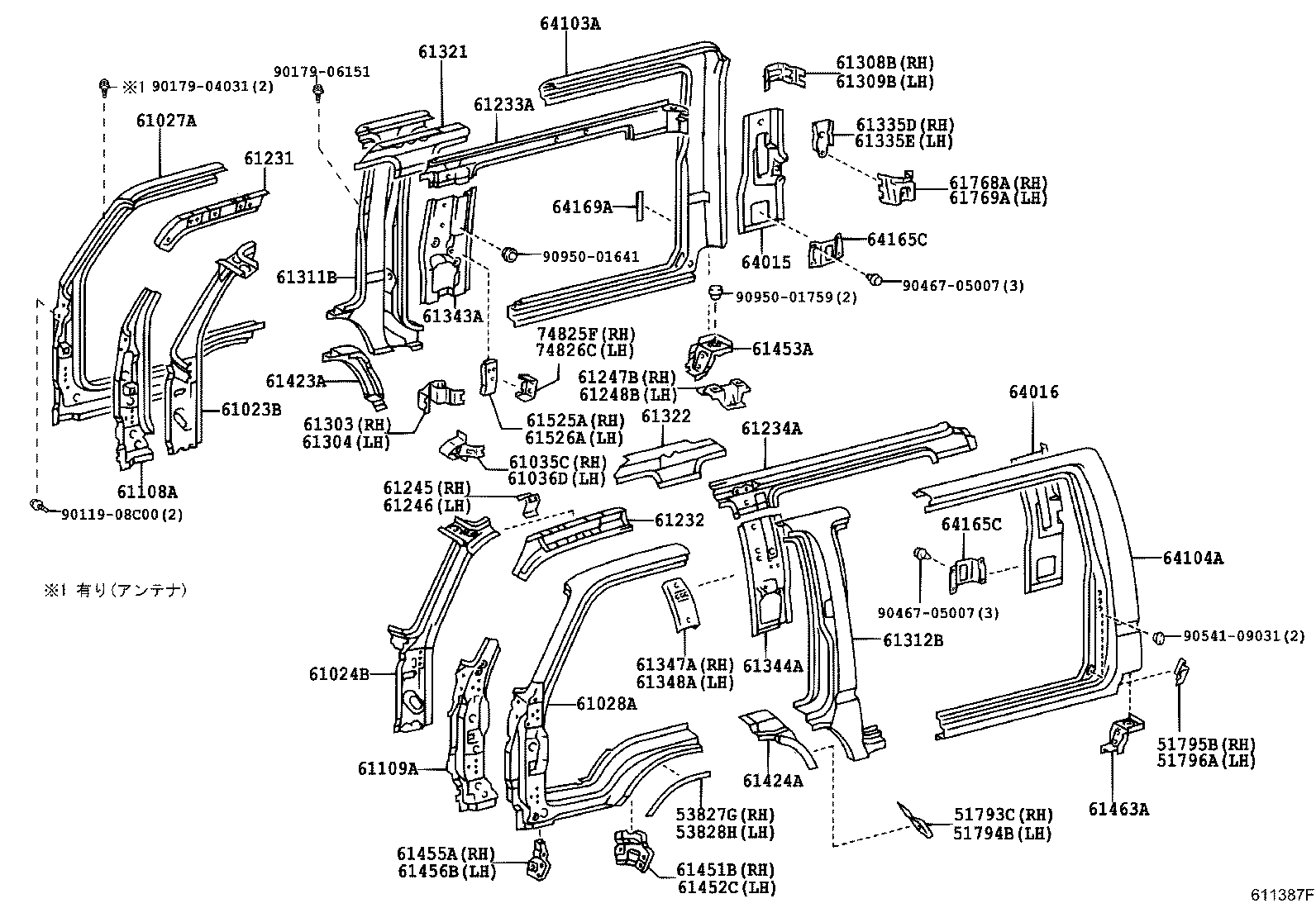

611387F 2001-07 → 2016-10

Part groups

PNC	Description
51793C	Bracket, Side Step, NO.1 RH
51794B	Bracket, Side Step, NO.1 LH
51795B	Bracket, Side Step, NO.2 RH
51796A	Bracket, Side Step, NO.2 LH
53827G	Protector, Front Fender Side Panel, RH
53828H	Protector, Front Fender Side Panel, LH
58742C	Protector, Quarter Panel, LH
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61027A	Pillar Sub-assy, Front Body, Outer RH
61028A	Pillar Sub-assy, Front Body, Outer LH
61031B	Extension Sub-assy, Quarter Panel, RH
61033A	Reinforce Sub-assy, Back Door Opening Side
61034	Reinforce Sub-assy, Back Door Opening Side, LH
61035	Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61035C	Retainer Sub-assy, Pillar Lower Hinge, RH
61036D	Retainer Sub-assy, Pillar Lower Hinge, LH
61037	Reinforce Sub-assy, Front Body Pillar, Center
61052A	Panel Sub-assy, Quarter Lock, Inner LH
61057C	Extension Sub-assy, Quarter Lock Pillar
61058A	Extension Sub-assy, Quarter Lock Pillar, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61182C	Bracket, Instrument Side, LH
61212	Rail, Roof Side, Outer LH
61213B	Rail, Roof Side, Outer NO.2 RH
61216A	Rail, Roof Side, Outer Rear LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61233A	Rail, Roof Side, Inner NO.2 RH
61234A	Rail, Roof Side, Inner NO.2 LH
61245	Reinforcement, Roof Side Rail, Outer RH
61246	Reinforcement, Roof Side Rail, Outer LH
61247B	Reinforcement, Roof Side Rail, Inner RH
61248B	Reinforcement, Roof Side Rail, Inner LH
61261	Channel, Roof Drip, RH
61262	Channel, Roof Drip, LH
61263B	Channel, Roof Drip Side, Front RH
61264A	Channel, Roof Drip Side, Front LH
61301C	Pillar Sub-assy, Center Body, Outer RH
61302C	Pillar Sub-assy, Center Body, Outer LH
61303	Reinforce Sub-assy, Center Body Pillar, Upper RH
61304	Reinforce Sub-assy, Center Body Pillar, Upper LH
61308	Pillar Sub-assy, Center Body, Inner LH
61308B	Retainer Sub-assy, Door Lock Striker, RH
61309B	Retainer Sub-assy, Door Lock Striker, LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61321	Reinforcement, Center Body Pillar, Upper RH
61322	Reinforcement, Center Body Pillar, Upper LH
61335D	Retainer, Seat Belt Anchor
61335E	Retainer, Seat Belt Anchor
61338A	Reinforcement, Center Body Pillar, Inner LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61347A	Reinforcement, Belt Anchor TO Center Pillar, RH
61348A	Reinforcement, Belt Anchor TO Center Pillar, LH
61395	Seal, Center Body Pillar, RH
61396B	Seal, Center Body Pillar, LH
61397	Patch, Center Body Pillar, Inner RH
61398A	Patch, Center Body Pillar, Inner LH
61423A	Panel, Fender, Inner Lower RH
61424A	Panel, Fender, Inner Lower LH
61451B	Plate, Step, Lower RH
61452A	Panel, Rocker Outer, LH
61452C	Plate, Step, Lower LH
61453A	Panel, Rocker Inner, Rear RH
61455A	Retainer, Front Step, RH
61456B	Retainer, Front Step, LH
61463A	Panel, Rocker, Inner Rear LH
61503B	Reinforcement Sub-assy, Quarter Lock Pillar, RH
61504B	Reinforcement Sub-assy, Quarter Lock Pillar, LH
61511E	Pillar, Quarter Lock, RH
61512	Pillar, Quarter Lock, LH
61525A	Retainer, Separator Bar Bracket, RH
61526A	Retainer, Separator Bar Bracket, LH
61548	Reinforcement, Quarter Pillar, Inner LH
61575B	Plate, Cab Rear Pillar, Upper RH
61576	Plate, Cab Rear Pillar, Upper LH
61605E	Panel, Quarter, RH
61606	Frame Sub-assy, Back Door Opening Side, RH
61606E	Panel, Quarter, LH
61607	Frame Sub-assy, Back Door Opening Side, LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613C	Panel Sub-assy, Quarter, Inner Rear RH
61614C	Panel Sub-assy, Quarter, Inner Rear LH
61615E	Pillar, Quarter Lock, Inner RH
61617B	Panel, Quarter Inner, Lower RH
61618B	Panel, Quarter, Inner Lower LH
61623A	Extension, Quarter Panel, Outer RH
61625E	Extension, Quarter Panel, Inner Rear RH
61626E	Extension, Quarter Panel, Inner Rear LH
61637D	Reinforcement, Quarter, Inner RH
61638D	Reinforcement, Quarter, Inner LH
61661D	Extension, Quarter Panel TO Upper Back, RH
61662B	Extension, Quarter Panel TO Upper Back, LH
61667D	Seal, Quarter Panel
61678	Reinforce, Seat Belt Anchor, NO.2 Lower LH
61699C	Retainer, Courtesy Switch
61725	Box, Fuel Inlet
61739B	Reinforcement, Extension Quarter Inner Panel
61741A	Reinforcement, Back Door Opening, Upper RH
61742A	Reinforcement, Back Door Opening, Upper LH
61768A	Reinforcement, Seat Belt Anchor, NO.2 RH
61768E	Reinforce, Seat Belt Anchor, NO.2 Lower RH
61769A	Reinforcement, Seat Belt Anchor, NO.2 LH
61771B	Frame, Back Door Opening Upper Corner, RH
61772B	Frame, Back Door Opening Upper Corner, LH
61778B	Plate, Back Door Opening, Lower RH
61779B	Plate, Back Door Opening, Lower LH
61785D	Extension, Back Door Opening Side, RH
61786A	Extension, Back Door Opening Side, LH
61803B	Reinforce Sub-assy, Roof Side, Outer RH
61804B	Reinforce Sub-assy, Roof Side, Outer LH
61941B	Strength, Upper Rail, NO.1 LH
62137A	Reinforce, Side Window Panel
62657B	Cover, Quarter Panel Inner, LH
64015	Panel Sub-assy, Back Corner, Inner RH
64016	Panel Sub-assy, Back Corner, Inner LH
64103A	Panel Sub-assy, Back Corner, Outer RH
64104A	Panel Sub-assy, Back Corner, Outer LH
64165C	Cover, Back Corner, Inner Rear
64169A	Protector, Fuel Inlet
67841D	Cover, Quarter Service Hole, RH
67842C	Cover, Quarter Service Hole, LH
67842D	Cover, Quarter Service Hole, LH
67898C	Seal, Slide Door, Lower NO.2
74825F	Bracket, Separator, RH
74826C	Bracket, Separator, LH
76628B	Mudguard, Quarter Panel, Upper Rear RH
76629B	Mudguard, Quarter Panel, Upper Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
