Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

67 part groups · 25 illustrations

Illustrations

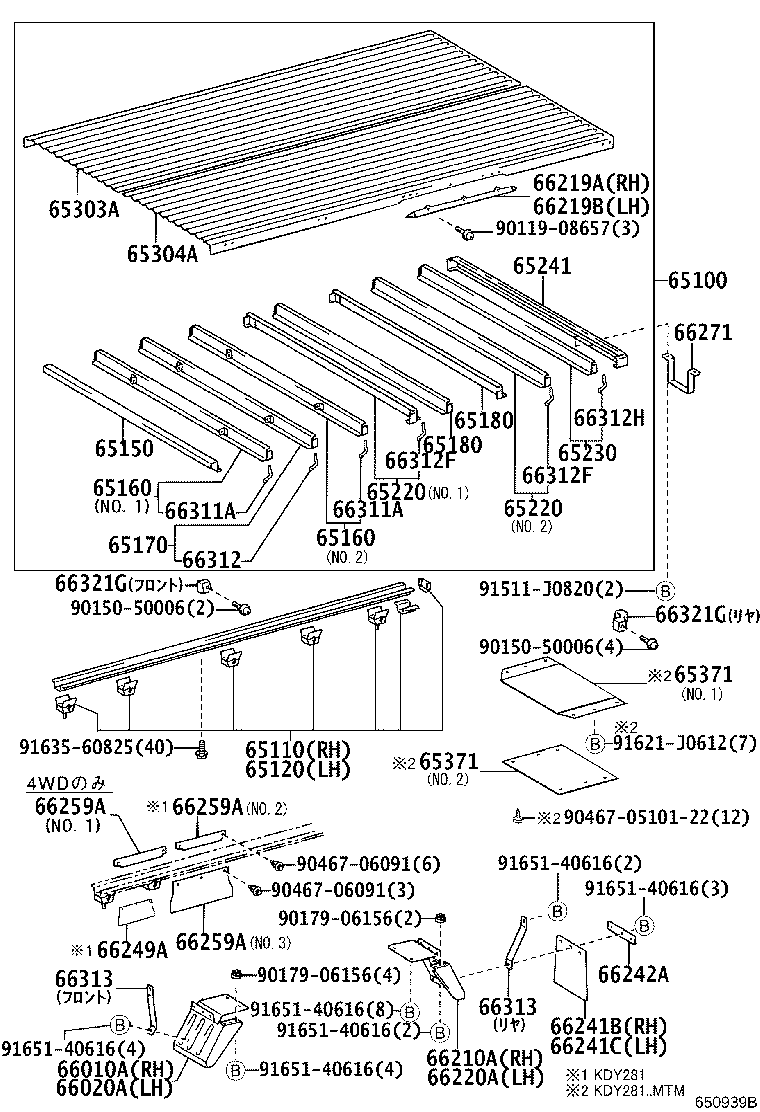

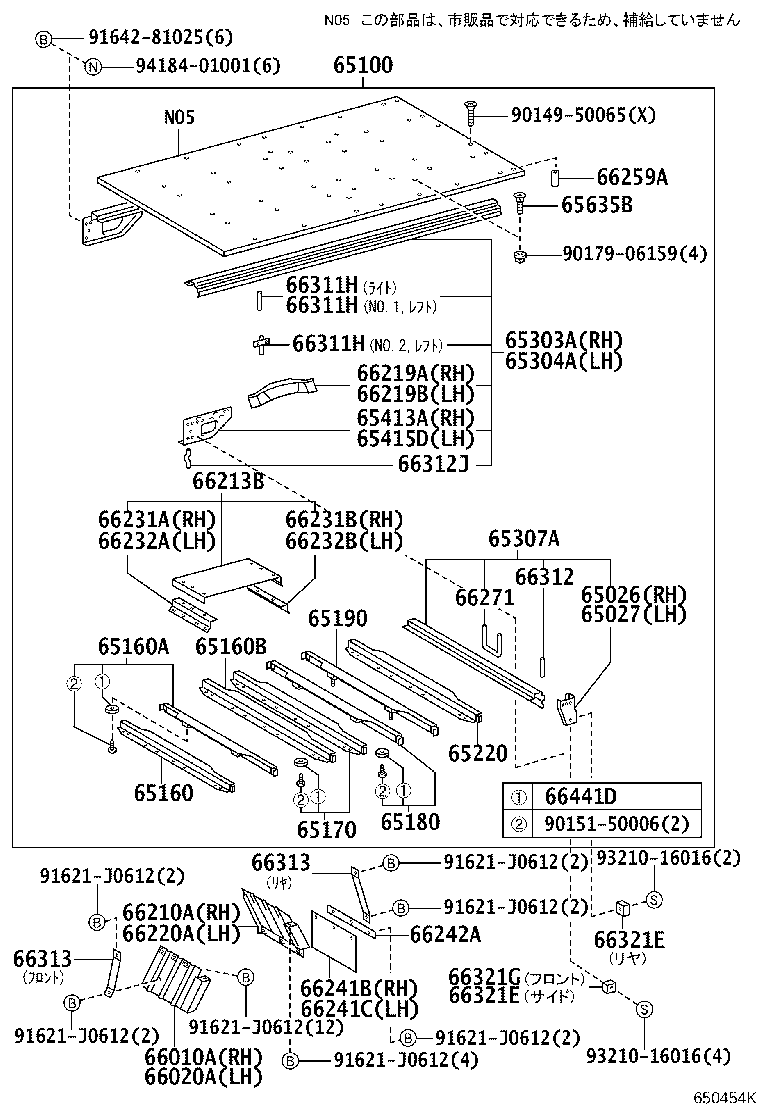

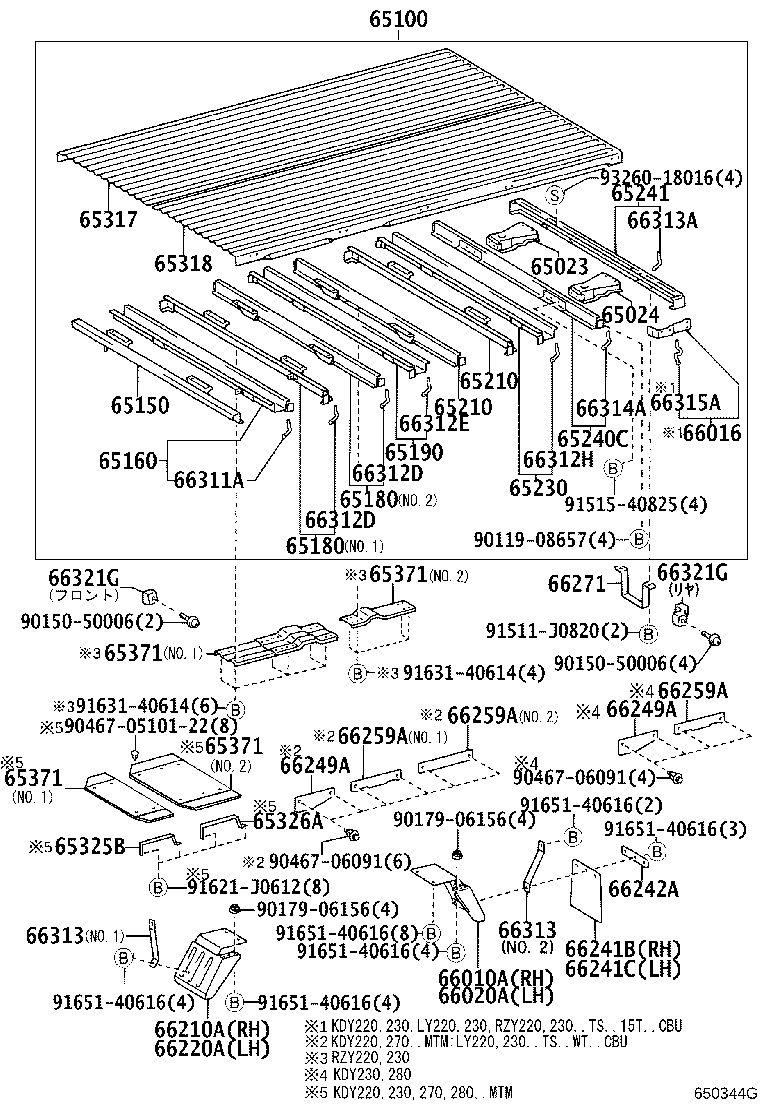

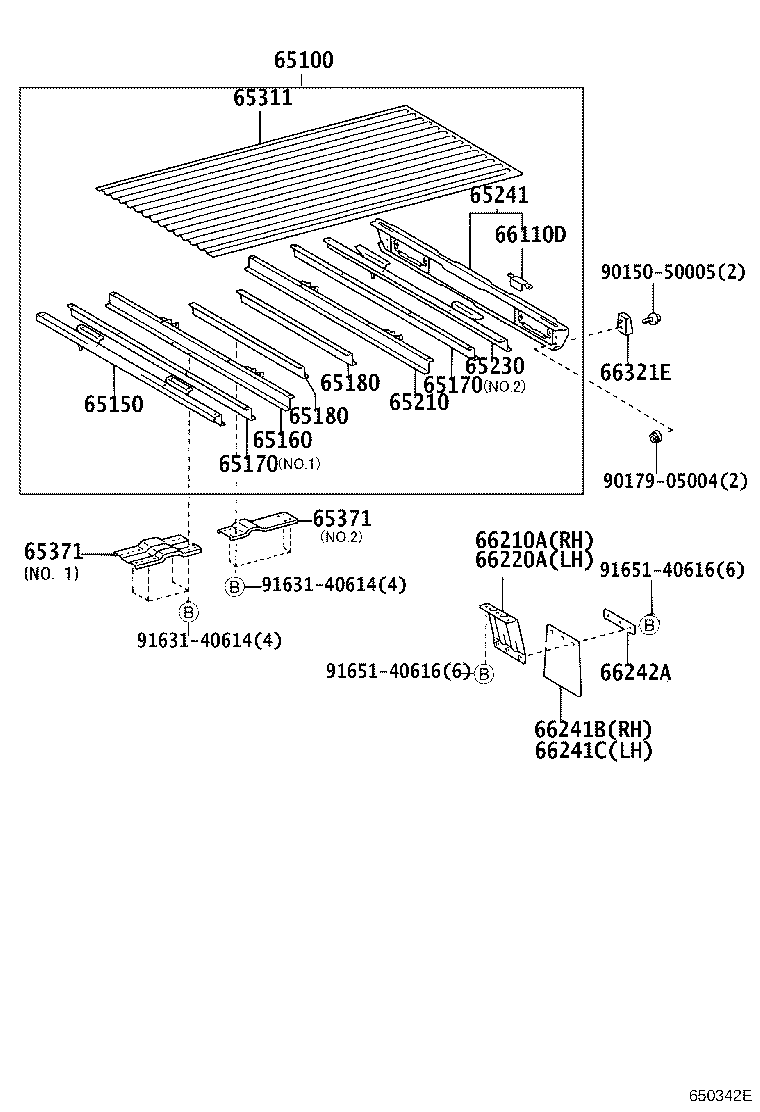

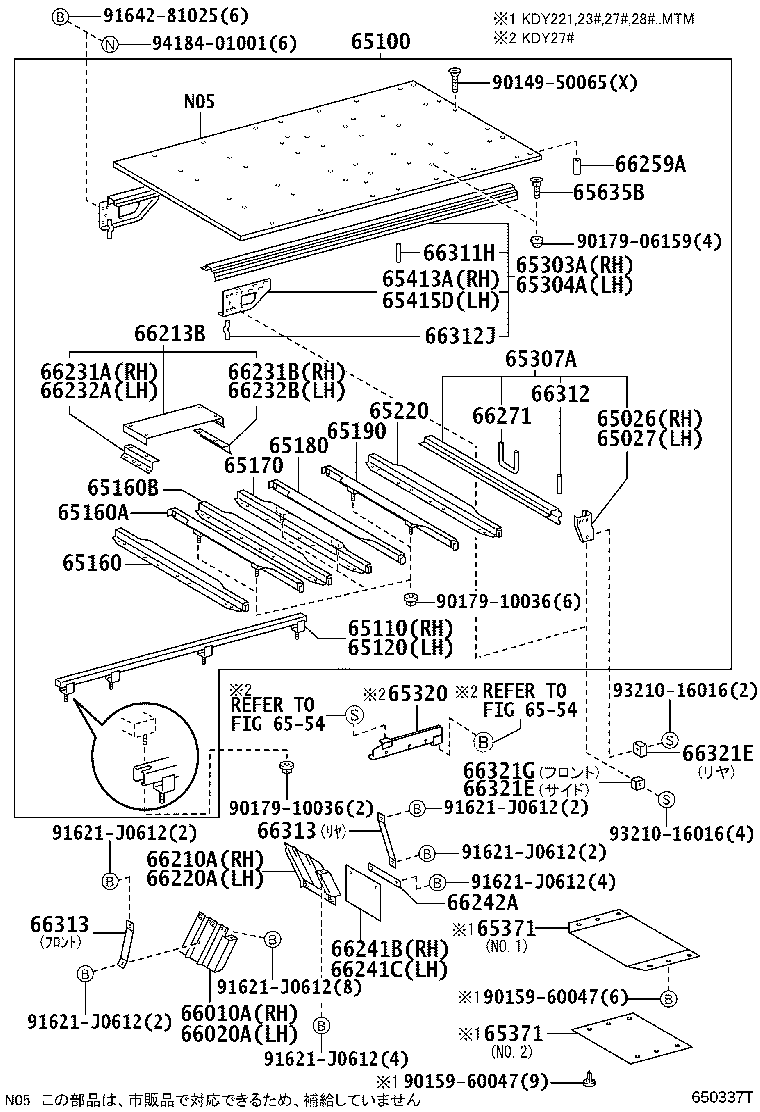

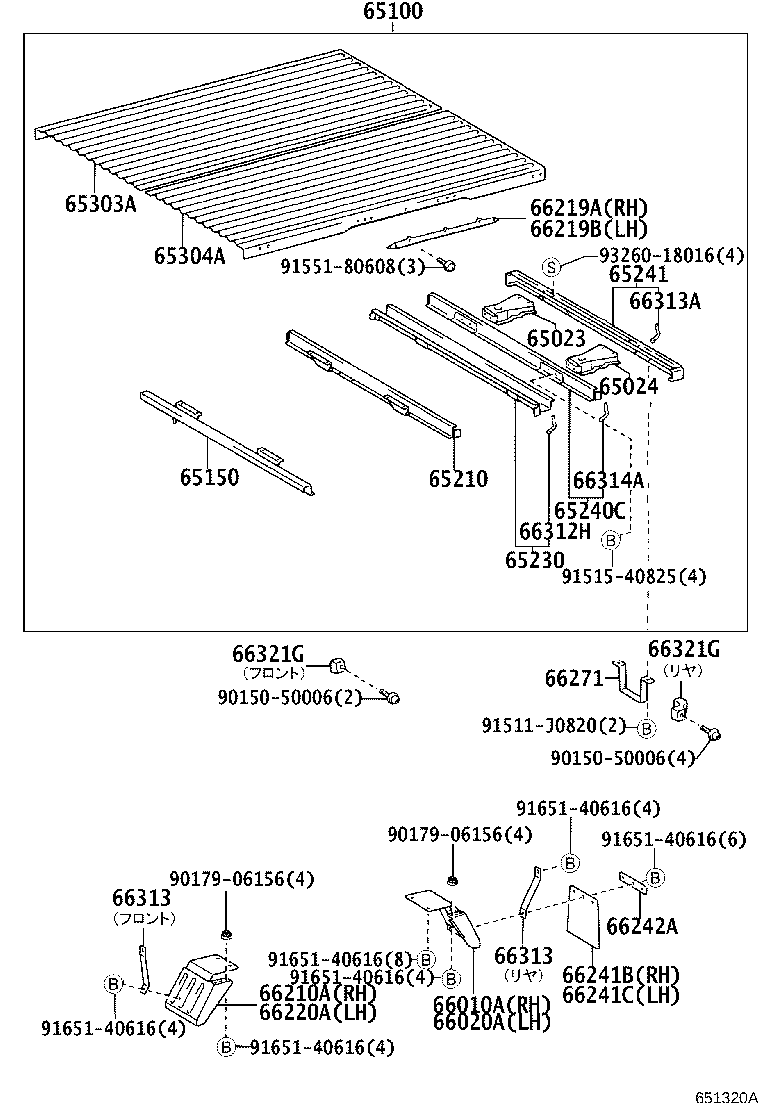

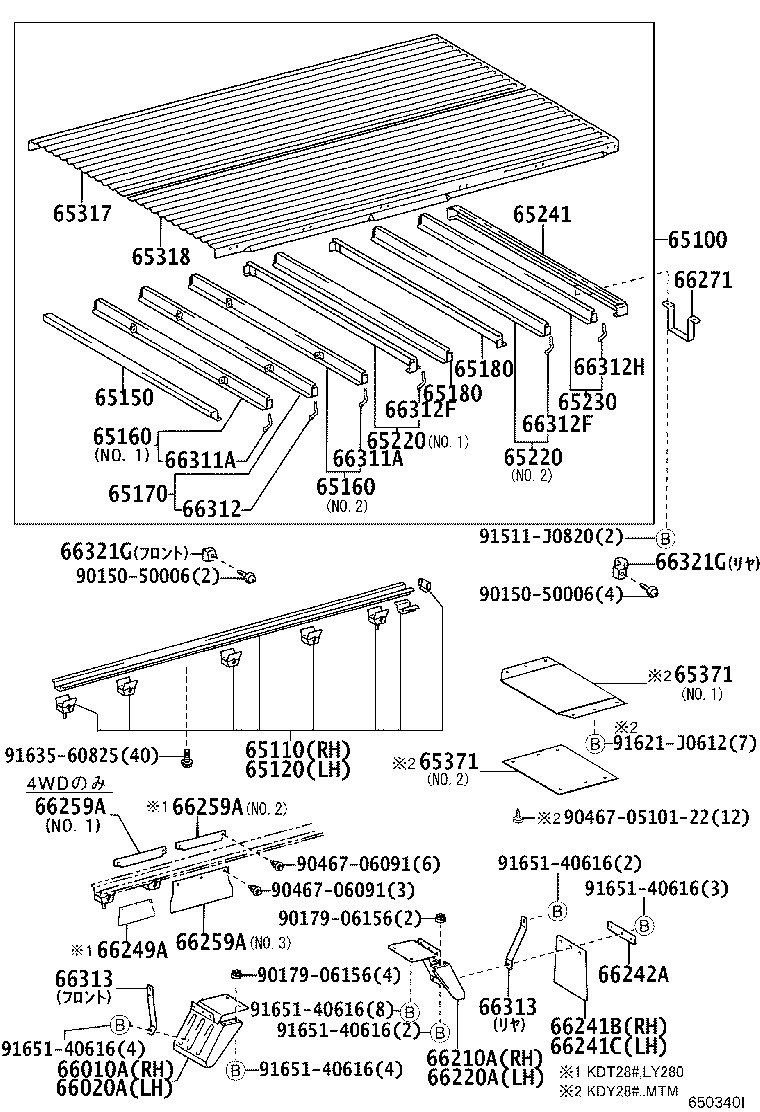

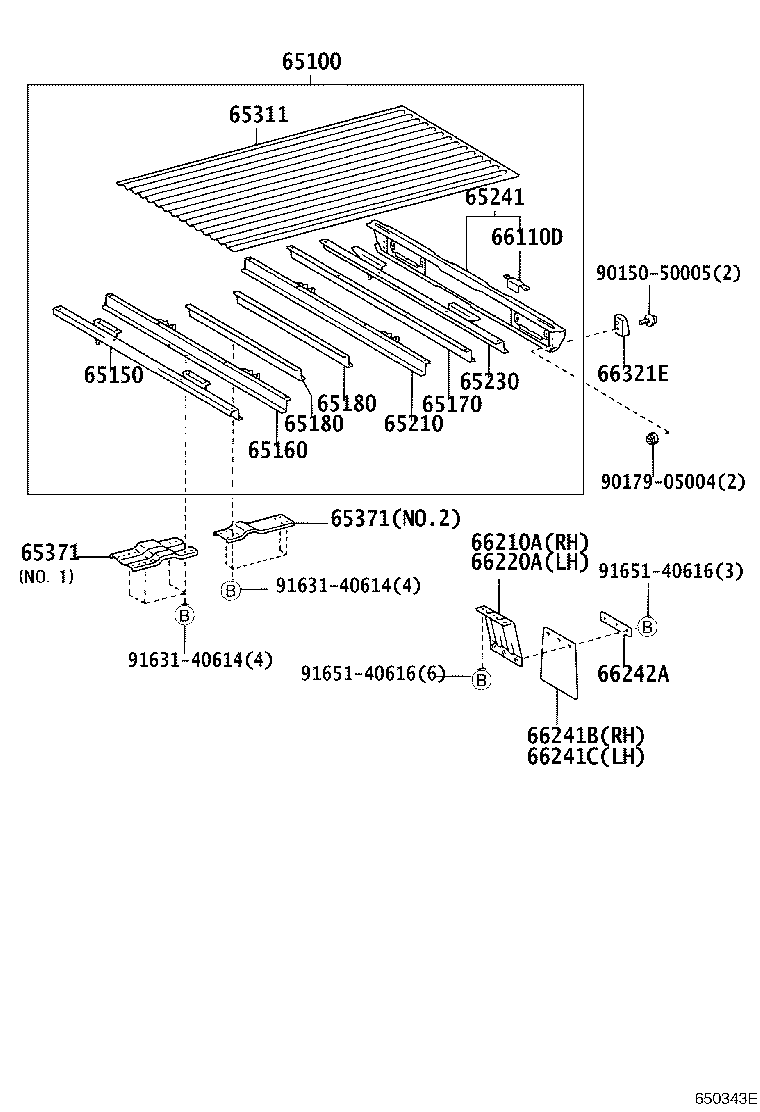

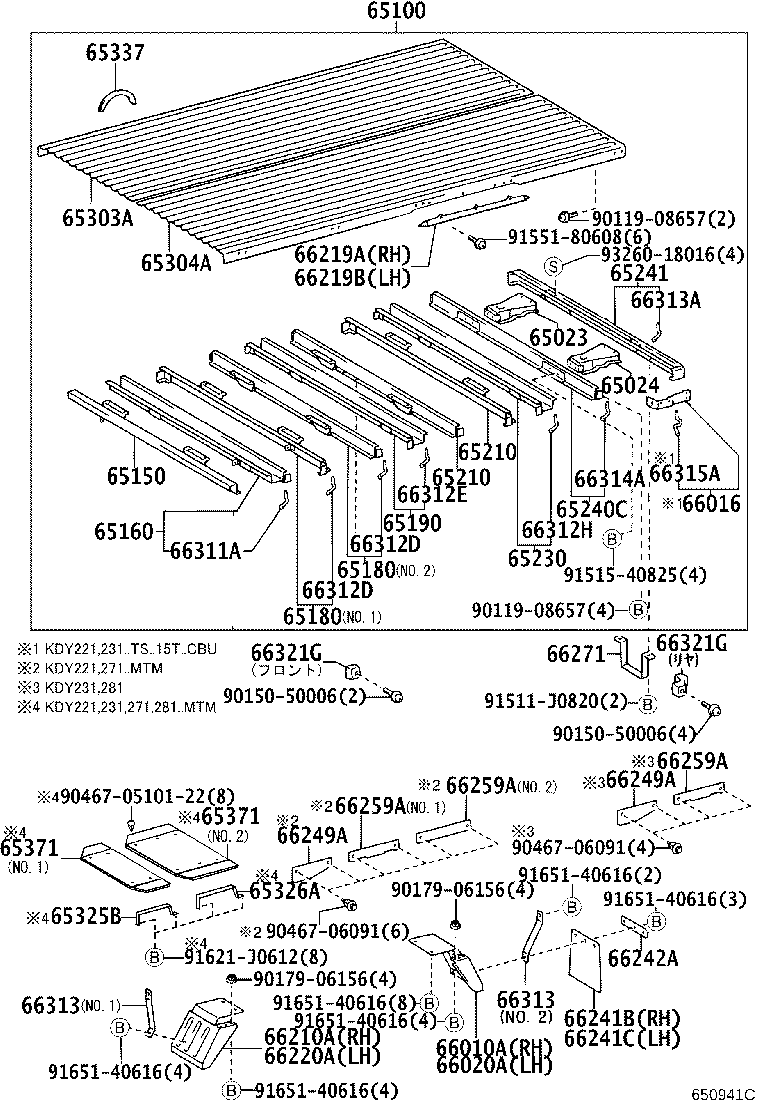

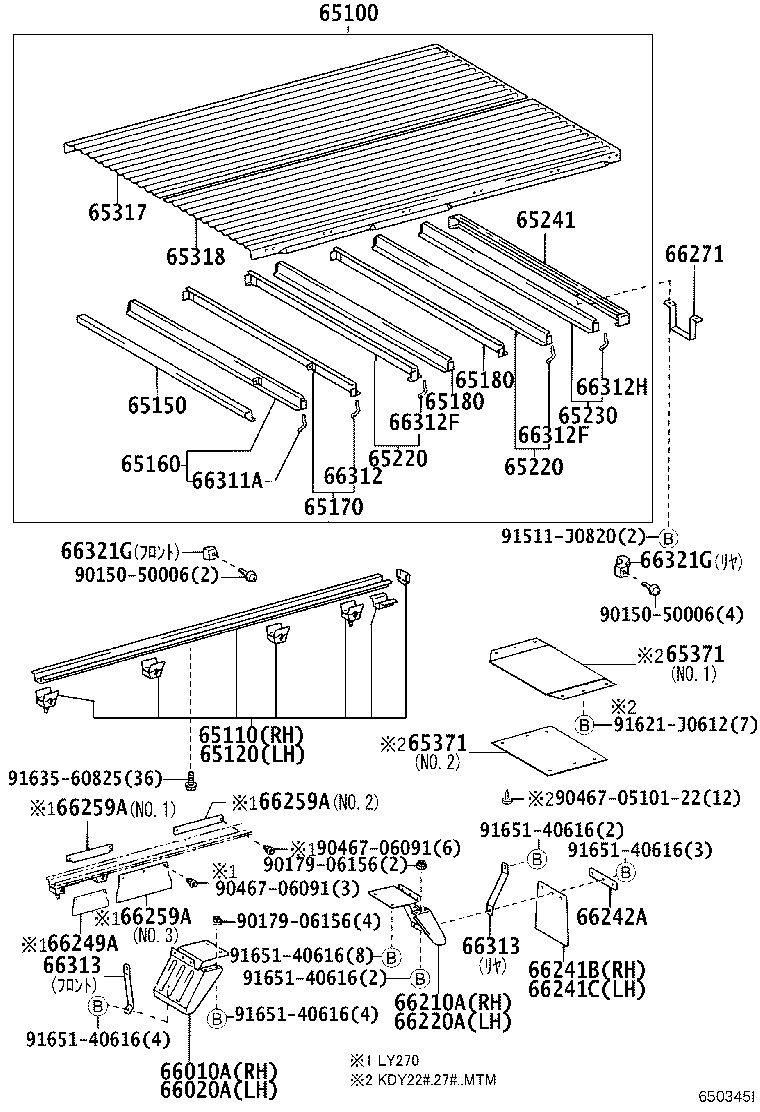

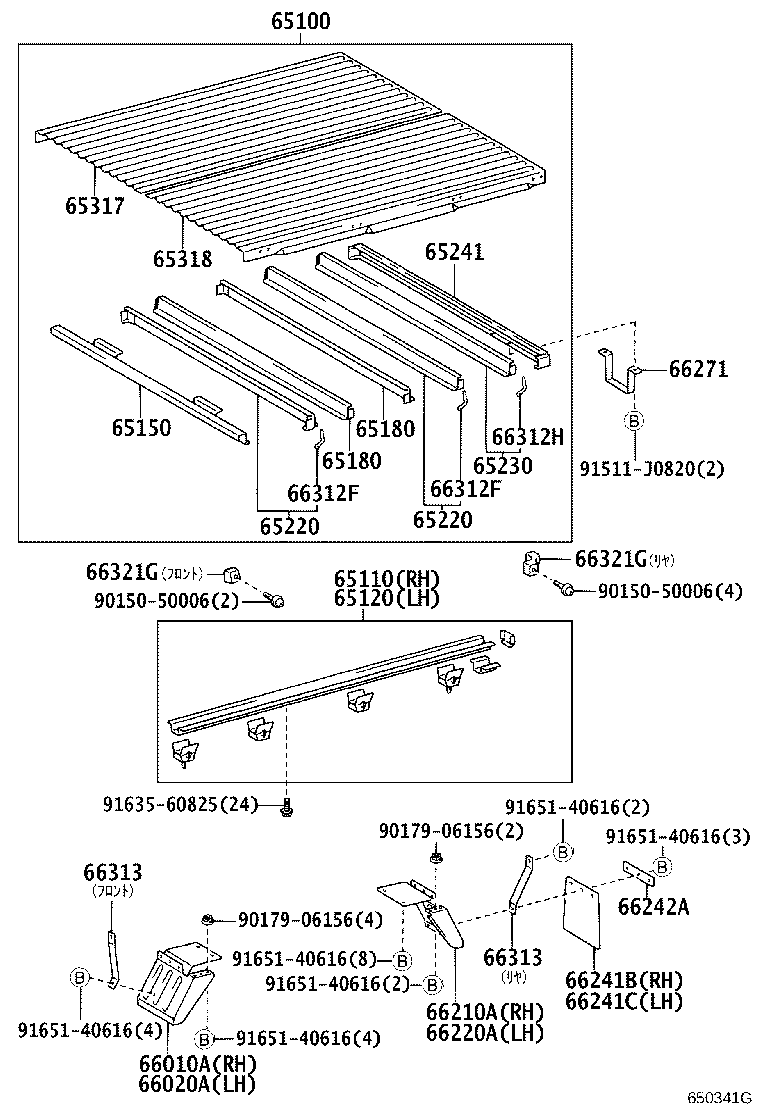

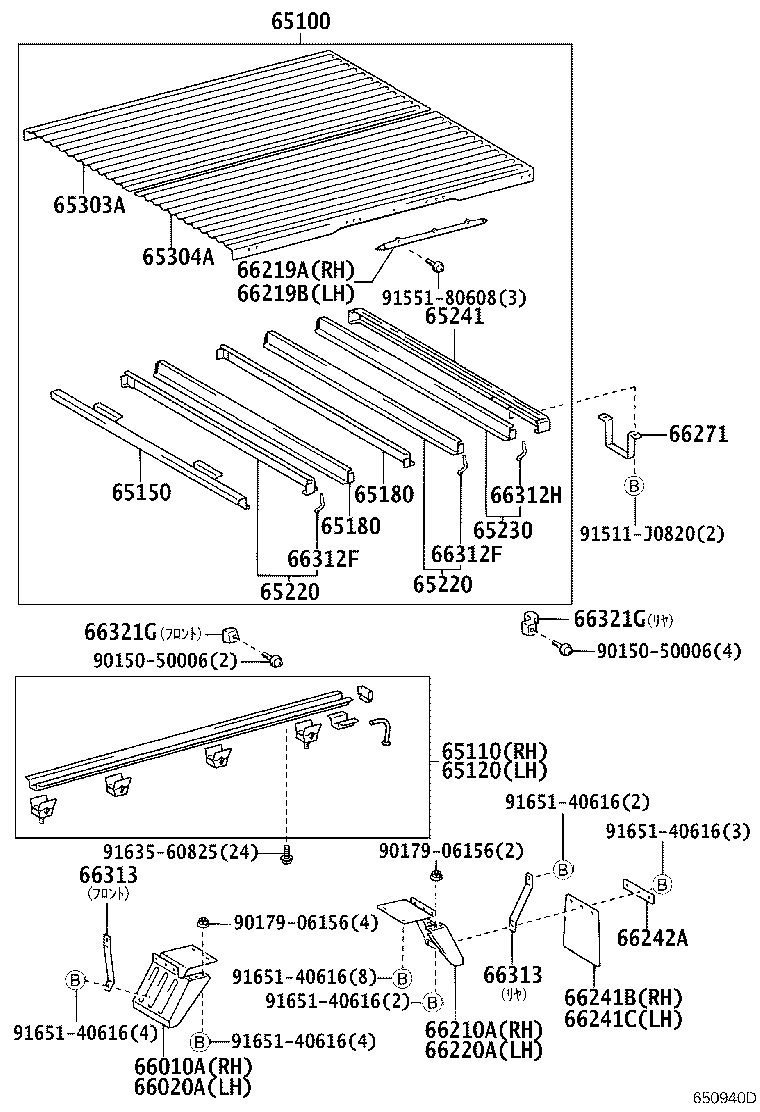

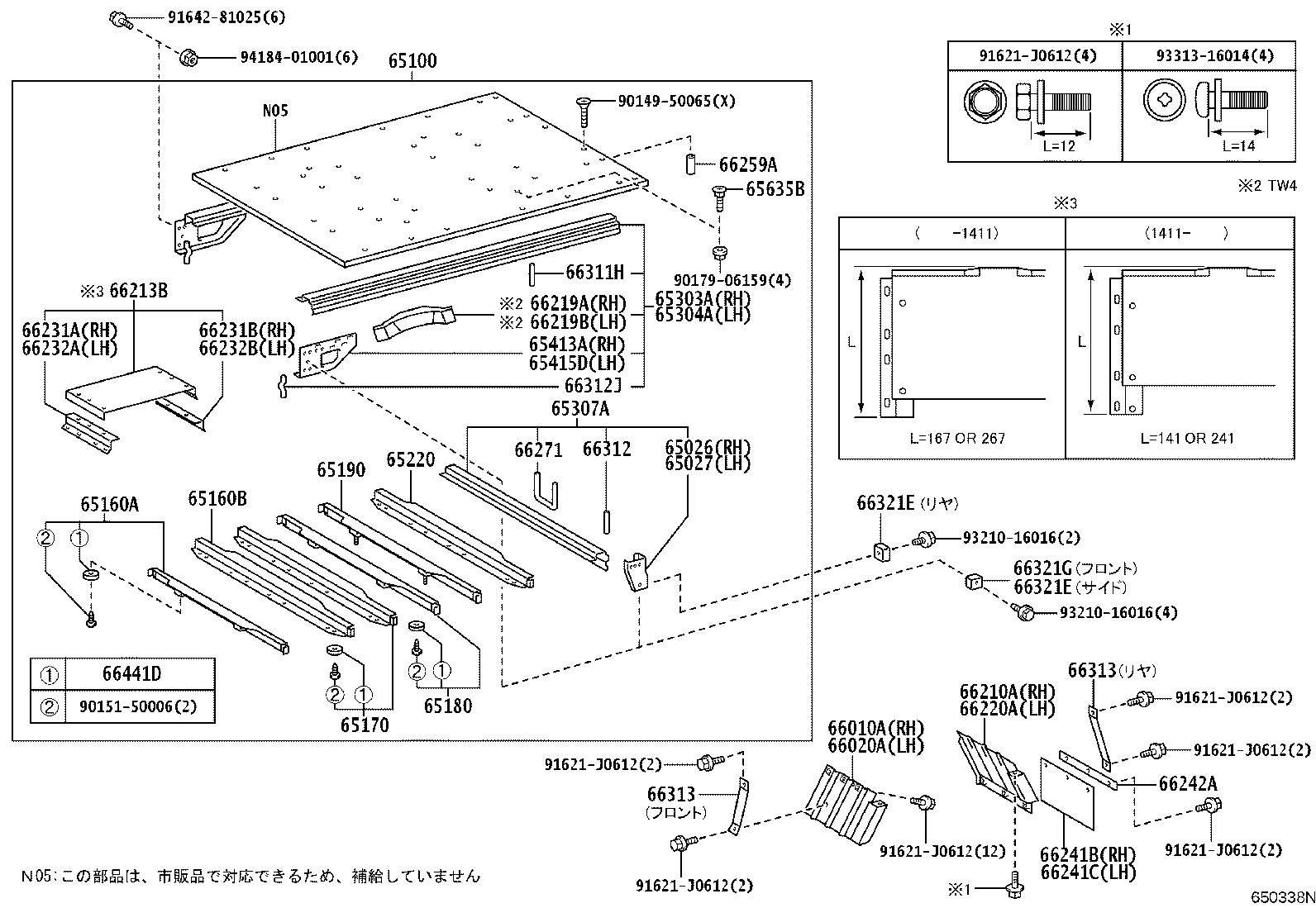

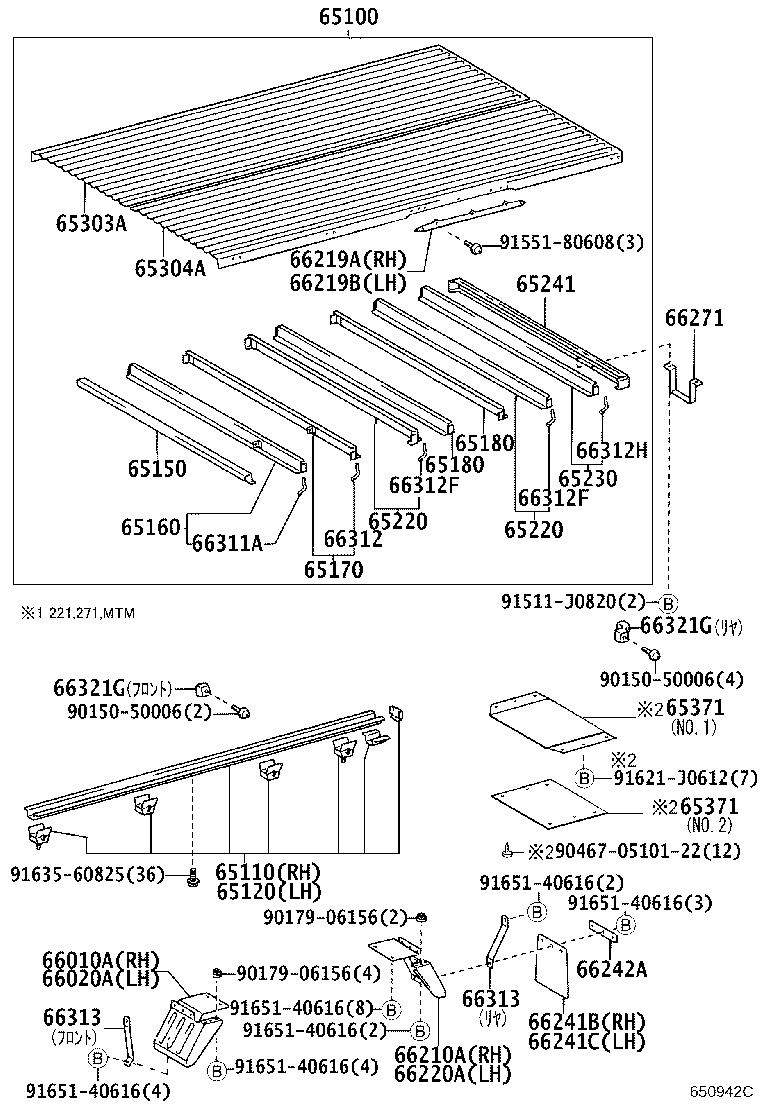

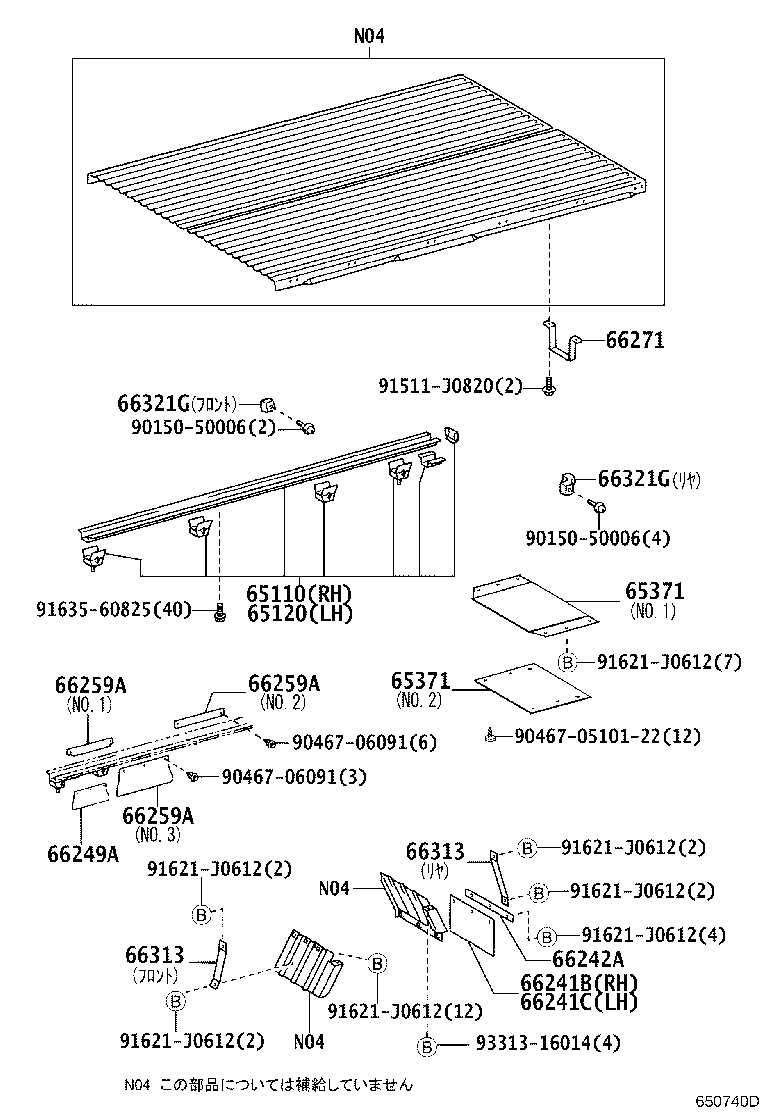

Figure 6516BS 6516BS 2001-07 → 2003-08 Figure 6516BS 6516BS 2003-08 → — Figure 6516BS 6516BS 2003-08 → — Figure 650337T 650337T 2001-07 → 2003-08 Figure 650337T 650337T 2003-08 → — Figure 650454K 650454K 2003-08 → — Figure 650338N 650338N 2001-07 → 2003-08 Figure 650338N 650338N 2003-08 → — Figure 650340I 650340I 2001-07 → 2003-08 Figure 650340I 650340I 2003-08 → 2009-08 Figure 650939B 650939B 2009-08 → — Figure 650343E 650343E 2001-07 → 2003-08 Figure 650343E 650343E 2003-08 → — Figure 650342E 650342E 2001-07 → 2003-08 Figure 650342E 650342E 2003-08 → — Figure 650341G 650341G 2001-07 → 2003-08 Figure 650341G 650341G 2003-08 → 2010-04 Figure 650940D 650940D 2010-04 → — Figure 650344G 650344G 2001-07 → 2010-04 Figure 650941C 650941C 2010-04 → — Figure 650345I 650345I 2001-07 → 2003-08 Figure 650345I 650345I 2003-08 → 2010-04 Figure 650942C 650942C 2010-04 → — Figure 651320A 651320A 2016-10 → — Figure 650740D 650740D 2006-05 → —

Part groups

PNCDescription
65023 Bracket Sub-assy, Rear Cross Sill Mounting, RH
65024 Bracket Sub-assy, Rear Cross Sill Mounting, LH
65026 Bracket Sub-assy, Gate Rubber Bumper, RH
65027 Bracket Sub-assy, Gate Rubber Bumper, LH
65100 Floor Assy, Rear Body
65110 Sill Assy, Main, RH
65120 Sill Assy, Main, LH
65150 Sill Assy, Cross, NO.1
65160 Sill Assy, Cross, NO.2
65160A Sill Assy, Cross, NO.2
65160B Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65180 Sill Assy, Cross, NO.4
65190 Sill Assy, Cross, NO.5
65210 Sill Assy, Cross, NO.6
65220 Sill Assy, Cross, NO.4
65230 Sill Assy, Cross, NO.8
65240C Sill Assy, Cross, NO.9
65241 Sill, Rear Cross
65303A Frame Sub-assy, Floor Side, RH
65304A Frame Sub-assy, Floor Side, LH
65307A Frame Sub-assy, Floor, Rear
65311 Panel, Floor, Center
65317 Panel, Floor Side, RH
65318 Panel, Floor Side, LH
65320 Plate, Rear Floor End
65325B Plate, Floor Board, Front
65326A Plate, Floor Board, RR
65337 Plate, Floor Side Frame, RH
65371 Insulator, Rear Floor
65413A Bracket, Guard Frame, RH
65415D Bracket, Guard Frame, LH
65635B Bolt, Counter Sunk Head Square Neck
66010A Fender Assy, Rear NO.2 RH
66016 Gusset Sub-assy, Gate Hinge, RH
66020A Fender Assy, Rear NO.2 LH
66110D Hinge Assy, Tail Gate
66210A Fender Assy, Rear NO.1 RH
66213B Plate, Rear Fender, Upper
66219A Extension, Rear Fender
66219B Extension, Rear Fender
66220A Fender Assy, Rear NO.1 LH
66231A Retainer, Rear Fender, Front RH
66231B Retainer, Rear Fender, Rear RH
66232A Retainer, Rear Fender, Front LH
66232B Retainer, Rear Fender, Rear LH
66241B Baffle, Rubber
66241C Buffle, Rubber
66242A Plate, Baffle Rubber
66249A Cover, Rear Body Floor Side, LH
66259A Cover, Rear Body Floor, Rear
66271 Step, Rear Body
66311A Hook, Rope, NO.1
66311H Hook, Rope
66312 Hook, Rope, NO.2
66312D Hook, Rope, NO.2
66312E Hook, Rope, NO.2
66312F Hook, Rope, NO.2
66312H Hook, Rope
66312J Hook, Rope, NO.2
66313 Support, Rear Fender
66313A Hook, Rope, NO.3
66314A Hook, Rope, NO.4
66315A Hook, Rope
66321E Bumper, Gate Rubber
66321G Bumper, Gate Rubber
66441D Shim, Mounting, NO.1
