Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10

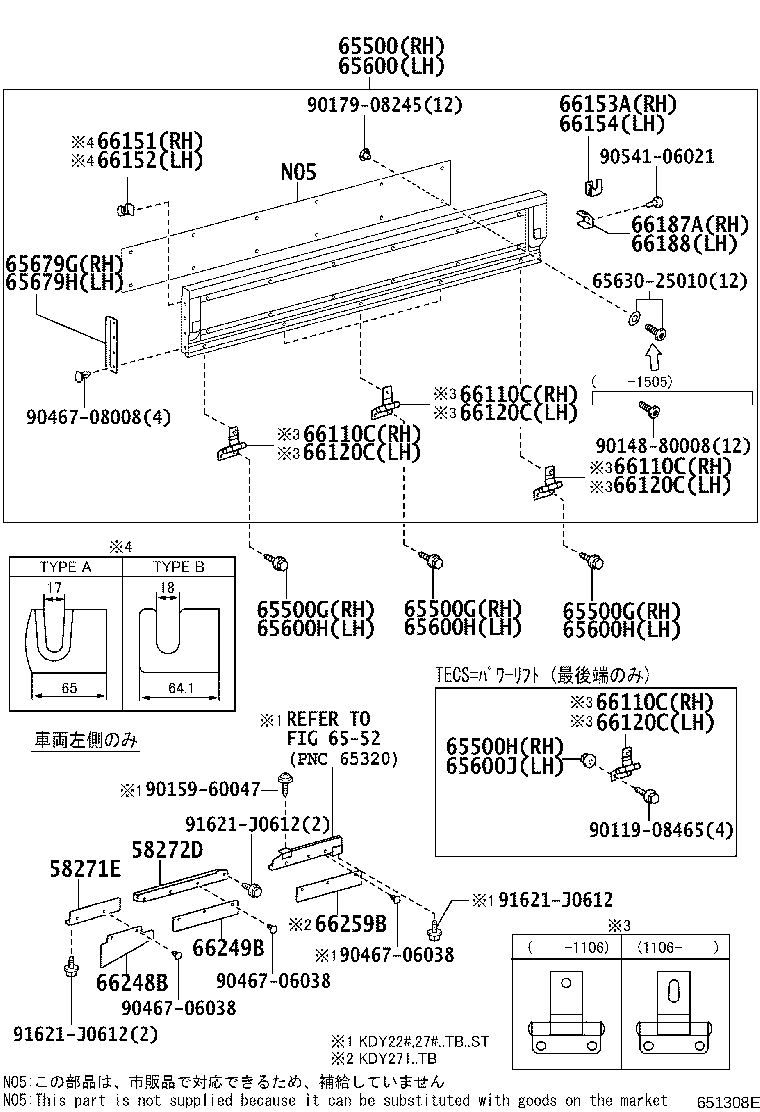

Rear Body Side Panel
41 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 58271E | Plate, Floor Side, NO.1 |
| 58272D | Plate, Floor Side, NO.2 |
| 65313 | Panel, Floor Front Corner, RH |
| 65314 | Panel, Floor Front Corner, LH |
| 65315 | Panel, Floor Rear Corner, RH |
| 65316 | Panel, Floor Rear Corner, LH |
| 65500 | Panel Assy, Rear Body Side, RH |
| 65500G | Bolt, W/Washer(FOR SIDE GATE, RH) |
| 65500H | Nut(FOR SIDE GATE, RH) |
| 65577 | Retainer, Tail Gate Latch Female |
| 65577A | Retainer, Tail Gate Female |
| 65600 | Panel Assy, Rear Body Side, LH |
| 65600H | Bolt, W/Washer(FOR SIDE GATE, LH) |
| 65600J | Nut(FOR SIDE GATE, LH) |
| 65679E | Seal, Side Gate |
| 65679G | Seal, Side Gate |
| 65679H | Seal, Side Gate |
| 66013A | Support Sub-assy, Side Gate, RH |
| 66014 | Support Sub-assy, Corner, LH |
| 66021A | Handle Sub-assy, Side Gate Support Corner, RH |
| 66022A | Handle Sub-assy, Side Gate Support Corner, LH |
| 66110C | Hinge Assy, Side Gate, NO.1 RH |
| 66110G | Hinge Assy, Side Gate, NO.2 RH |
| 66115 | Pin, Gate Hinge |
| 66115C | Retainer, Gate Hinge |
| 66120C | Hinge Assy, Side Gate, NO.1 LH |
| 66120E | Hinge Assy, Side Gate, NO.2 LH |
| 66151 | Latch, Side Gate Female, RH |
| 66152 | Latch, Side Gate Female, LH |
| 66153A | Latch, Tail Gate Female, RH |
| 66154 | Latch, Tail Gate Female, LH |
| 66187A | Latch, Side Gate Support |
| 66188 | Latch, Side Gate, NO.1 |
| 66248B | Protector, Rear Body Side Panel, RH |
| 66249B | Protector, Rear Body Side Panel, LH |
| 66259B | Cover, Rear Body Floor, Rear |
| 66311E | Hook, Rope |
| 66311F | Hook, Rope, NO.2 |
| 66332 | Cushion, Rubber |
| 66783 | Bracket, Side Gate Support, RH |
| 66784 | Bracket, Side Gate Support, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
