Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

11 part groups · 2 illustrations

Illustrations

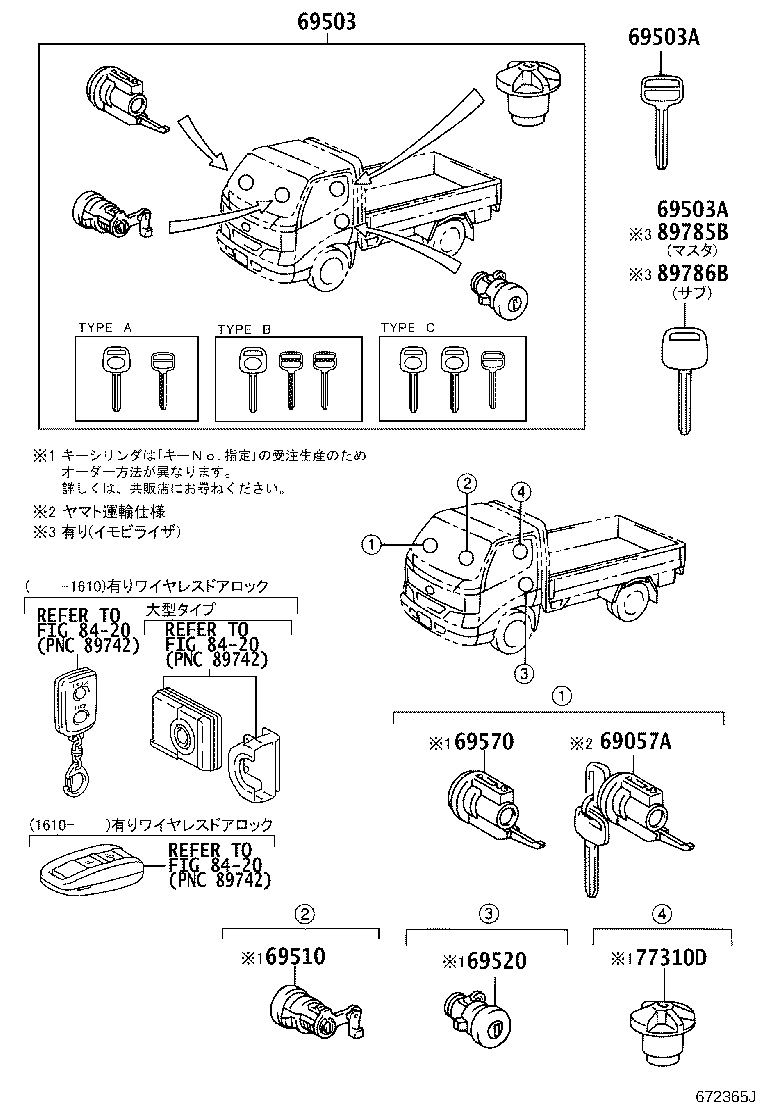

Figure 672364H 672364H 2001-07 → — Figure 672365J 672365J 2001-07 → —

Part groups

PNCDescription
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69520 Cylinder Assy, Front Door Lock, LH
69540 Cylinder Assy, Slide Door Lock, LH
69560 Cylinder Assy, Back Door Lock
69570 Cylinder Assy, Ignition Switch Lock
77310D Cap Assy, Fuel Tank
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
