Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

78 part groups · 14 illustrations

Illustrations

715305G 2001-07 → 2007-09

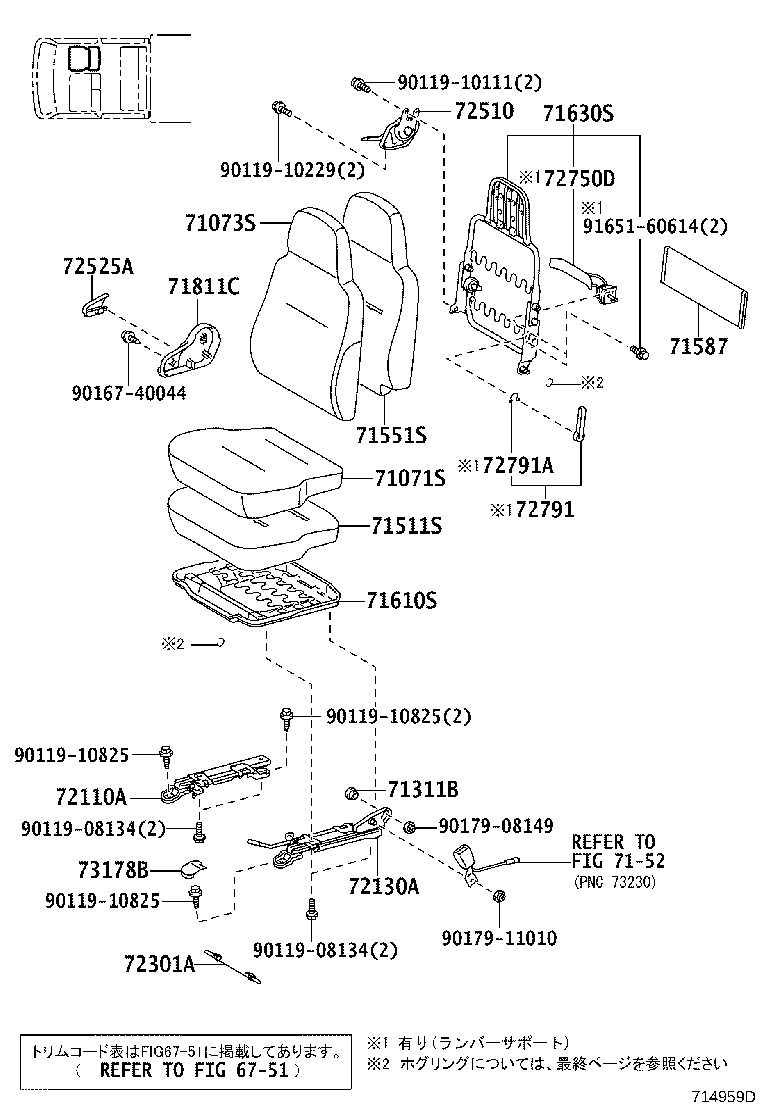

714959D 2007-09 → —

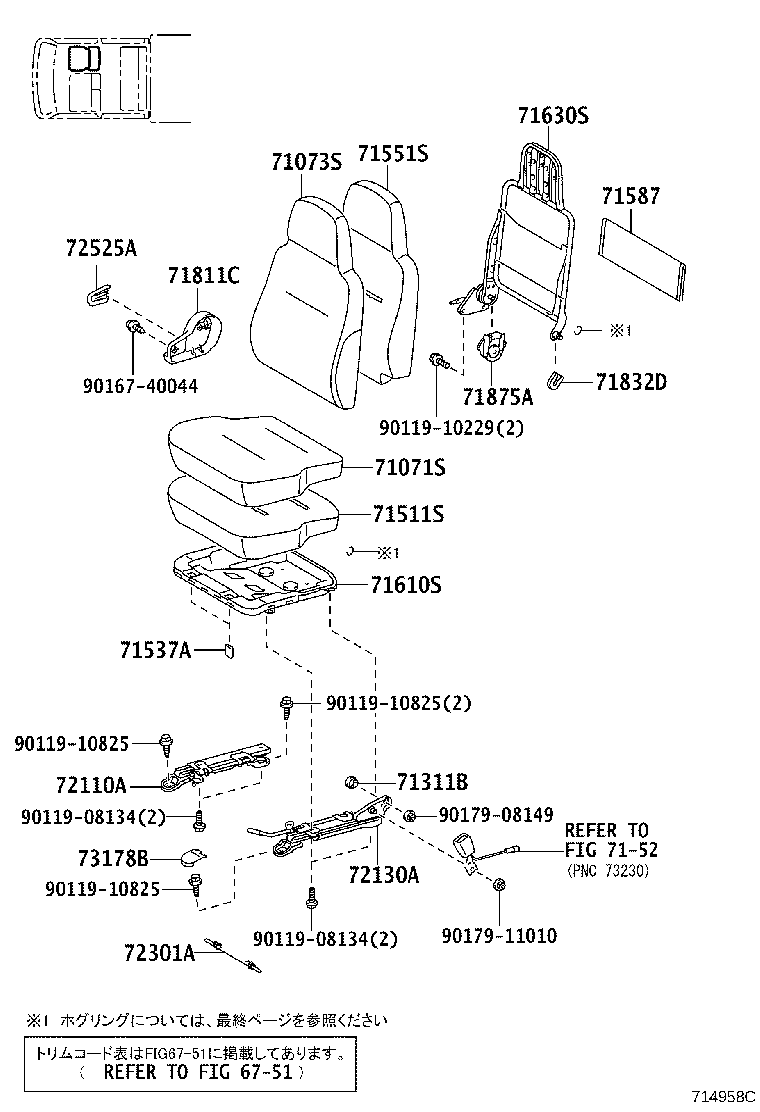

714958C 2007-09 → —

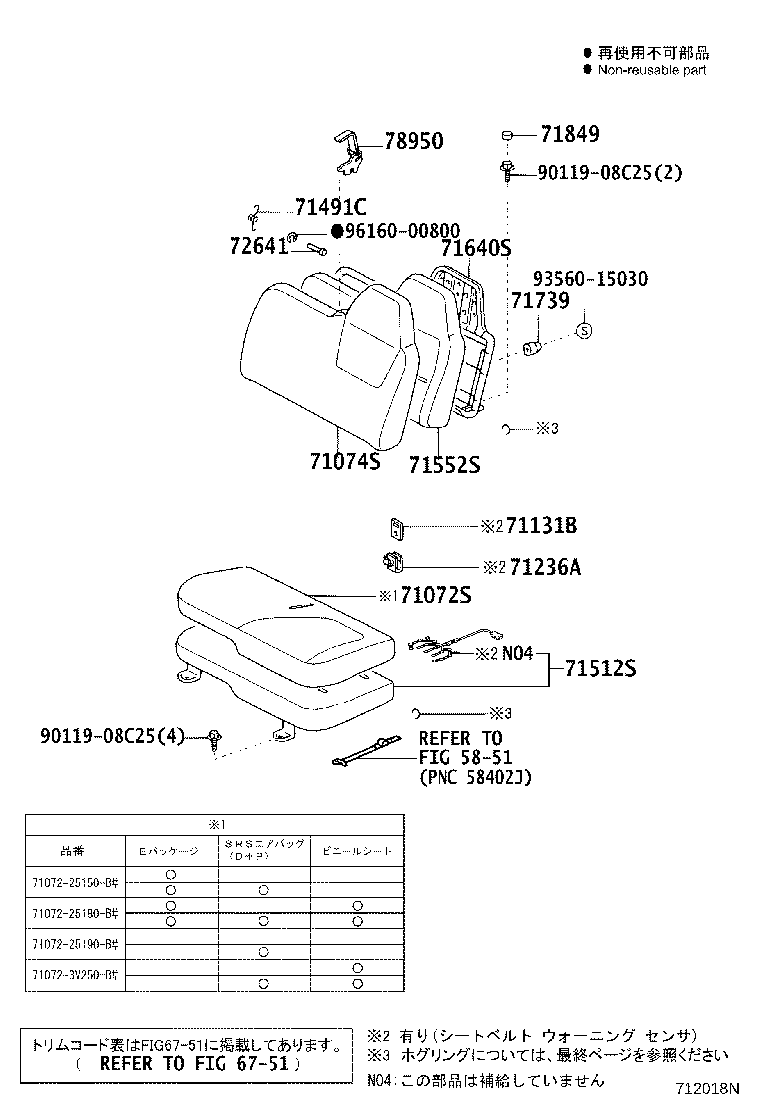

712018N 2001-07 → 2007-09

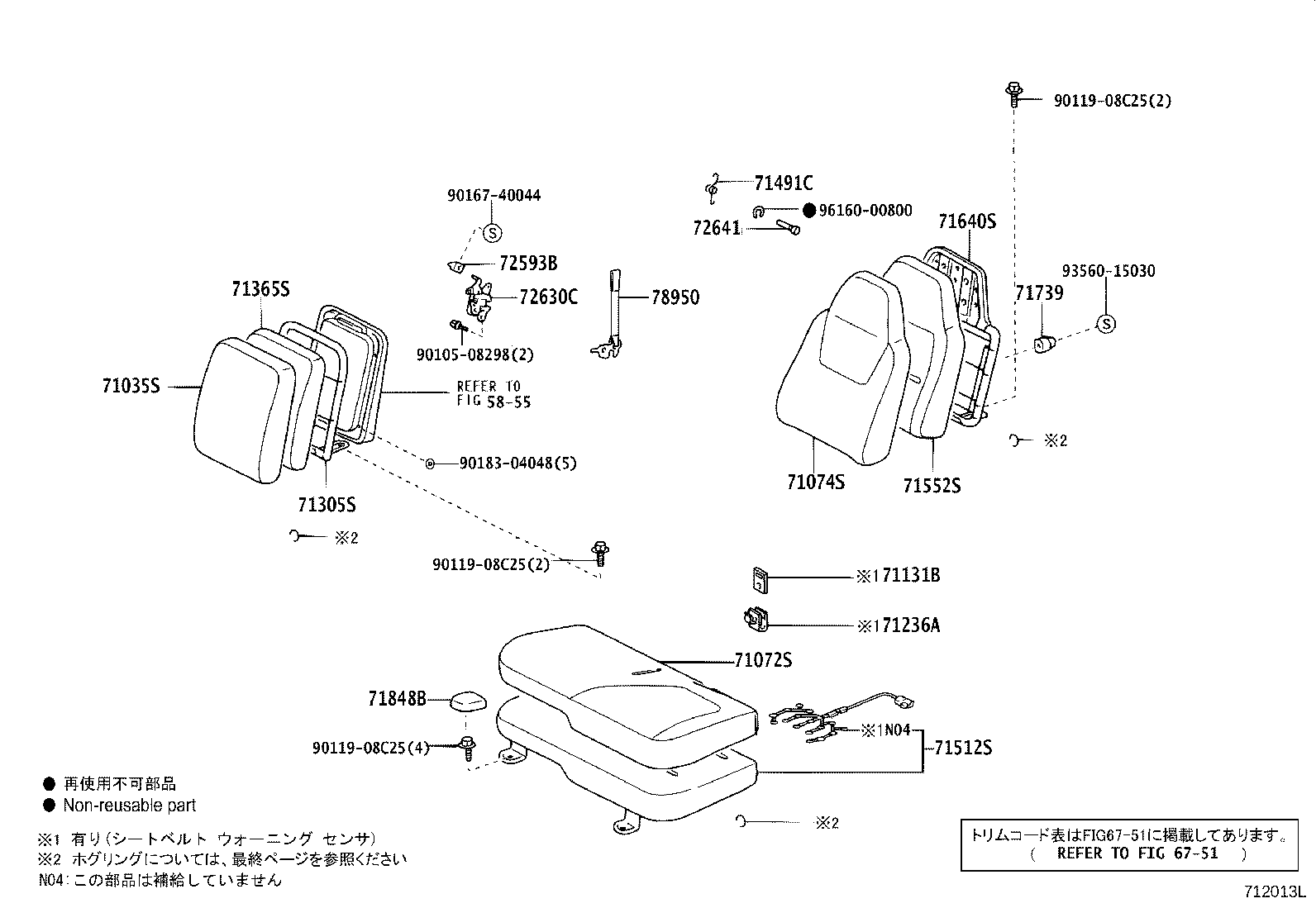

712013L 2001-07 → 2007-09

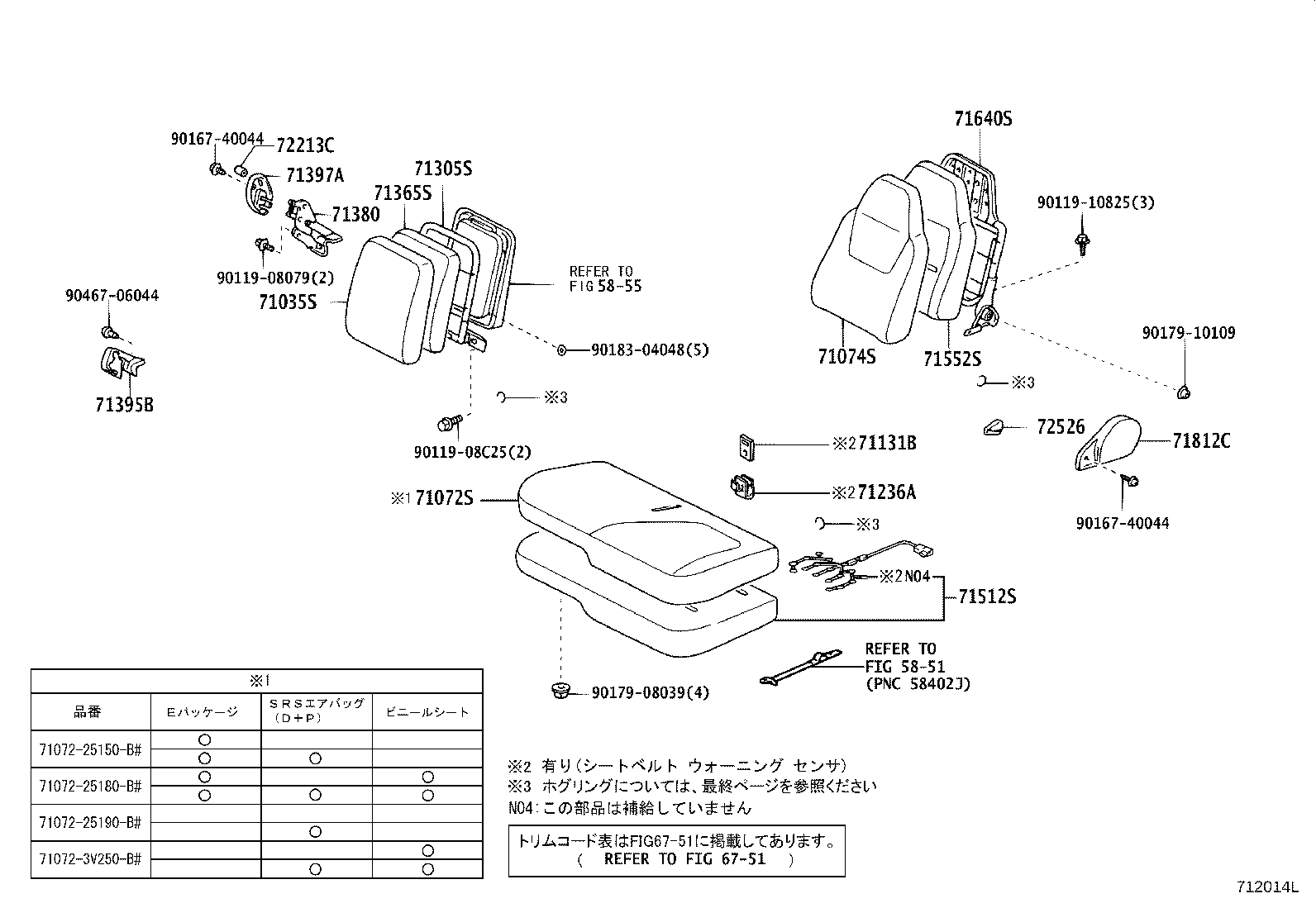

712014L 2001-07 → 2007-09

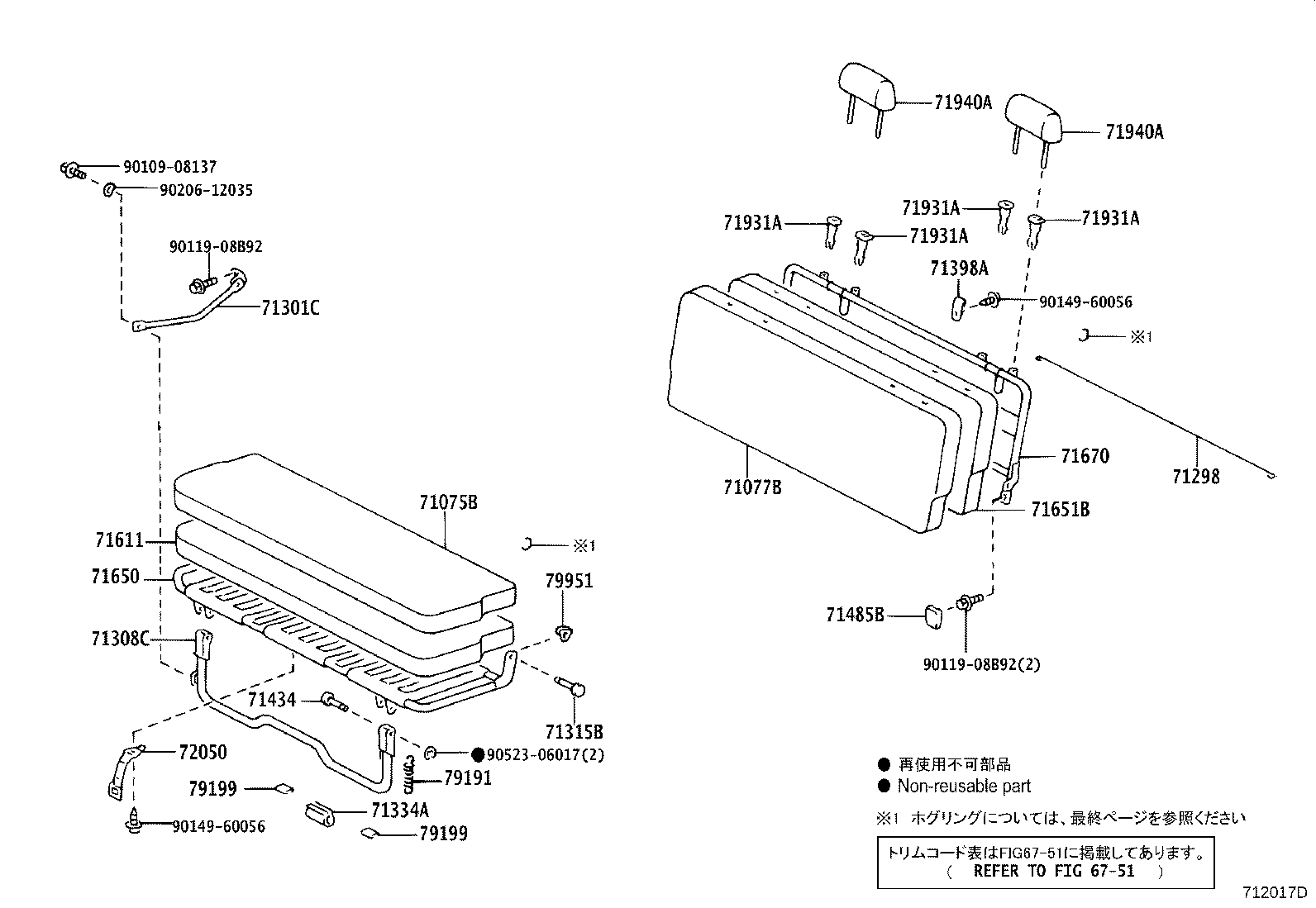

712017D 2001-07 → 2007-09

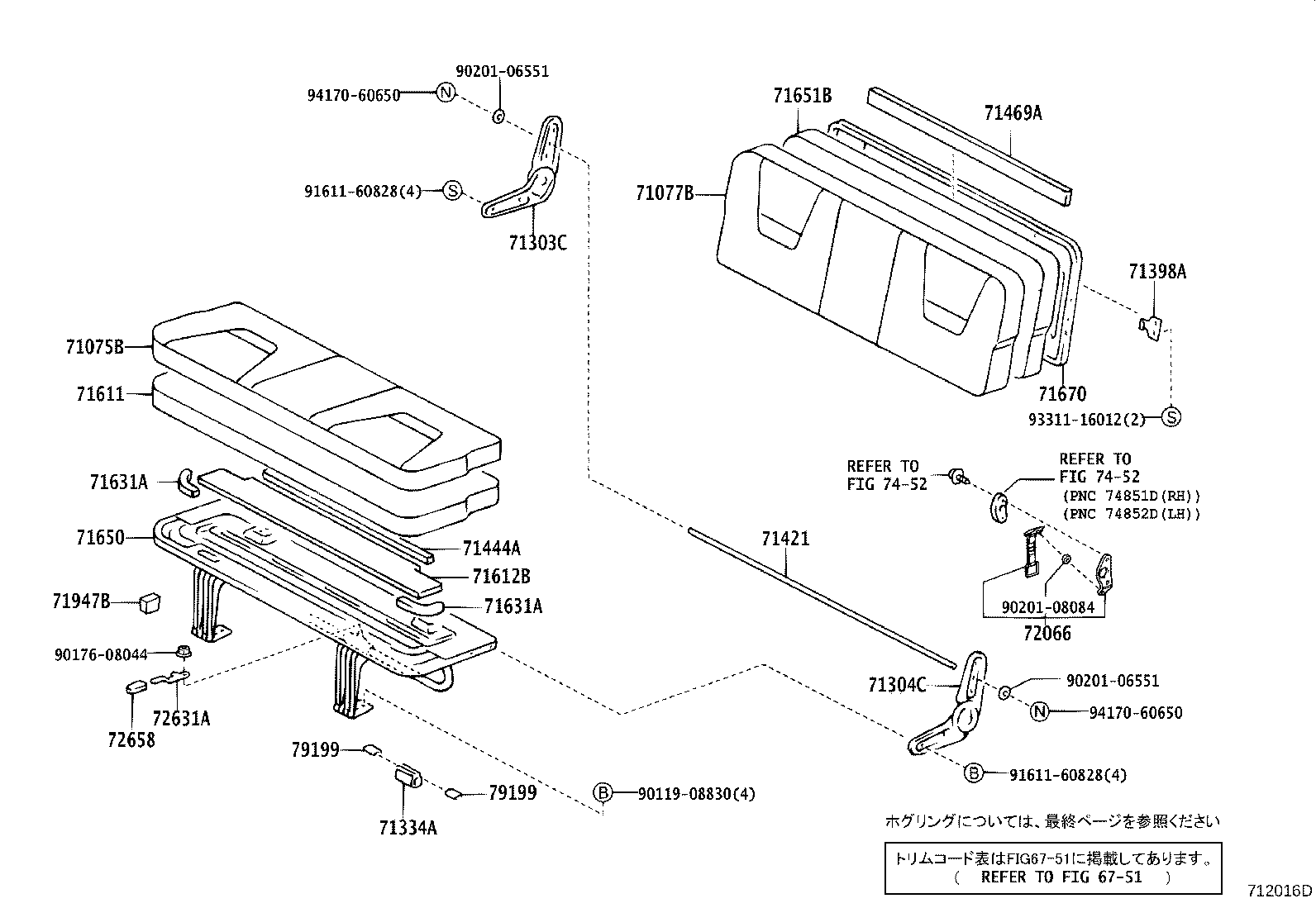

712016D 2001-07 → —

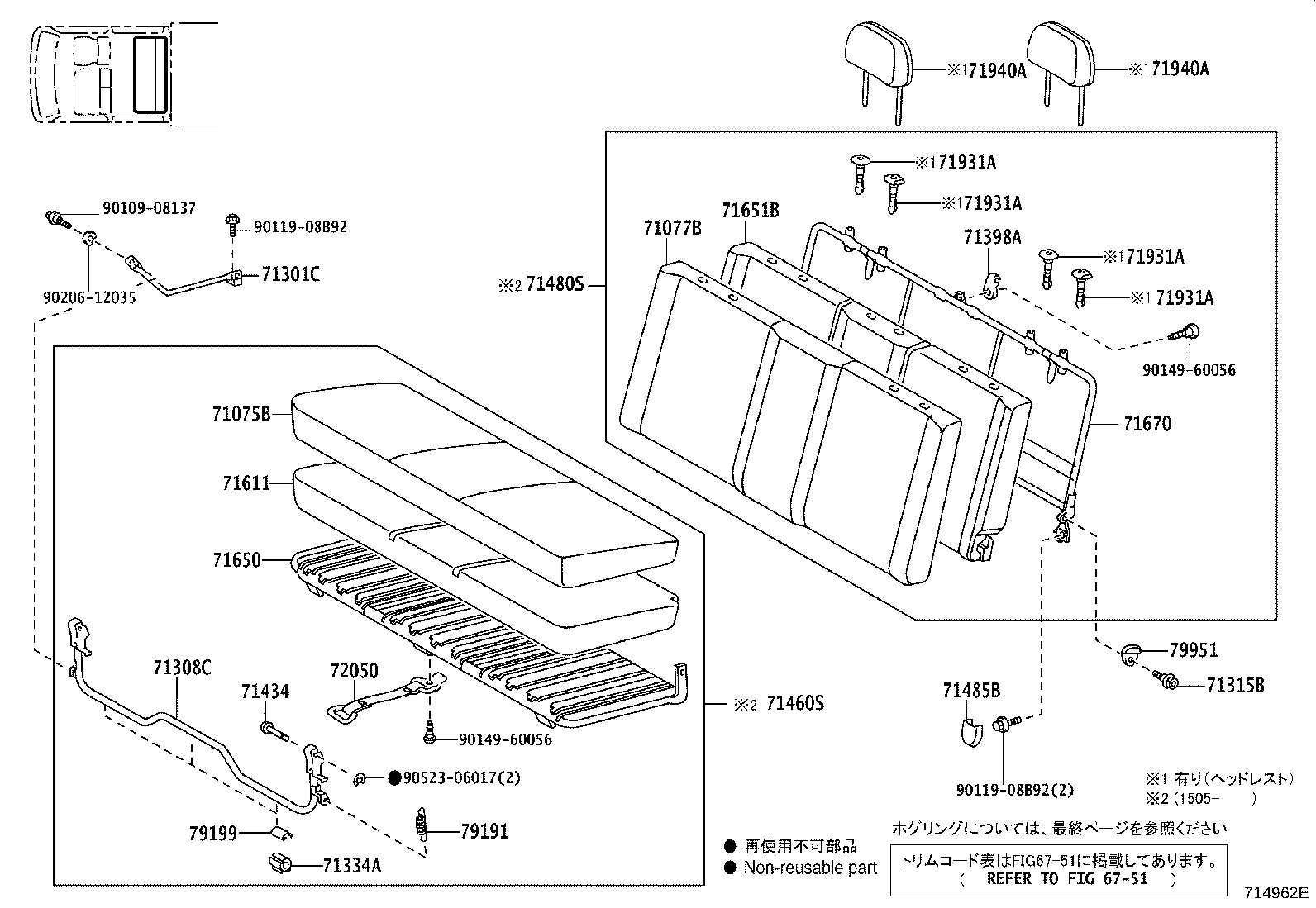

714962E 2007-09 → —

718165C 2001-07 → —

Part groups

PNC	Description
71035S	Cover, Front Seatback, Center
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B	Cover, Rear Seatback (FOR BENCH TYPE)
71131B	Plate, Front Seat Cushion, NO.1
71236A	Clamp, Rear Seat Cushion Spring
71298	Wire, Rear Seatback, Lower
71301C	Link Sub-assy, Rear Seat Cushion
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305S	Frame Sub-assy, Center Seatback
71308C	Leg Sub-assy, Rear Seat, Front
71311B	Bush (FOR FRONT SEAT HINGE PIN)
71315B	Pin, Rear Seat Hinge
71334A	Stopper, Rear Seat Leg
71365S	Pad, Center Seatback
71380	Hinge Assy, Center Seat, RH
71395B	Cover, Center Seat Hinge, RH
71397A	Cover, Center Seat Hinge
71398A	Holder, Rear Seatback
71421	Bar, Rear Seatback Equalizing
71434	Pin, Rear Seat Cushion Leg, Rear
71444A	Pad, Rear Seat Cushion, Rear
71460S	Cushion Assy, Rear Seat, RH(FOR SEPARATE TYPE)
71469A	Pad, Rear Seatback
71480S	Back Assy, Rear Seat, RH (FOR SEPARATE TYPE)
71485B	Cover, Rear Seat Hinge
71491C	Spring, Rear Seat Set
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587	Protector, Front Seatback Edge
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71611	Pad, Rear Seat Cushion
71612B	Pad, Rear Seat Cushion, B
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71631A	Pad, Rear Seat Cushion Corner
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71650	Spring Assy, Rear Seat Cushion
71651B	Pad, Rear Seatback(FOR BENCH TYPE)
71670	Spring Assy, Rear Seatback(FOR BENCH SEAT)
71739	Cushion, Seat Support
71811C	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71832D	Cover, Front Seat Hinge, LH
71848B	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71875A	Cover, Reclining Adjuster Inside, RH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71947B	Bumper, Rear Passenger Seat Cushion
72050	Belt Assy, Rear Seat Hook
72066	Belt Sub-assy, Rear Seat Hook, LH
72110A	Track Assy, Front Seat, Outer RH
72130A	Track Assy, Front Seat, Inner RH
72213C	Knob, Seat Track Adjusting Handle, LH
72301A	Wire Sub-assy, Seat Track Equalizing, RH
72510	Adjuster Assy, Reclining Seatback, RH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72593B	Knob, Reclining Remote Control Lever, RH
72630C	Lock Assy, Rear Seatback, RH
72631A	Handle, Rear Seat Leg Stopper
72641	Pin, Rear Seatback Lock
72658	Knob, Rear Seat Handle
72750D	Adjuster Assy, Lumbar Support, RH
72791	Lever, Lumbar Support
72791A	Ring, Shaft Snap(FOR LUMBER SUPPORT LEVER)
73178B	Cap, Seat Belt Anchor Cover
78950	Band Assy, Fold Seat Stopper, NO.1
79191	Spring, NO.1 Seat Cushion, NO.1
79199	Holder, NO.1 Seat Leg Stopper
79951	Cover, NO.1 Seat Cushion

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
