Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separator & Separator Curtain

18 part groups · 4 illustrations

Illustrations

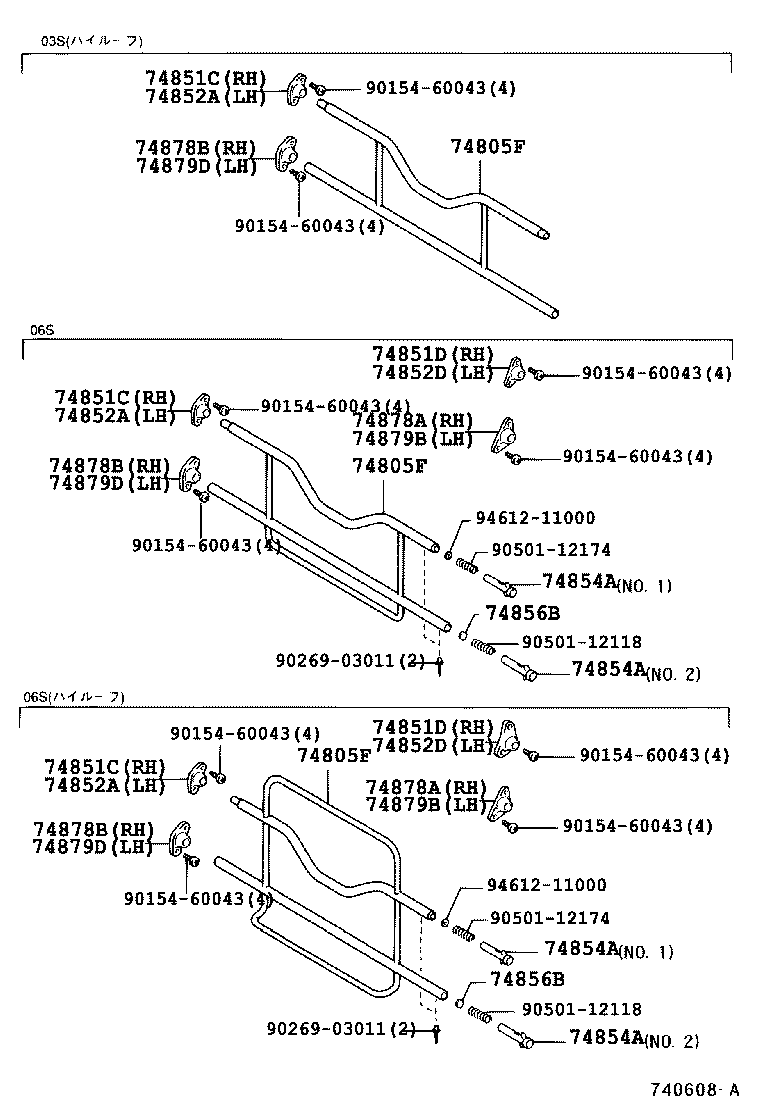

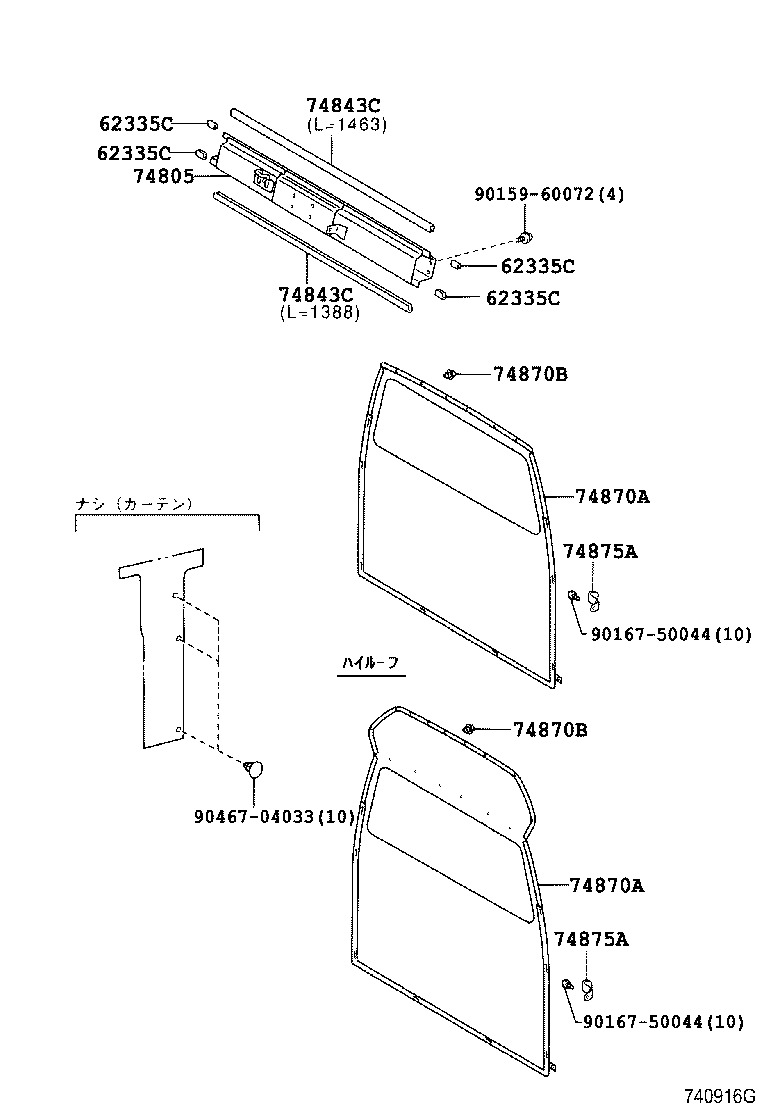

Figure 740599 740599 2001-07 → — Figure 740916G 740916G 2001-07 → — Figure 740608A 740608A 2001-07 → 2004-08 Figure 740608A 740608A 2004-08 → —

Part groups

PNCDescription
62335C Cover, Separator Bar
74805 Separator Sub-assy
74805F Bar Sub-assy, Separator, A
74815A Bar, Separator
74843C Trim, Separator, Upper Rear
74851C Bracket, Separator, Upper RH
74851D Bracket, Separator Bar, Upper RH
74852A Bracket, Separator, Upper LH
74852D Bracket, Separator Bar, Upper LH
74854A Stop, Separator
74856B Plate, Spring Set
74870A Curtain Assy, Separator
74870B Hook, Male(FOR SEPARATOR CURTAIN SET)
74875A Plate, Curtain Rear Separator
74878A Bracket, Separator Bar, Lower
74878B Bracket, Separator Bar, Lower RH
74879B Bracket, Separator Bar, Lower LH
74879D Bracket, Separator Bar, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
