Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery Carrier

12 part groups · 14 illustrations

Illustrations

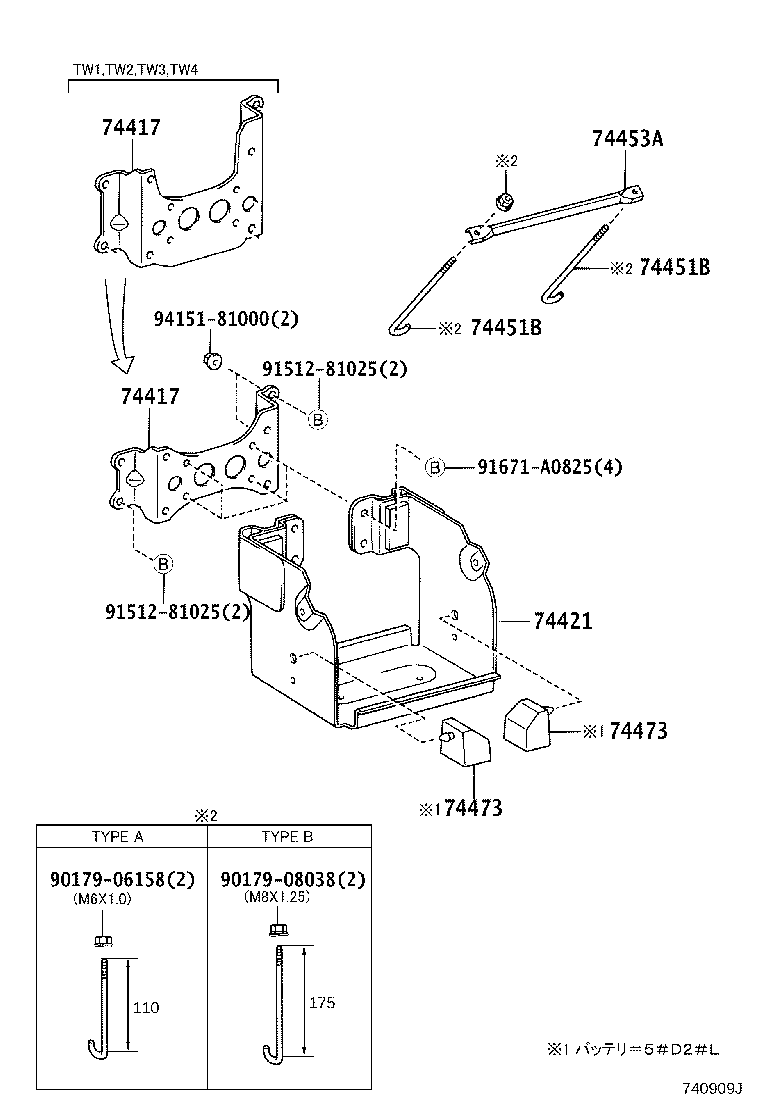

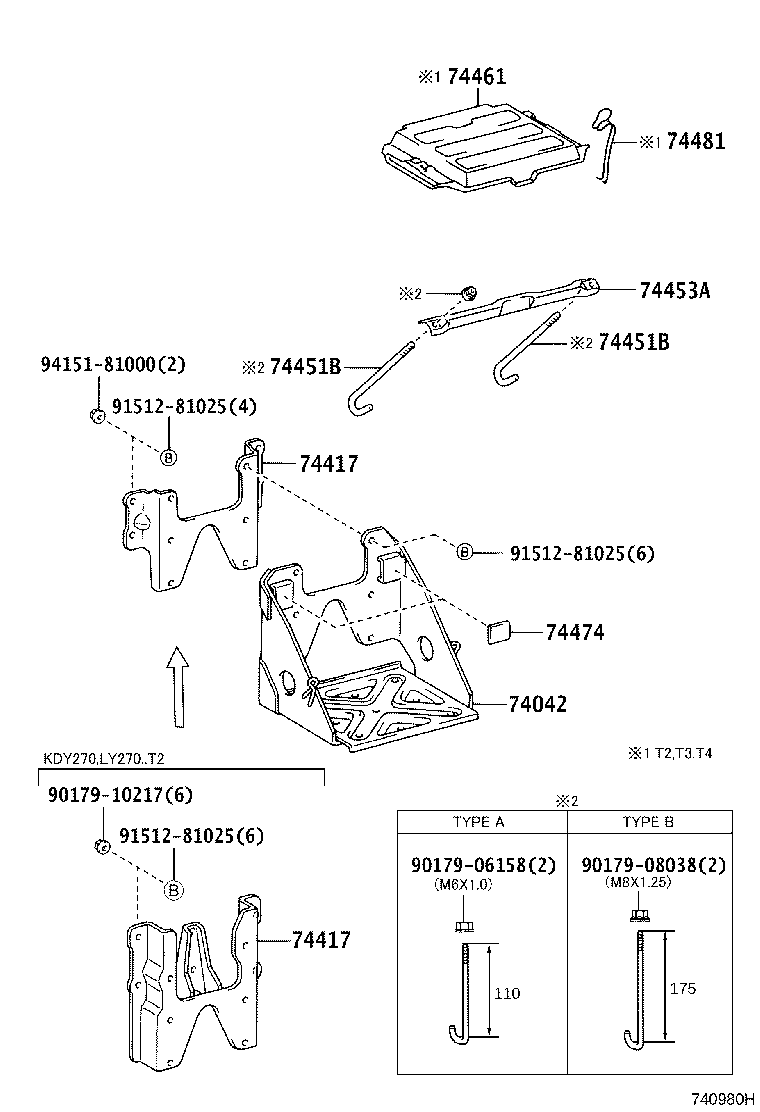

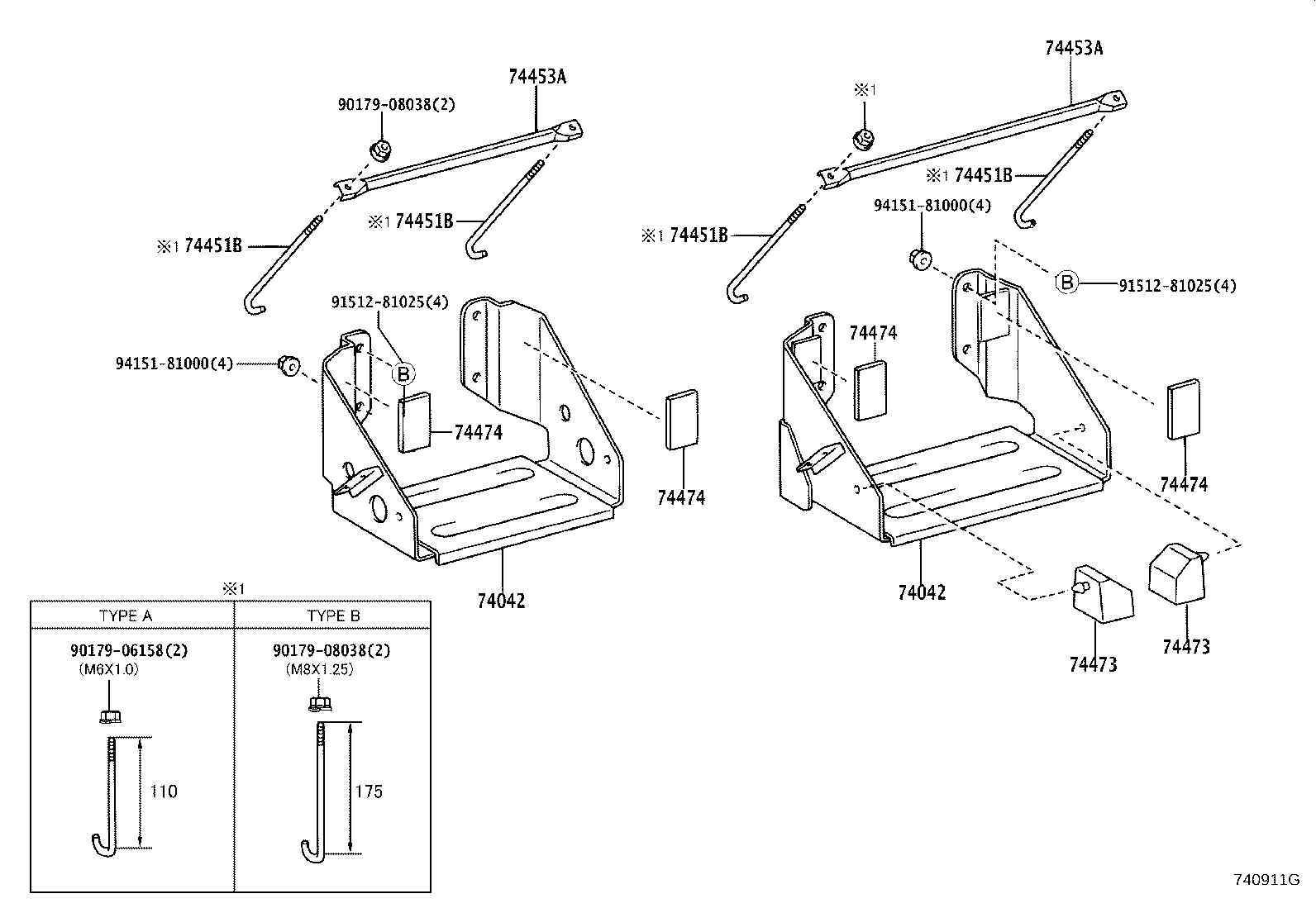

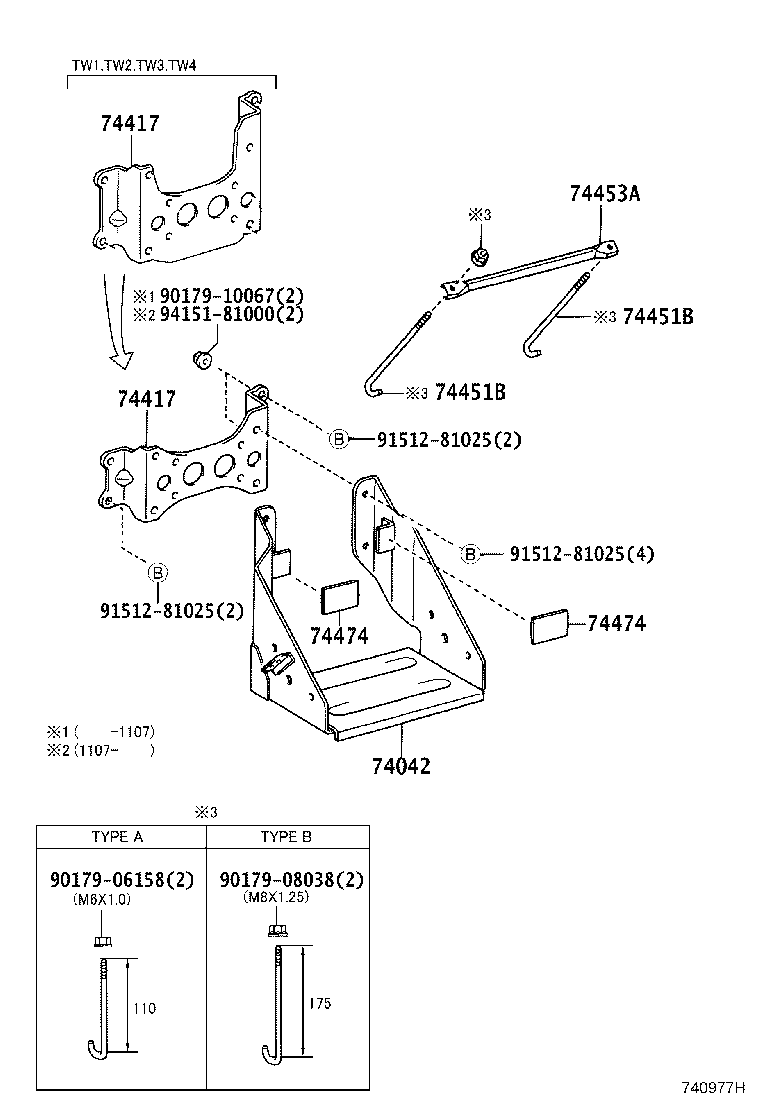

Figure 740908H 740908H 2001-07 → — Figure 740909J 740909J 2001-07 → — Figure 740909J 740909J 2001-07 → — Figure 742462F 742462F 2001-07 → — Figure 740977H 740977H 2001-07 → 2004-08 Figure 740977H 740977H 2003-08 → — Figure 740977H 740977H 2007-09 → — Figure 740977H 740977H 2007-09 → — Figure 740978E 740978E 2001-07 → — Figure 740976H 740976H 2001-07 → — Figure 740980H 740980H 2001-07 → 2004-08 Figure 740980H 740980H 2004-08 → — Figure 740980H 740980H 2007-09 → — Figure 740911G 740911G 2001-07 → —

Part groups

PNCDescription
74042 Bracket Sub-assy, Battery
74411B Bracket, Battery, Front
74412 Bracket, Battery, Rear
74417 Bracket, Battery Carrier
74421 Hanger, Battery
74451B Bolt, Battery Clamp
74452 Plate, Battery Set
74453A Bar, Battery Set Plate
74461 Cover, Battery
74473 Spacer, Battery
74474 Pad, Battery
74481 Clamp, Battery Hold Down
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
