Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10

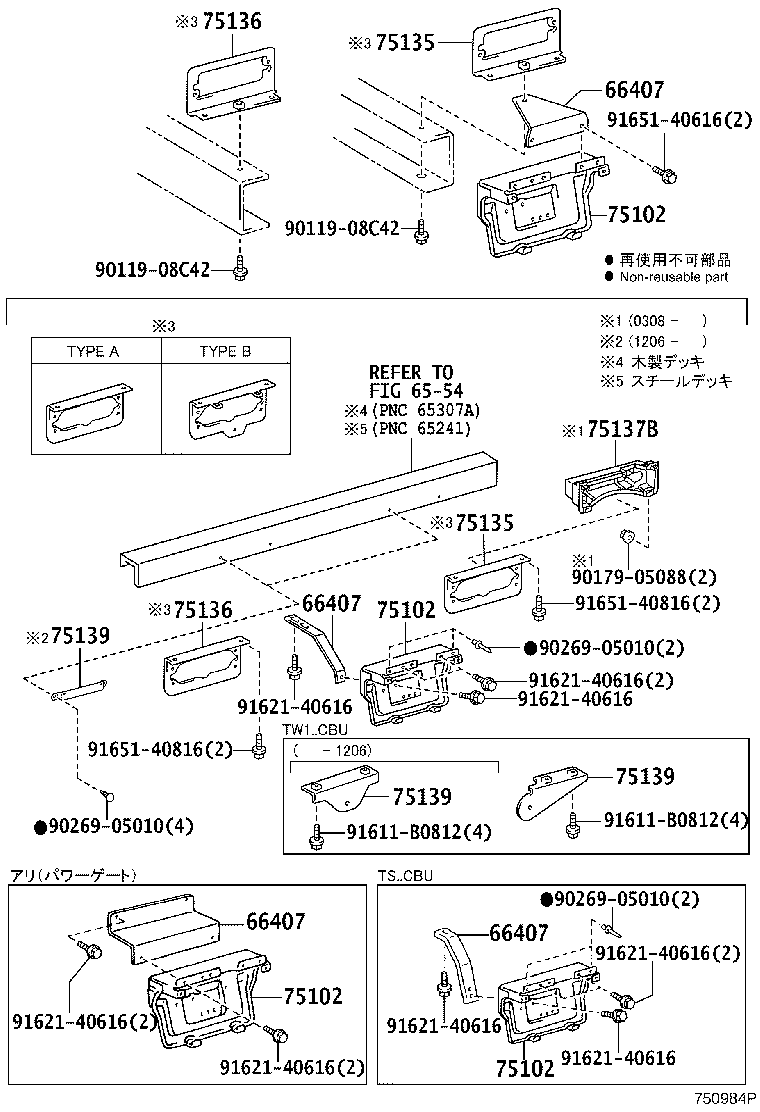

Tool Box & License Plate Bracket
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58705 | Band Sub-assy, Tool Bag |
| 58794B | Support, Jack Handle |
| 58797B | Band, Jack Clamp |
| 66407 | Stay Sub-assy, License Plate Bracket |
| 75102 | Bracket Sub-assy, Rear License Plate |
| 75135 | Bracket, Combination Rear Lamp, RH |
| 75136 | Bracket, Combination Rear Lamp, LH |
| 75137B | Cover, Combination Rear Lamp, RH |
| 75139 | Bracket, Reflex Reflector |
| 75204B | Stay Sub-assy, Tool Box |
| 75210A | Box Assy, Tool |
| 75247B | Support, Tool Box |
| 75298 | Plate, Jack Holder |
| 75299A | Base, Jack Holder |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
