Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

123 part groups · 19 illustrations

Illustrations

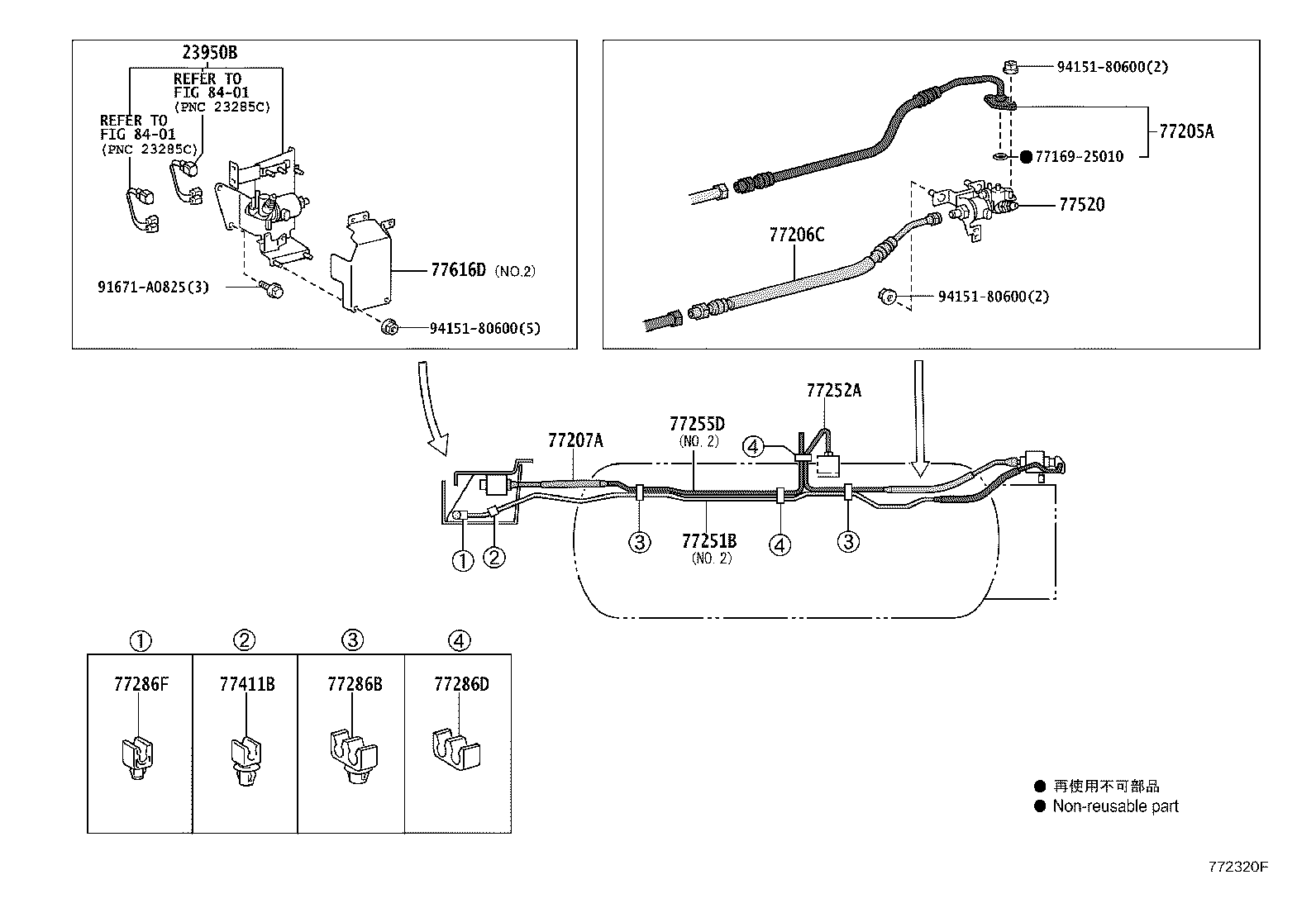

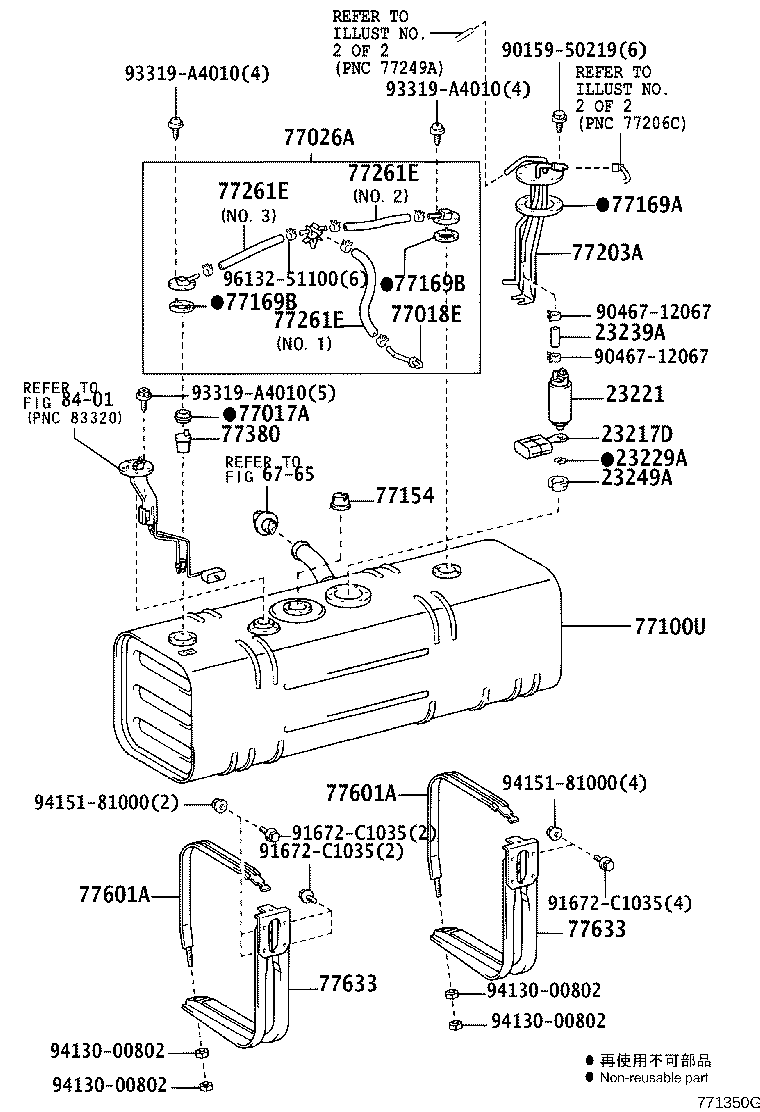

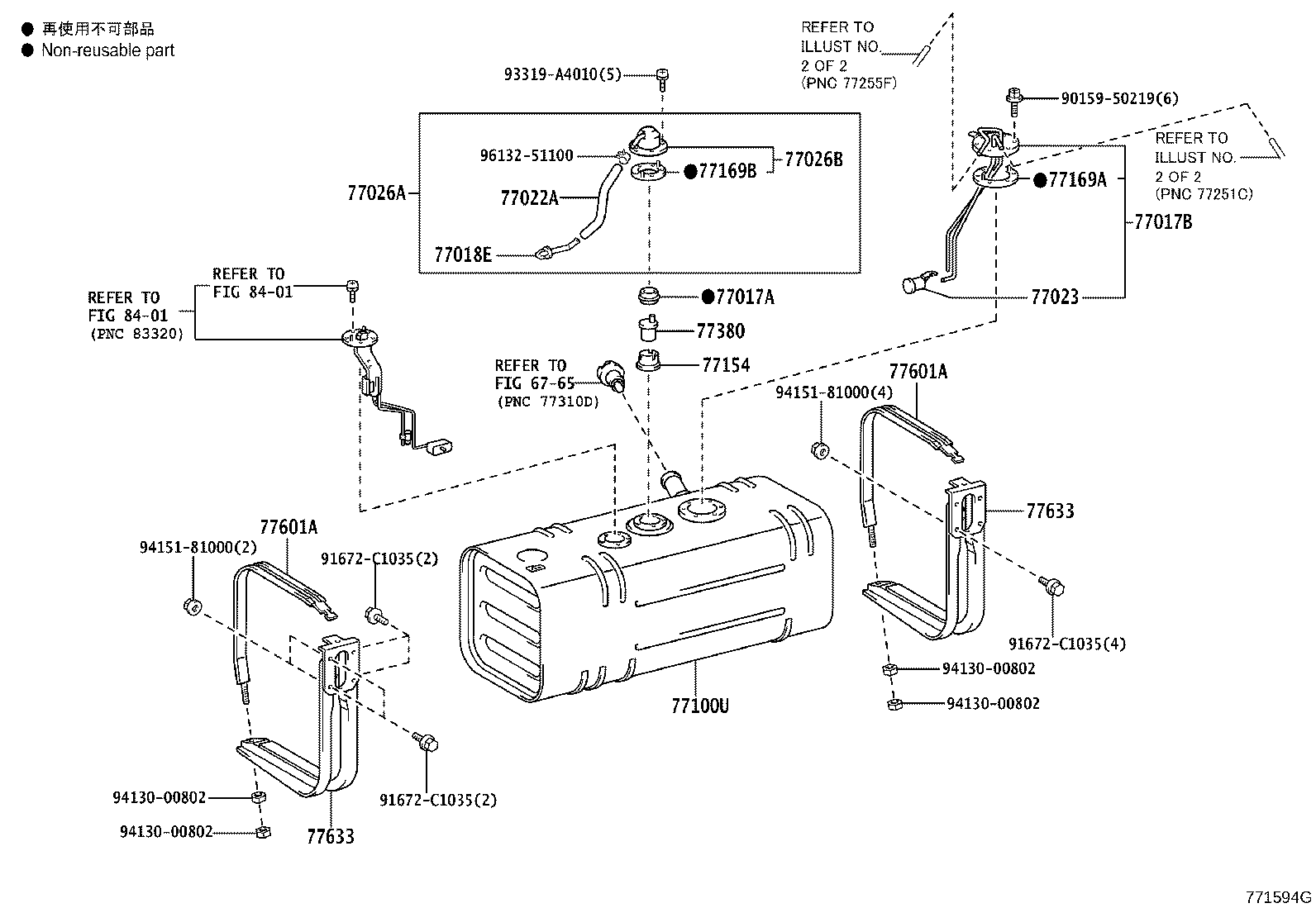

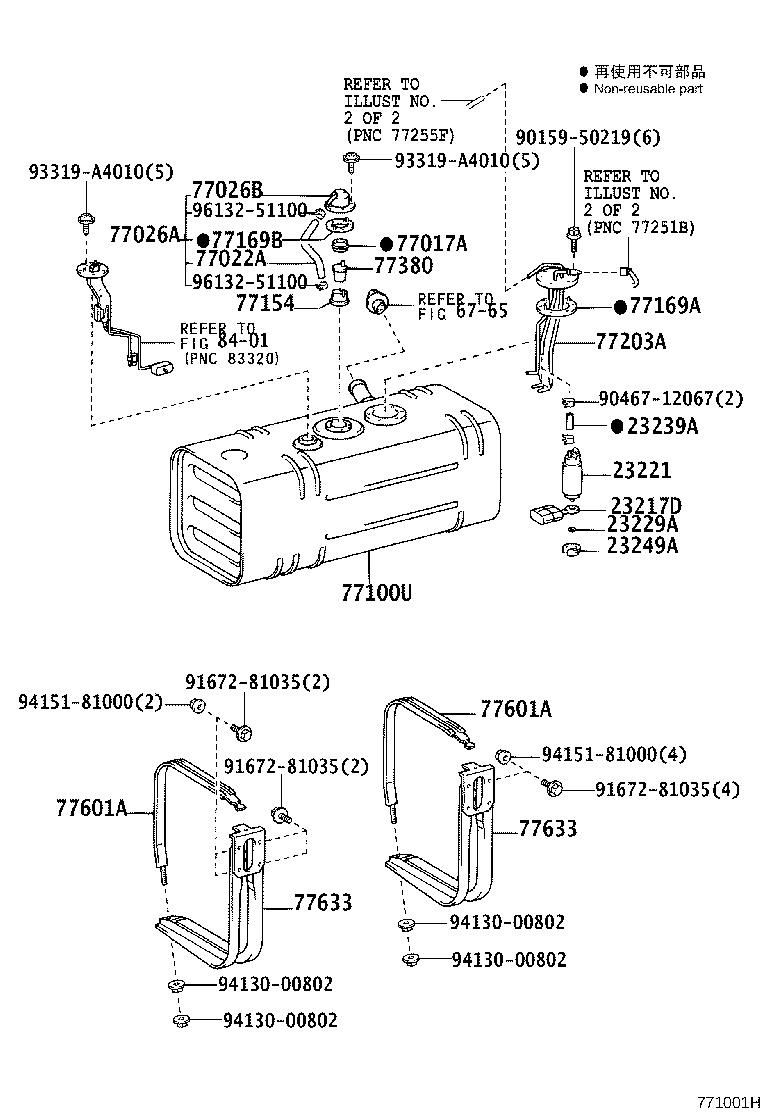

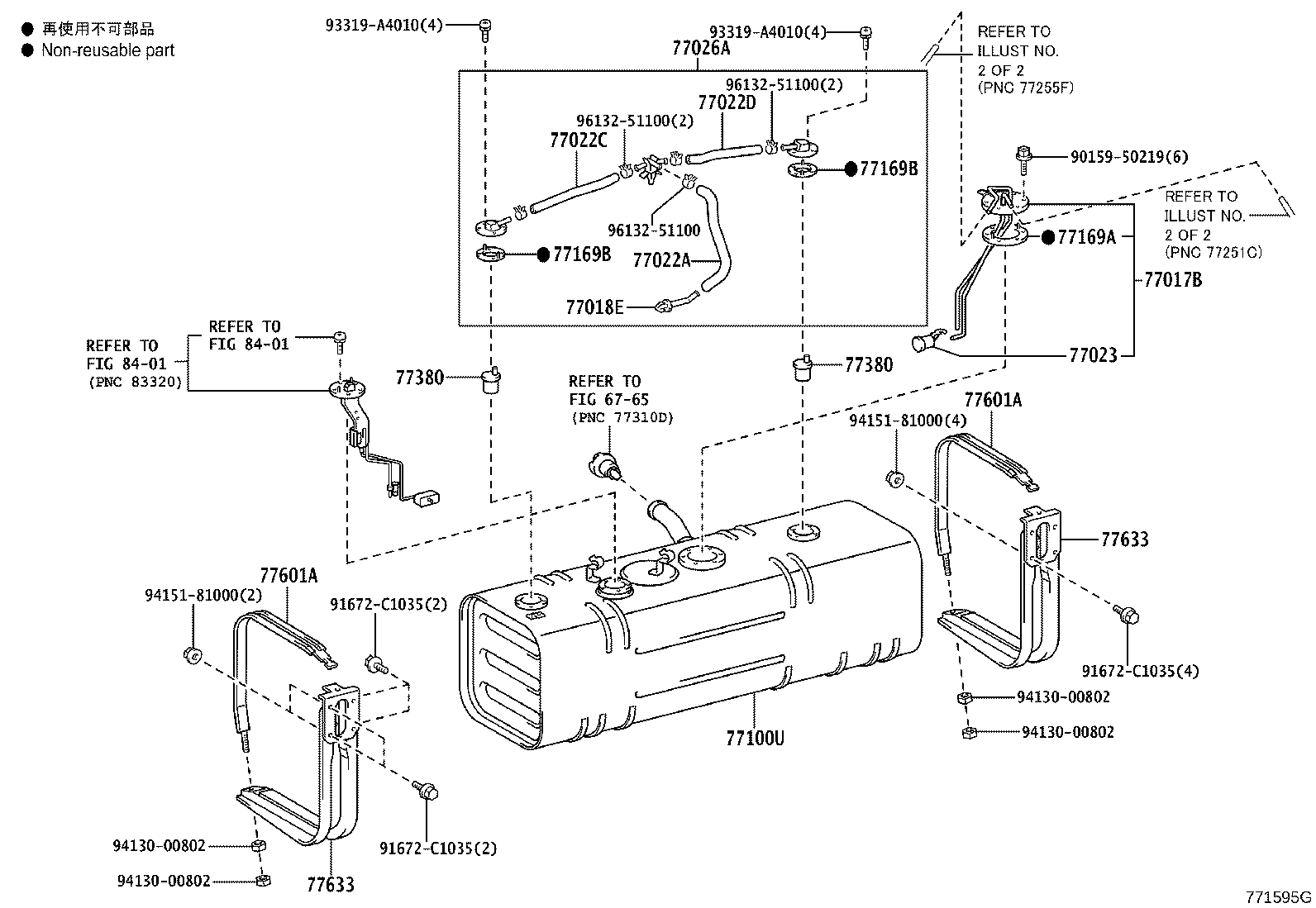

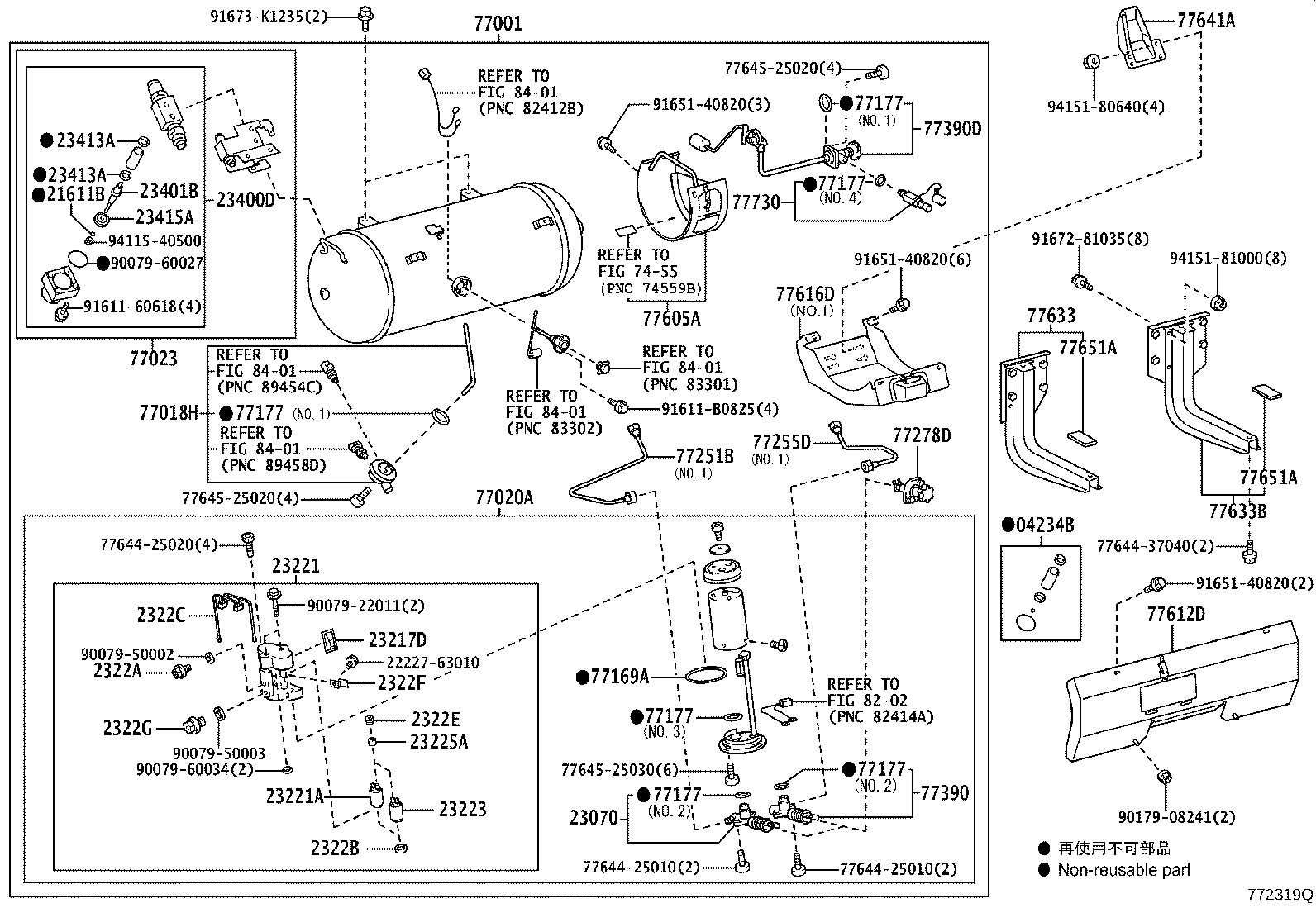

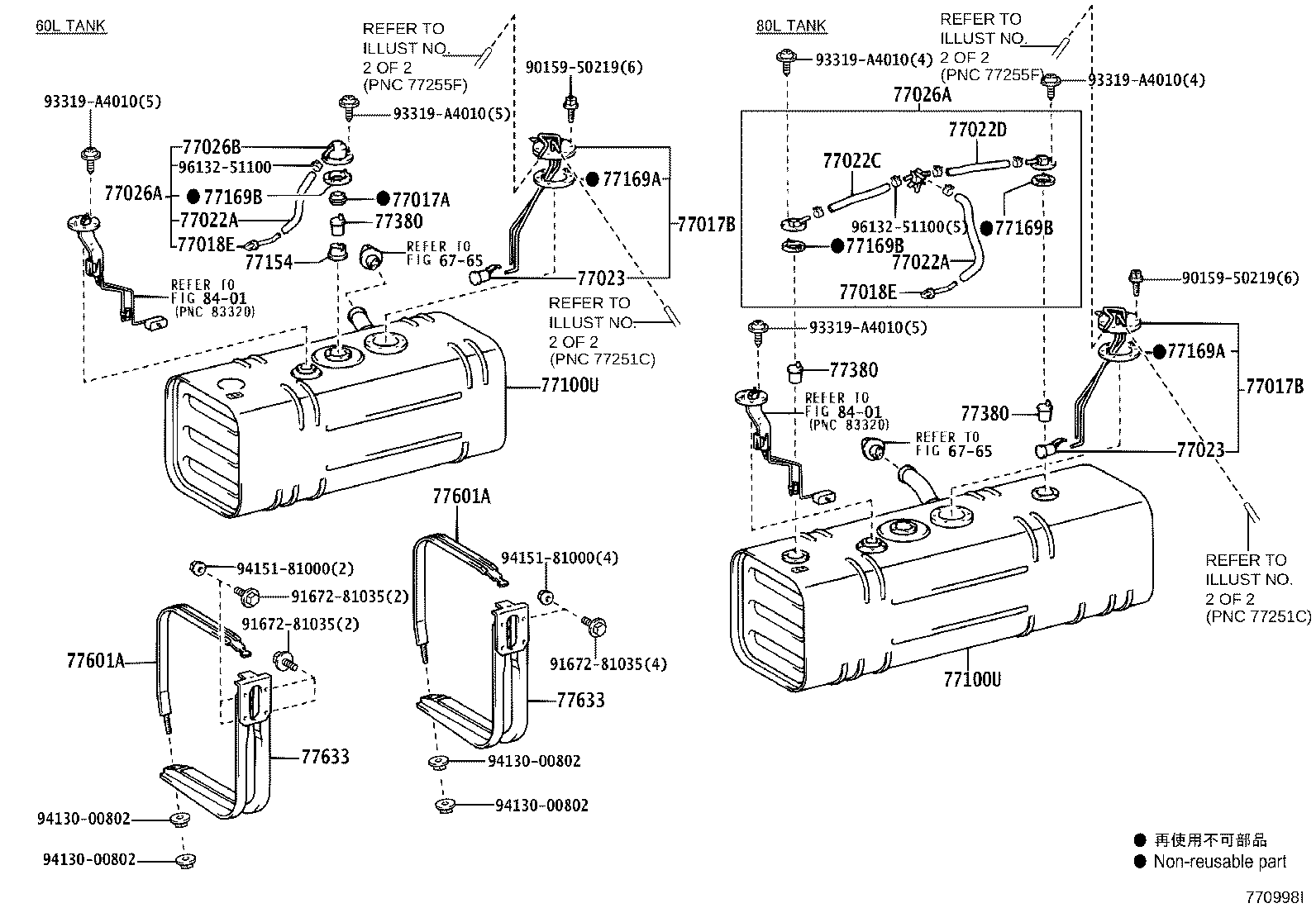

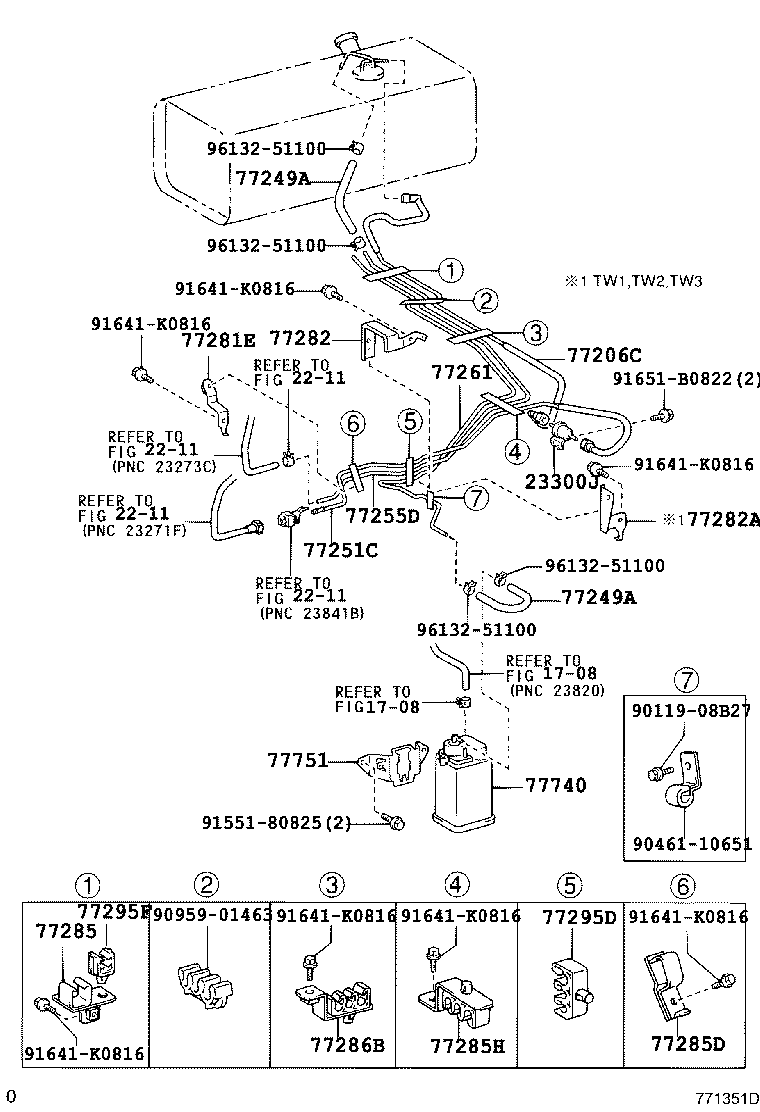

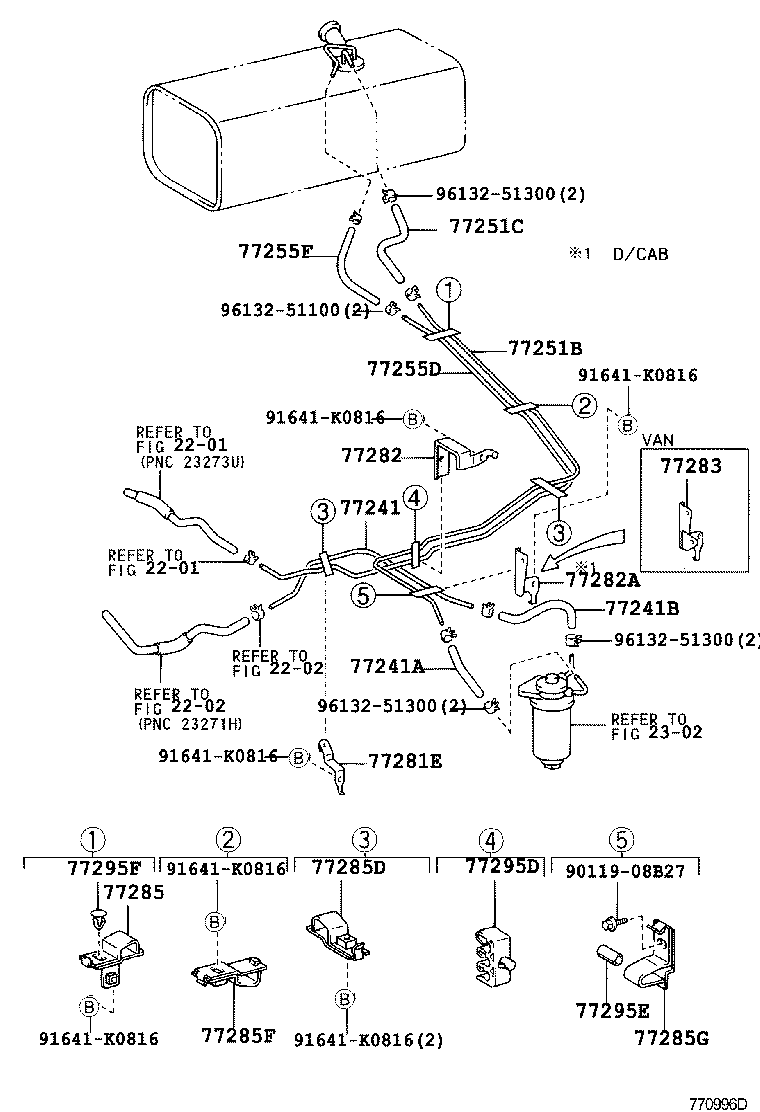

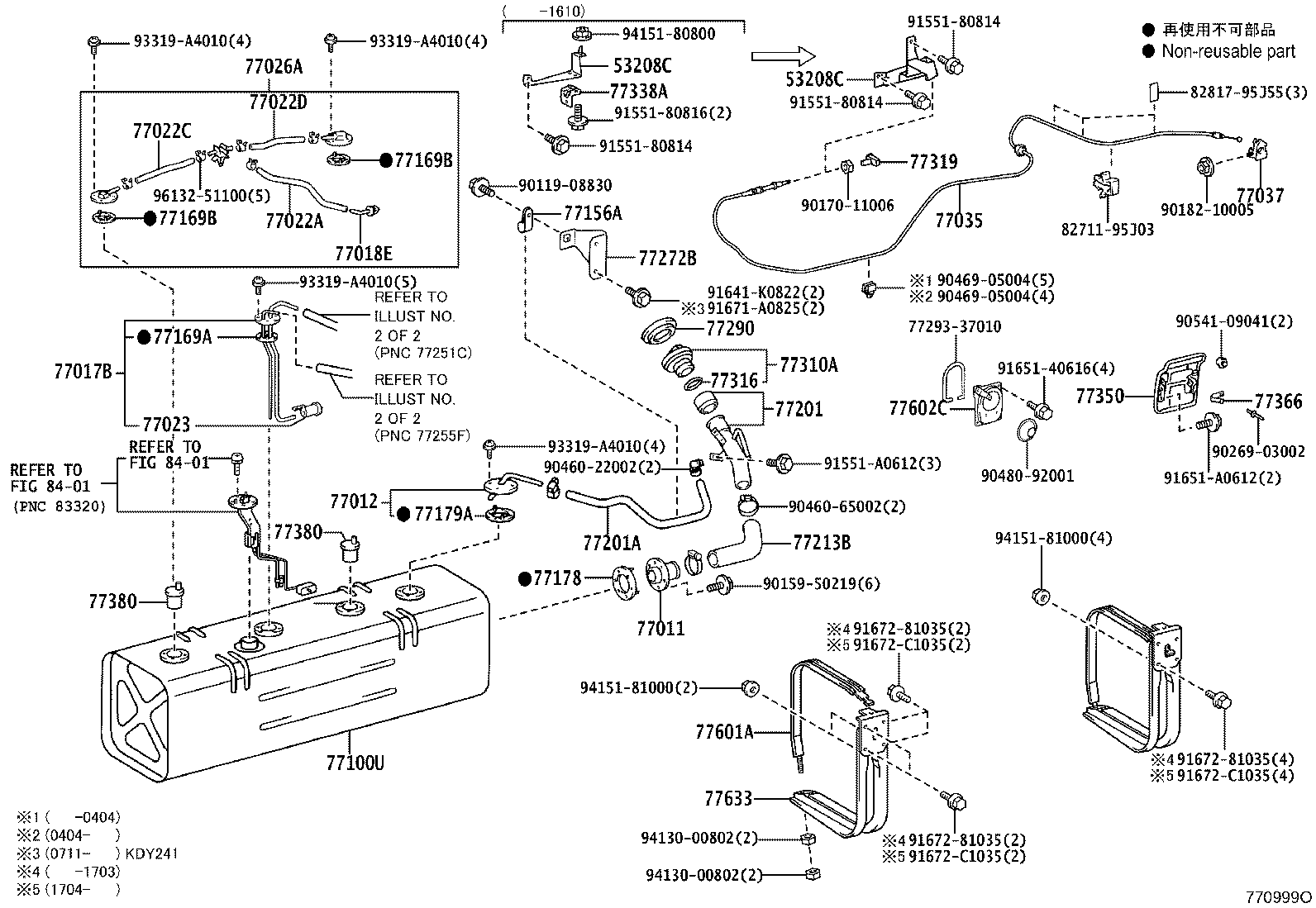

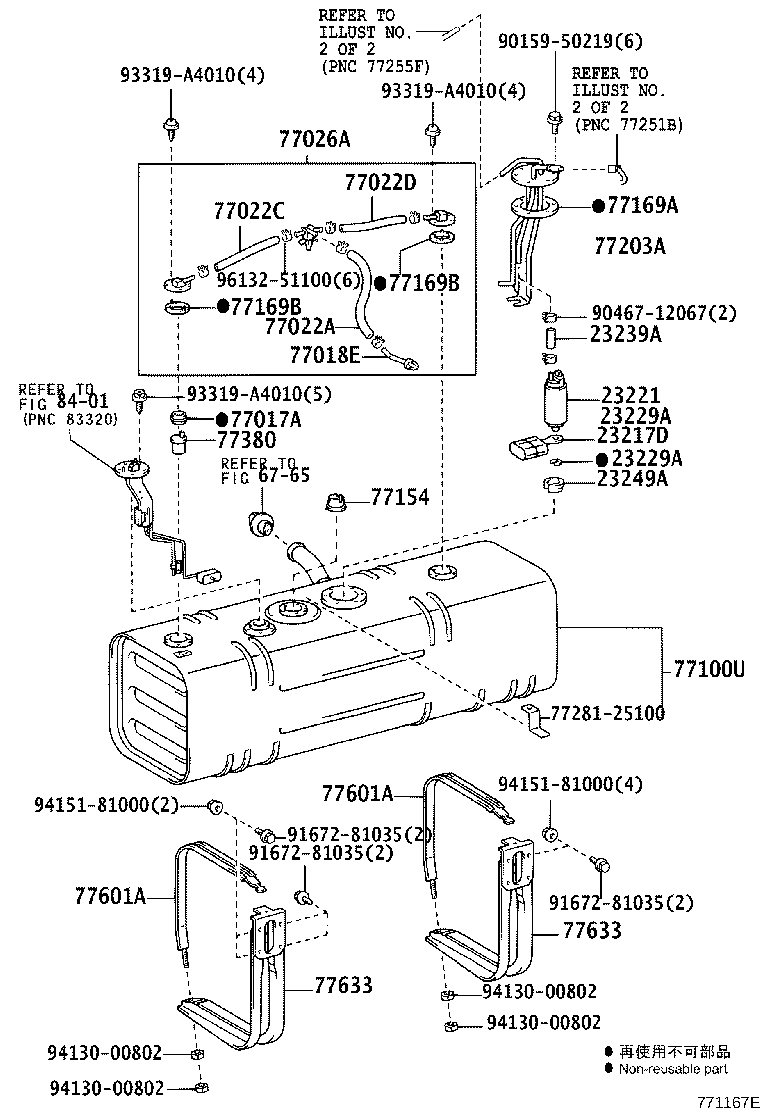

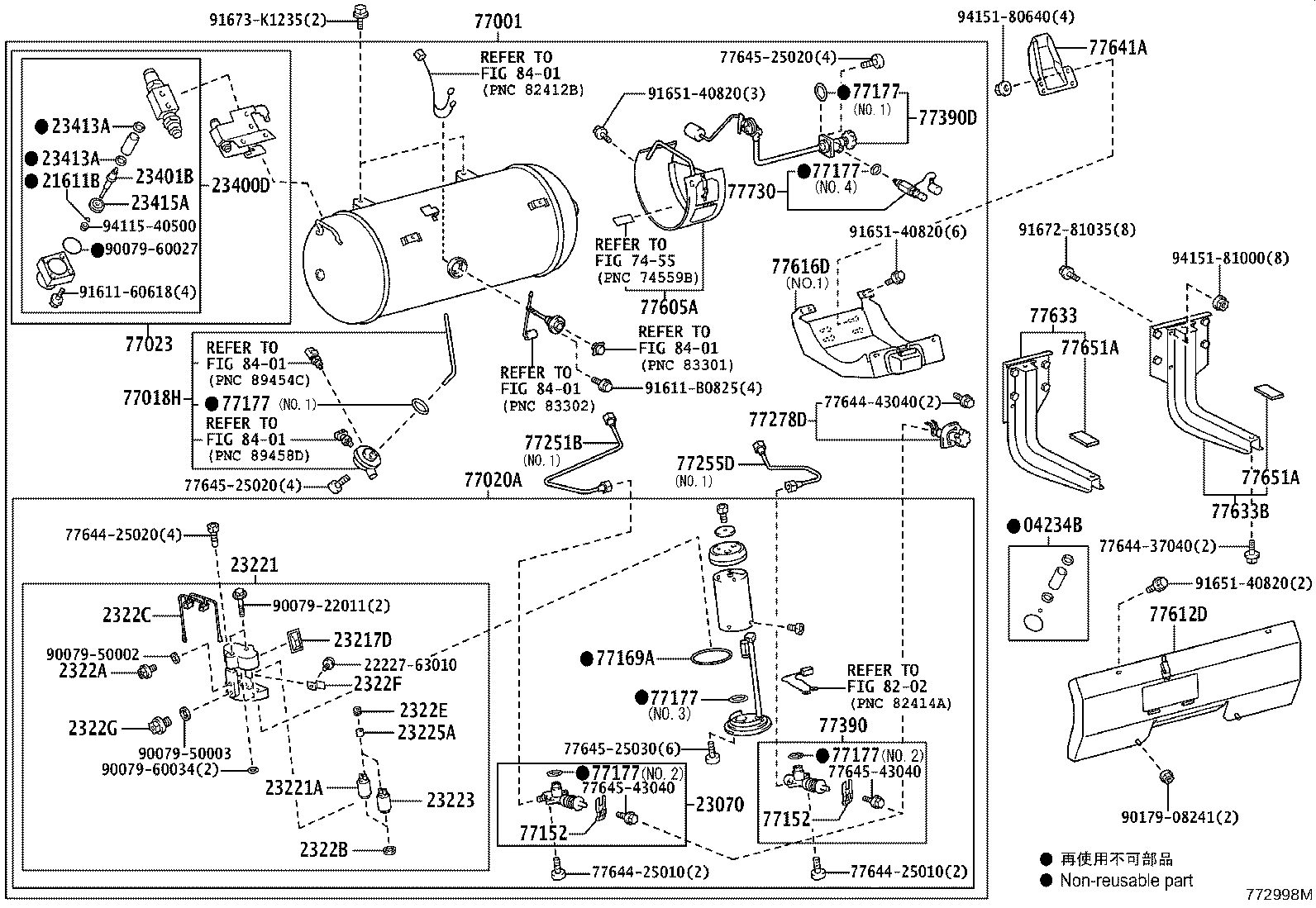

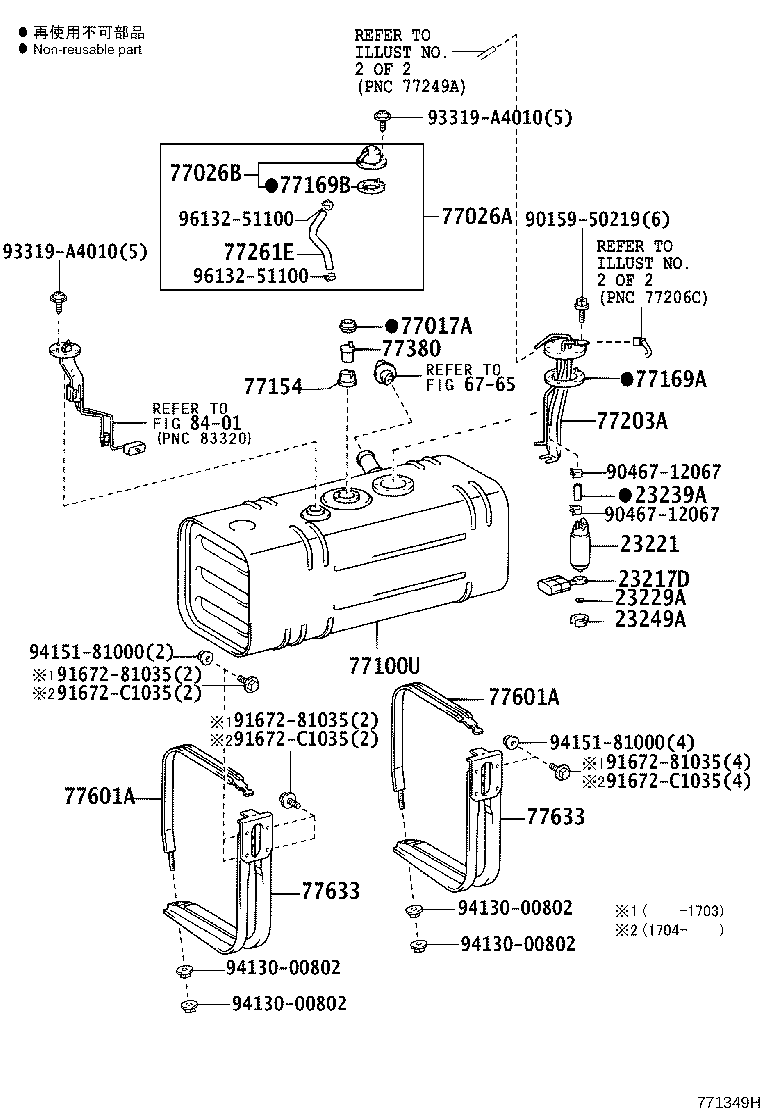

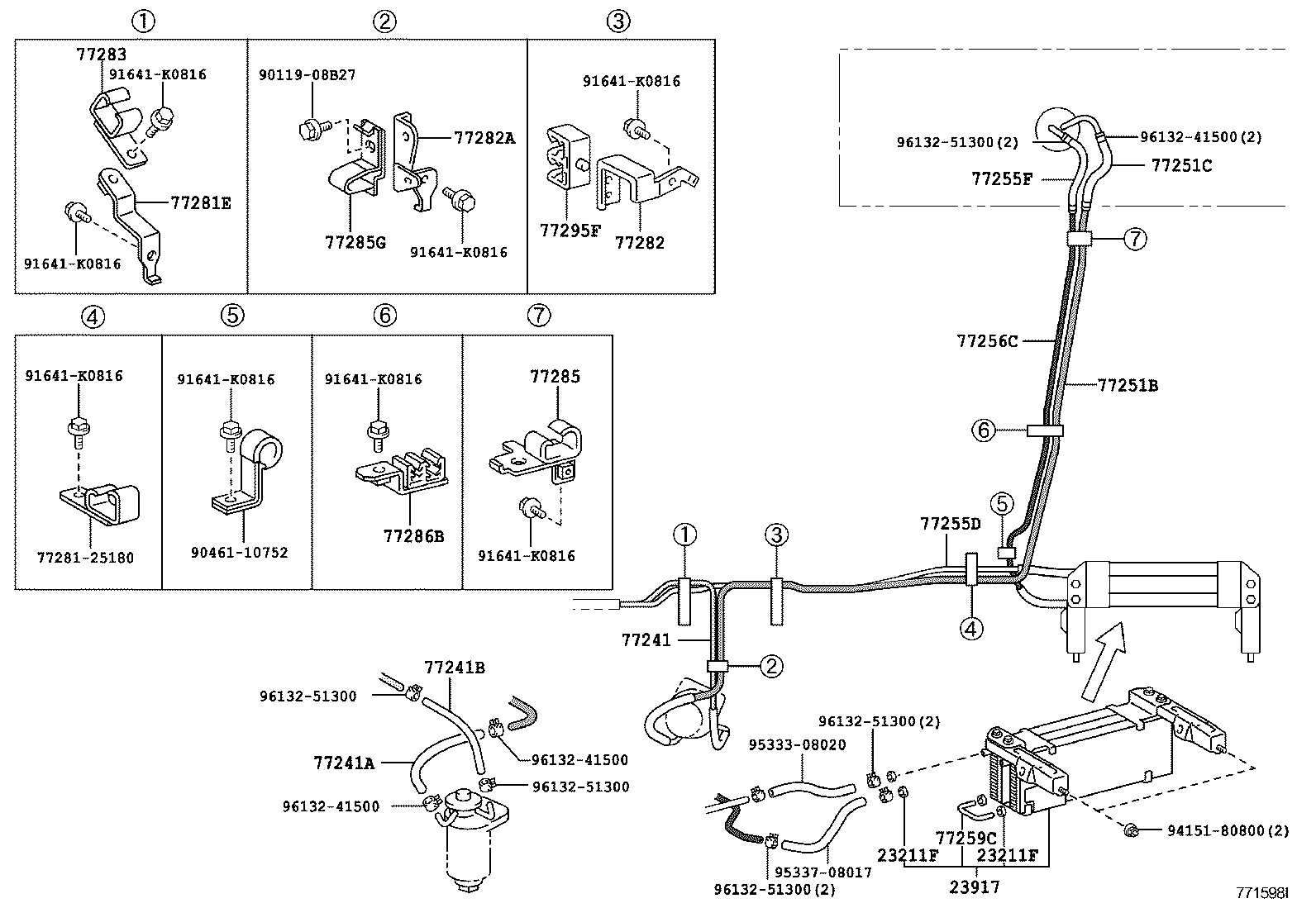

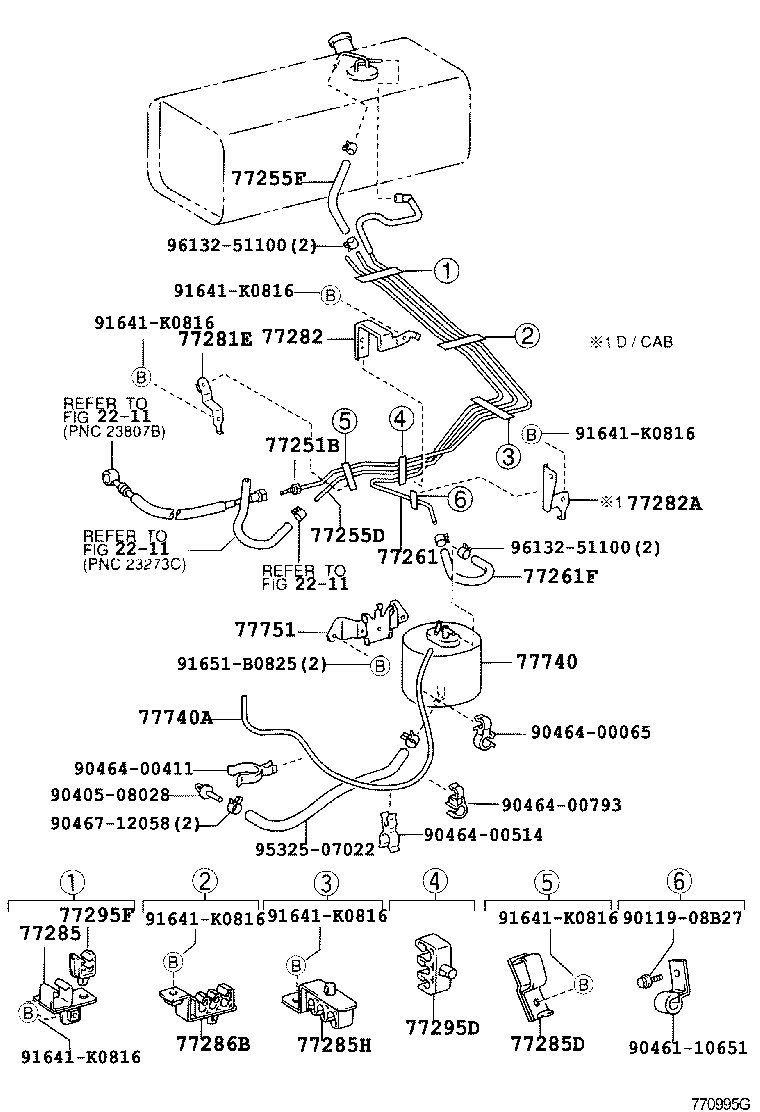

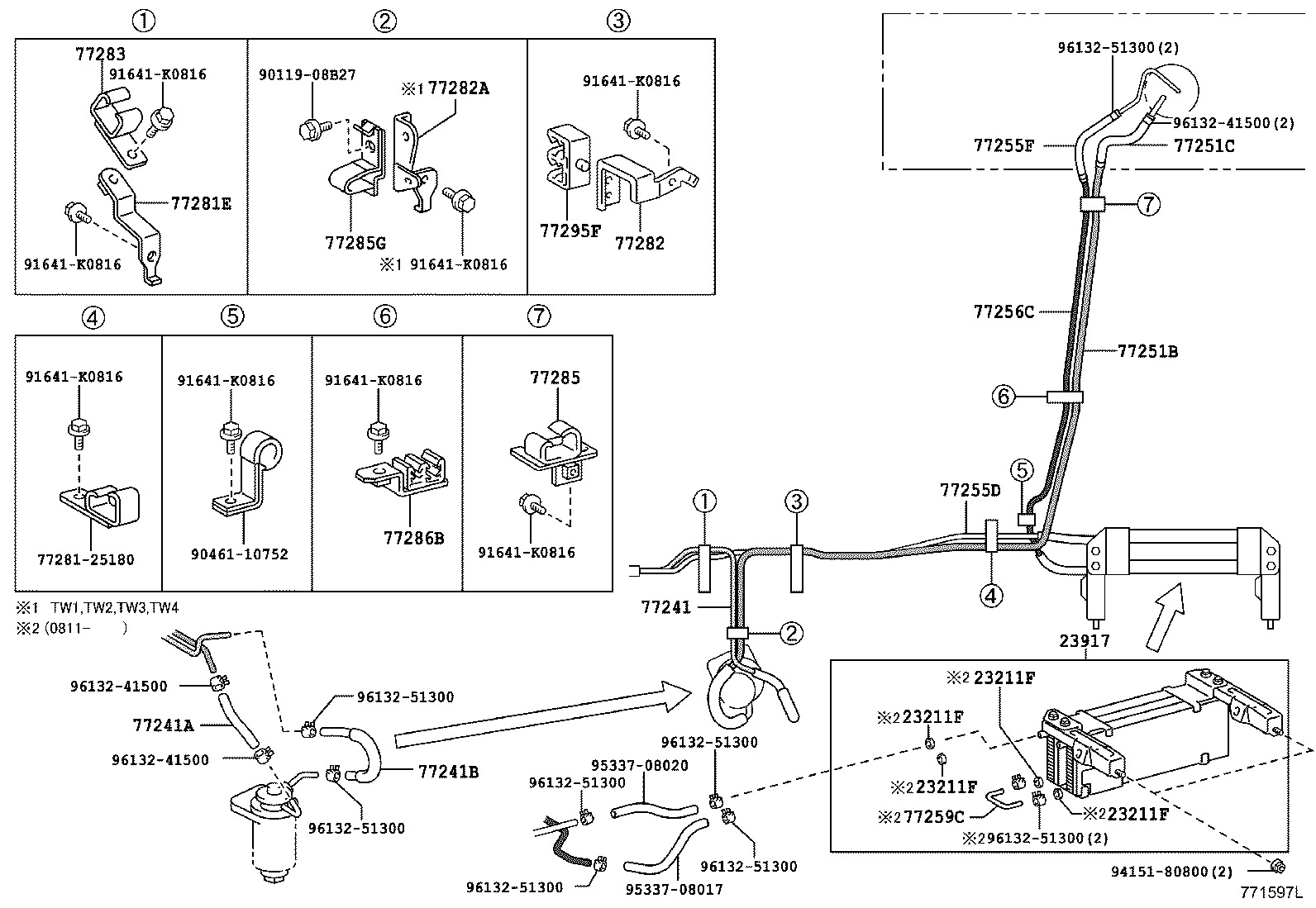

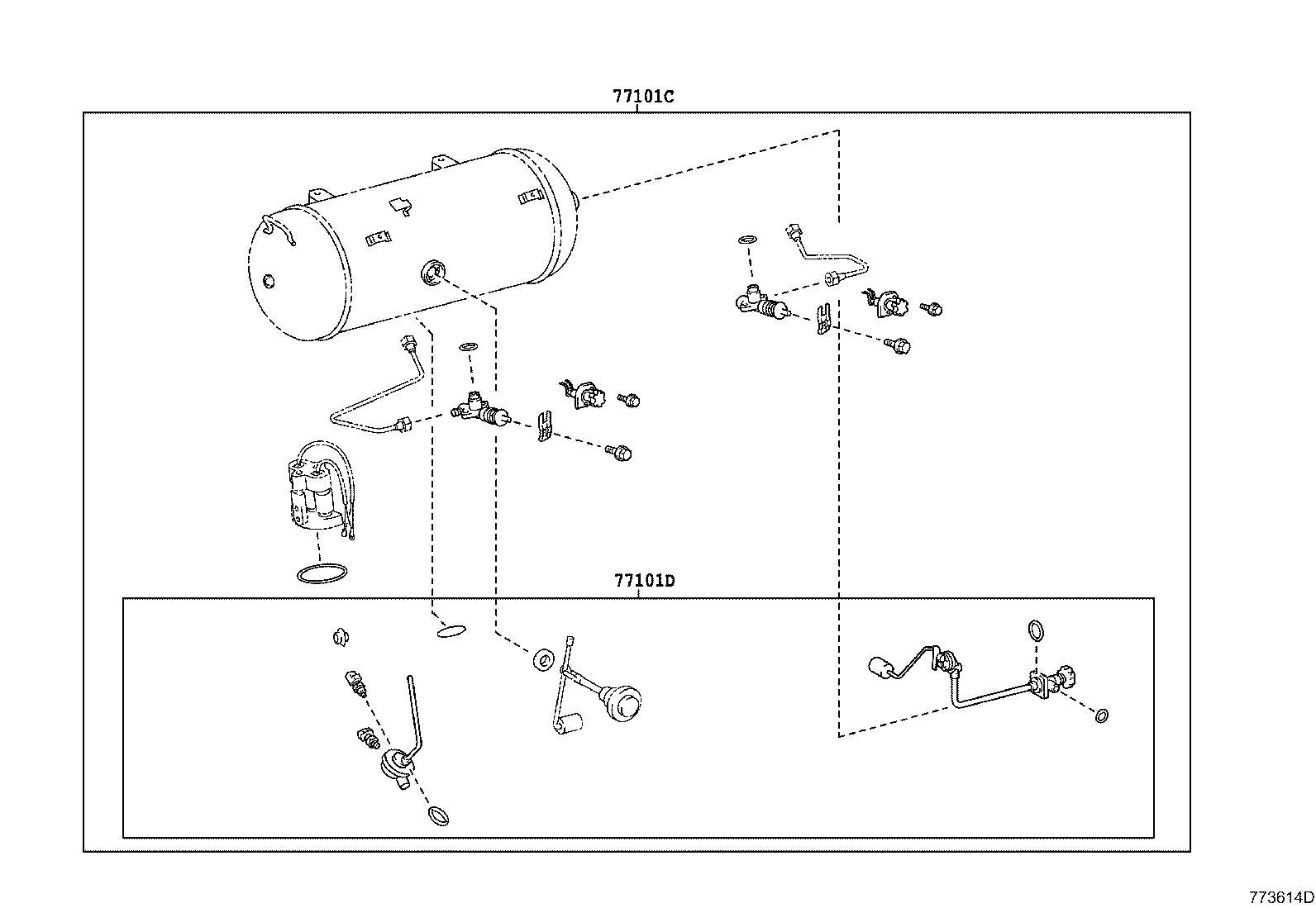

Figure 770993K 770993K 2001-07 → — Figure 770998I 770998I 2001-07 → 2004-08 Figure 770999O 770999O 2001-07 → 2004-08 Figure 770999O 770999O 2004-08 → — Figure 771001H 771001H 2001-07 → 2003-08 Figure 771349H 771349H 2003-08 → — Figure 771167E 771167E 2002-07 → 2003-08 Figure 771350G 771350G 2003-08 → — Figure 771594G 771594G 2004-08 → — Figure 771595G 771595G 2004-08 → — Figure 772319Q 772319Q 2007-12 → 2011-03 Figure 772998M 772998M 2011-03 → — Figure 770996D 770996D 2001-07 → 2004-08 Figure 770995G 770995G 2001-07 → 2003-08 Figure 771351D 771351D 2003-08 → — Figure 771597L 771597L 2004-08 → — Figure 771598I 771598I 2004-08 → — Figure 772320F 772320F 2007-12 → — Figure 773614D 773614D 2007-12 → —

Part groups

PNCDescription
04234B Element Kit, Lpg Filter
21611B Gasket, Main Jet
23070 Valve Assy, Fuel Main
23211F Bracket
23217D Filter, Fuel Pump
23221 Pump, Fuel
23221A Pump, Fuel, NO.1
23223 Pump, Fuel, NO.2
23225A Spacer, Fuel Pump
23229A Clip(FOR FUEL PUMP FILTER)
2322A Valve, Fuel Pump Relief
2322B Rubber, Fuel Pump Cushion
2322C Harness, Fuel Pump Wire
2322E Seal, Fuel Pump
2322F Support, Fuel Pump Filter
2322G Valve, Fuel Pump Cut
23239A Hose
23249A Rubber, Cushion(FOR FUEL PUMP)
23300J Filter Assy, Fuel
23400D Filter Assy, Lpg
23401B Bolt
23413A Gasket(FOR LPG FILTER)
23415A Plate
23917 Cooler, Fuel
23950B Valve Assy, Solenoid
23960C Valve Assy, Solenoid Lpg
23972A Bracket, Filter & Solenoid Valve
53208C Support Sub-assy, Hood Lock
77001 Tank Assy, Fuel (LPG)
77001B Valve (FOR LPG TANK)
77011 Pipe Sub-assy, Fuel Tank Filler, Lower
77012 Tube Sub-assy, Fuel Tank Breather
77017A Gasket, Fuel Tank Vent
77017B Tube Sub-assy, Fuel Tank Vent
77018E Tube Sub-assy, Fuel Tank Evaporation Vent
77018H Valve Sub-assy, Fuel Vapor Separate
77020A Tube Assy, Fuel Suction W/Pump & Gage
77022A Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
77022C Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77022D Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR)
77023 Filter Sub-assy, Fuel Suction Tube
77026A Tube Sub-assy, Fuel Evaporation, NO.1
77026B Tube Sub-assy, Fuel Evaporation, NO.1
77035 Cable Sub-assy, Fuel Lid Lock Control
77037 Lock Sub-assy, Fuel Filler Opening Lid
77100U Tank Sub-assy, Fuel
77101C Maintenance Set, Lpg(FULL)
77101D Maintenance Set, Lpg(HALF)
77152 Joint, Fuel Tank Valve, Inner
77154 Plate, Fuel Tank Evap/Vent Tube Support
77156A Plate, Breather Tube Support, NO.2
77169A Gasket, Fuel Suction Tube Set
77169B Gasket, Fuel Suction Tube Set, NO.1
77177 Gasket, Check Valve
77178 Gasket, Fuel Tank Filler Pipe, Lower
77179A Gasket, Fuel Tank Breather Tube
77201 Pipe Sub-assy, Fuel Tank Inlet
77201A Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
77203A Tube Sub-assy, Fuel Suction
77205A Tube Sub-assy, Fuel Main
77206C Tube Sub-assy, Fuel Main, NO.2
77207A Tube Sub-assy, Fuel Return
77213B Hose, Fuel Tank TO Filler Pipe
77241 Tube, Fuel Main, NO.1
77241A Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
77241B Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1)
77249A Hose, Fuel Emission
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77252A Tube, Fuel Main, NO.2
77255D Tube, Fuel Return
77255F Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE)
77256C Tube, Fuel Return, NO.2
77259C Hose, Fuel
77261 Tube Sub-assy, Fuel Emission
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77261F Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
77272B Support, Breather Tube, NO.1
77278D Valve, Check W/Bracket
77281E Bracket, Fuel Main Tube, NO.1
77282 Bracket, Fuel Main Tube, NO.2
77282A Bracket, Fuel Main Tube, NO.2
77283 Bracket, Fuel Tube
77285 Bracket, Fuel Tube
77285D Clamp, Fuel Tube, NO.1
77285F Clamp, Fuel Tube, NO.1
77285G Clamp, Fuel Tube, NO.1
77285H Clamp, Fuel Tube, NO.1
77286B Clamp, Fuel Tube W/Grommet, NO.2
77286D Clamp, Fuel Tube, NO.2
77286F Clamp, Fuel Tube, NO.2
77290 Shield Assy, Fuel Tank Filler Pipe
77295D Grommet, Fuel Tube
77295E Grommet, Fuel Tube
77295F Grommet, Fuel Hose
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77319 Knob, Fuel Tank Cap
77326 Connector, Auxiliary Fuel Tank Cap
77338A Bracket, Fuel Tank Cap Lock Control Rod
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77380 Valve Assy, Fuel Cut Off
77390 Valve Assy, Fuel Tank Inlet
77390C Valve, Fuel Tank Inlet
77390D Valve Assy, Fuel Tank Over Fill Check
77411B Support, Fuel Tube Grommet, NO.1
77520 Valve Assy, Solenoid Lpg Emergency
77601A Band Sub-assy, Fuel Tank, NO.1
77602C Cover Sub-assy, Fuel Tank, Lower
77605A Cover Sub-assy, Fuel Tank Valve Handle
77612D Cover, Fuel Tank, LH
77616D Cover, Fuel Tank Valve
77633 Stay, Fuel Tank
77633B Stay, Fuel Tank
77638 Sleeve, Tank Valve Joint
77638A Ring, O (FOR TANK VALVE JOINT SLEEVE)
77641A Protector, Fuel Tank, NO.1
77651A Cushion, Fuel Tank, NO.1
77730 Valve Assy, Fuel Inlet
77740 Canister Assy, Charcoal
77740A Hose, Fuel, NO.1(FOR CHARCOAL CANISTER)
77751 Bracket, Charcoal Canister Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
