Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

8 part groups · 4 illustrations

Illustrations

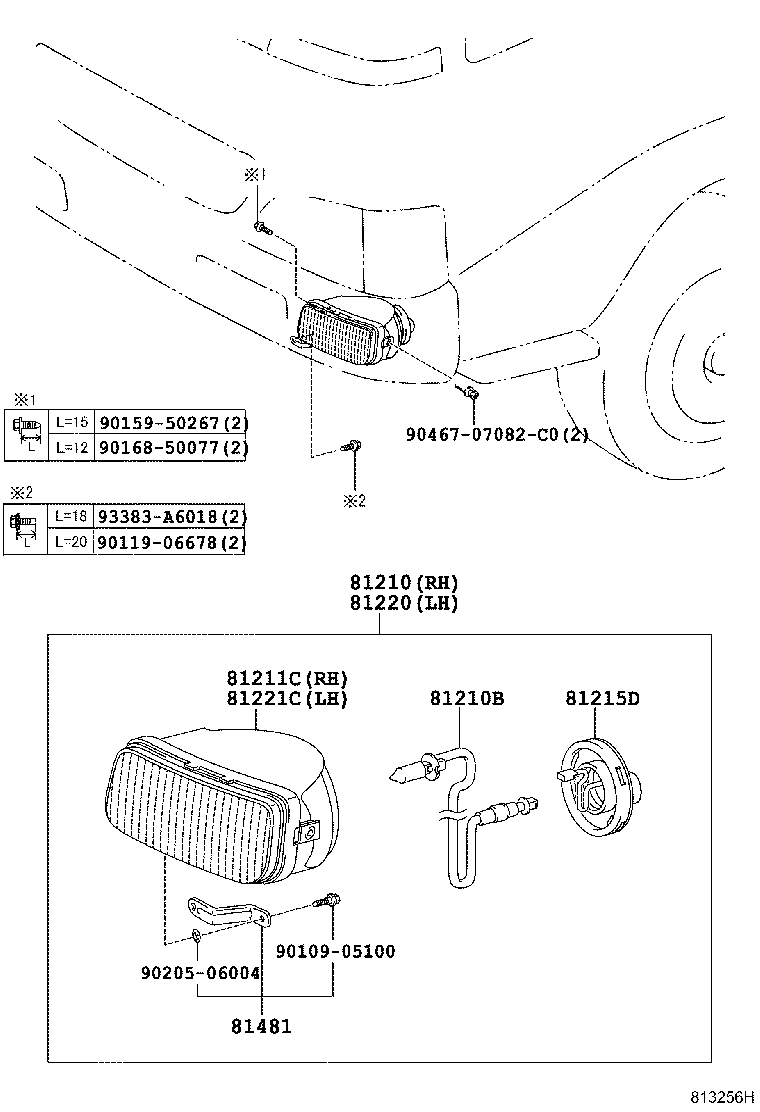

Figure 811750A 811750A 2001-07 → 2005-05 Figure 813256H 813256H 2005-05 → 2012-06 Figure 816007A 816007A 2012-06 → 2016-10 Figure 817710 817710 2016-10 → —

Part groups

PNCDescription
81210 Lamp Assy, Fog
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81215D Fog Lamp Socket Plug Assy
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81481 Bracket, Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
