Toyota Dyna/Toyoace
2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan
Discontinued model
Data version 2016-10

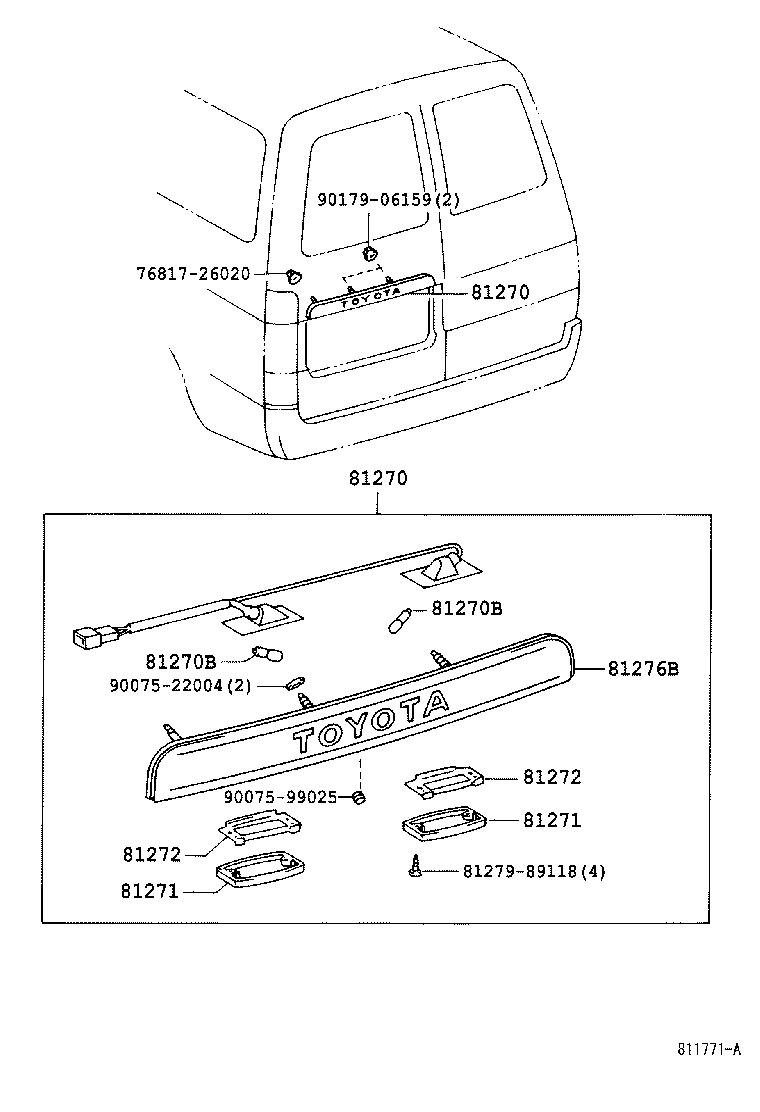

Rear License Plate Lamp
7 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 81270 | Lamp Assy, License Plate |
| 81270B | Bulb (FOR LICENSE PLATE LAMP) |
| 81271 | Lens, License Plate Lamp |
| 81272 | Gasket, License Plate Lamp Lens |
| 81273A | Body, License Plate Lamp |
| 81276B | Cover, License Plate Lamp |
| 81277E | Handle, License Plate Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
