Toyota Dyna/Toyoace

2001-07 → present · chassis KDY2##,LY2##,RZY2##,TRY2## · catalogue 731170 · Japan

Discontinued model Data version 2016-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

66 part groups · 19 illustrations

Illustrations

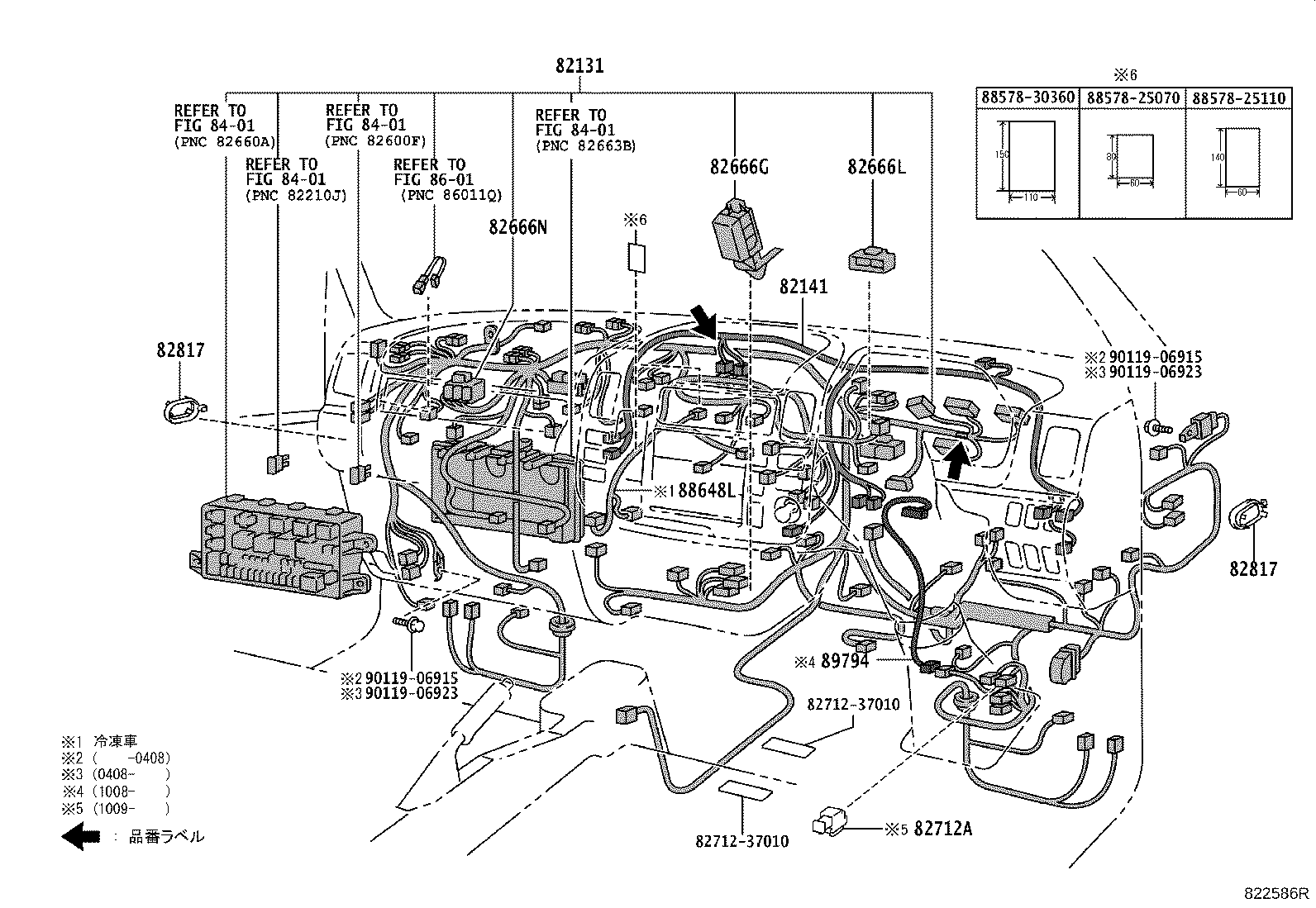

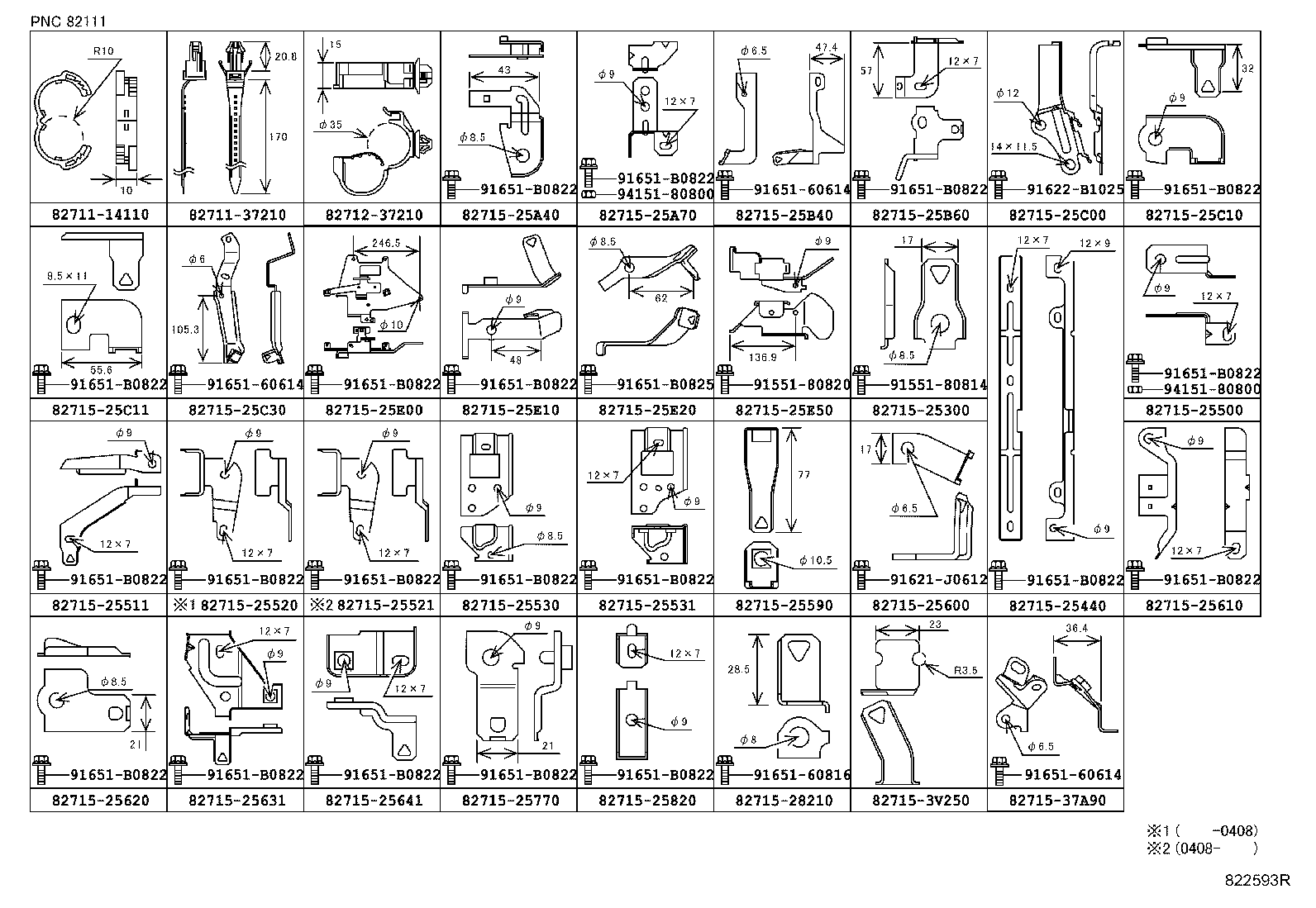

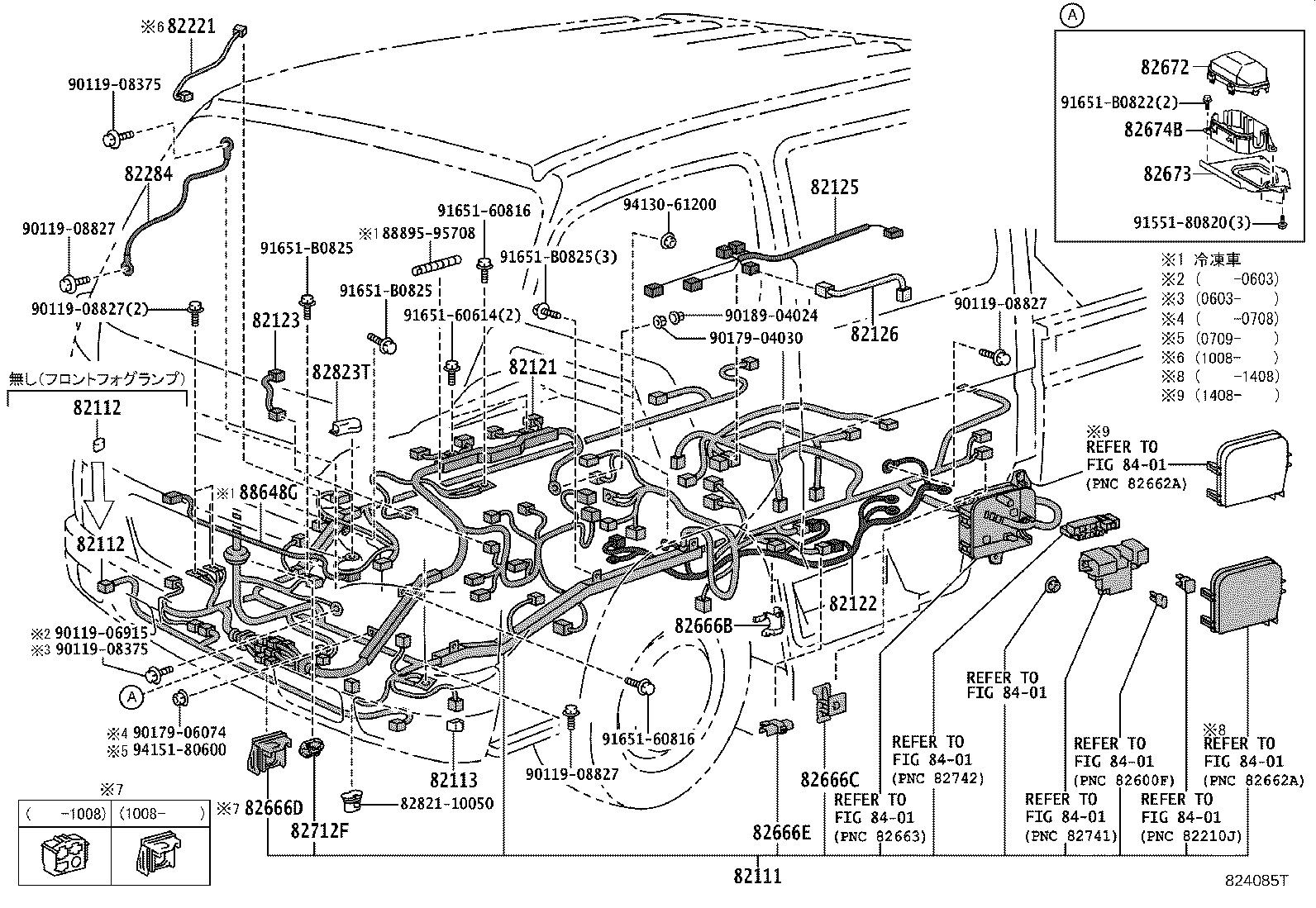

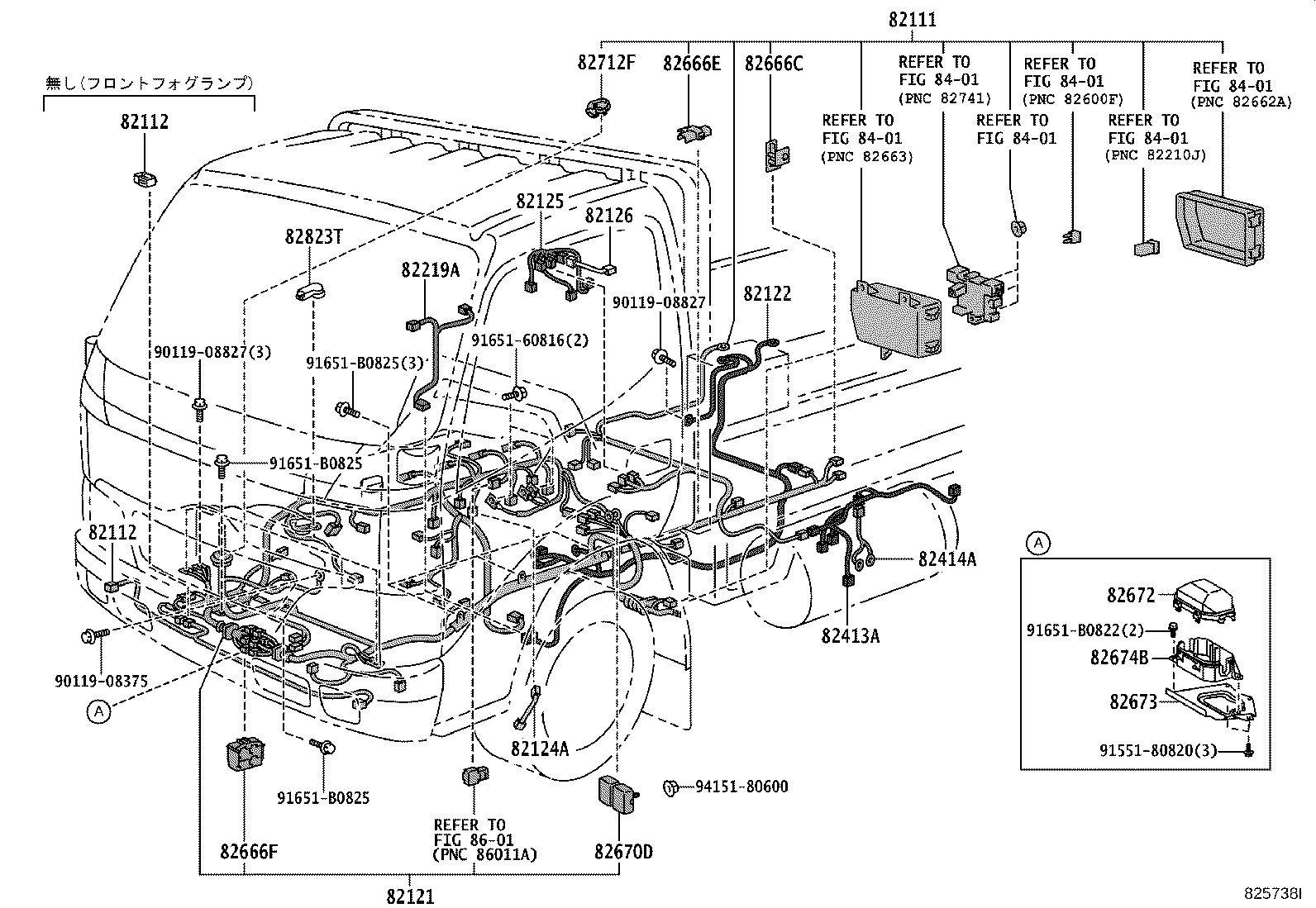

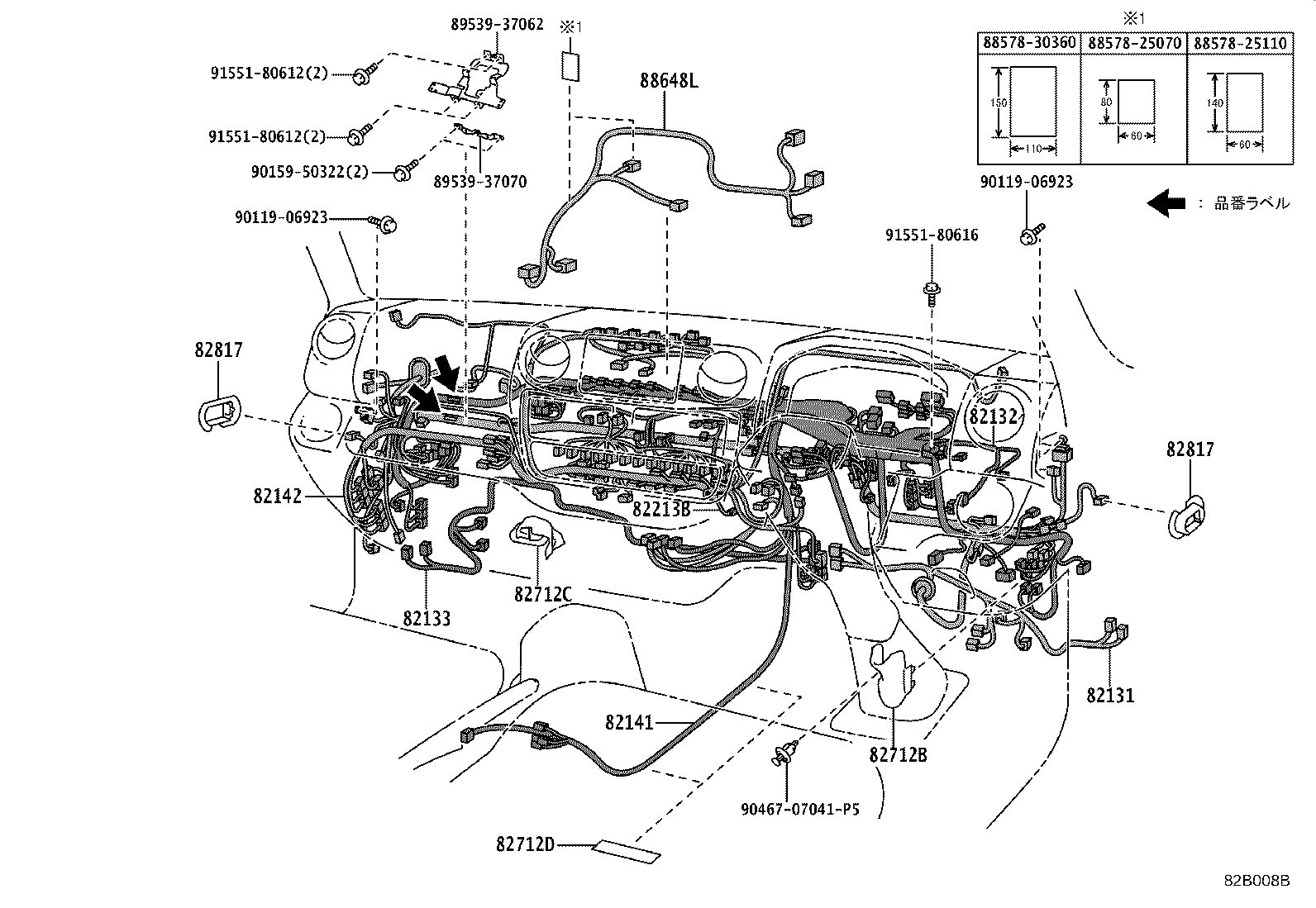

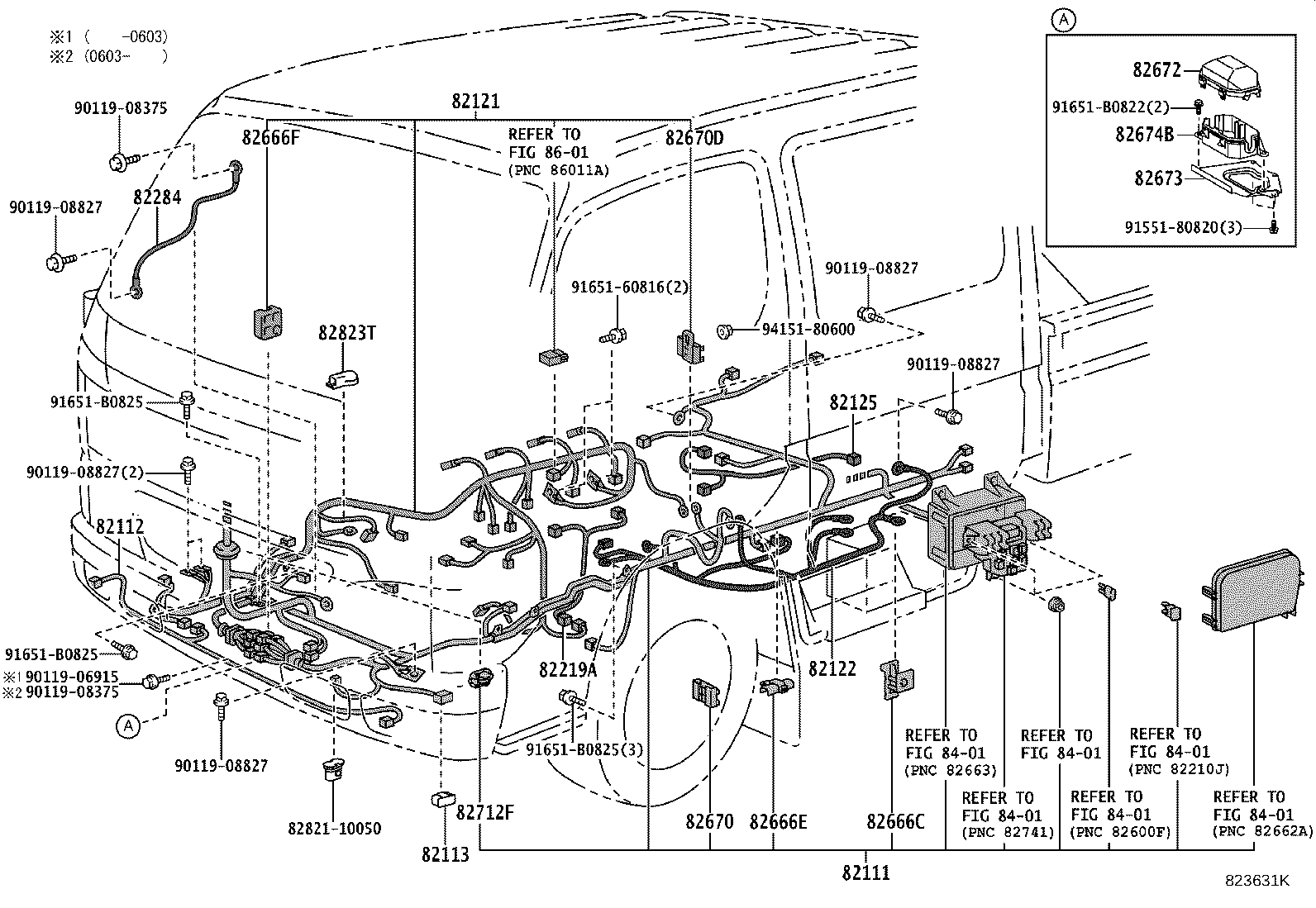

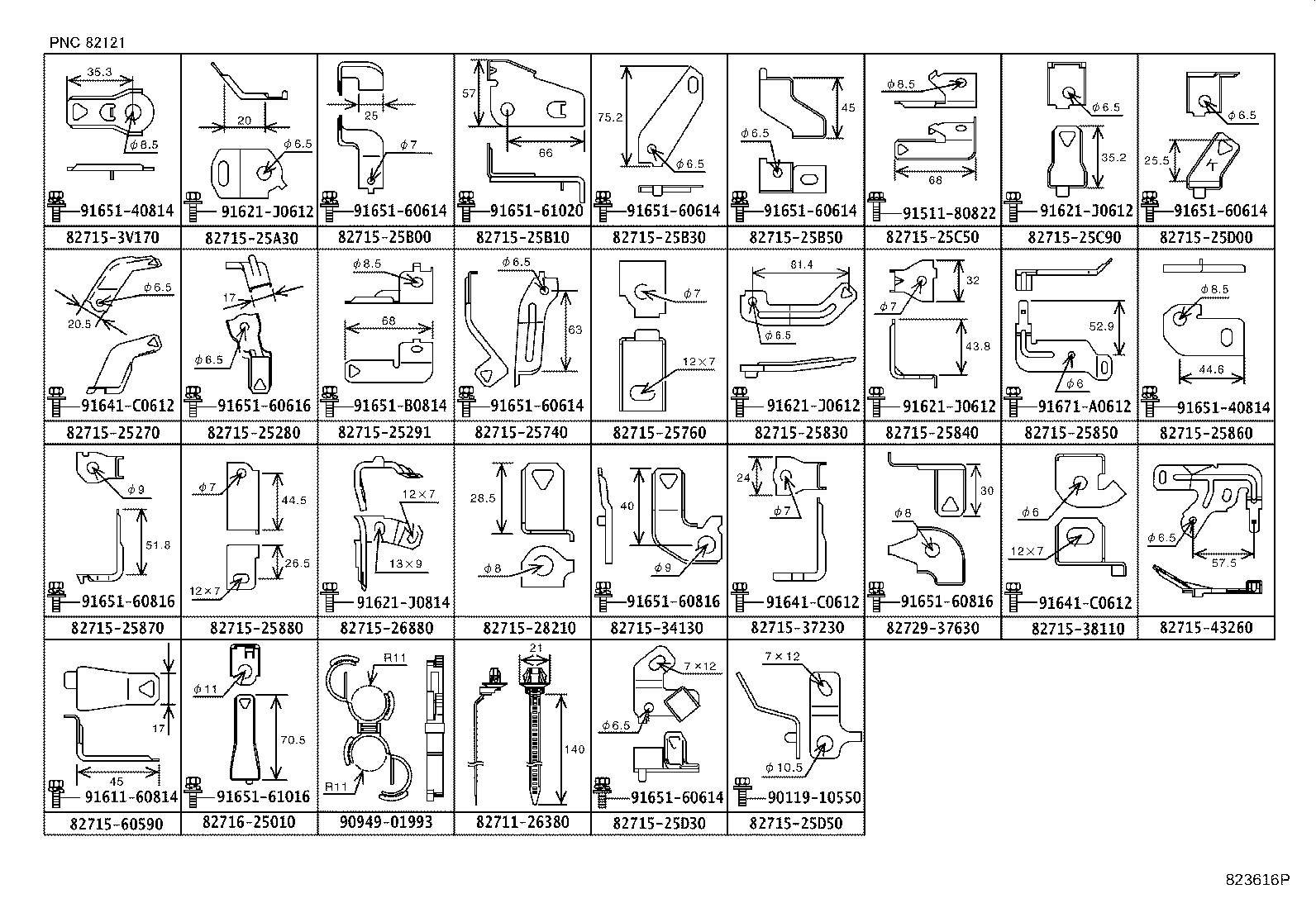

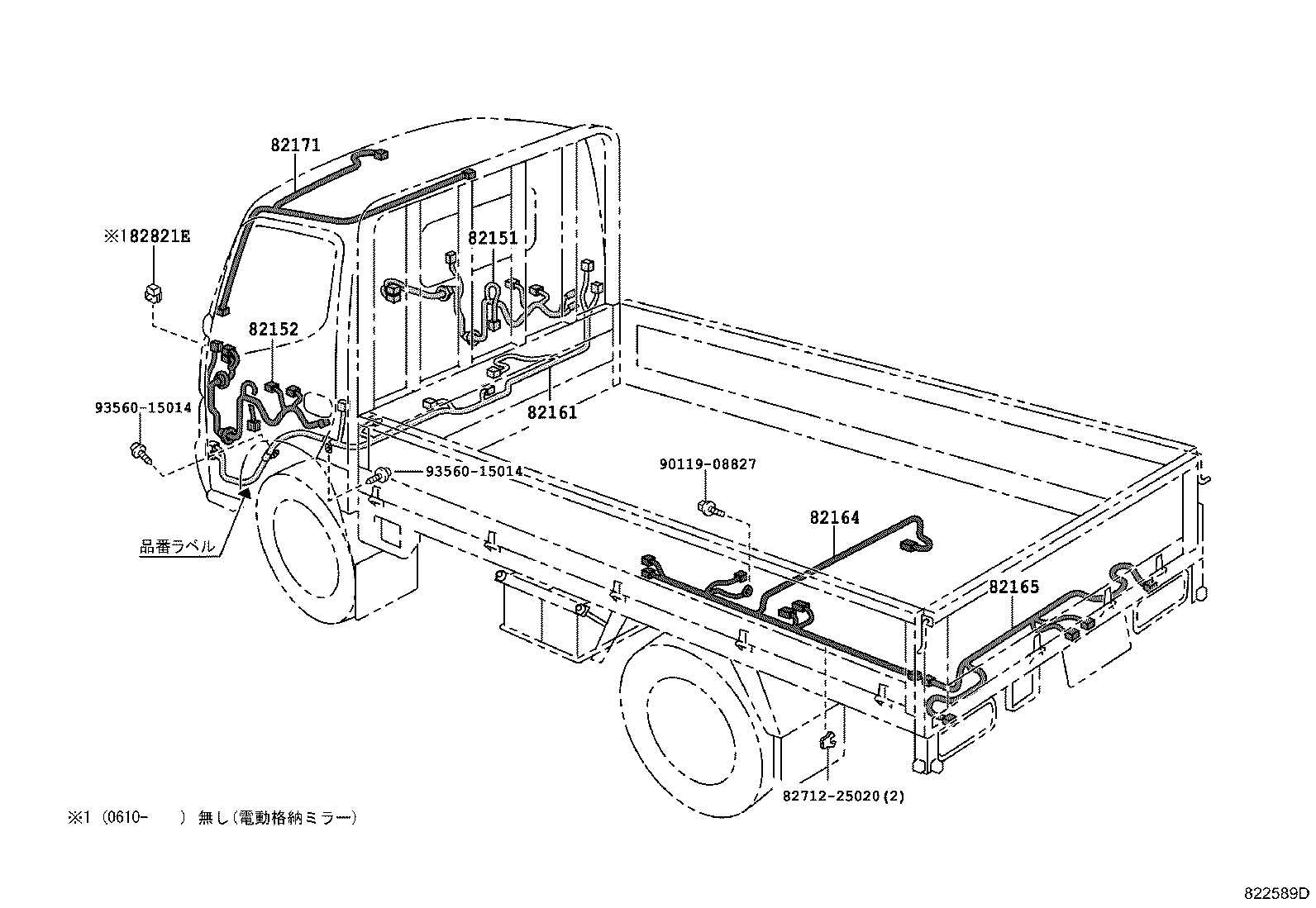

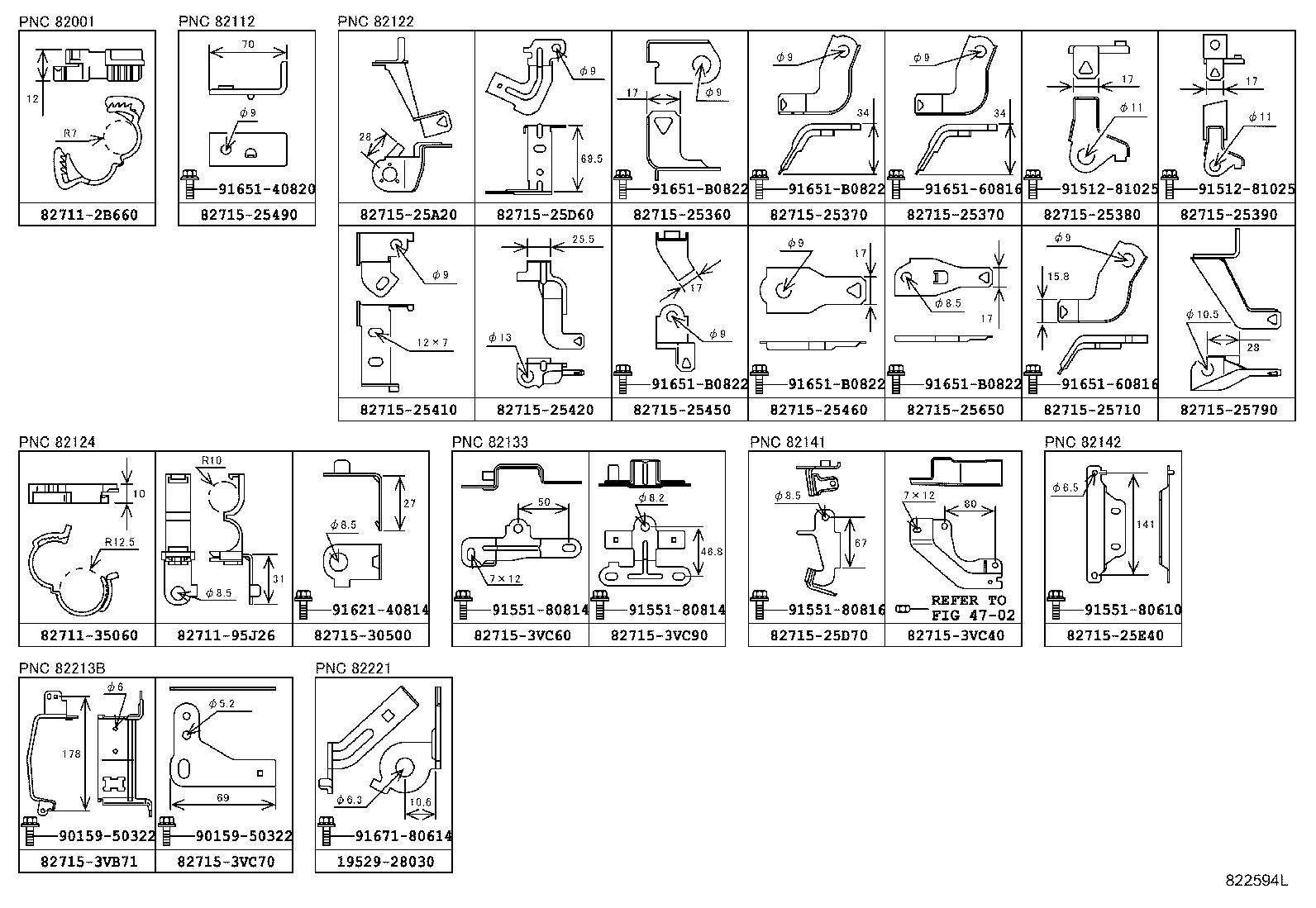

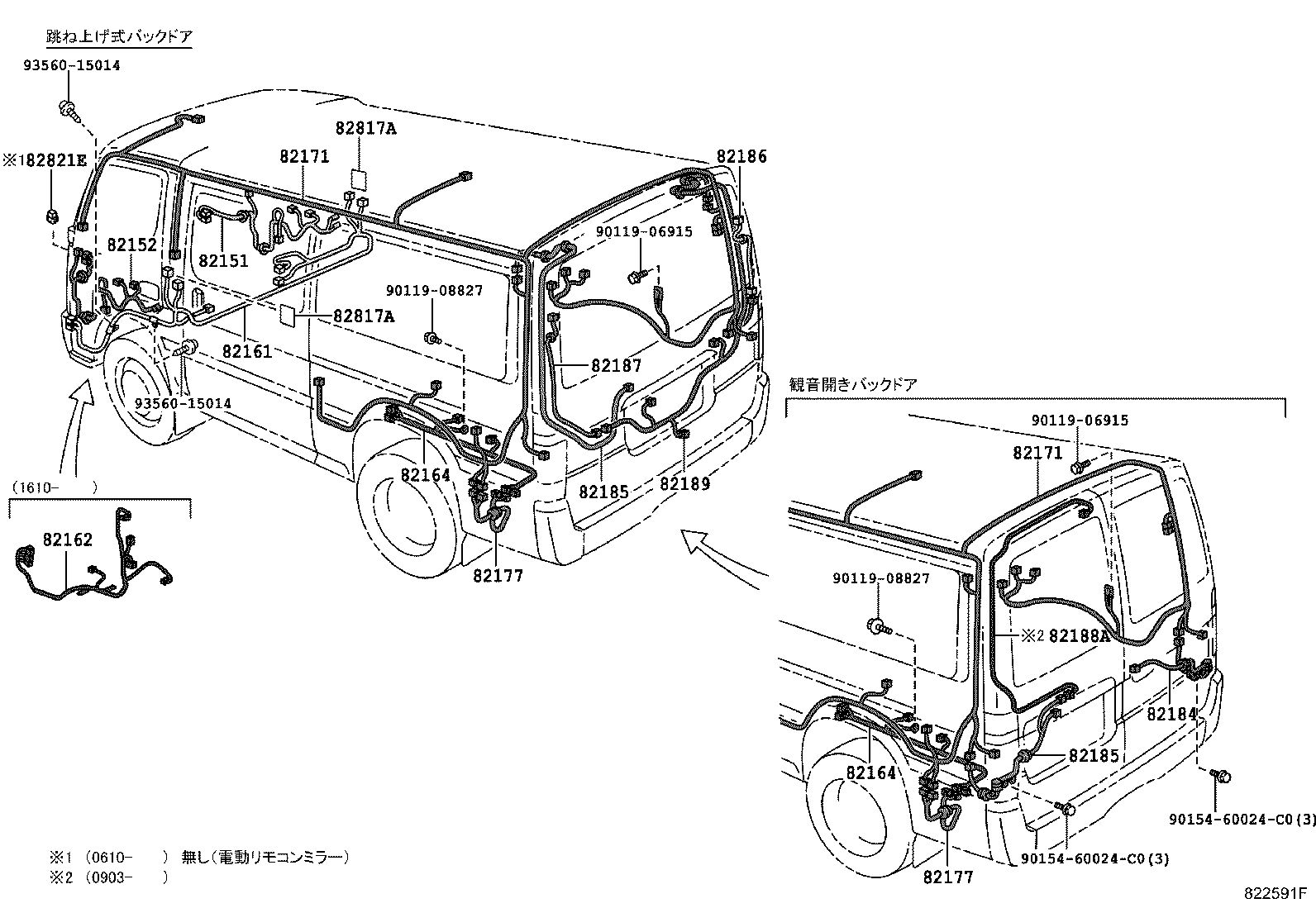

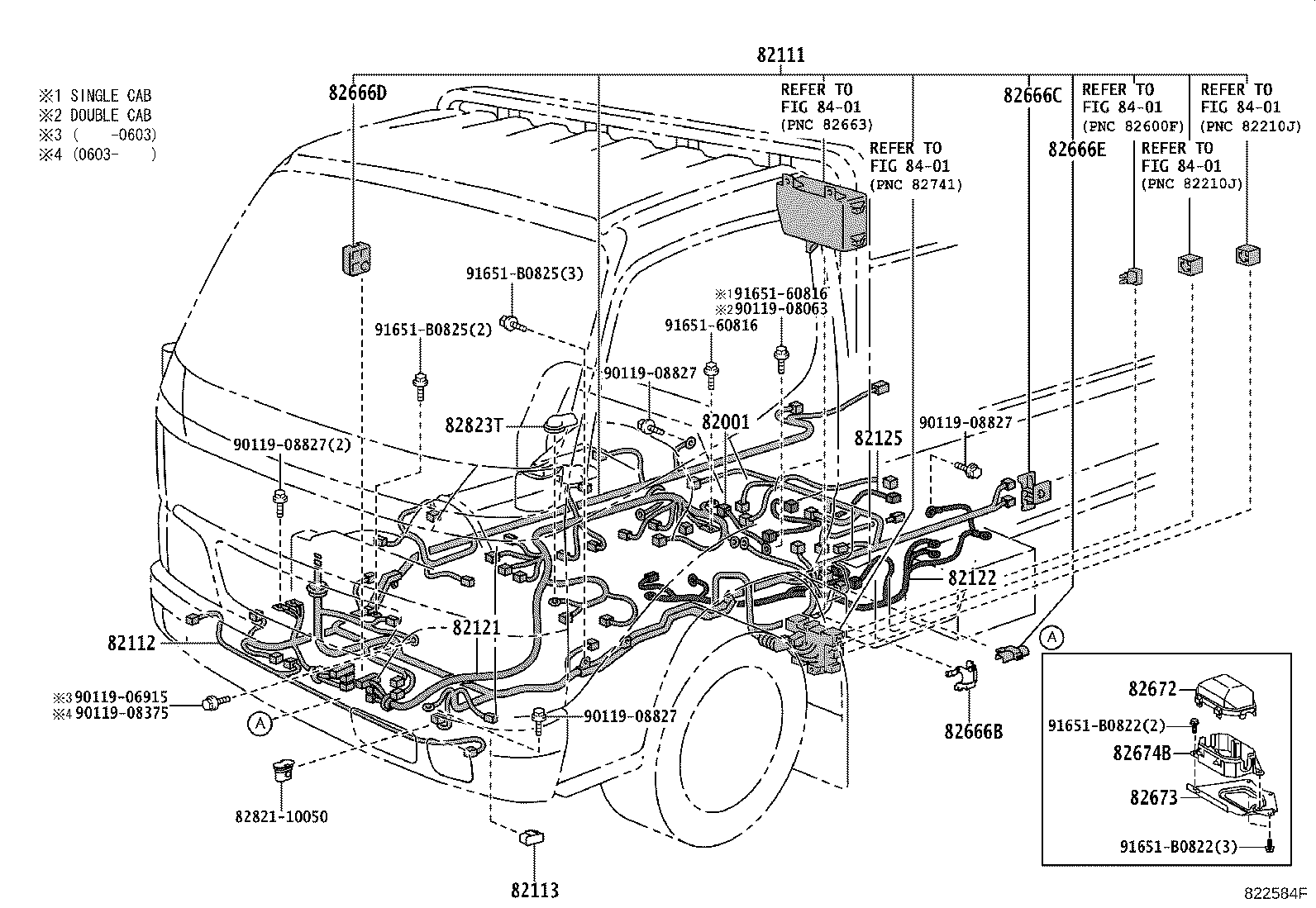

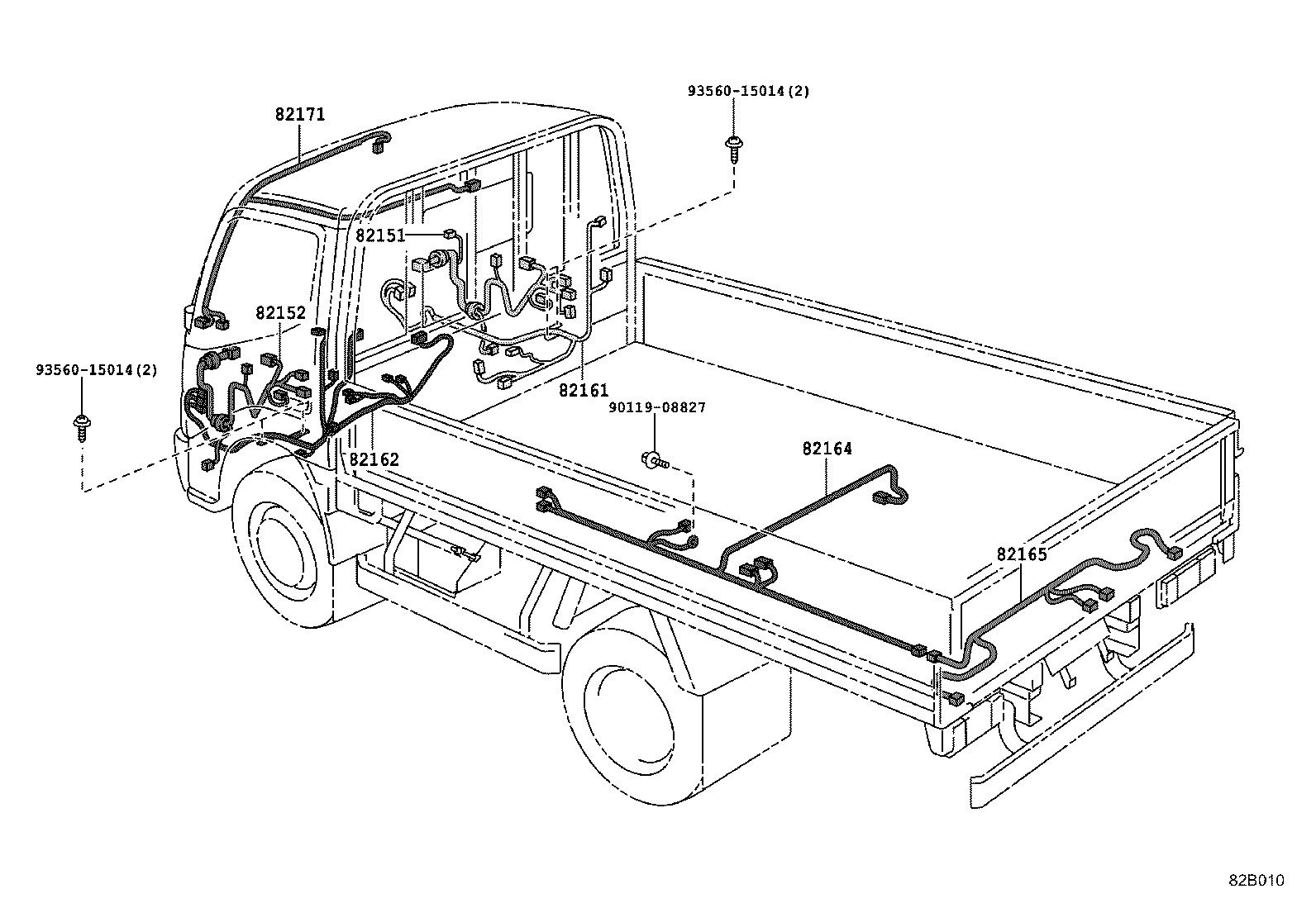

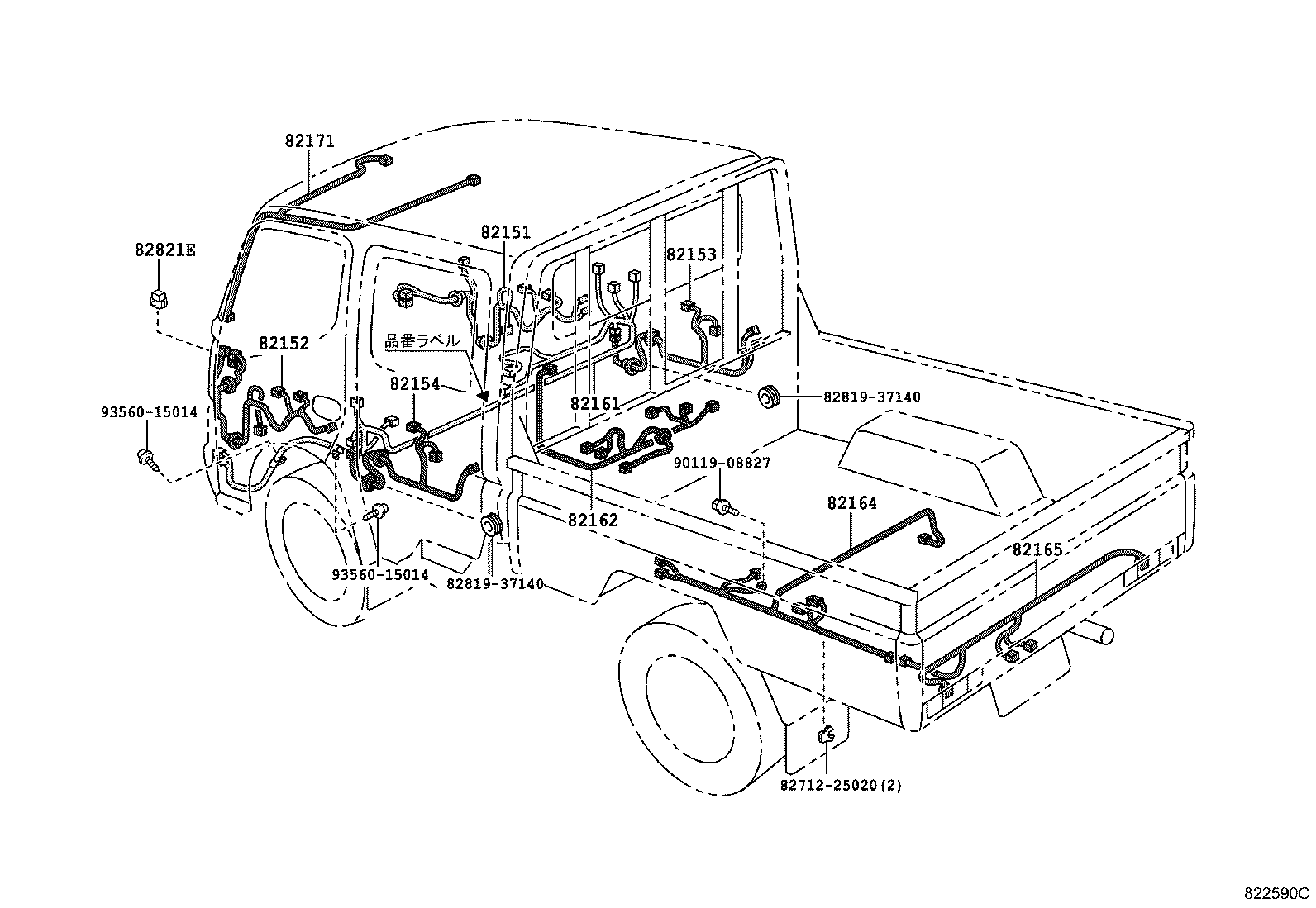

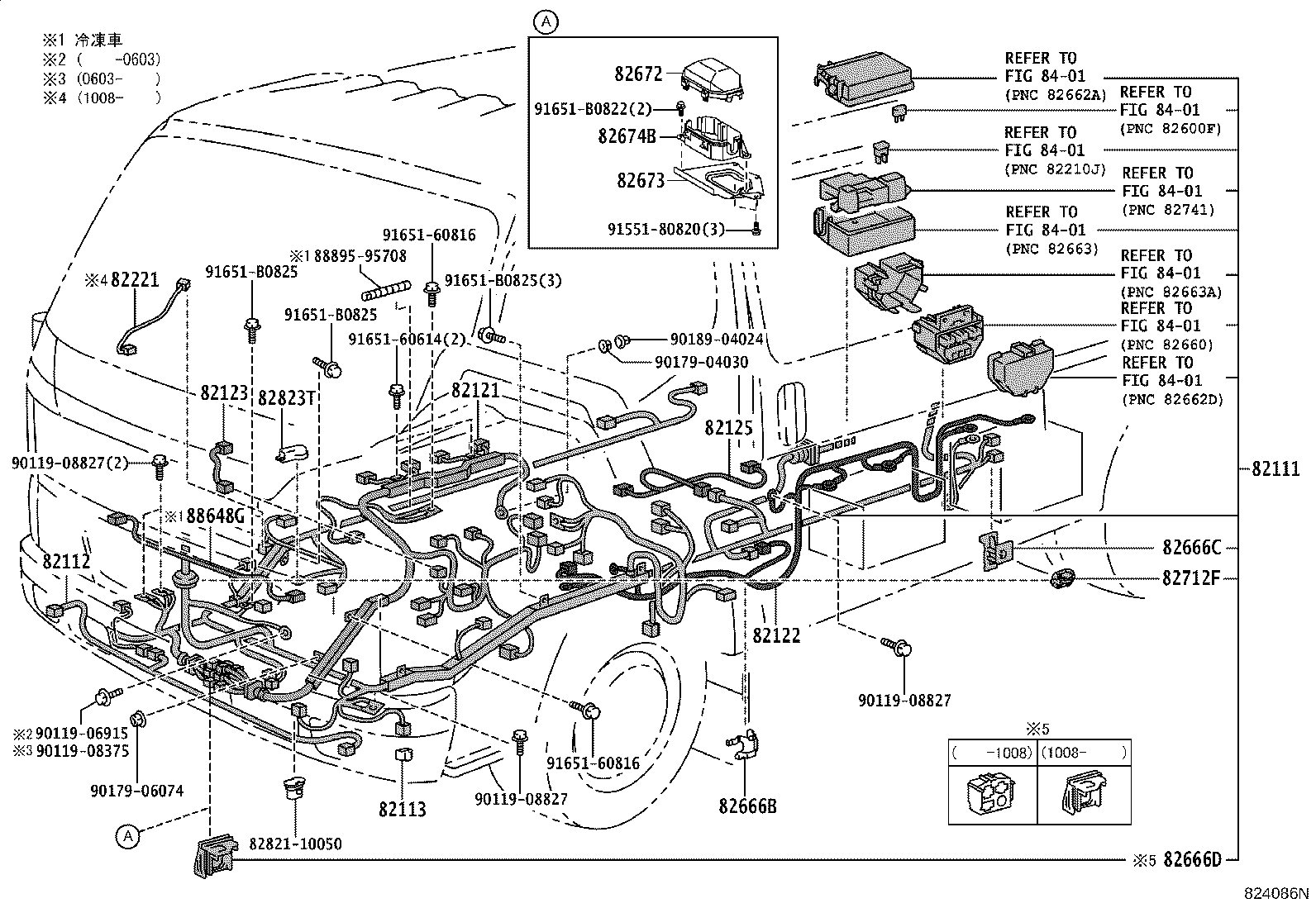

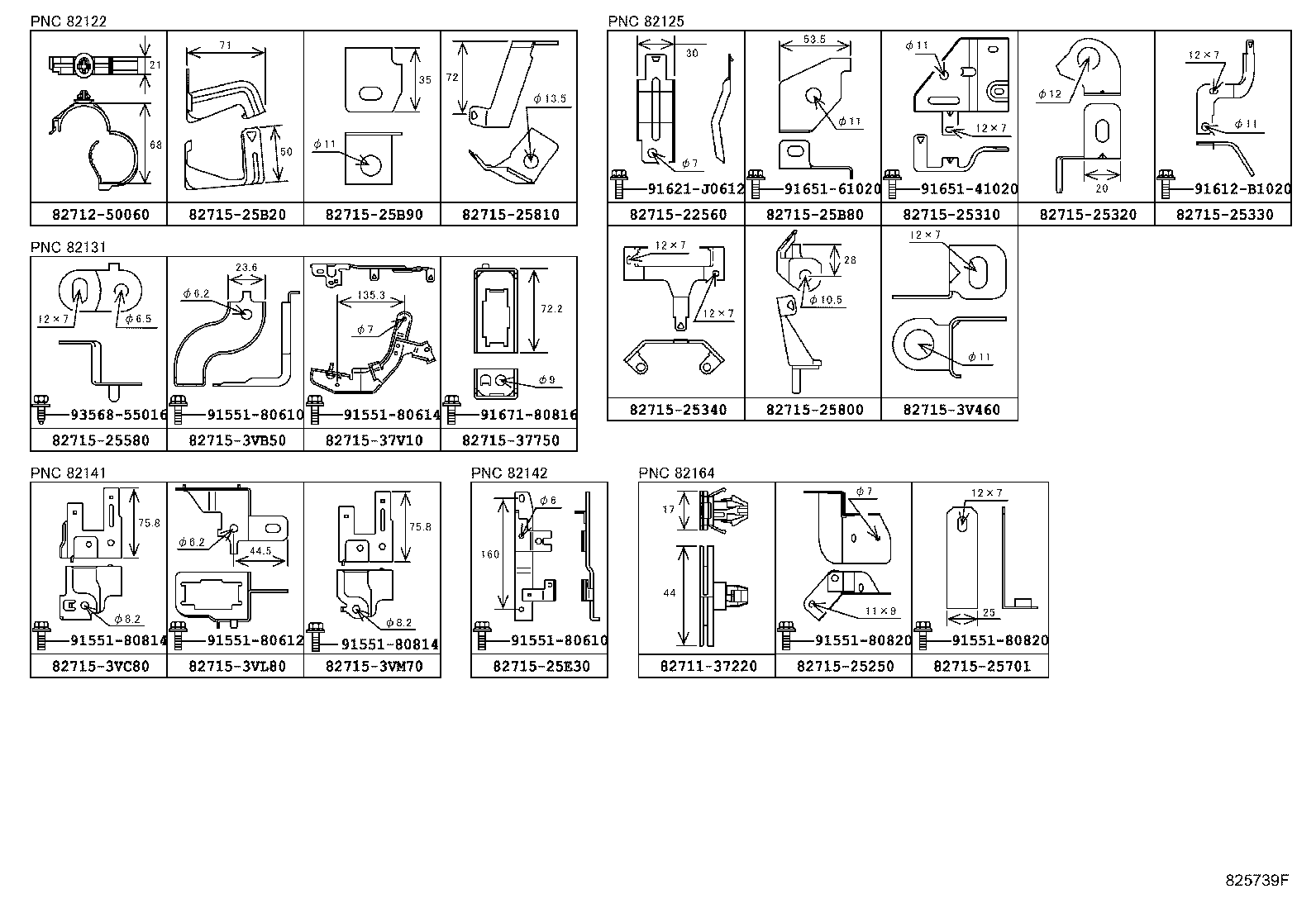

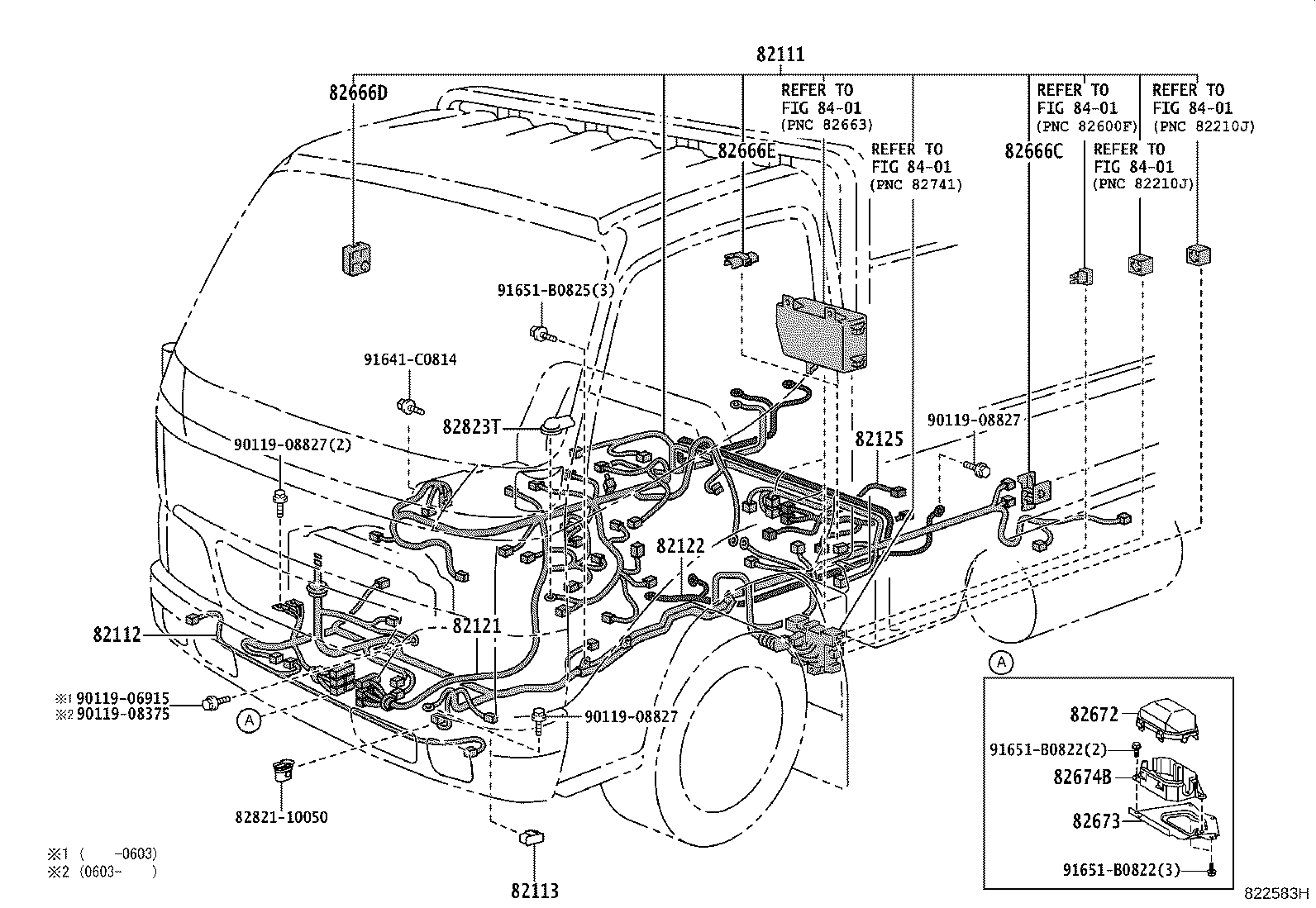

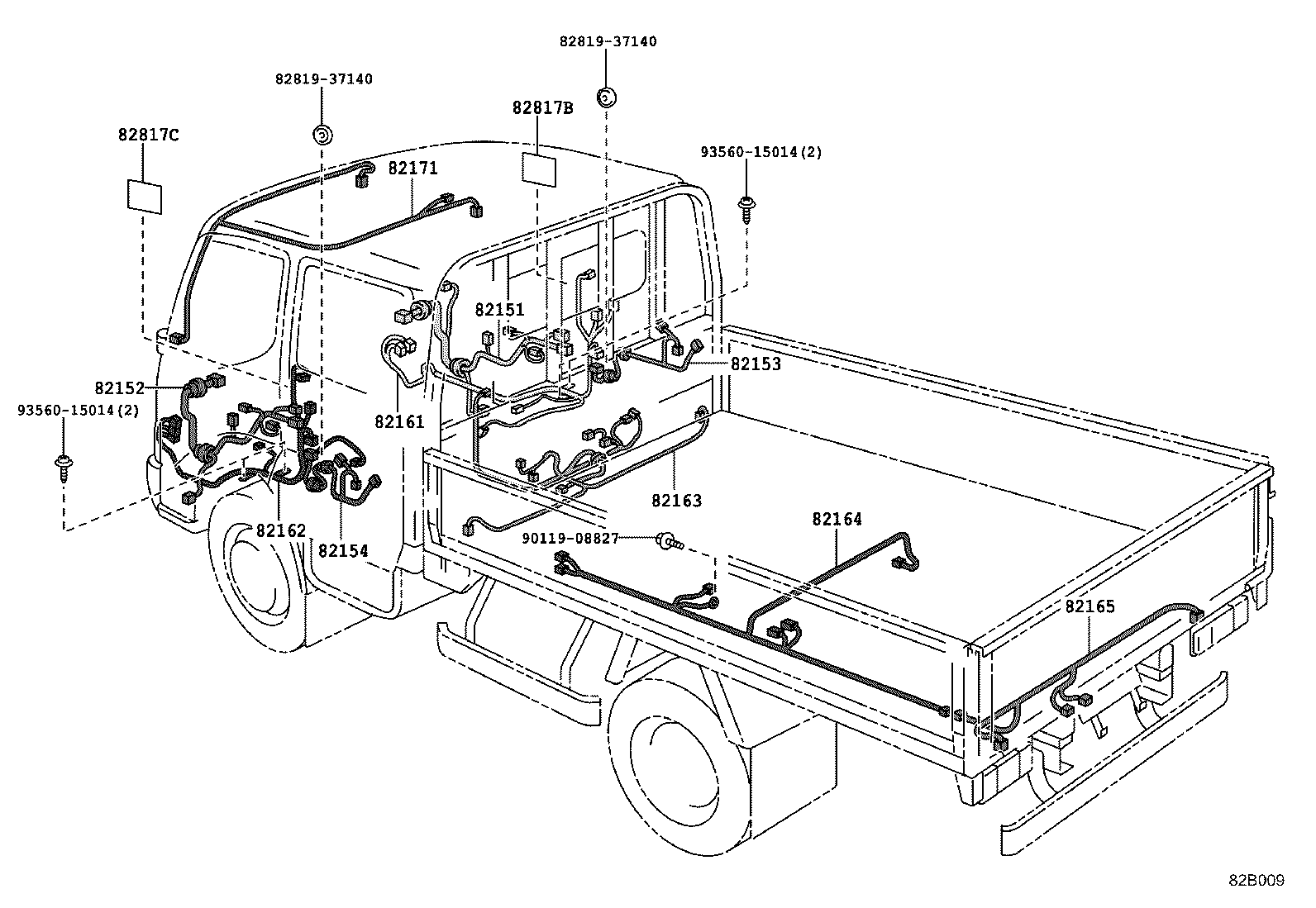

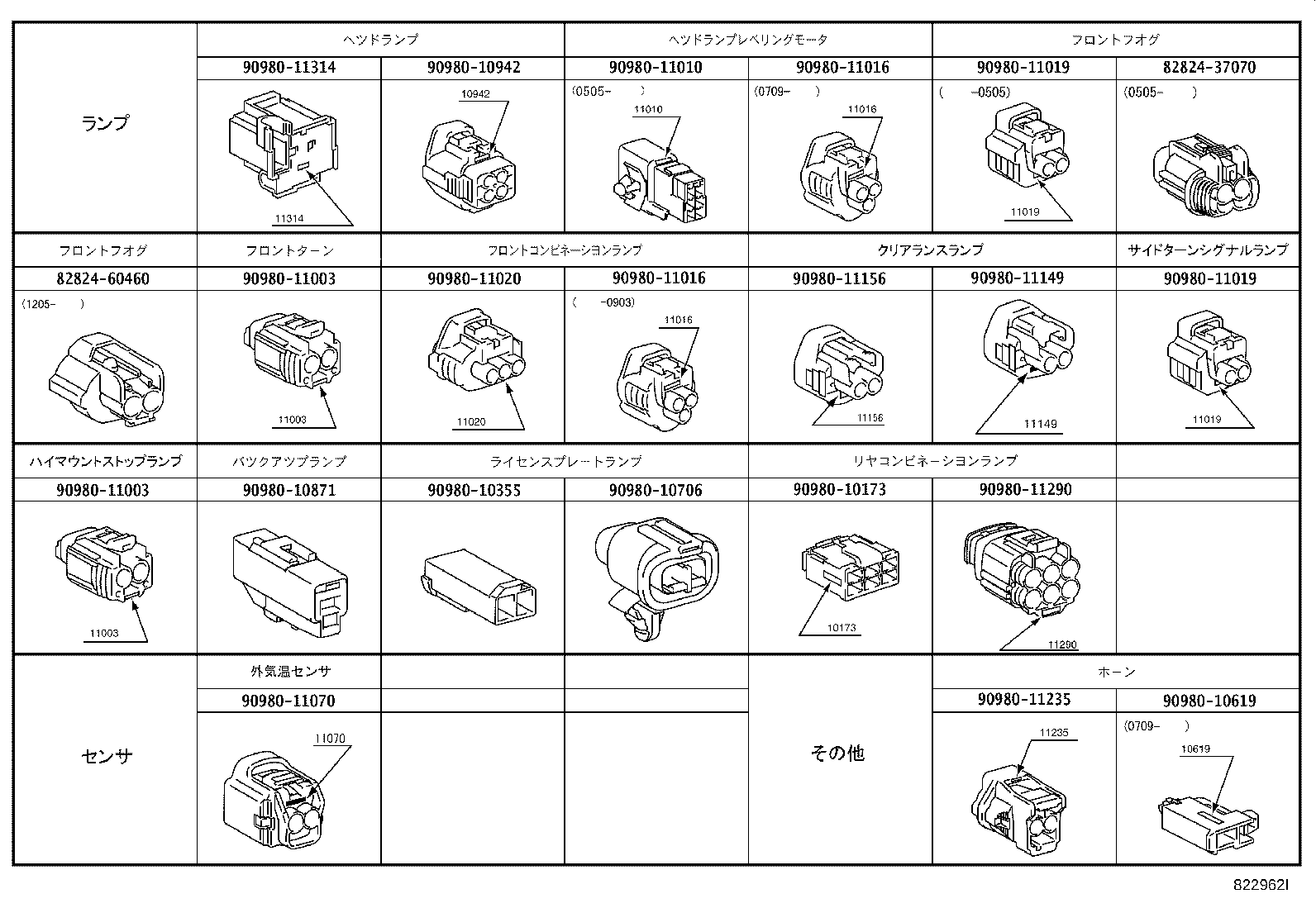

Figure 822582D 822582D 2001-07 → 2004-08 Figure 822583H 822583H 2001-07 → — Figure 822584F 822584F 2001-07 → 2003-08 Figure 823631K 823631K 2003-08 → — Figure 824085T 824085T 2004-08 → — Figure 824086N 824086N 2004-08 → — Figure 825738I 825738I 2007-12 → — Figure 822586R 822586R 2001-07 → 2016-10 Figure 82B008B 82B008B 2016-10 → — Figure 822589D 822589D 2001-07 → 2016-10 Figure 82B010 82B010 2016-10 → — Figure 822590C 822590C 2001-07 → 2016-10 Figure 82B009 82B009 2016-10 → — Figure 822591F 822591F 2001-07 → — Figure 822593R 822593R 2001-07 → — Figure 823616P 823616P 2001-07 → — Figure 822594L 822594L 2001-07 → — Figure 825739F 825739F 2001-07 → — Figure 822962I 822962I 2001-07 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82124A Wire, Engine, NO.5
82125 Wire, Transmission
82126 Wire, Engine
82131 Wire, Cowl
82132 Wire, Cowl, NO.2
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82177 Wire, Rear Body
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82213B Wire, Heater
82219A Wire, Sensor
82221 Wire, Oil Pressure Switch
82284 Wire, Earth
82413A Wire, Fuel Tank
82414A Wire, Fuel Tank, NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82670 Block Assy, Junction, NO.1
82670D Block Assy, Junction,NO.2
82672 Cover, Junktion Block
82673 Bracket, Junction Block
82674B Cover, Junction Block, Lower
82712A Support, Wiring Harness
82712B Support, Wiring Harness
82712C Support, Wiring Harness, NO.1
82712D Support, Wiring Harness
82712F Support, Wiring Harness
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82821E Cover, Connector
82823T Cap, Alternator Terminal
88648G Wire, Air Conditioner
88648L Wire, Air Conditioner
89794 Wire, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
